RZFD Full Automatic High Speed Square Bottom Fruit Paper Bag Making Machine
- Category: >>>
- Supplier: Ruian Lingfeng Machinery Co. Ltd.
Share on (1600328126301):
Product Overview
Description

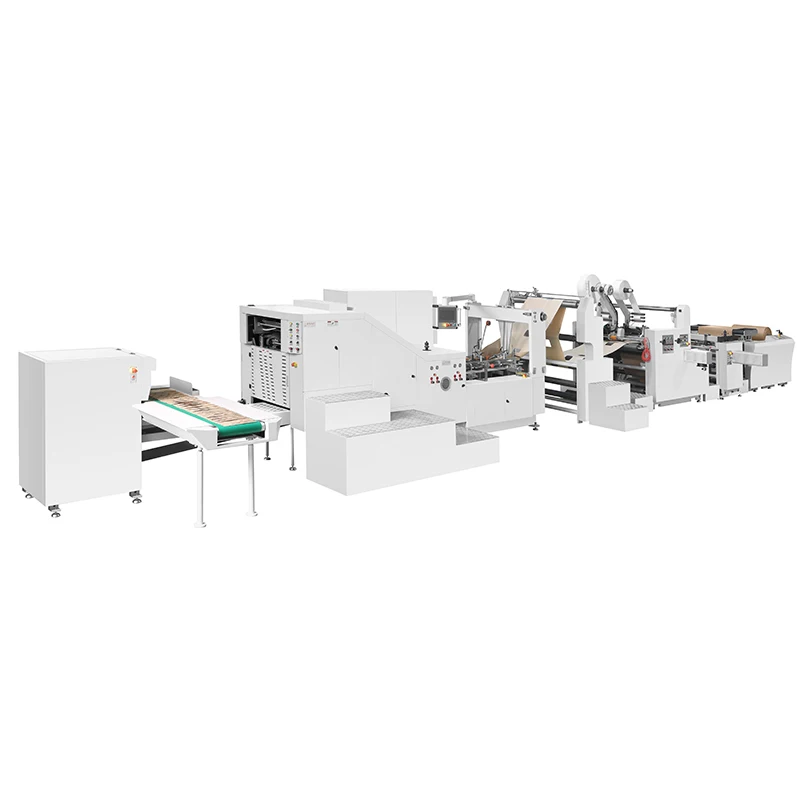

RZFD-330 Full Automatic High Speed Square Bottom Paper Bag Making Machine
Properties and uses:

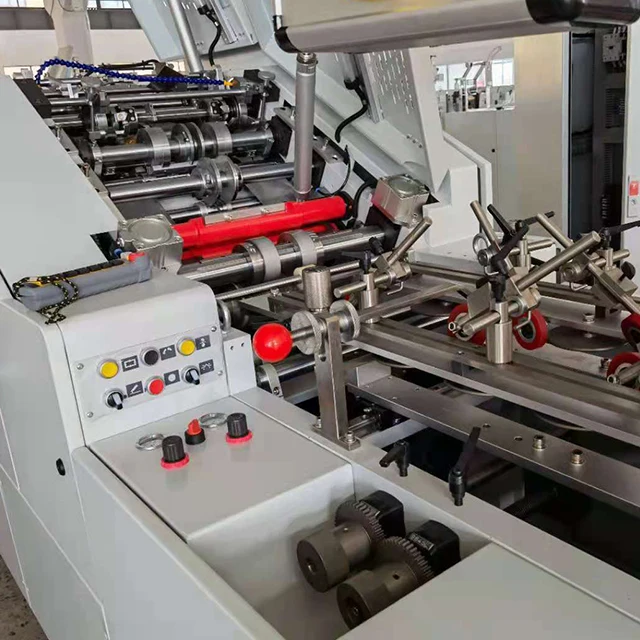

Rolling feed square bottom paper bag making machine, it uses paper roll in blank or printed as raw material. consists of automatic center forward glue, printing tracking, fixed length and cutting, bottom indentation, folding bottom, bottom glue. Bag bottom forming, finished bag collecting one time,The machine is more convenient, more efficient, more stable, can produce a variety of different paper bags, leisure food bags, bread bags, dried fruit bags and so on environmentally friendly paper bag machine equipment.
Main features:
1.Adopt France/SCHNEIDER touch screen human-computer interface, operate and control easily.

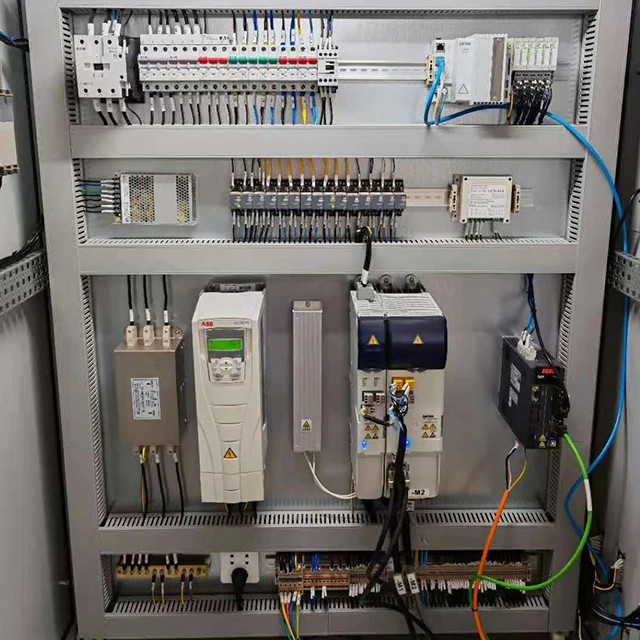

2.Adopt Germany original REXROTH PC control, Integrated with optical fiber, ensure high speed running steadily
3.Germany original REXROTH servo motor and German original SICK Photoelectric eye correction, tracking printing bag accurately

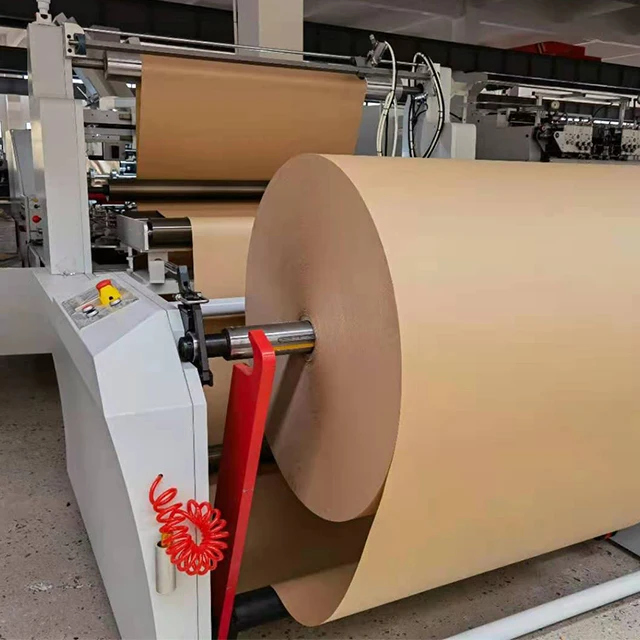

4.Raw material load adopt pneumatic cylinder up and down structure, unwinding adopt auto tension control
5.Raw material unwinding EPC adopt italy SELECTRA, reduce adjustment time
Main technical parameters:

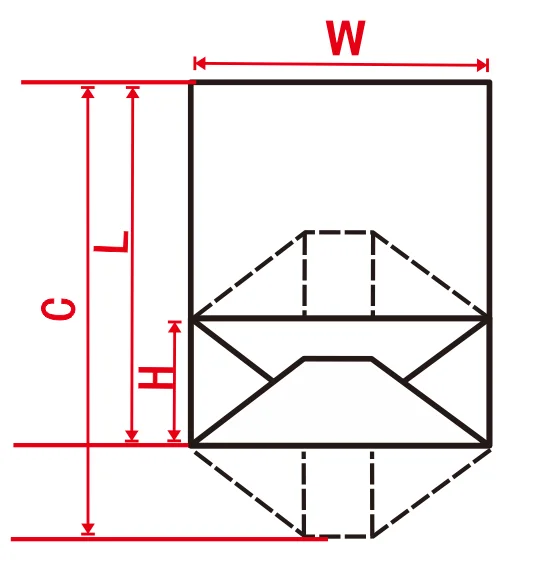

Model | RZFD-330 |
|
Paper Bag Length | 270-530mm | |
Paper Bag Width | 120-330mm | |
Paper bag Bottom width | 60-180mm | |
Paper Thickness | 60-150gsm | |
Machine Speed | 30-220pcs/min
| |
Paper bag speed | 30-180pcs/min | |
Paper roll width | 380-1050mm | |
Roll paper diameter | Φ1300mm | |
Inner diameter of paper | Φ76mm | |
Working Air Current | More than 0.12m³/ minutes, 0.5-0.8MPa | |
Machine power | 380V3(phase)4(wire) 15kw | |
Total weight | 8500kg | |
Machine Dimesion | 10000x3700x2200mm | |

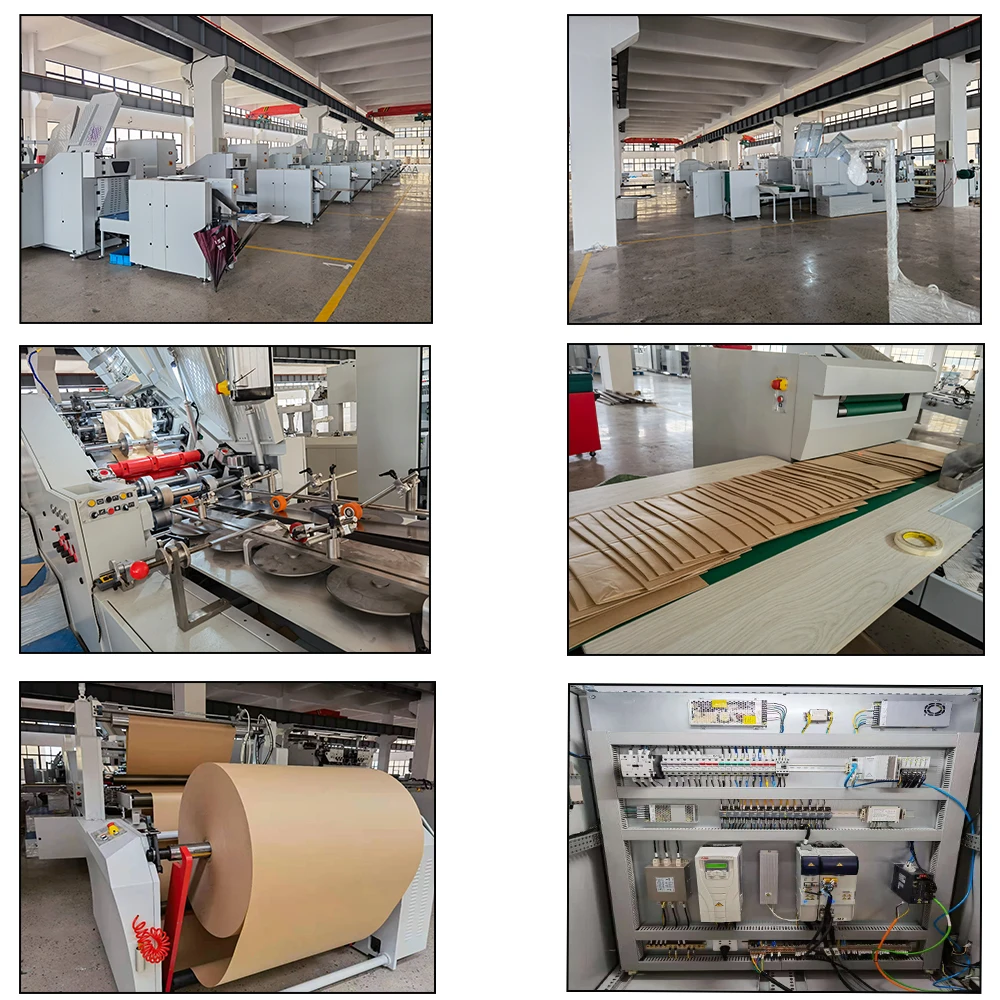

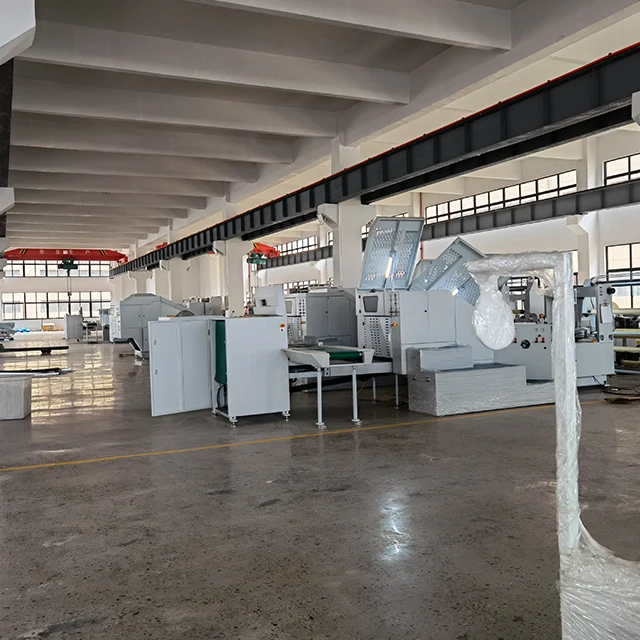

Machine Finished Picture:
PACKAGING:
Company Information
1. 20 YEARS TECHNOLOGY EXPERIENCE AND PROFESSIONAL WORKER TEAM
2.FOCUS ON PAPER ROTARY CUTTING MACHINE, CROSS SHEET CUTTING MACHINE, SLITTING REWINDING MACHINE,REWINDING MACHINE,PAPER BOX FORMING MACHINE,PAPER CUP MAKING MACHINE,PAPER BAG MAKING MACHINE ETC
3.PROVIDE PROFESSIONAL 24H TECHNOLOGY SUPPORT ONLINE
4. 20DAYS DELIVERY TIME FOR STANDARD MACHINE ORDER
5.SUPPORT OEM SERVICE,PROFESSIONAL ENGINEER TECHNOLOGY SUPPORT.

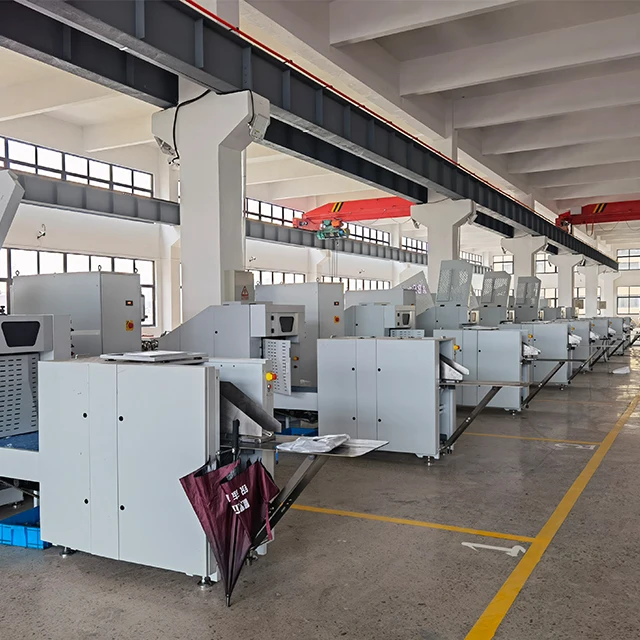

6.OWNNER WORKSHOP
FAQ
1.Q:Where is your factory? How can I get there?
A: We are located in Ruian City Wenzhou, Zhejiang Province.
To Wenzhou Longwan airport by Air, from Shanghai is about 45mins, from Guangzhou is about 1hr 50mins and from Hongkong is about
2hrs. We will pick up you in the airport.
2.Q:Can your machine be customized?
A: Your better improvement suggestions are highly appreciated. Almost all of our products can be customized, including the sizes,
color, logo, package and so on.
3.Q :What's the OLD(order lead time)?
A: For our standard model machines is about 30days after receiving your deposit.
4. Q: How about your package?
A: Our machines are well wrapped by plastic film to be water proof first, then loading and fixing in a plywood case. If by
FCL(full container loading) we might use the wooden case.
