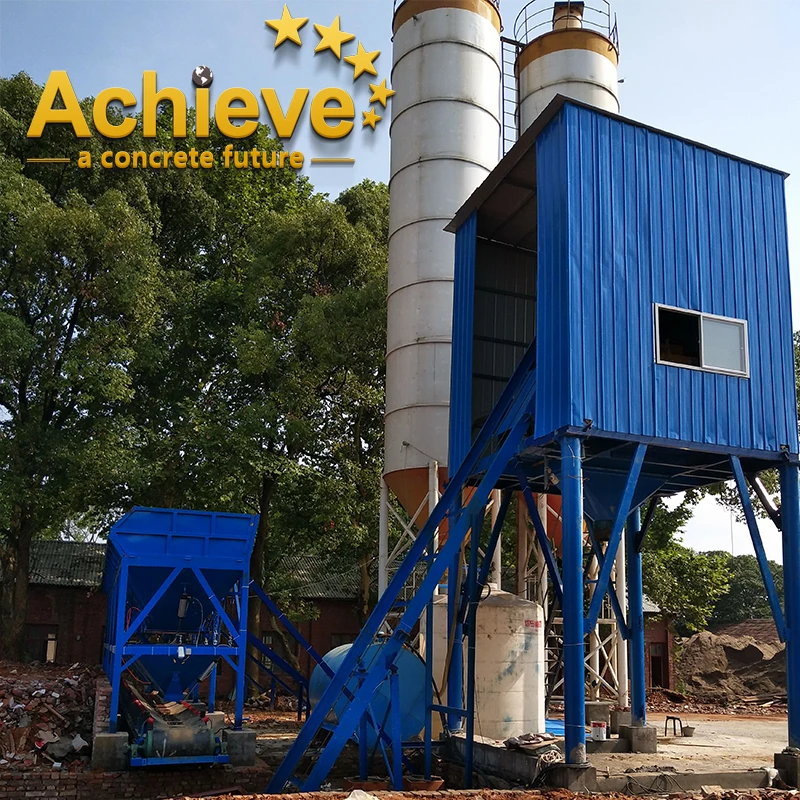

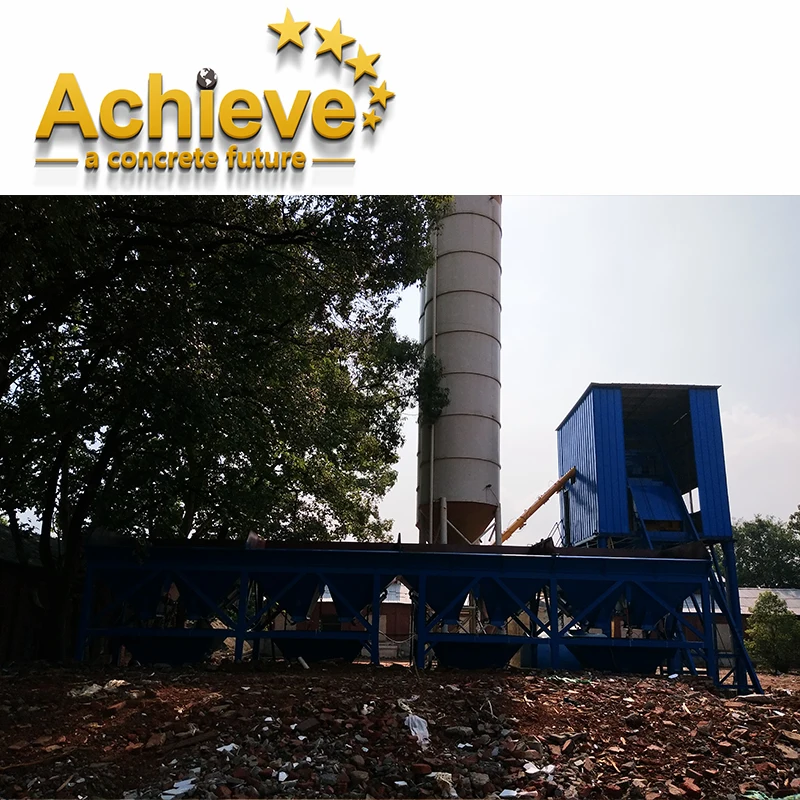

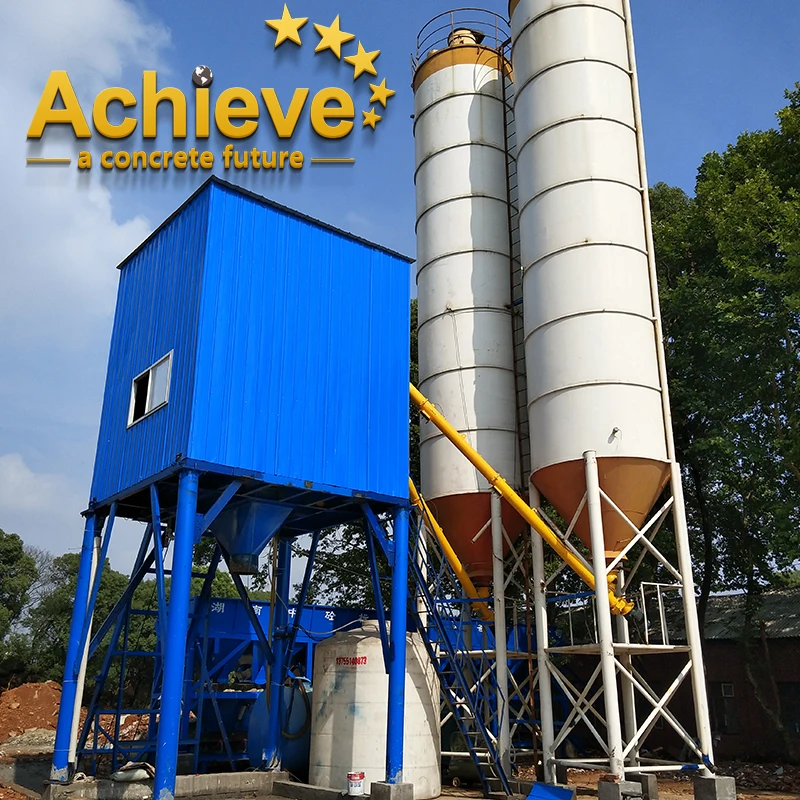

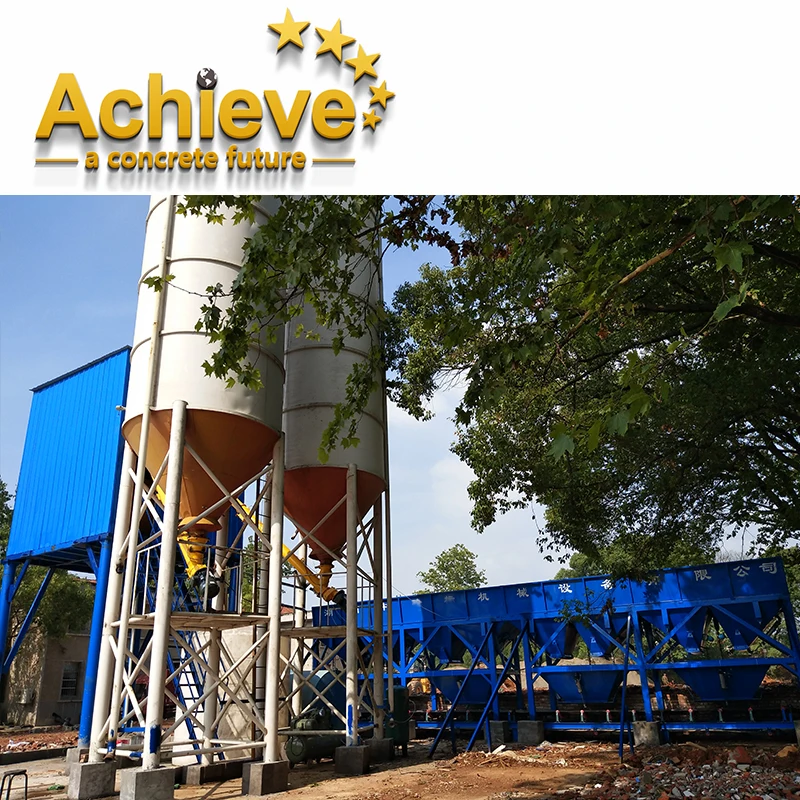

75 m3 per hour HZS75 ready mixed concrete batching plant
- Category: >>>
- Supplier: Achieve Innovations (changsha) Co. Ltd.
Share on (1600328254292):
Product Overview
Description
| 1 | Mixer | 1. Model:JS1500 2. type:Double horizontal shaft 3. . Motor Power:30kw×2 4. Mixing Blade, liner plate:wear resistant material |
| 2 | electrical control system | The electrical control system consists of computer host, monitor, cabinet, printer, communication cable, weighing instrument, bridge frame, etc. |
| 3 | Lift system | The aggregate lifting system adopts the bucket lift system |
| 4 | aggregate-weighing system | Aggregate weighing system consists of: bone silo, rack, weighing hopper, aggregate conveyor, sensor, etc.1,aggregate bin (1)capacity:15m3×4 (2)discharge door:8sets (3) air cylinder:SC100×350 2,weighing hopper (1)capacity:1.2m3×4 (2)measuring type:cumulative measure (3)sensor:2000kg×4 3,belt conveyor (1)belt model:800mm (2)belt speed:1.6m/s 4, rolling power:11kw 5,vibrator:0.5KW*2 |
| 5 | cement-weighing system, powder-weighing system, Water weighing system,
Liquid admixture measurement system | weighing system consists of: weighing hopper, pneumatic butterfly valve and sensor etc. |
| 6 | Air system | Pneumatic system consists of air compressor, cylinder, solenoid valve and gas circuit element. |
| 7 | Screw conveyer | Cement screw conveyer, powder and powder admixture screw conveyer. (1)model:Φ219,Φ273 (2)number:2 sets (3)delivery capacity:65t/h |
| 8 | Powder silo | capacity:100T*2 |
Achieve Innovations (Changsha) Co.,Ltd.
♥. A leading Supplier in the Construction Machinery Industry for Premium quality China-made Products
♥. Specializing in Concrete Machinery, Used & Recondition, Tailor-made Equipment & Parts
♥. We are a professional team, over 10 years experience in this industry.
♥. Achieve batching plant factory focused on the domestic market and sells more than 200 sets of batching plants in the local market every year. It has participated in many major construction projects in China, and ranked top five in sales of the batching plant,it is the largest buyer of SICOMA mixer, which is the domestic first-class mixer brand. Chinese customers have a better understanding of Chinese products,The huge sales in China help us accumulated rich experience in the production and quality of our batching plant, and the large procurement also help us reduced the procurement costs. Now, with the professional international trade ability of the Achieve overseas team, Achieve batching plant has been exported to more than 10 countries in
Southeast Asia, Central Asia and Africa.In the future, Achieve batching plant will serve more countries and customers.
