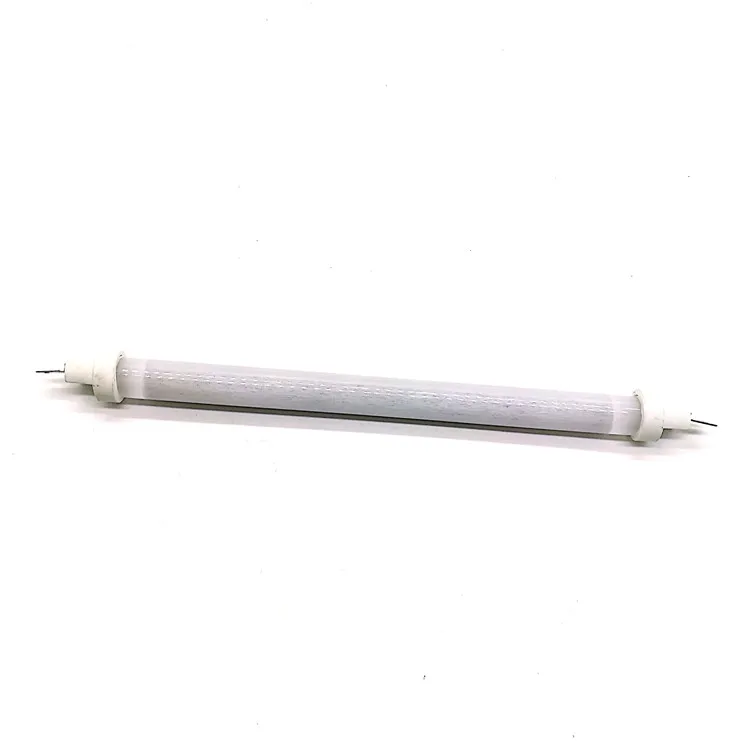

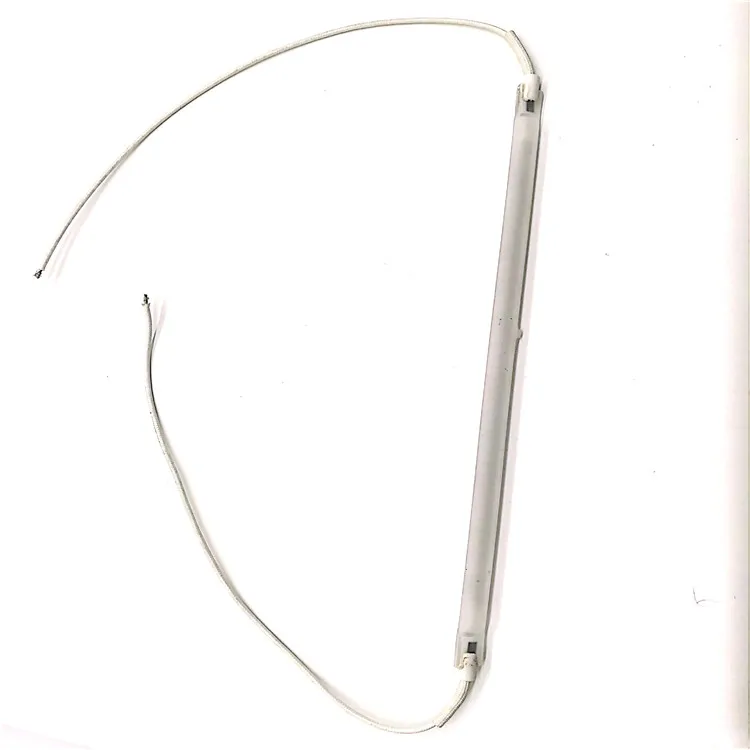

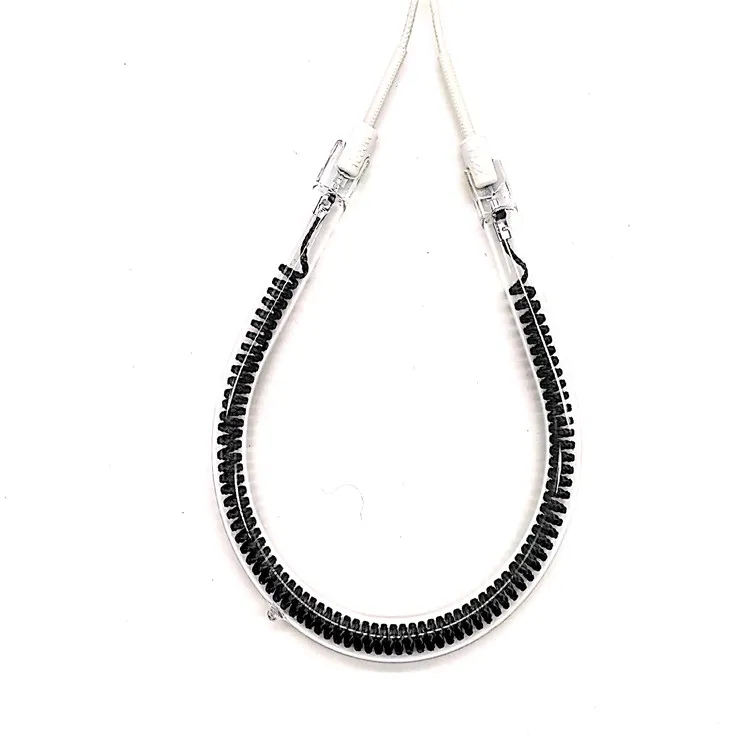

500w halogen quartz heating lamp tube
- Category: >>>
- Supplier: Yangzhou Tuanrui Electric Co. Ltd.
Share on (1600328406729):
Product Overview
Description
Detailed Images
Product Description
General introduction of halogen quartz tube
provides infrared energy with a fast heat up and cool down time while creating temperatures ranging from 1000 °F (537°C) up to 2000°F (1093°C).Depending on the design, our elements can reach full output in as little as 30 seconds and typically cool down to 50 percent output in less than 15 seconds. The quartz element is ideal for applications where process stoppages are anticipated or a quick heat up or cool down is necessary.

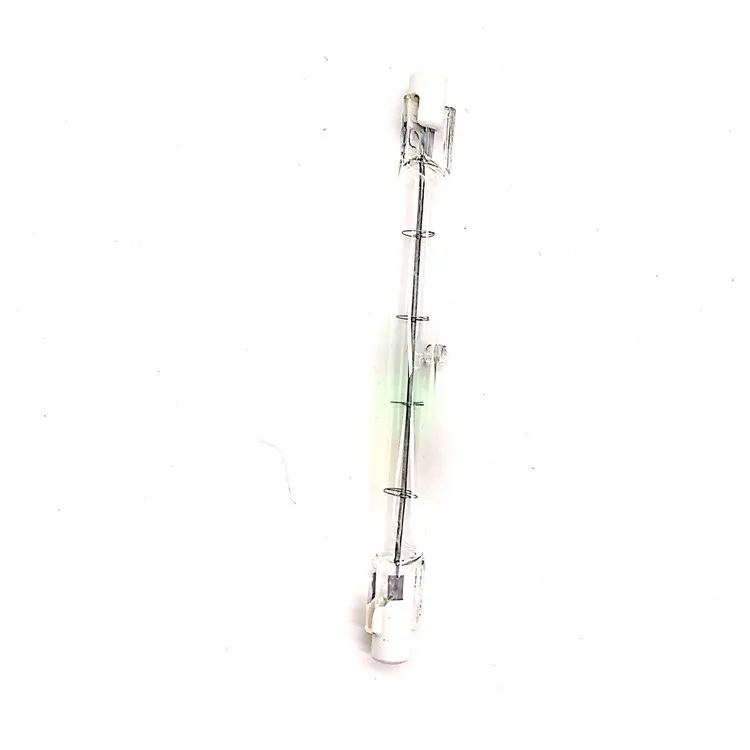

Specification of Halogen Quartz Tube Shot wave quartz lamp used with the circle of tungsten wire to radiator, closed in quartz glass tube. Its color temperature is 2400-2500K and its wave length range of 0.8-1.8 micron, reaching the peak at 1.2 micron.
Features of Halogen Quartz Tube
1. High radiation density in the most compact space up to 150 kW/m2 (100W/in2) output, low space requirements
2. Practically no heating-up and cooling down times
3. Good depth of radiation penetration into the material
4. Optimized reflection thanks to backmounted gold reflector: enhancing output and saving energy
5. Infinitely adjustable fast-reaction control
6. Stock, custom and OEM sizes
7. Filament temperature 1800 - 2200 °C
8. Standard heaters are designed for horizontal operation. The heaters are modified for vertical operation.

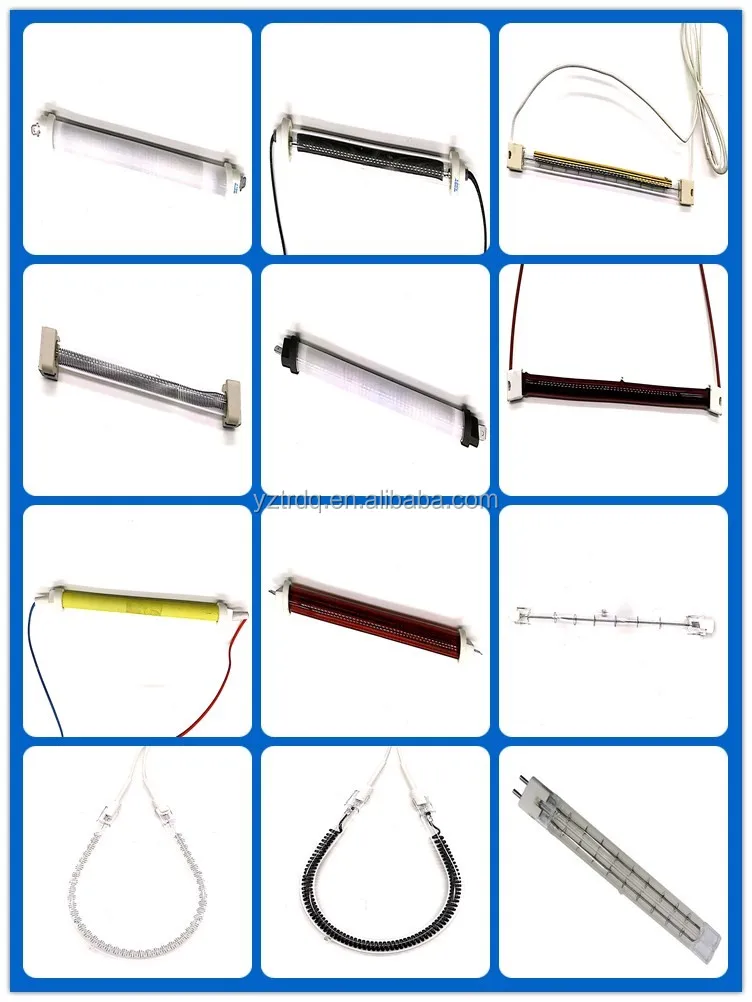

9. Heaters are available in different designs and can be one-side or two-side connected.
10. A gold coating of the heater ensures that the effective radiation is virtually doubled.
model dimension(mm) Voltage(V) power(W) Main Specifications TR-SYG10150 φ10*150 100/120/230 200 1 Conditions of use: Ambient temperature -20 ~ +60 ° C relative temperature <80%
2. Leakage current: <0.5MA
3. Insulation resistance: ≥5MΩ
4. Grounding resistance: <0.1Ω
5. Withstand voltage: 1500V, no breakdown in 1 minute
6. Temperature resistance: 500 ° C
7. Power deviation value: +5%-10% TR-SYG10250 φ10*250 100/120/230 300 TR-SYG10*300 φ10*300 100/120/230 400 TR-SYG10450 φ10*450 100/120/230 500 TR-SYG12*200 φ12*200 100/120/230 300 TR-SYG12300 φ12*300 100/120/230 350 TR-SYG12400 φ12*400 100/120/230 400 TR-SYG16300 φ16*300 100/120/230 350 TR-SYG16500 φ16*500 100/120/230 500 TR-SYG16800 φ16*800 100/120/230 800 TR-SYG161000 φ16*1000 100/120/230 1000 TR-SYG161200 φ16*1200 100/120/230 1200 TR-SYG161500 φ16*1500 100/120/230 1000 TR-SYG162000 φ16*2000 100/120/230 1800 Can be customized according to customer drawings / sample requirements
model
dimension(mm)
Voltage(V)
power(W)
Main Specifications
TR-SYG10150
φ10*150
100/120/230
200
1 Conditions of use: Ambient temperature -20 ~ +60 ° C relative temperature <80%
2. Leakage current: <0.5MA
3. Insulation resistance: ≥5MΩ
4. Grounding resistance: <0.1Ω
5. Withstand voltage: 1500V, no breakdown in 1 minute
6. Temperature resistance: 500 ° C
7. Power deviation value: +5%-10%
2. Leakage current: <0.5MA
3. Insulation resistance: ≥5MΩ
4. Grounding resistance: <0.1Ω
5. Withstand voltage: 1500V, no breakdown in 1 minute
6. Temperature resistance: 500 ° C
7. Power deviation value: +5%-10%
TR-SYG10250
φ10*250
100/120/230
300
TR-SYG10*300
φ10*300
100/120/230
400
TR-SYG10450
φ10*450
100/120/230
500
TR-SYG12*200
φ12*200
100/120/230
300
TR-SYG12300
φ12*300
100/120/230
350
TR-SYG12400
φ12*400
100/120/230
400
TR-SYG16300
φ16*300
100/120/230
350
TR-SYG16500
φ16*500
100/120/230
500
TR-SYG16800
φ16*800
100/120/230
800
TR-SYG161000
φ16*1000
100/120/230
1000
TR-SYG161200
φ16*1200
100/120/230
1200
TR-SYG161500
φ16*1500
100/120/230
1000
TR-SYG162000
φ16*2000
100/120/230
1800
Can be customized according to customer drawings / sample requirements
Packaging and delivery
• Packaging Details Carton box or wooden box for Electric Heating Heater
• Delivery Time 10 days for Electric Heater .
Why Choose Us
Our Company
Yangzhou Tuanrui Electric Co., Ltd. Located in the beautiful historical and cultural city of Yangzhou. The company is a factory that integrates R&D, design, production, and sales services. Our factory specializes in PTC heaters,MCH Ceramic Heater, mica heaters, ceramic heaters, cast aluminum heaters, cast copper heaters, cast iron heaters, electric heaters, Quartz Heater, Explosion-Proof Heater, Foil Heater, Teflon Heater, Track Heater, Hot Runner Heater, Armored Heater, Ceramic Fiber Heater, Far Infrared Ceramic Heater, Hot Melt Machine heater, electric heating film, silicon carbide heater, silicon molybdenum heater, metal heating tube, heating coil, heating plate, heating rod, silicone rubber heater, radiant heater, heating cable, temperature sensor, thermal resistance , thermocouples, high temperature wire and cable, instrumentation, slip line bridge, bus switchgear, insulation materials, test instruments, ceramic ignition pin and other electrical complete sets of equipment. Products are mainly used in military, chemical, power, electronics, steel, metallurgy, medicine, machinery, automobiles, air conditioning, industrial furnaces, home appliances and other heating industry equipment. All products can be customized according to the requirements of customers, many products have now filled the domestic blank, instead of imports. At present, our heaters, temperature sensors, etc. have been sold to countries in the world and are well received by customers. Welcome new and old customers at home and abroad to visit us.
Manufacturing Technique
Exhibition and certification
FAQ
Q1. Can I have a sample order forCeramic Heater?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks
Q3. Do you have any MOQ limit for Ceramic Heater?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly provide the heater size , voltage, wattage, quantity
Secondly We quote according to your size
Thirdly customer confirms the order
Fourthly We arrange the production.
Q6. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee?
A: Yes, we offer 8000 hours warranty to our products
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new heater with new order for small quantity.
