220V 200L Tank Heater Blanket With Insulation Jacket
- Category: >>>
- Supplier: Suzhou Qitian Technology Co. Ltd.
Share on (1600328459504):
Product Overview
Description
Product Description

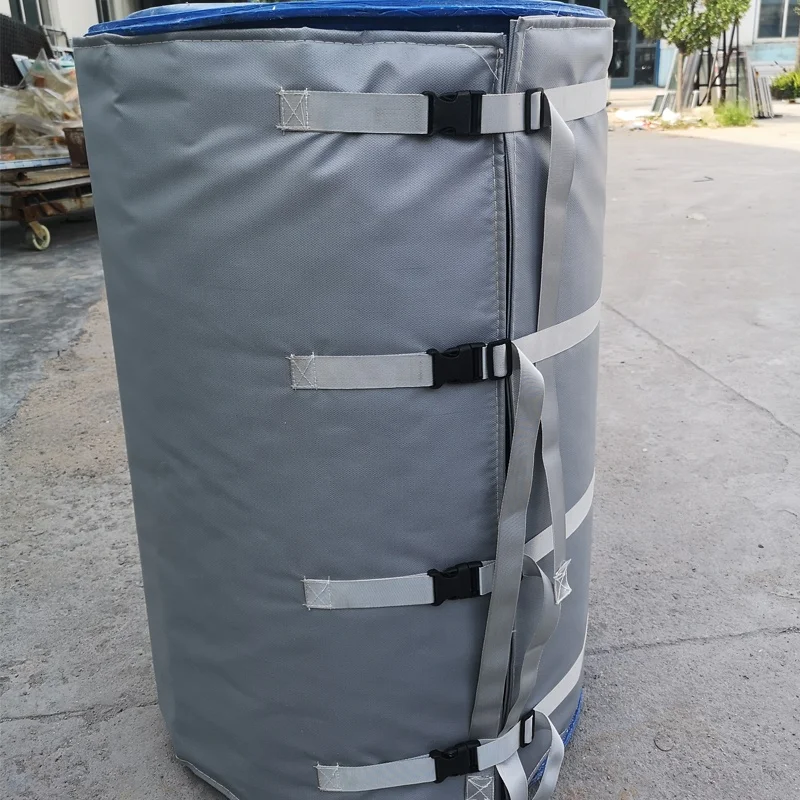

200L oil drum Insulation Heating Blanket
200l oil drum insulation heating blanket consists of the heating element, base core, fabrics, power cord, junction box, control switch (or thermostat). It has two style thermostat, one is constant temperature type and another is adjustable temperature type. The constant temperature type is implanting one or more fixed temperature control element in the electric blanket, when the temperature is lower than the set temperature, the heating blanket automatically starts heating, when the temperature reaches the set temperature; the heating blanket automatically disconnected the power supply, and continues thermal insulation. The whole process is circulated. The temperature adjustable type is built in a temperature probe, which transmit temperature signal to the relay in the temperature control box, and the relay control the connection of the circuit. Temperature could be set up by users according to the using environment and conditions.
Name | 200L oil drum insulation blanket heater |
Voltage | 115V or 230VAC |
Rated power | 100-1500W/ square meter |
Rated current | 0.45A~5.5A |
Temperature | Adjustable temperature type≤260℃±2℃ |
Accessories | Electronic temperature control box |
Constant temperature | 5℃~260℃±5℃(5℃/grade) |
Application | Application |
The feature of insulation tank heating blanket
A.Thickened the thermal insulation layer make the heating blanket has better thermal insulation, and faster heating up.
B. Smoothly lied resistant wire makes the heating blanket heating Uniform.
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.
B. Smoothly lied resistant wire makes the heating blanket heating Uniform.
C. High temperature resistance flame retardant fabrics are used.
D. The heating blanket is designed with connection and fixation device, by which the heating area could extend easily.
E. Different with insulation surface, the temperature tolerance of heating surface is more than 260℃.
F. The heating blanket is built in temperature control in case of burning of the heating blanket by abnormal use.
G. Several temperature probes are layout uniformly, making sure the uniform heating.
Details Images
Waterproof silicone cloth
Inner insulation material
Heating element
Control switch
Product Paramenters
No | Specification(mm) | Voltage(V) | Wattage(W) |
QT-I10004 | 1884x860mm | 230V | 2000W |
QT-I10005 | 1884x430mm | 230V | 1000W |

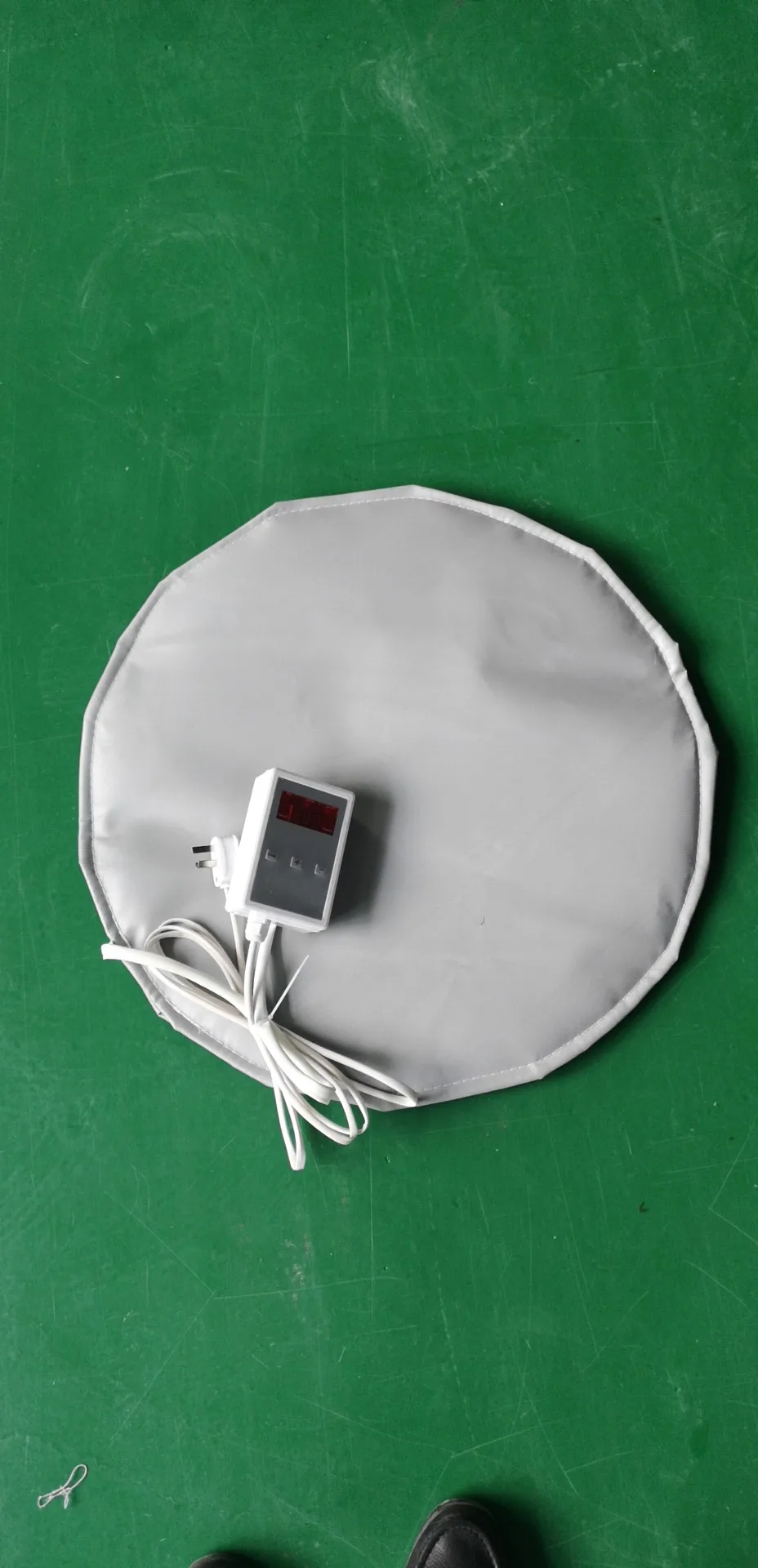

QT-I10006 | D=560mm | 230V | 500W |
Packing & Delivery
Company Profile
Suzhou Qitian Technology Co., is a professional company of heating elements. We have professional design team.
We offer customzied silicone heaters, PVC heating pad and heating cable, polyimide heaters, sensors, and controls for sale as components. We provide high quality heaters and professional services. Our wealth of knowledge based on empirical data that can be an asset to your company immediately. At present, the products have exported to European, American and many other countries and areas.They are applied in many places like industry, chemical & medical areas and etc.
We offer customzied silicone heaters, PVC heating pad and heating cable, polyimide heaters, sensors, and controls for sale as components. We provide high quality heaters and professional services. Our wealth of knowledge based on empirical data that can be an asset to your company immediately. At present, the products have exported to European, American and many other countries and areas.They are applied in many places like industry, chemical & medical areas and etc.
FAQ
(1)Are you a trading company?
We are factory and exporter, own ISO9001 and research & development & QC department.
(2)What type of payment do you have available?
We accept paypal, T/T and western union.
(3)How can I get some samples?
We are honored to provide free sample, but pls take the freight for the sample.
(4)Do you accept customized?
Yes, the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements and drawings.
(5)Why choose us?
Lowest default rate/One to two-year warranty/Best and on time after sale service
(6)How is your shipping?
We can send according to your requirement.If your side not have shipping,we will help ypu choose fast and best shipping ways.
We are factory and exporter, own ISO9001 and research & development & QC department.
(2)What type of payment do you have available?
We accept paypal, T/T and western union.
(3)How can I get some samples?
We are honored to provide free sample, but pls take the freight for the sample.
(4)Do you accept customized?
Yes, the products in the website are only the common type or the previous types from other customers, we can supply the new products according to your requirements and drawings.
(5)Why choose us?
Lowest default rate/One to two-year warranty/Best and on time after sale service
(6)How is your shipping?
We can send according to your requirement.If your side not have shipping,we will help ypu choose fast and best shipping ways.
