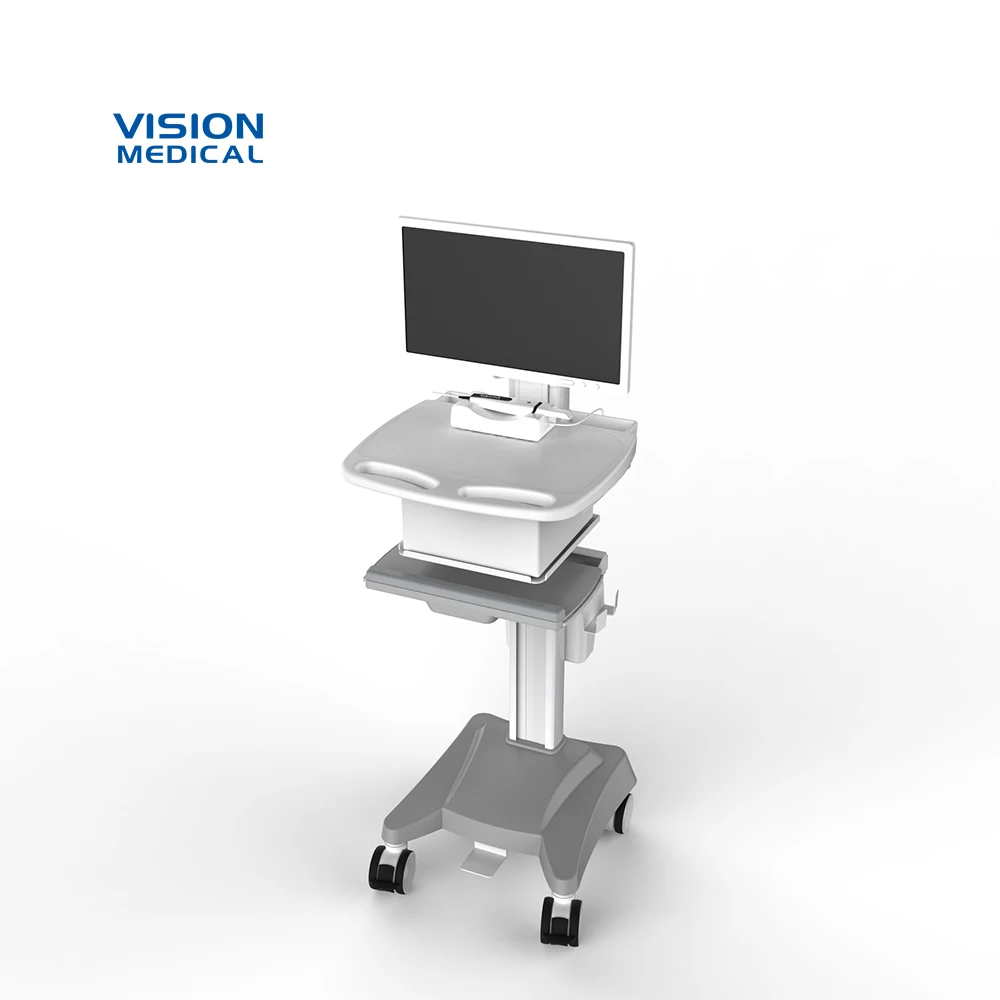

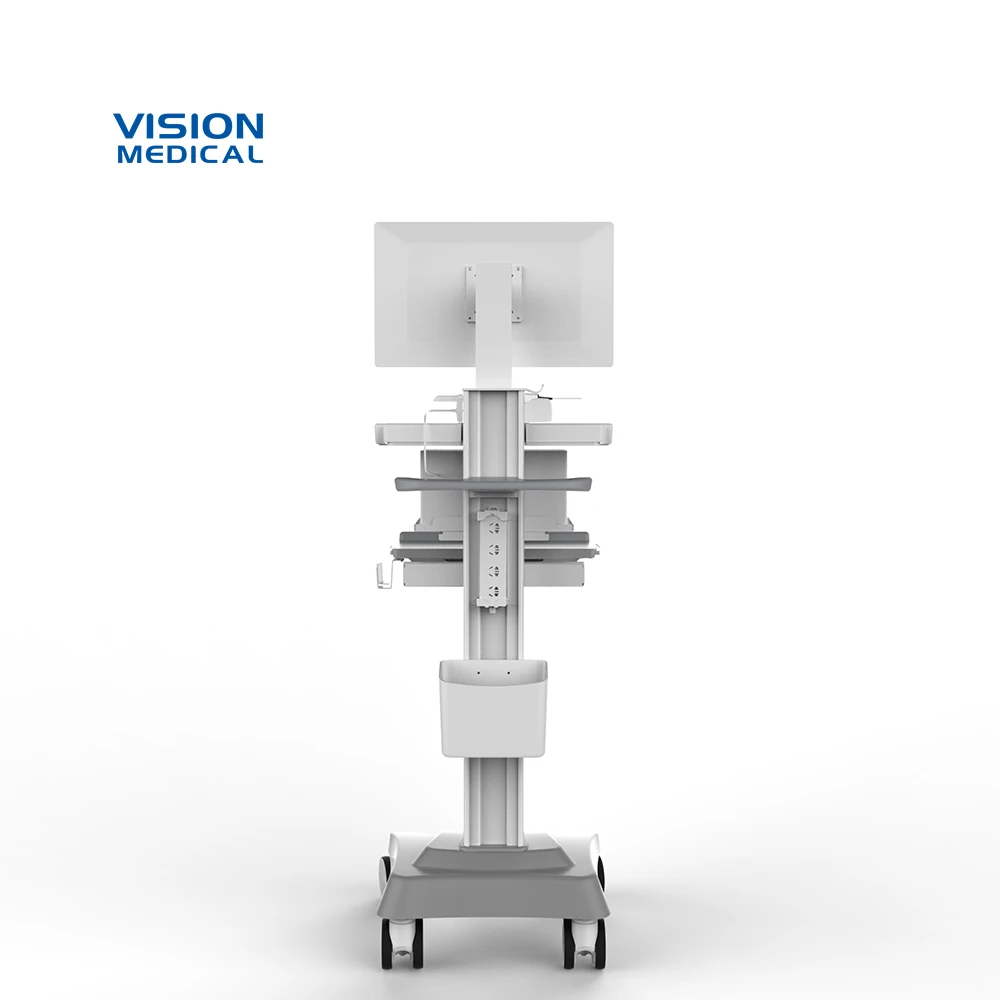

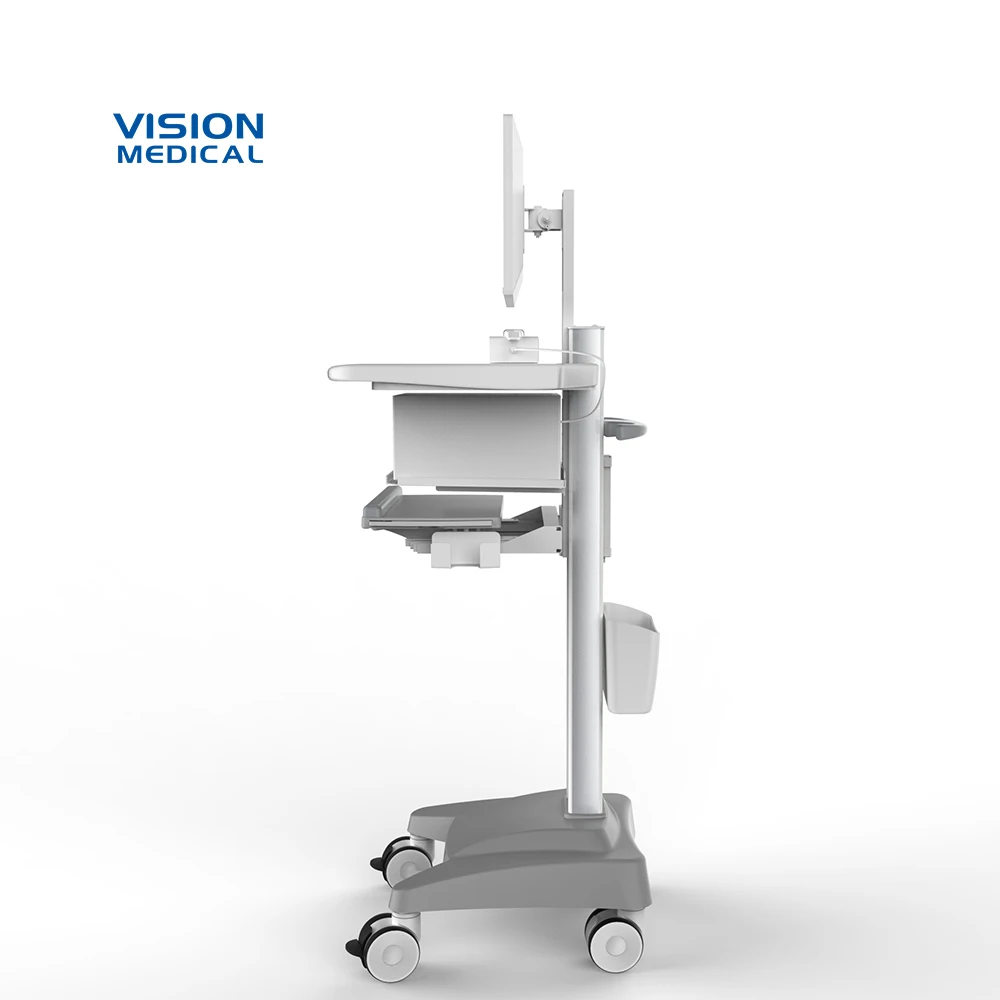

Type | VT003-165 |
Color | Grey/White |
Material | ABS plastic+Aluminum alloy |
Vesa | Hole75*75mm/100*100mm(International standard); can withstand 10kg,swing scope ranges to 20°; Display:24 |
Table board | 490(L)*523(W)*46mm(H),can withstand 25kg Height adjustable,Range:780mm-1030mm |
Keyboard and mouse pad | 450mm*180mm The mouse pad can be pulled apart on both sides |
Column | Aluminum alloy; T-shaped Slot both front&back for accessories Optional Height:124(L)*65(W)*995mm/1200mm/1600mm/1800mm(H) Wires hidden design |
Handlebar | ABS plastic,ergonomic |
Wheel | 4 medical silent wheels |
Base | 477(L)*482(W)*120(H)mm With external power interface |
Testing | Can meet 10 degree tilting testing and walking test by 50KM |
Size | 523(W)*480(D)*1473mm(H) |
Character :
1.High-density Allumnium Alloy with anodic oxidation electroplated
2.Lifting can meet the angle of people's standing and sitting( Highest 1030mm, lowest 780mm)
3.Two ergonomic handlebars, easy to move
4.Power wire hidden design
5.High strength anti-winding medical silent 4 inch wheel, gray wheel shaft and white main body
6.Equipped with a mouse support bracket & keyboard pallet
Model No. | Series | Solution | Application | Remark |
VT001 | Five Wheels Trolley | Flatscreen color ultrasound, Ventilator, Infusion pump,Air heater | Surgery,hospital,clinic,Therapy | Customizable |
VT002 | Portable Device Trolley | Portable color ultrasound,Medical equipment,Artery detection,Ventilator | Surgery,hospital,clinic,Therapy | Customizable |
VT003 | Equipment Trolley | Rehabilitation Therapy,Pulmonary Function Test,Inspection equipment,Cardiopulmary Detection. | Surgery,hospital,clinic,Therapy | Customizable |
VT004 | Endoscope Trolley | Endoscope,Computer | Surgery,hospital,clinic,Therapy | Customizable |
VT005 | Nursing Trolley | Crash emergency,Nursing | Surgery,hospital,clinic,Therapy | Customizable |
VT007 | Remote consultation Trolley | Recording,Computer,Displays | Surgery,hospital,clinic,Therapy | Customizable |
VT008 | Others | Medical bed,ODM,OEM | Medical equipment | Customizable |
VT100 | Arm | ICU wards - hanging to wall,Bridging tower crane, | Surgery,clinic,Therapy,ICU | Customizable |
Vision Technology is an enterprise specialized in RD and Manufacture of medical equipment, with dedication to provide customers with customized one-stop solutions in professional and comprehensive way.
Vision Technology is awarded as High-Tech Enterprise Nationally , with total investment 50 million and 350 staffs, we are already certified by ISO9001/ISO13485 which are international quality management system acknowledges world-widely. We have many series of medical equipment trolleys, informatization trolleys, medical equipment and other products.We have established cooperative relations with well-known medical enterprises and hospitals both domestic and overseas.
After more than ten years' exploration in the field of medical devices, Vision Technology has a complete production system range from R&D, injection mould, injection production, printing and assembly. It can undertake ODM and OEM business of medical products and provide one-stop service for customers.
