Product Overview

Description



Products Description


TEST PURPOSE

Battery Pressure Test Machine can simulate battery and battery pack are stored for 6 hours at a pressure equal to or lower than 11.6 kPa and an ambient temperature of (20 ± 5) °C.

TEST STANDARD

UN38.3, UL 1642:2012; UL 2054:2012; IEC 62281:2004


Details Images

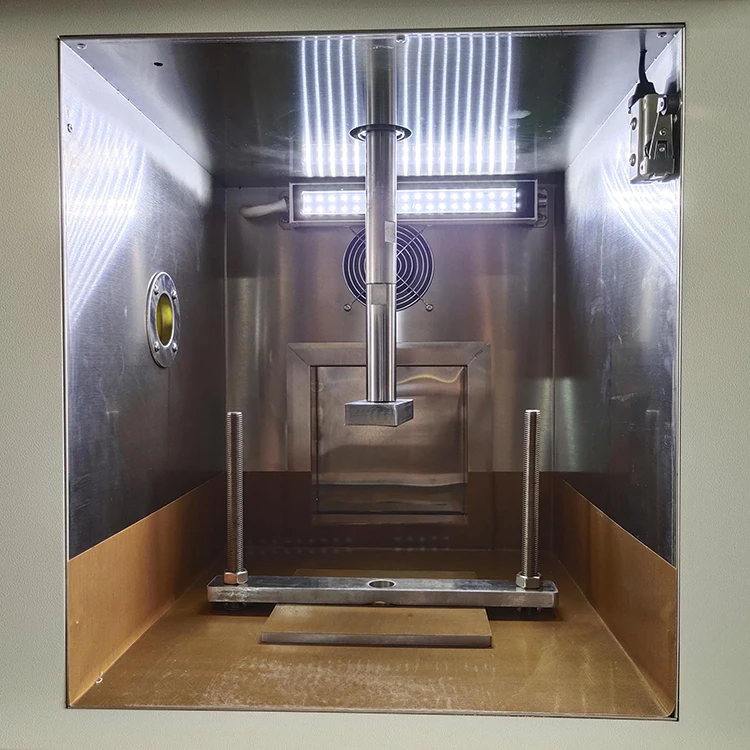

Work area

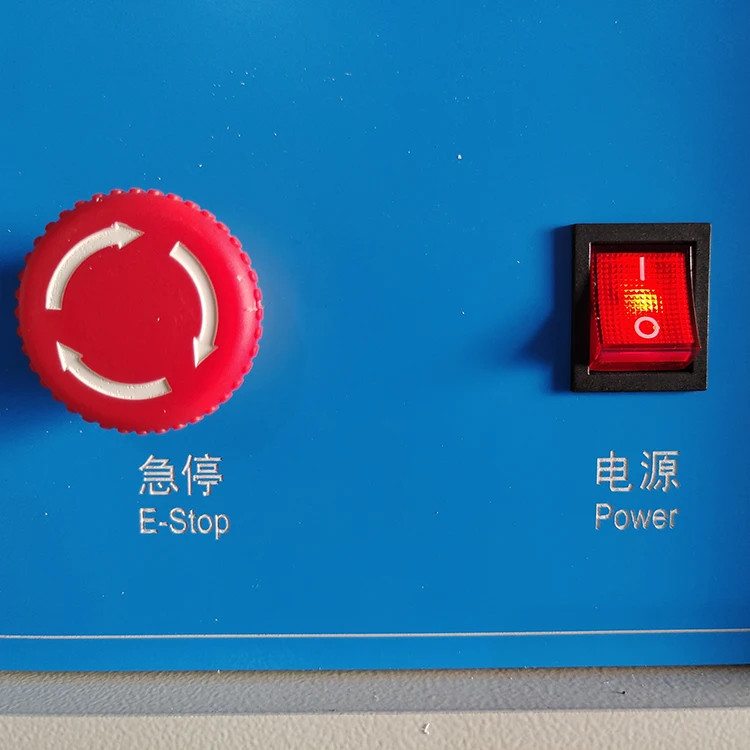

Power button


Fixture device
Exhaust fan


Product Paramenters


Item
Specification
Pressure range
0.5～100Kpa
Pressure accuracy
≤5%
Internal chamber material
stainless steel plate with 3mm
External chamber material
A3 cold plate paint treatment with 1.5mm
Timing
LED display; can set in 0-9999H
Inside dimension(W*D*H)
400*400*400mm
Outside dimension(W*D*H)
550*550*1200mm
Power supply
1-phase, 220V, 50Hz
