Product Overview

Description



Product Description

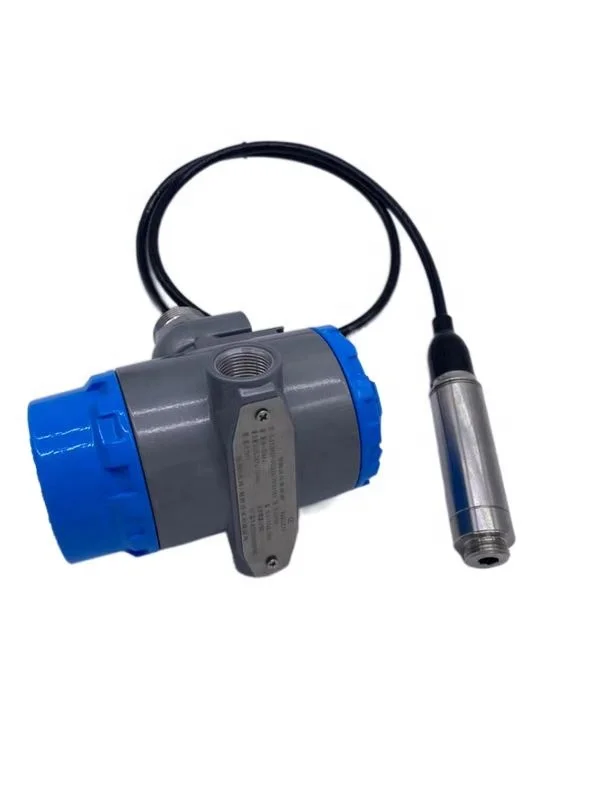

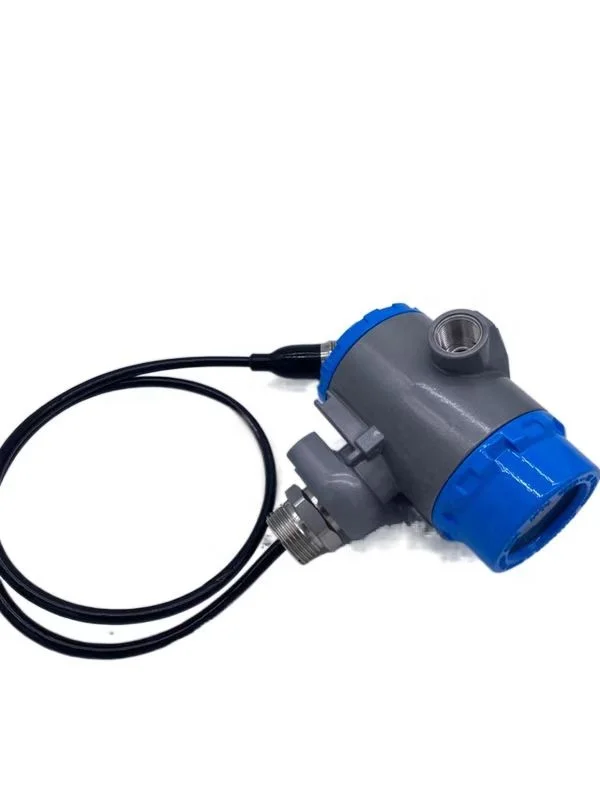

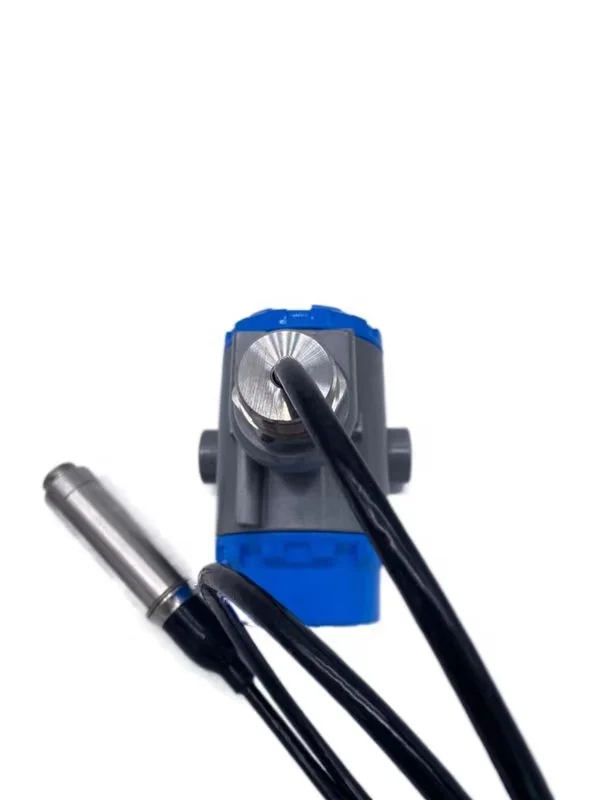

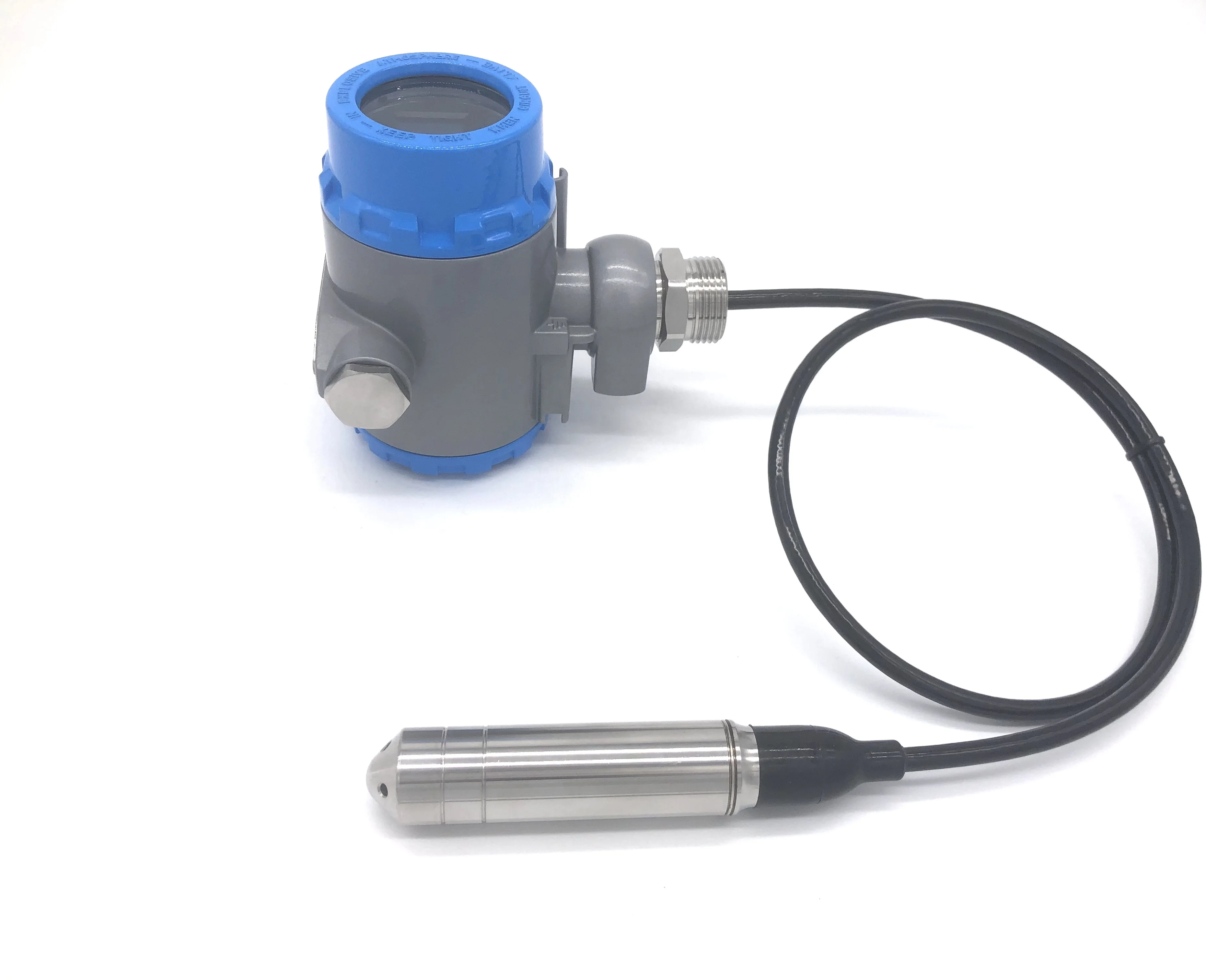

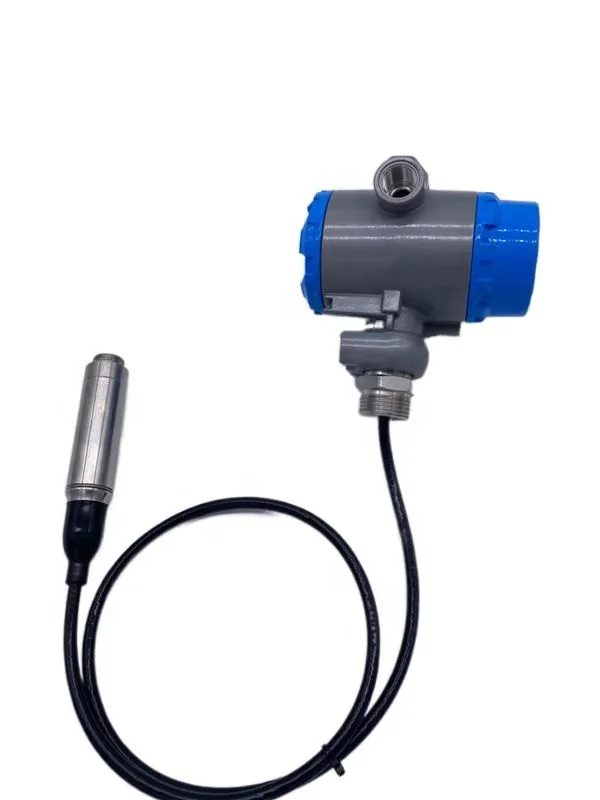

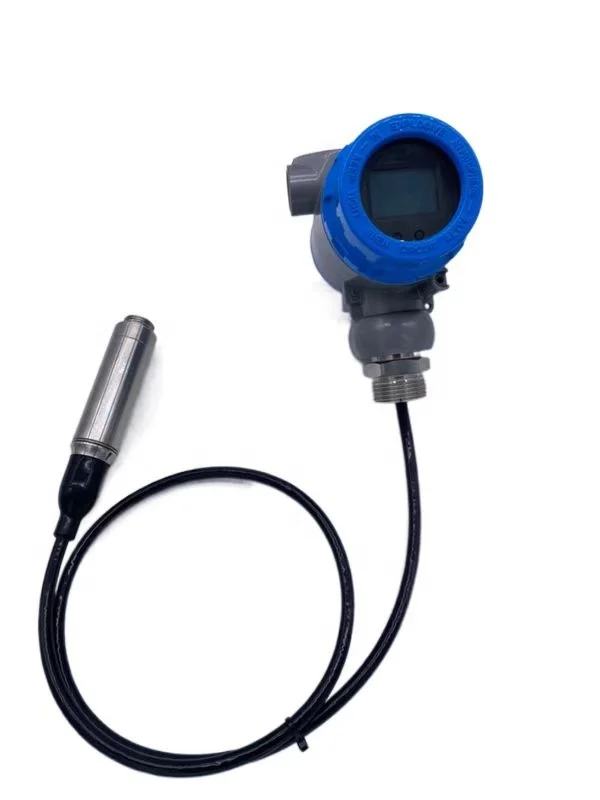

putting-into-type liquid level meter ky3008
ky3008 series liquid level transmitter is a stainless steel design fully sealed embedded solid pressure group liquid level measuring instrument. The product works in two-wire mode, small size, light weight, easy to install, easy to use, suitable for liquid level measurement and control in petroleum, chemical, power plant, urban water supply, water temperature exploration.


working principle

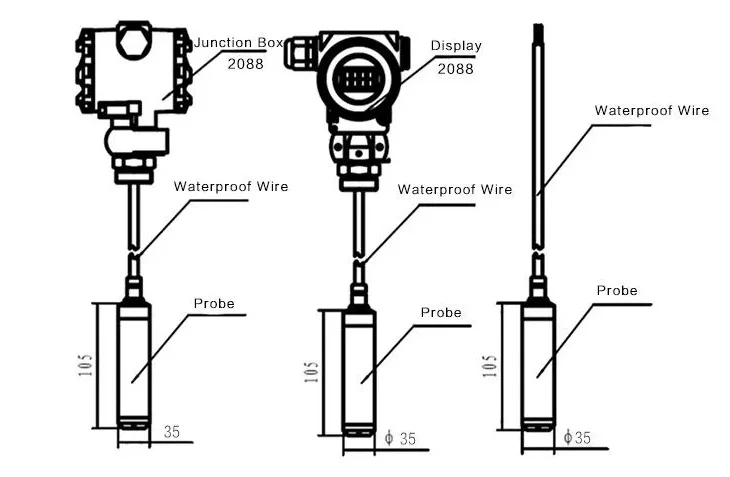

The level transmitter consists of a special air guide cable with a built-in capillary hose, a pressure-resistant connector and a probe. The probe configuration of the input level gauge is a stainless steel core with a diaphragm at the bottom and is covered by a perforated plastic housing. The level measurement is actually the difference between the hydrostatic pressure on the probe and the actual atmospheric pressure, and then the ceramic sensor (attached to the stainless steel film) and the electronic component convert the differential pressure into a 4-20 mA output signal


Description of LCD Display submersible liquid pressure level transmitter :
*liquid level transmitter is compose of full sealed isolation membrane oil-filled level sensor and special instrument circuit. With the advantages of high measuring precision, good stability, long service life, convenient installation, etc
*With unique technology of sealing structure form, and good anti-leakage performance,immersed in a liquid reliable operation for a long time.






Specification


item
value
Warranty
1year
Customized support
OEM, ODM
Place of Origin
China
Brand Name
kyue
Model Number
ky3008
Range
0~100mm
Accuracy
+-0.2%FS
Service temperature
-20~60℃
Waterproof grade
IP68
Power
24VDC
Output
4~20mA
communication
HART5.0
Certification
CE






Packing & Delivery




BOX


Company Profile




Kyue Measurement & Control (Tianjin) Co. , Ltd. is a technology company which focuses on the development, manufacture and sales of non-standard and non-standard intelligent equipment, such as air-tightness detection, liquid pressure and flow Measurement Control, automatic detection, test equipment, instrumentation, wireless intelligent Control, process Control, and non-standard intelligent equipment.
The company advocates the concept of "One-stop process automation control solution", providing scientific automation instrumentation solutions and timely and high-quality pre-sales consulting and after-sales service. Products are widely used in petrochemical, environmental engineering, sewage treatment, metallurgy, automobile, medical, scientific research institutions, nuclear power and other fields.
