Ba ferrite magnet electric valve aluminum blade actuator air damper apply to self closing door
- Category: >>>
- Supplier: Matex Co. Ltd.
Share on (1600328619019):
Product Overview
Description
Products Description

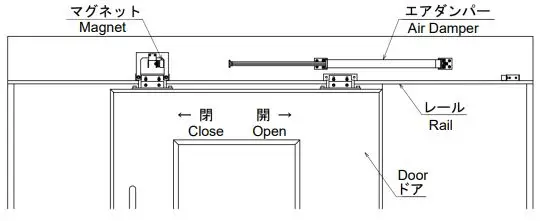

Matex Air Damper is a direct-acting type of air damper. This damper is applicable in a sliding door with a self-closing function.
It can be easily set up thanks to its compact design.
Resinified inner rod reduced the weight of the product.
Air pressure can be adjusted by turning the screw on the edge without disassembly.
Magnet that can catch the tip of the rod is available as an optional part.

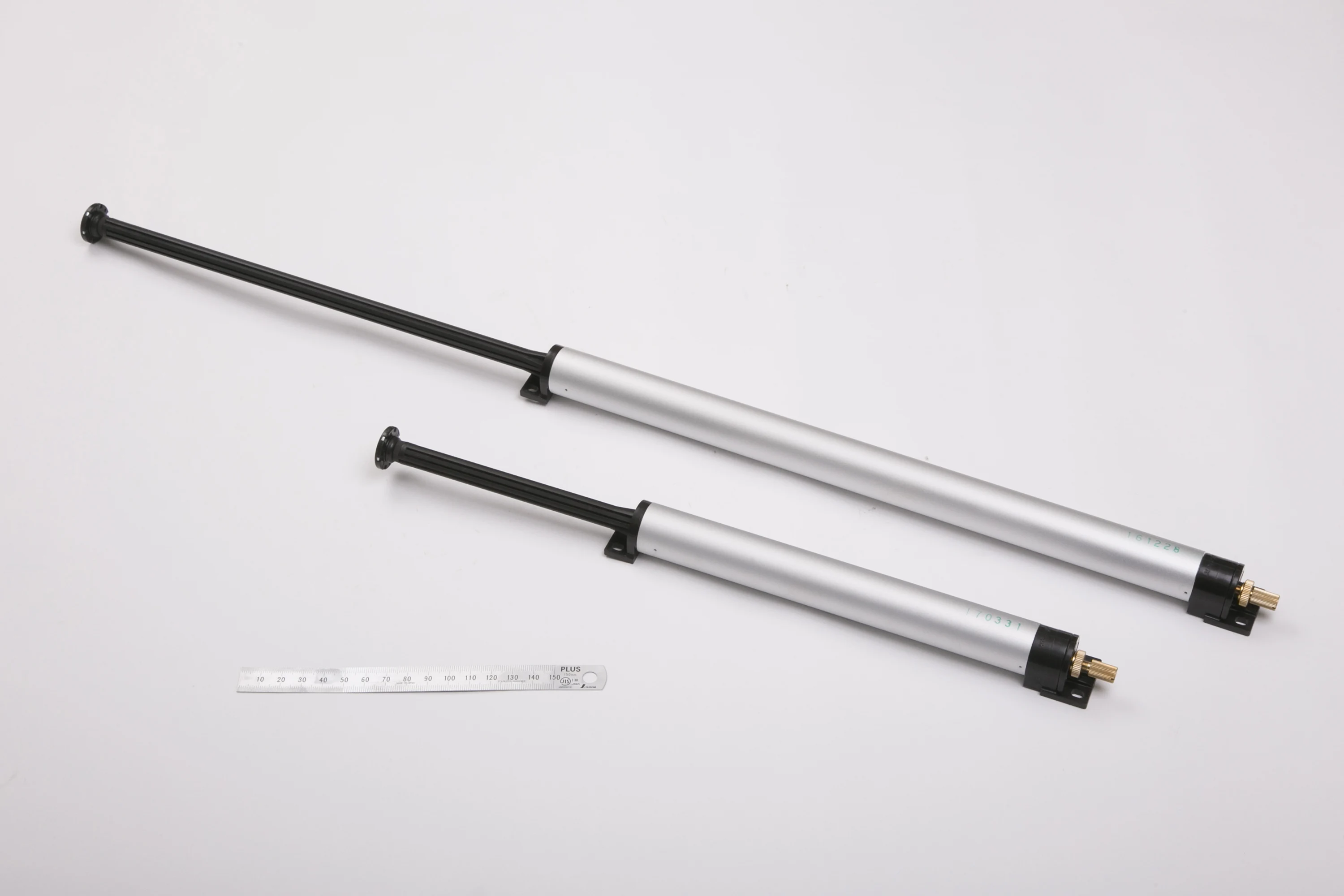

Two different lengths are available; Regular type and Short type.
Material of parts
Cylinder：Aluminum alloy（A6063）
Rod：Nylon（PA66）
Magnet：Ba ferrite Magnet
It can be easily set up thanks to its compact design.
Resinified inner rod reduced the weight of the product.
Air pressure can be adjusted by turning the screw on the edge without disassembly.
Magnet that can catch the tip of the rod is available as an optional part.
Two different lengths are available; Regular type and Short type.
Material of parts
Cylinder：Aluminum alloy（A6063）
Rod：Nylon（PA66）
Magnet：Ba ferrite Magnet

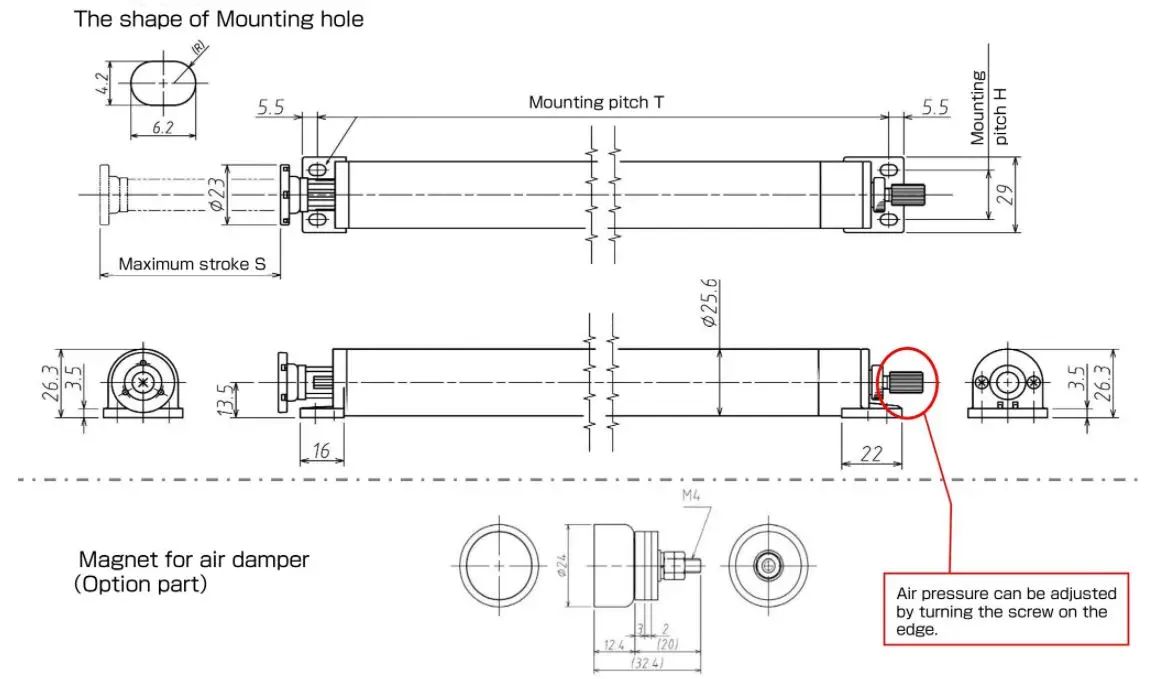

Regular | Short | Magnet | ||
Mounting Pitch T(mm) | 379 | 233 | - | |
Mounting Pitch H(mm) | 19 | - | ||
Maximum Stroke S(mm) | 267 | 121 | - | |
Weight(g) | 180 | 125 | 40 | |
Company Profile
Matex is a professional group for designing and manufacturing of planetary gears, gearboxes, transmissions and plastic injection molding parts. We have many achievements in development and manufacturing according to customer's specifications including home appliances, machinery, automobile parts, and health equipment. In addition, we fully respond to your needs, including contracted development and manufacturing of mechanical parts such as actuators, power units, pumps, and plastic injection molding and assembly.
