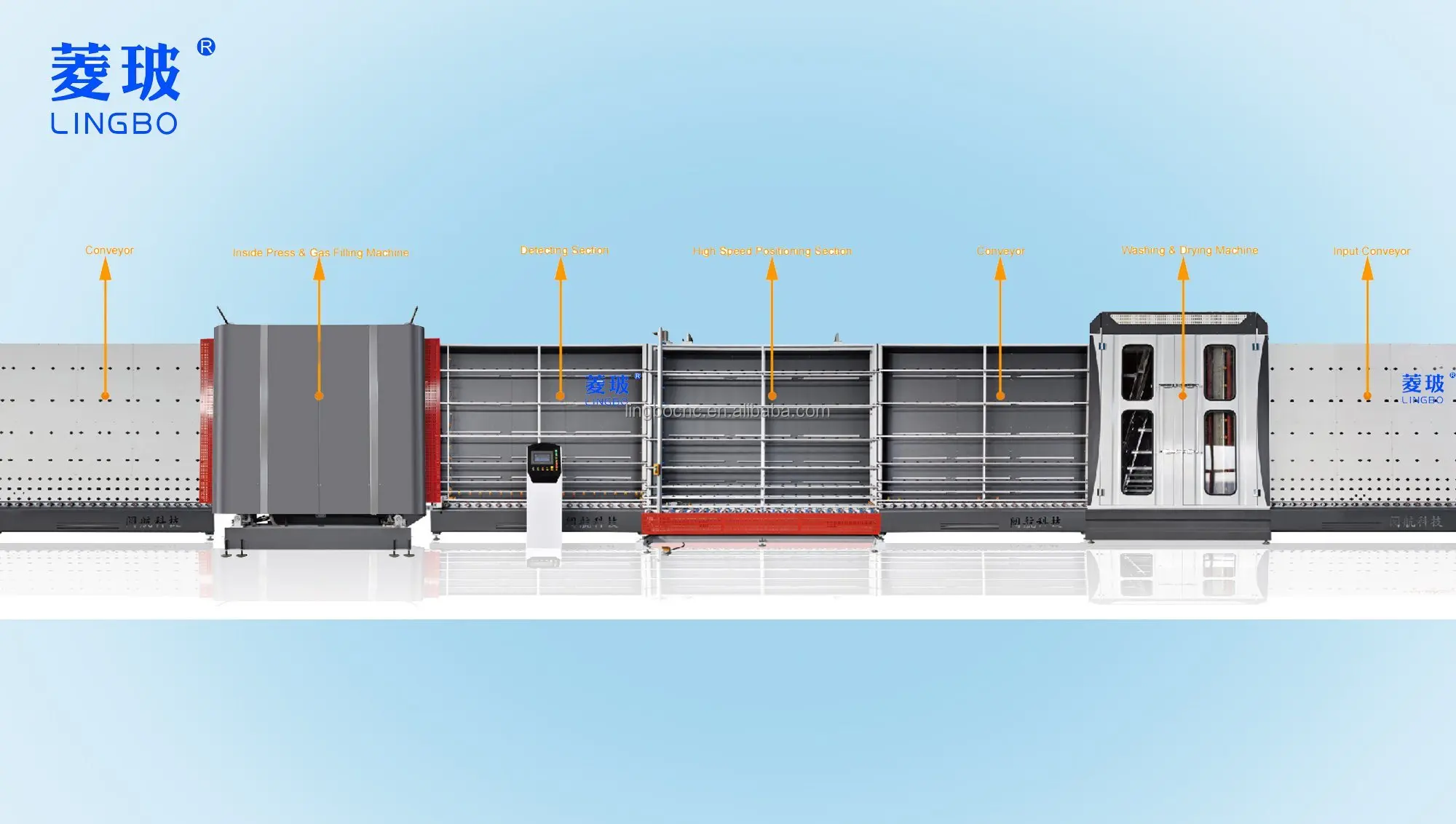

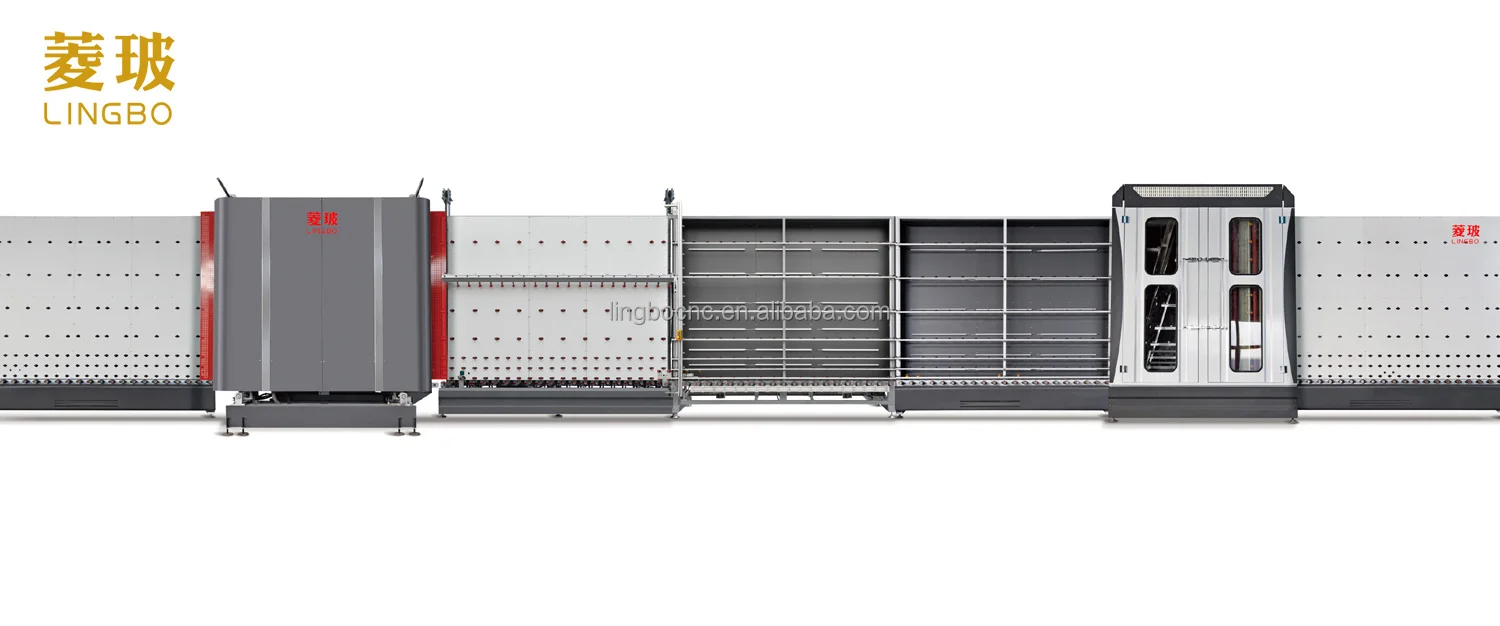

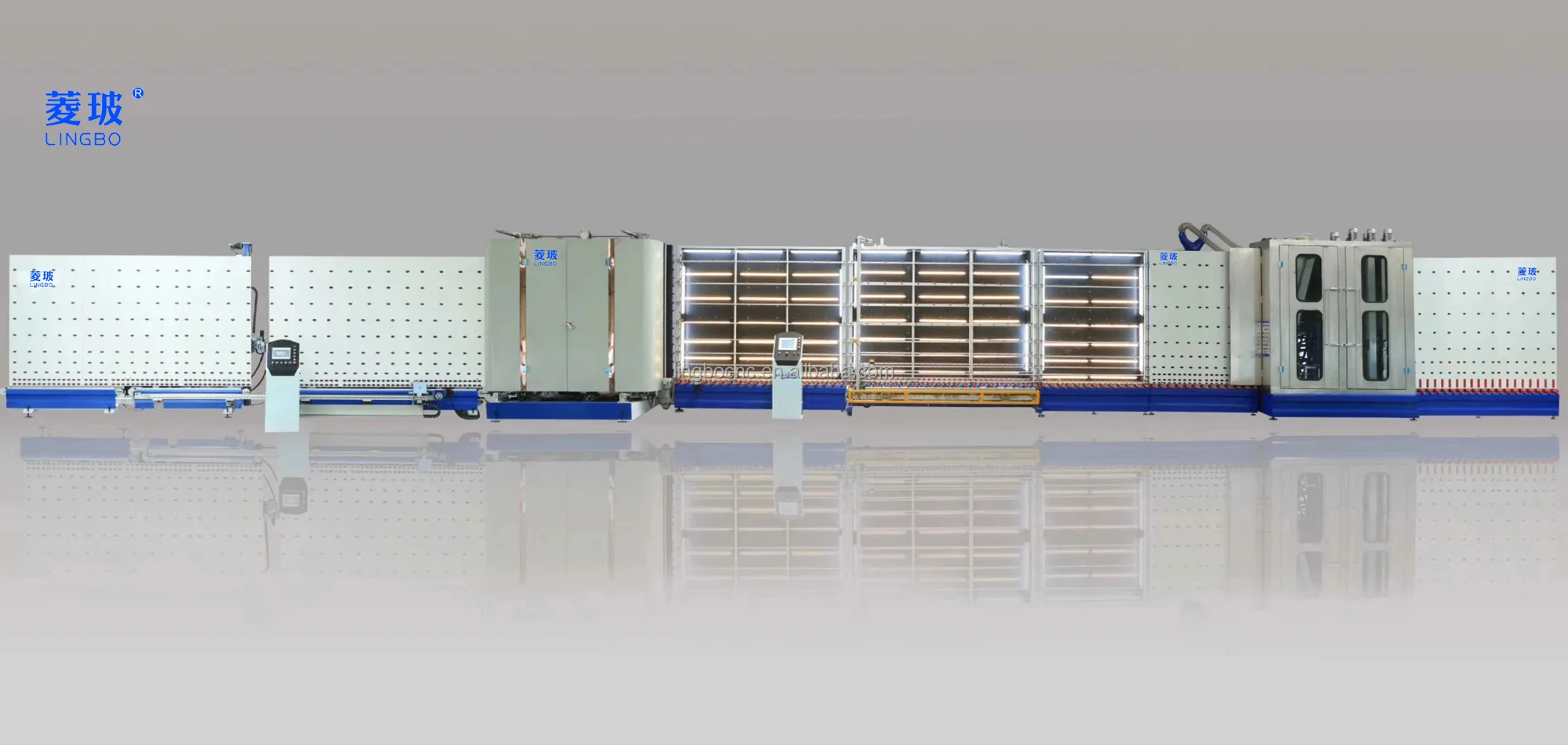

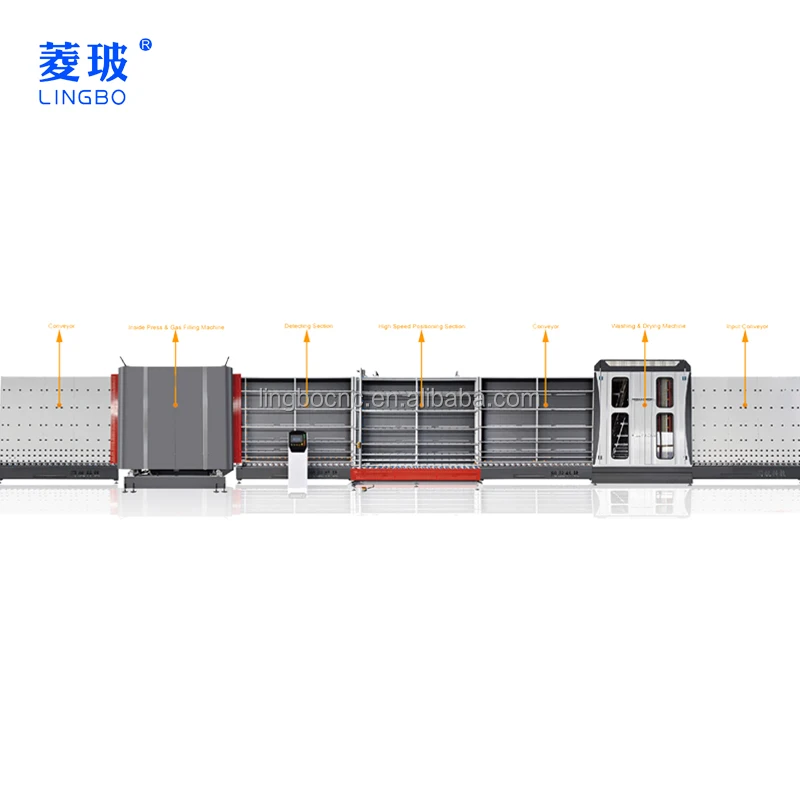

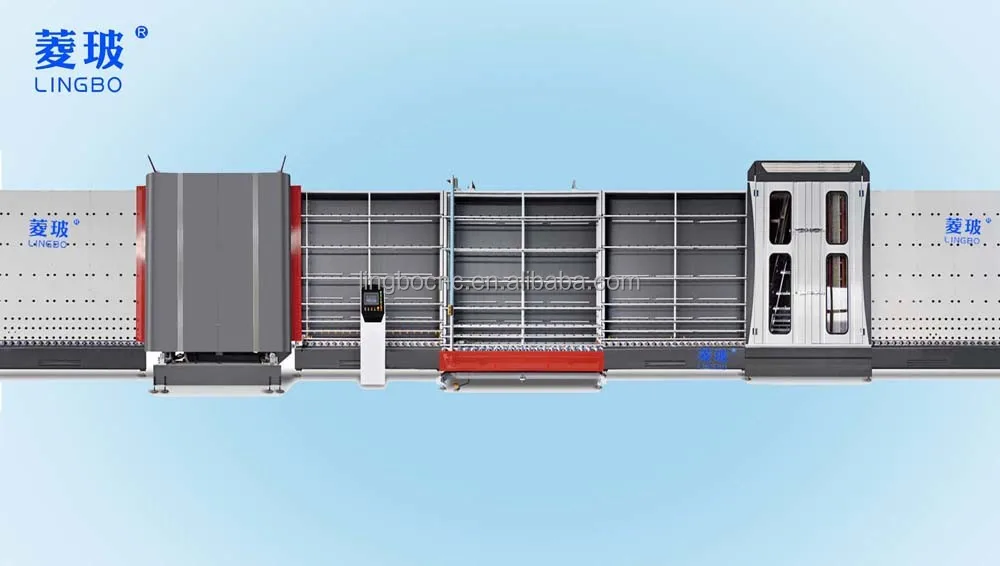

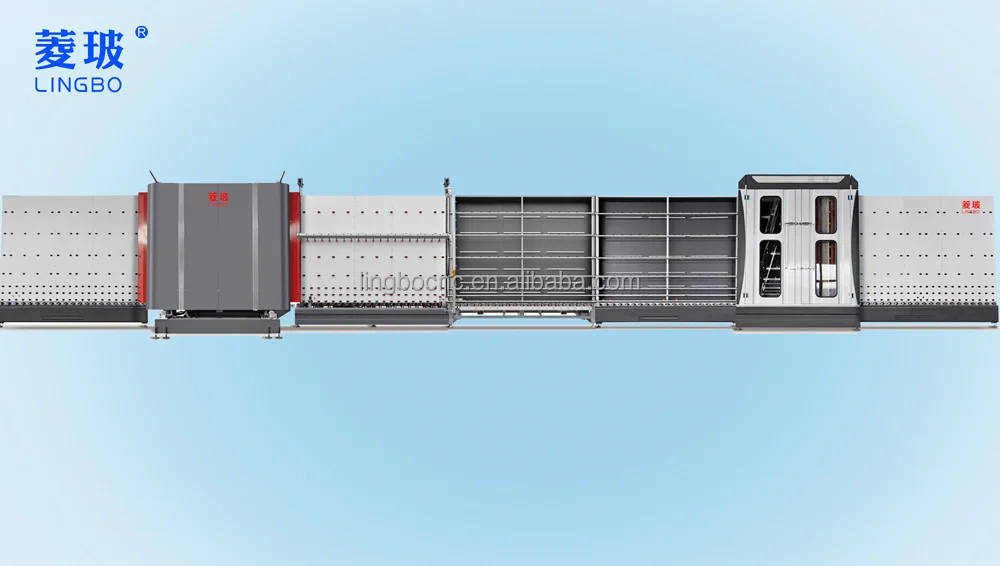

Newest Model zc j02 inflator for insulating glass machine
- Category: >>>
- Supplier: Lingbo (shandong) Cnc Machinery Co. ltd
Share on (1600328627200):
Product Overview
Description
Product Overview
Newest Model zc j02 inflator for insulating glass machine Introduction

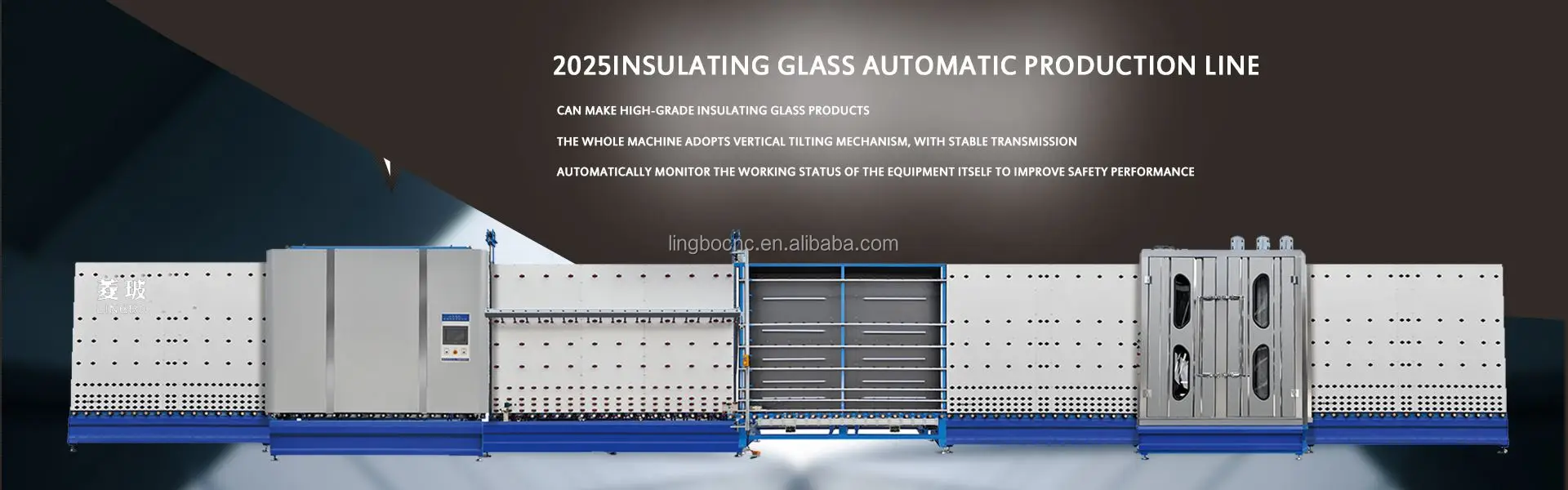

Glass Processing Machinery Insulating Glass Argon Gas Filling Machine has the function of Insulating Glass automatic transport, washing and drying, high speed positioning, aluminum spacer mounting, high-precision detecting, plate pressing, argon gas automatic online filling, and automatic online sealing functions etc.
It is the necessary machine for producing high quality insulation glasses and gas filled insulated glass, it has the automatic identifying the Low E glasses or coated glasses.
This complete Insulating Glass Machinery CNC glass process machinery adopts our patent of the device hollow design of the lights, which is conducive to observe the cleanliness of the glass, and can protect the worker's eyes when working for a long time.
According to the automatic detection results, the argon gas filling machine line will choose the suitable filling ways. For big size of more than 2 meters, two filling machine is working, and for smaller size of glass, then only one filling machine is working.
The sealing robot section adopts Japanese YASKAWA controlling system and humanized communication touch screen, which makes it is easy to be controlled, and working stable. So the sealed glasses will be fully saturated and smooth.
It can be working with stepped glass, or three-sided glass, or the three glass with two chambers according to different client requirements.
It is the necessary machine for producing high quality insulation glasses and gas filled insulated glass, it has the automatic identifying the Low E glasses or coated glasses.
This complete Insulating Glass Machinery CNC glass process machinery adopts our patent of the device hollow design of the lights, which is conducive to observe the cleanliness of the glass, and can protect the worker's eyes when working for a long time.
According to the automatic detection results, the argon gas filling machine line will choose the suitable filling ways. For big size of more than 2 meters, two filling machine is working, and for smaller size of glass, then only one filling machine is working.
The sealing robot section adopts Japanese YASKAWA controlling system and humanized communication touch screen, which makes it is easy to be controlled, and working stable. So the sealed glasses will be fully saturated and smooth.
It can be working with stepped glass, or three-sided glass, or the three glass with two chambers according to different client requirements.
FEATURES AT A GLANCE
The machine in working situation:
Newest Model zc j02 inflator for insulating glass machine Features
1. PLC control, touch sensitive screen human-machine interface, operation is more convenient and intuitive.
2. The production line automatically recognise coated glass and LOW-E glass.
3. The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
4. The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness.
5. The aluminum spacer positioning adopts unique design, accurate positioning, reduced labor, automatically accurate detection of glass height and thickness to provide accurate data for in-panel inflation.
6. Can filling argon gas for single chamber or double chamber glasses.
OUR ADVANTAGES OF Insulating Glass Machinery CNC glass process machinery:
Filling way is our patent technology. our filling way is direct and high efficient. Most supplier is filling rely on the rely on argon gas rebound, the argon gas will be waste a half, so it will be big cost for the user.
Our filling way is direct filling argon gas into the insulating glasses. it will save the argon gas using amount, saving filling time and also the argon gas runs out less.
This is the biggest advantages for this machine.
As the other advantages, we will note you by emails once you are interested on our products.
PRODUCT SPECIFICATIONS
Technical Parameter for Newest Model zc j02 inflator for insulating glass machine
Model | Max glass | Min glass | Insulated glass thickness | Spacing Dimension L*W*H - meters |
CQX-2000*2500 | 2000*2500 mm | 300*500 mm | 10-48 mm | 18.5*2.5*3.05 |
CQX-2000*3000 | 2000*3000 mm | 300*500 mm | 10-48 mm | 23.5*2.5*3.05 |
CQX-2500*3100 | 2450*3150 mm | 300*500 mm | 10-48 mm | 23.5*2.5*3.55 |
CQX-2500*4000 | 2450*3950 mm | 300*500 mm | 10-48 mm | 30.5*2.5*3.55 |
CQX-2700*4000 | 2650*3950 mm | 300*500 mm | 10-48 mm | 32*2.5*3.80 |
Notes:
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
High Speed Washing Machine
Automatic positioning system for glass
Air pump press open and close
conveyor section adopts the inlaid roller to facilitate the large glass delivery
Transmission wheel, the special design into two pieces,
so that this roller can be using for 4 times, saving using cost for client.
Washing section has no chains in side to make sure longer lifetime.
The glasses will be Clamping transmission, to make sure small glass not easy to be broken.
Angled aluminum spacer positioning
When glass is closing, the Positioning block is close to glass.
After measured it, the Positioning block will be leave glasses,
So the glass will be not moved by this block.
Special out press design
For making three glasses, this structure is holding up.
Outer press positioning structure
Special design structure to make the line going fluently.
Spacer attaching system adopts hollow design, advantages following:
1. Checking if still having tiny dirt thing which is not easily detectable on glasses, it is one of our patent design.
2. Using matte material density board and warm light tube, long working hours will not hurt your eyes.
3. The light tube is designed in two sections, the large glass and the small glass can be separated, which saves energy and electricity
Configuration Sheet on Newest Model zc j02 inflator for insulating glass machine
PROJECT NAME | BRAND | COUNTRY |
Frequency converter | SIEMENS | GERMANY |
Programmable PLC | OMRON | JAPAN |
Intermediate relay | HONEYWELL | USA |
Low-E Glass Recognizer | OPTEX | JAPAN |
Proximity Switch | AUTONICS | KOREA |
Pneumatic Solenoid valve | AIRTAC | TAIWAN |
Successful Project
For Newest Model zc j02 inflator for insulating glass machine, we have installed some projects all over the world, and we are wishing to develop the dealers all over the world. We will supply the high quality machines, high technology with competitive prices to get WIN-WIN Goals.
Project in Korea
Project in Serbia
Project in India
FAQ
Q: we are first time to hear your brand, Are you NEW to this Insulating Glass Machinery CNC glass process machinery filed?
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
What is the service can you supply?
1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
What's the guarantee for the machines?
1. Our guarantee for 12 months.
2.24 hour's technical support by email or calling.
3.English manual and video teaching.
4.We will provide the consumable parts at an agency price.
5.24 hours on line service each day, free technical support.
Company Profile
About US
LINGBO (SHANDONG) CNC MACHINERY Co., Ltd is a professional manufacturer of glass further processing machines more than ten years, and now based on the strong technical support and strong after-sell services, we develop rapidly. We are focusing on the high quality machines producing and supplying includes the focuses on the design, R&D, manufacture and after-sell service.
Strong technical support gives us a strong ability to serve customers. We wish to cooperate with you for long time!
Insulating Glass Machinery CNC glass process machinery Professional Manufacturer
