Woltmann Dry type horizontal removable pulse output Flow Water Meter

Product Overview

Description

Woltmann Dry type  horizontal  removable  pulse output Flow Water Meter



Product Features

Dry type, magnetic transmission

Removable insert, easy maintenance

Pulse output option



Working condition(s)

Water temperature 0.1~30℃, Working pressure ≤1MPa.(1.6Mpa available)



Accuracy

Low region max. allowable error:  From Q1 inclusive up to but excluding Q2 is ± 5%.

High region max. allowable error:  From Q2 inclusive up to and including Q 4 is ± 2%.

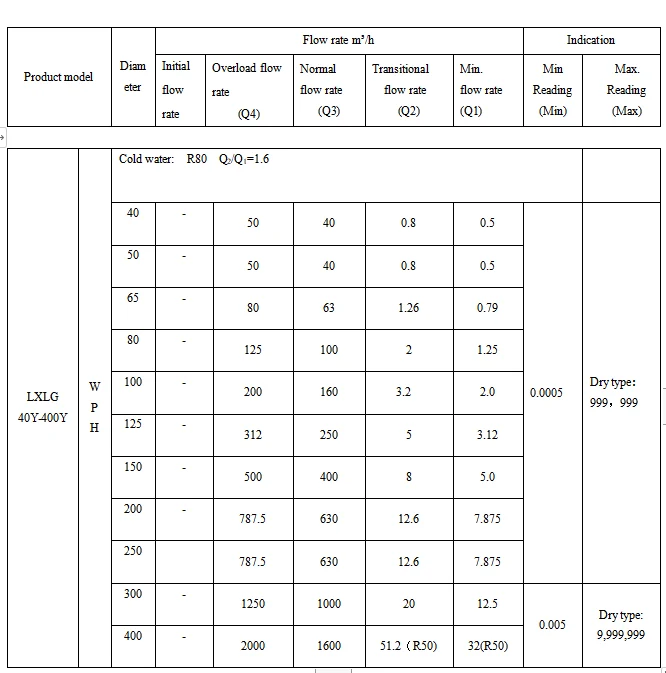

Main technical parameters







Shape and Size
