Product Overview
Description
Product Description

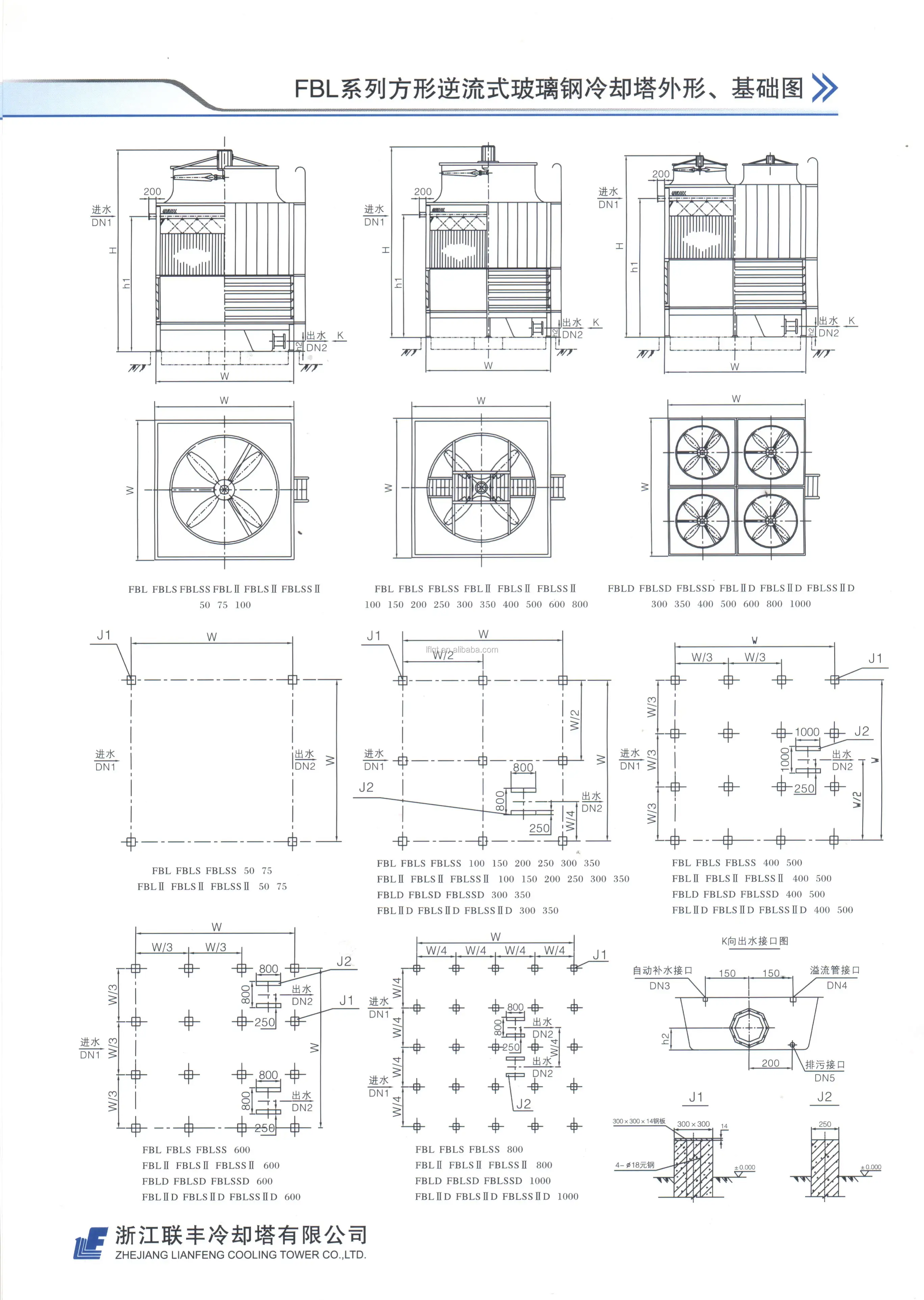

Structural Drawwing of FBL series cooling tower
Product Characteristic
1.Beautiful and smooth appearance, modular combination design, with good coordination of scenery and diversity of land layout.
2.Advanced structure design, reasonable steam water matching, sufficient heat exchange, thermal performance verified by computer
simulation.
simulation.
3.The tower body is made of high-strength FRP composite material, lightweight and high strength,aging-resistance,erosion-resistance,
no distortion and no fading.
no distortion and no fading.
4.Using ultra-low noise fan and unique water spray noise reduction technology, double noise reduction.
5. Using high efficiency water collection device, the floating rate is very low, environmental protection and water saving.
6.The steel support uses hot-dip galvanizing treatment with strong anti-corrosion ability.

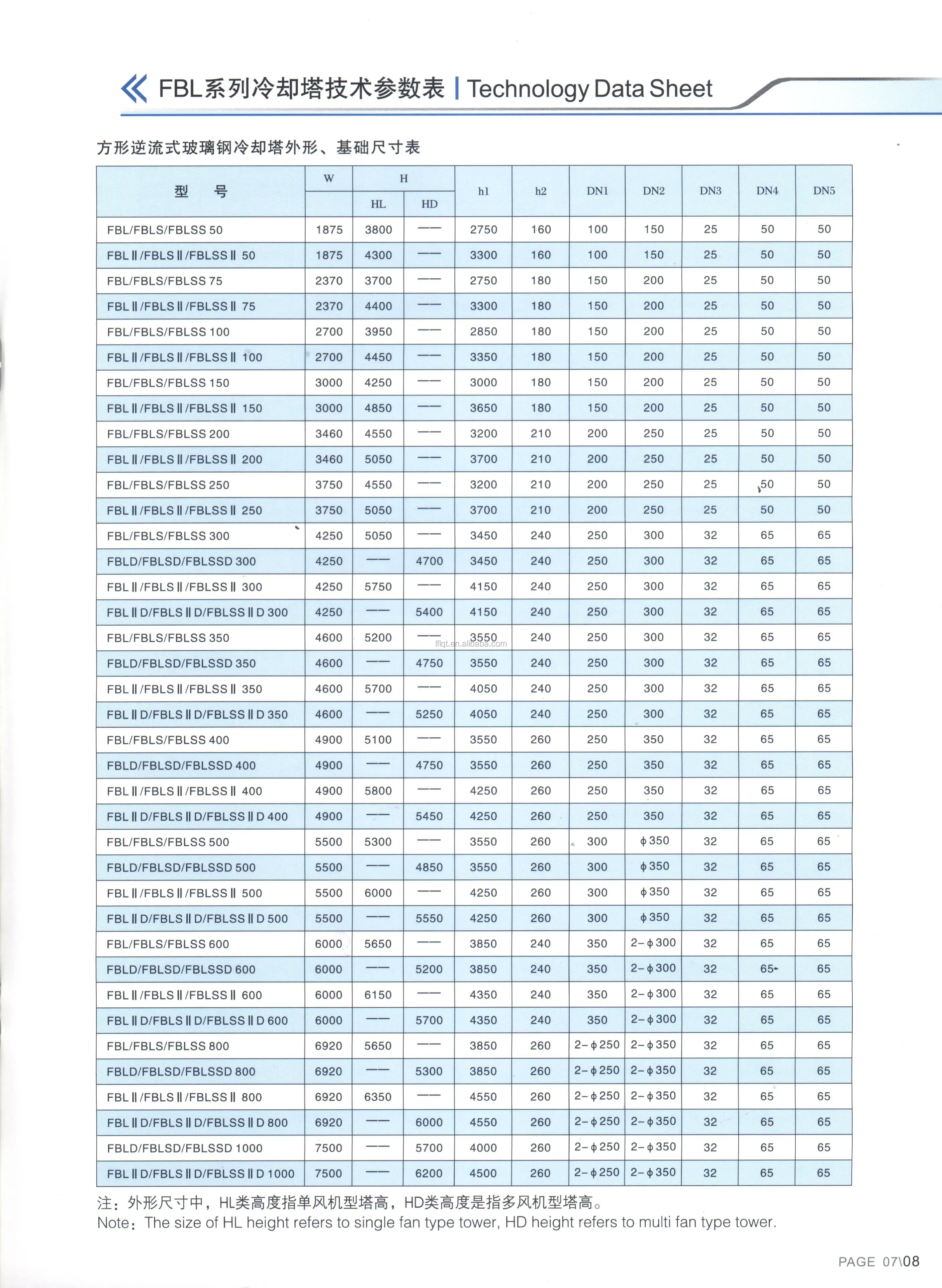

Product Paramenters
Type | Specifications | cooling water(m3/h) | fan diameter (mm) | power of motor(Kw) | inlet pressure(Kpa) | ||
Standard single fan series | FBL FBLS | 50 | 50 | 1500 | 1.5 | 33 | |
75 | 75 | 1500 | 2.2 | 36 | |||
100 | 100 | 1800 | 3 | 37 | |||
150 | 150 | 2000 | 4 | 39 | |||
200 | 200 | 2800 | 5.5 | 42 | |||
250 | 250 | 2800 | 7.5 | 44 | |||
300 | 300 | 3400 | 7.5 | 45 | |||
350 | 350 | 3400 | 11 | 47 | |||
400 | 400 | 4200 | 11 | 49 | |||
500 | 500 | 4600 | 15 | 50 | |||
600 | 600 | 5000 | 22 | 52 | |||
800 | 800 | 5000 | 22 | 58 | |||
Type | Specifications | dry weight (Kg) | wet weight (Kg) | dB(A) Dm | dB(A) 16m | ||
Standard single fan series | FBL FBLS | 50 | 720/810 | 1190/1280 | 65/57 | 47.5/39.5 | |
75 | 1080/1170 | 1800/1880 | 66/58.5 | 50/42.5 | |||
100 | 1210/1350 | 1980/2110 | 66/61 | 51.5/46.5 | |||
150 | 1800/1890 | 3240/3310 | 67/61.5 | 54.5/49 | |||
200 | 2970/3150 | 4860/5040 | 68/62 | 56.5/50.5 | |||
250 | 3260/3460 | 5360/5560 | 68/63 | 56/51.5 | |||
300 | 4230/4410 | 7080/7260 | 69/63 | 59/53 | |||
350 | 4650/4810 | 7800/7960 | 69/64 | 59/54 | |||
400 | 6520/6750 | 10350/10570 | 70/64 | 61.5/55.5 | |||
500 | 7290/7570 | 10800/11080 | 72/65 | 64.5/57.5 | |||
600 | 9180/9450 | 14870/15140 | 74/66 | 67.5/59.5 | |||
800 | 11250/11650 | 18370/18780 | 75/70 | 69.5/64.5 | |||
Our Advantages
We bought professional software designed by Shanghai Jiaotong University, which can accurately and quickly calculate the relevant physical quantity data in the tower.
Related Products
Packing&Shipping
After Sales Service
1. The products sold by the company are guaranteed for one year and lifetime service.
2. After delivery of the equipment, the company will provide professional installation or technical guidance for installation.
3. The company can provide equipment operation and commissioning services, as well as on-site training and guidance for operators.
4. The after-sales service hotline is open 24 hours a day, and professional technicians are provided to serve you.
5. The company provides annual inspection or international remote video inspection for free.
Company Introduction
The four technology advantages that Lianfeng has are:high cooling effect.low noise,low electric consumption,and long life expectancy.
