Product Overview
Description
Product Overview

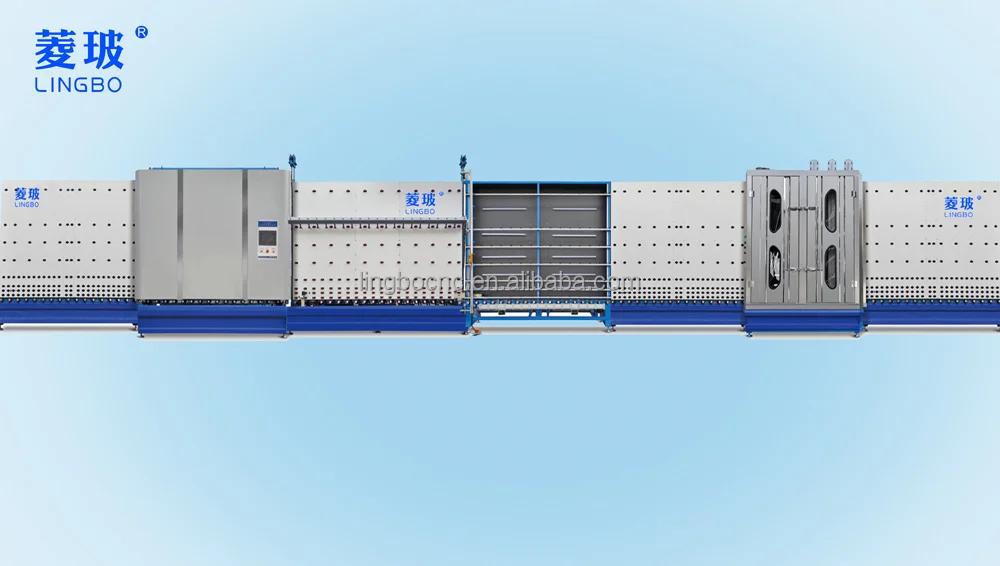

Promotion Terms insulating glass machinery Introduction
The Full Automatic CNC Glass Processing Machinery Insulating Glass machine is produced by us, it is mainly have two kinds in the market, one is the vertical type, which always working in lines, combined with washing & drying, spacer attaching, pressing, sealing and the related transport sections, easy operation and accurate positioning, saving human sources. The other is the horizontal type, specially fit for the small glass process workshop, low invest and quick benefit.
We are one of the professional manufacturer of Full Automatic CNC Glass Processing Machinery Insulating Glass machine more than ten years, and our machines can not only process the triple glass and stepped glasses, but also the low-E and coated glasses. So just tell us your requirement, and we will choose the right machines for you. We are located in Shandong province, known for our hospitality and frankness. Please donnot hesitate to connect us, we are always here to help you.
We are one of the professional manufacturer of Full Automatic CNC Glass Processing Machinery Insulating Glass machine more than ten years, and our machines can not only process the triple glass and stepped glasses, but also the low-E and coated glasses. So just tell us your requirement, and we will choose the right machines for you. We are located in Shandong province, known for our hospitality and frankness. Please donnot hesitate to connect us, we are always here to help you.

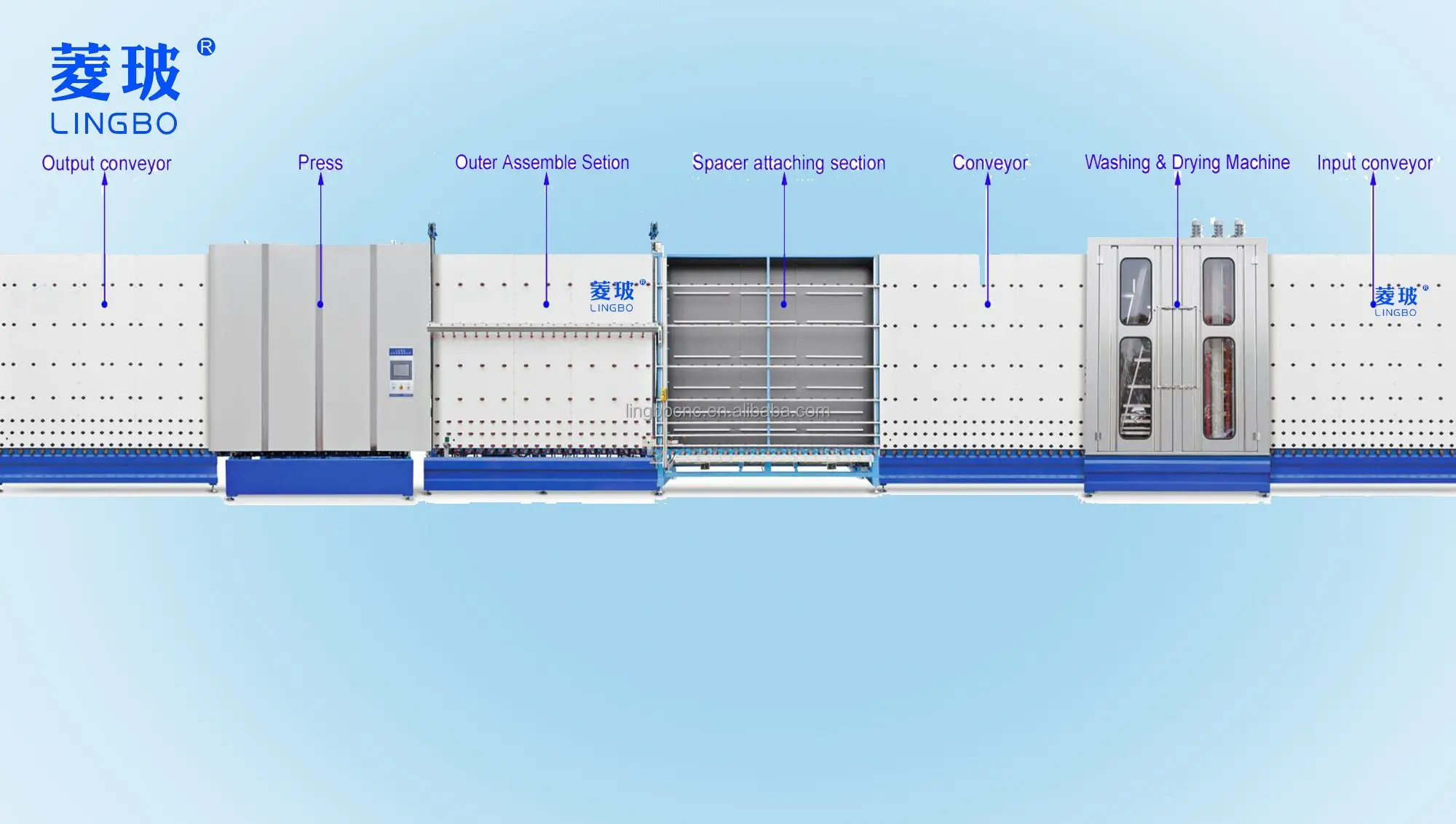

The main process of Glass Processing Machinery Insulating Glass machine includes:
1. Glass Washing Section:
ADVANTAGES:
1. The whole washing section are made of stainless steel;
2. Converter driving for Low-E brush rotatory speed;
3. Automatically distinguish the coating side of coated glass and Low-E glass;
4. Upper part of washing box use the bevel gear connects;
5. Washing machine adopts oil less bearing.
1. The whole washing section are made of stainless steel;
2. Converter driving for Low-E brush rotatory speed;
3. Automatically distinguish the coating side of coated glass and Low-E glass;
4. Upper part of washing box use the bevel gear connects;
5. Washing machine adopts oil less bearing.
2. SPACER ATTACHING SECTION
ADVANTAGES:
1. Automatic detecting system for spacer frame;
2. Automatic detecting system for glass;
3. Hollowing out design, adopts the matte lights and The light tubes are controlled by two stages, saving energy;
4. The aluminum spacer positioning adopts special design, accurate positioning, automatically inject the height and thickness of glass, saving labor;
5. The backrest wheel adopts the inlaid design and the bearing is inside
1. Automatic detecting system for spacer frame;
2. Automatic detecting system for glass;
3. Hollowing out design, adopts the matte lights and The light tubes are controlled by two stages, saving energy;
4. The aluminum spacer positioning adopts special design, accurate positioning, automatically inject the height and thickness of glass, saving labor;
5. The backrest wheel adopts the inlaid design and the bearing is inside
3. OUTER ASSEMBLE SECTION
\tADVANTAGES:
1. Outer assembling glass, speed is fast;
2. Adopts the Imported cylinder and photoelectric switch, make accurate positioning;
3. can do three glass with two chambers;
4. Special weight balancing system to make sure the workers and glass safety.
5. Guideway, slide block, slide wheels adopts CNC processing.
\tADVANTAGES:
1. Outer assembling glass, speed is fast;
2. Adopts the Imported cylinder and photoelectric switch, make accurate positioning;
3. can do three glass with two chambers;
4. Special weight balancing system to make sure the workers and glass safety.
5. Guideway, slide block, slide wheels adopts CNC processing.
4. PRESS MACHINE SECTION
\tADVANTAGES:
1. Adopts accurate positioning, make sure glasses press accurately;
2. The plate of press machine adopts the CNC processing;
3. The press open and close will adopts the air pump.
5. CONVERYOR SECTION\t
\tADVANTAGES:
1. Adopts accurate positioning, make sure glasses press accurately;
2. The plate of press machine adopts the CNC processing;
3. The press open and close will adopts the air pump.
5. CONVERYOR SECTION\t
ADVANTAGES:
1. Transmission wheel, the special design structure makes transmission wheel more durable;
2. The conveyor section adopts the inlaid roller to facilitate the large glass delivery;
3. The large frame uses 50mm × 100mm square standard steel tube, the equipment is more stable, enhance the stability of equipment operation.
4. Can do three-sided glass
1. Transmission wheel, the special design structure makes transmission wheel more durable;
2. The conveyor section adopts the inlaid roller to facilitate the large glass delivery;
3. The large frame uses 50mm × 100mm square standard steel tube, the equipment is more stable, enhance the stability of equipment operation.
4. Can do three-sided glass
FEATURES AT A GLANCE

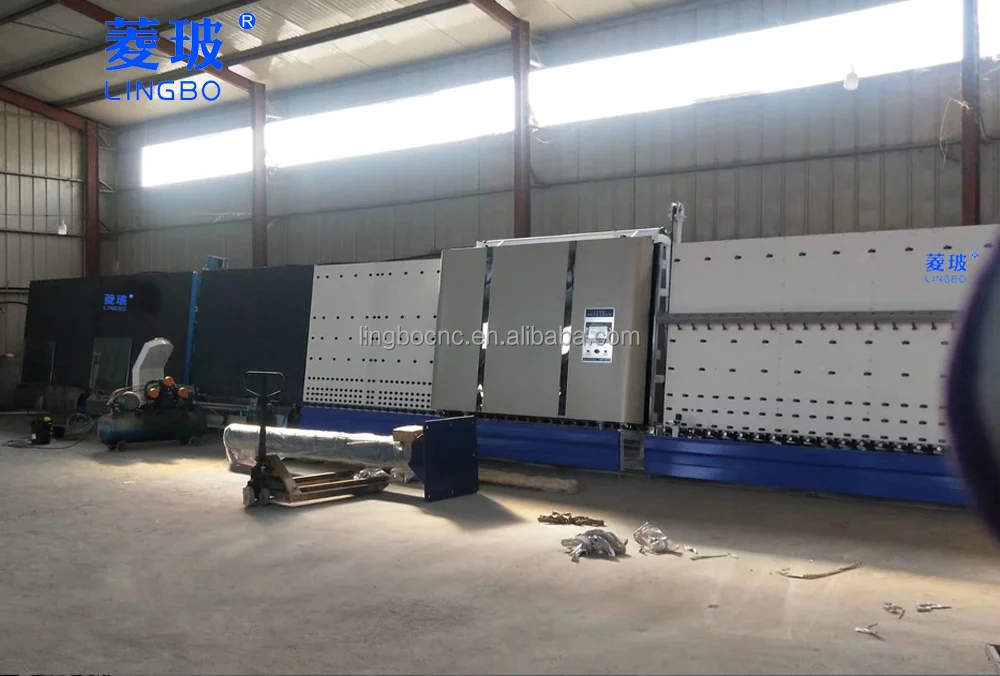

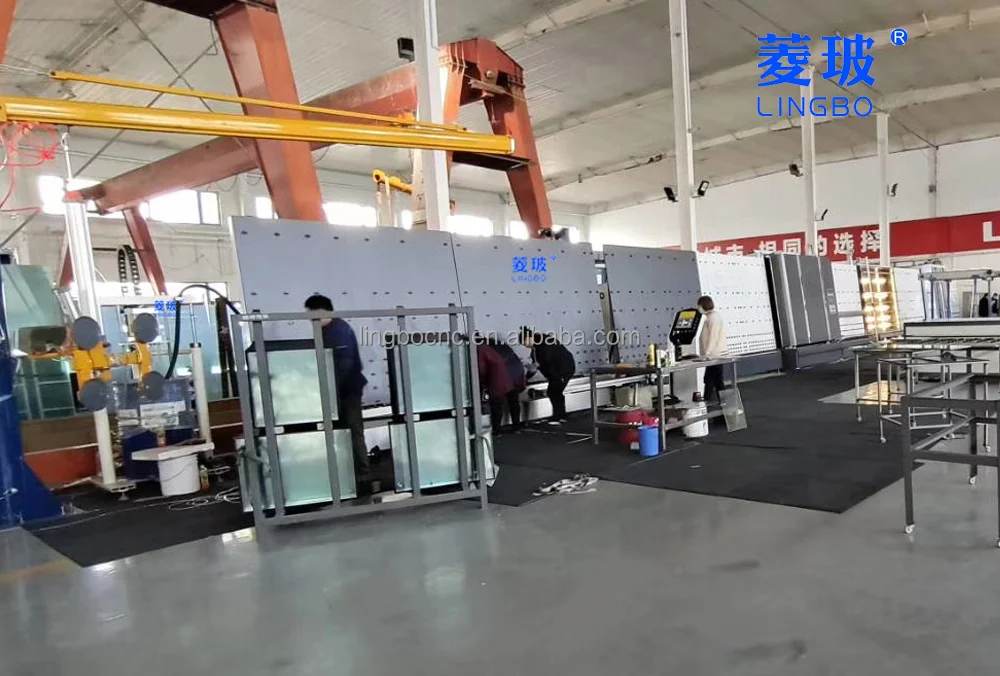

The machine in working situation:
Promotion Terms insulating glass machinery Features
1. PLC control, touch sensitive screen human-machine interface, operation is more convenient and intuitive.
2. The production line automatically recognise coated glass and LOW-E glass.
3. The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
4. The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness.
5. The aluminum spacer positioning adopts unique design, accurate positioning, reduced labor, automatically accurate detection of glass height and thickness to provide accurate data for in-panel inflation.
6. Can filling argon gas for single chamber or double chamber glasses.
2. The production line automatically recognise coated glass and LOW-E glass.
3. The upper part of the cleaning box is connected by a bevel gear, which has stable performance and long service life.
4. The light tubes are distributed reasonably, segmented control, better detection of glass cleanliness.
5. The aluminum spacer positioning adopts unique design, accurate positioning, reduced labor, automatically accurate detection of glass height and thickness to provide accurate data for in-panel inflation.
6. Can filling argon gas for single chamber or double chamber glasses.
PRODUCT SPECIFICATIONS
Technical Parameter for Promotion Terms insulating glass machinery
Model | Max glass | Min glass | Insulated glass thickness | Spacing Dimension L*W*H - meters |
ZKX-1800*2400 | 1800*2400 mm | 300*500 mm | 10-48 mm | 18*2*2.85 |
ZKX-2000*2500 | 2000*2500 mm | 300*500 mm | 10-48 mm | 19.5*2.2*3.05 |
ZKX-2000*3000 | 2000*3000 mm | 300*500 mm | 10-48 mm | 22.8*2.2*3.05 |
ZKX-2500*3100 | 2450*3150 mm | 300*500 mm | 10-48 mm | 22.8*2.3*3.55 |
ZKX-2500*4000 | 2450*3950 mm | 300*500 mm | 10-48 mm | 29*2.3*3.55 |
ZKX-2700*4000 | 2650*3950 mm | 300*500 mm | 10-48 mm | 32*2.5*3.80 |
Notes:
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.
a. if you have special glass size, please note us, we can design the line for you;
b. If you have special power supply, please note us earlier as well, we can specially make the line for you.

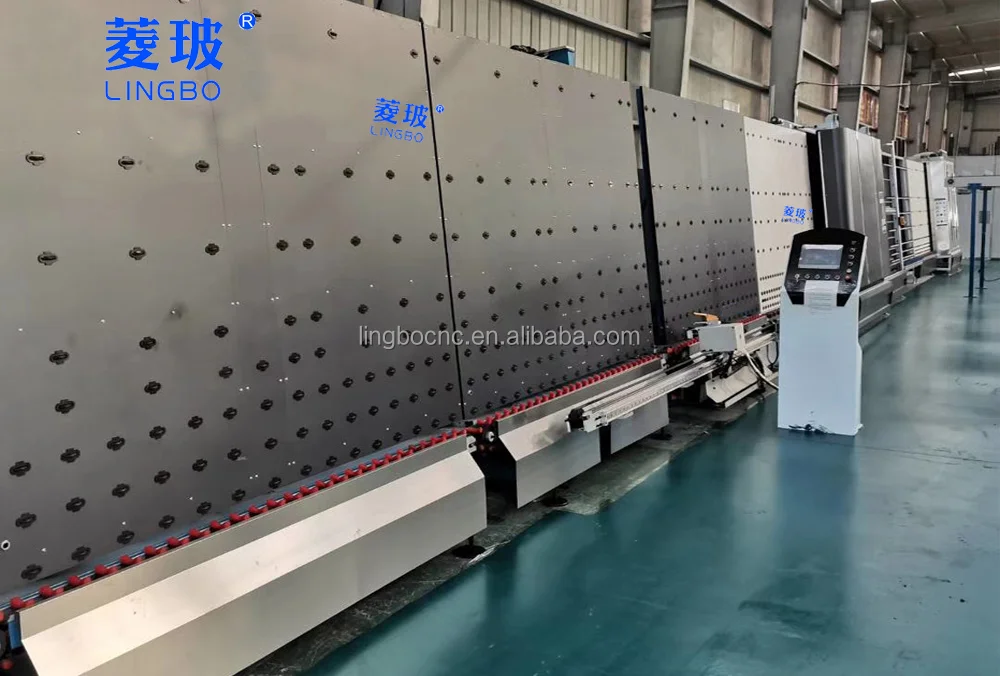

High Speed Washing Machine
Automatic positioning system for glass
Air pump press open and close
conveyor section adopts the inlaid roller to facilitate the large glass delivery
Transmission wheel, the special design into two pieces,
so that this roller can be using for 4 times, saving using cost for client.
Washing section has no chains in side to make sure longer lifetime.
The glasses will be Clamping transmission, to make sure small glass not easy to be broken.
Angled aluminum spacer positioning
When glass is closing, the Positioning block is close to glass.
After measured it, the Positioning block will be leave glasses,
So the glass will be not moved by this block.
Special out press design
For making three glasses, this structure is holding up.
Outer press positioning structure
Special design structure to make the line going fluently.

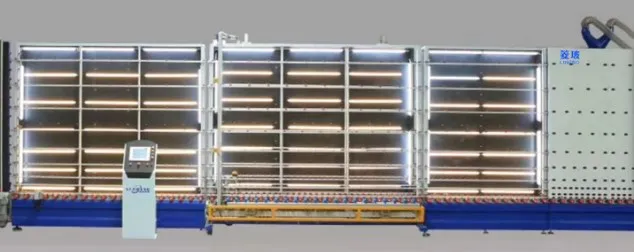

Spacer attaching system adopts hollow design, advantages following:
1. Checking if still having tiny dirt thing which is not easily detectable on glasses, it is one of our patent design.
2. Using matte material density board and warm light tube, long working hours will not hurt your eyes.
3. The light tube is designed in two sections, the large glass and the small glass can be separated, which saves energy and electricity
Configuration Sheet on Promotion Terms insulating glass machinery
PROJECT NAME | BRAND | COUNTRY |
Frequency converter | SIEMENS | GERMANY |
Programmable PLC | OMRON | JAPAN |
Intermediate relay | HONEYWELL | USA |
Low-E Glass Recognizer | OPTEX | JAPAN |
Proximity Switch | AUTONICS | KOREA |
Pneumatic Solenoid valve | AIRTAC | TAIWAN |

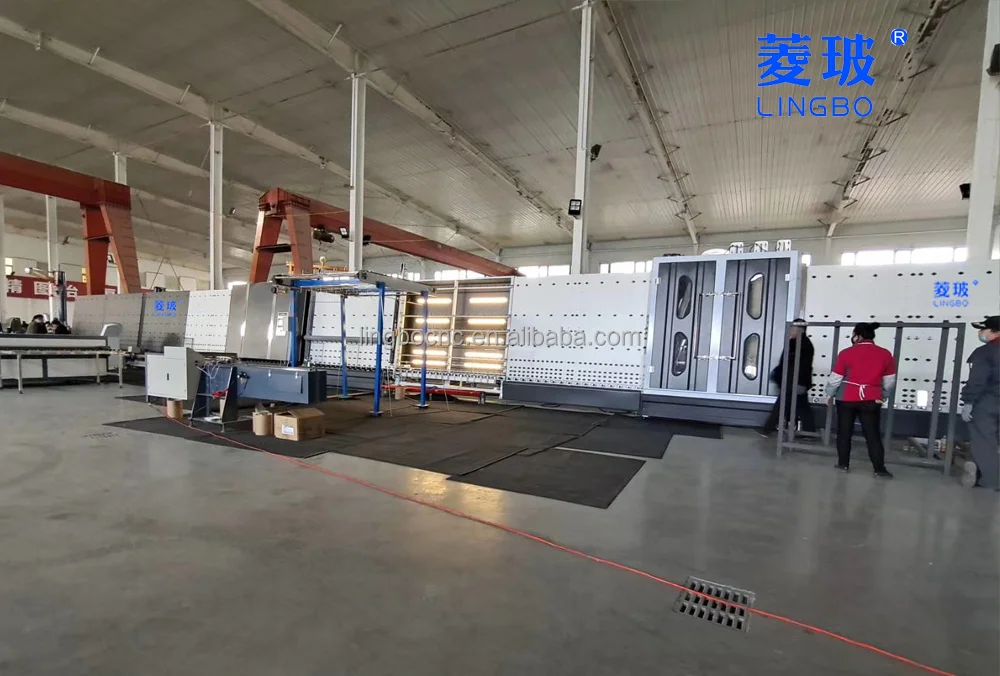

Successful Project
For Promotion Terms insulating glass machinery , we have installed some projects all over the world, and we are wishing to develop the dealers all over the world. We will supply the high quality machines, high technology with competitive prices to get WIN-WIN Goals.
Project in Korea
Project in Serbia
Project in India
FAQ
Q: we are first time to hear your brand, Are you NEW to this glass process filed?
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
A: We are factory built 2014, we have good name in home market, however we just start to open international market.
Q: What is your advantages compared the other supplier?
A: We supply high quality machines with high technology but with lower prices. Because our company goal is to Provide the most cost-effective products for the world.
Q: How about your warranty?
A: The guarantee period shall be 15 months counting from the date of the goods on board, except wear parts. In the normal course of operation and maintenance if there is breakdown and damage, during the Guarantee period (15 months) the repair parts should be supplied by the Seller for free, except wear parts.
Q: What's the payment term?
A: we can accept T/T, L/C, western union etc.
Q:Can we visit your factory before order?
A:Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
Q: What's the delivery term?
A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
What is the service can you supply?
1. Machine function introduction and quotation reply within 24 hours.
2.Industrial design or workshop layout design reply within 48 hours.
3.Customization feasibility reply within 72 hours.
4.Engineer onsite installation and operation guide if necessary.
5.Machine operation and maintenance guide service after sells.
6.Supply all the parts of the machine in whole lifetime.
7.PLC control system can be update and repaired in machine's whole lifetime!
8.Spare parts supplied in cost prices for all the clients.
What's the guarantee for the machines?
1. Our guarantee for 12 months.
2.24 hour's technical support by email or calling.
3.English manual and video teaching.
4.We will provide the consumable parts at an agency price.
5.24 hours on line service each day, free technical support.
