CPAO 2000 2T/H Cold Press Extra Virgin Avocado Oil Production Line With Cold Press Method
- Category: Oil Pressers >>>
- Supplier: Henan Solid Mechanical Equipment Co. Ltd.
Share on (1600328705138):
Product Overview
Description
Product Description
CPAO-2000 Cold Pressed Avocado Oil Production Line

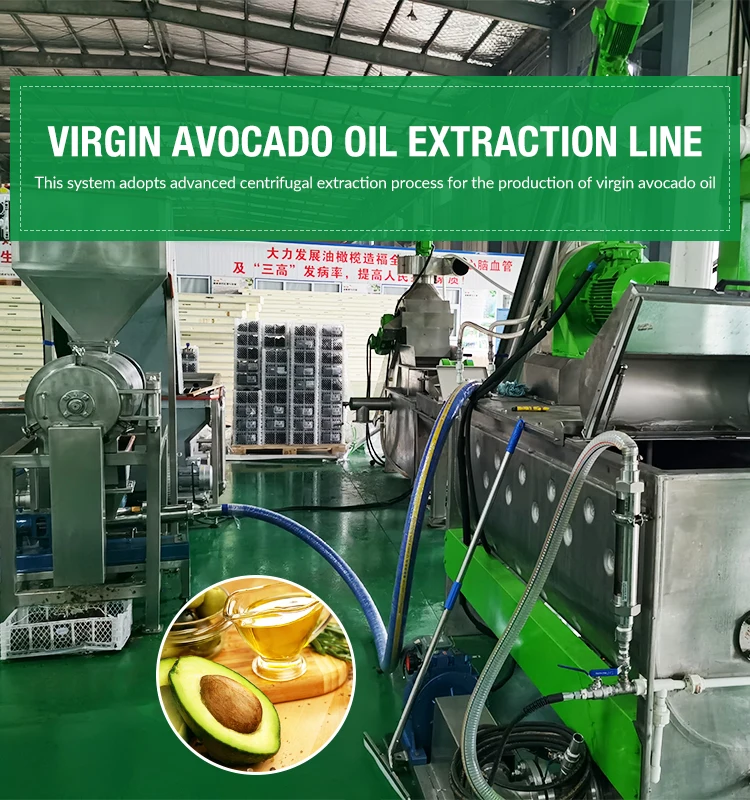

CPAO series CENTRIFUGE EXTRACTION LINE is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin avocado oil.
Generally,the whole system consists of the following 6 steps
1.- avocado fruits sorting system
2.- avocado fruits washing and seed/skin removal system

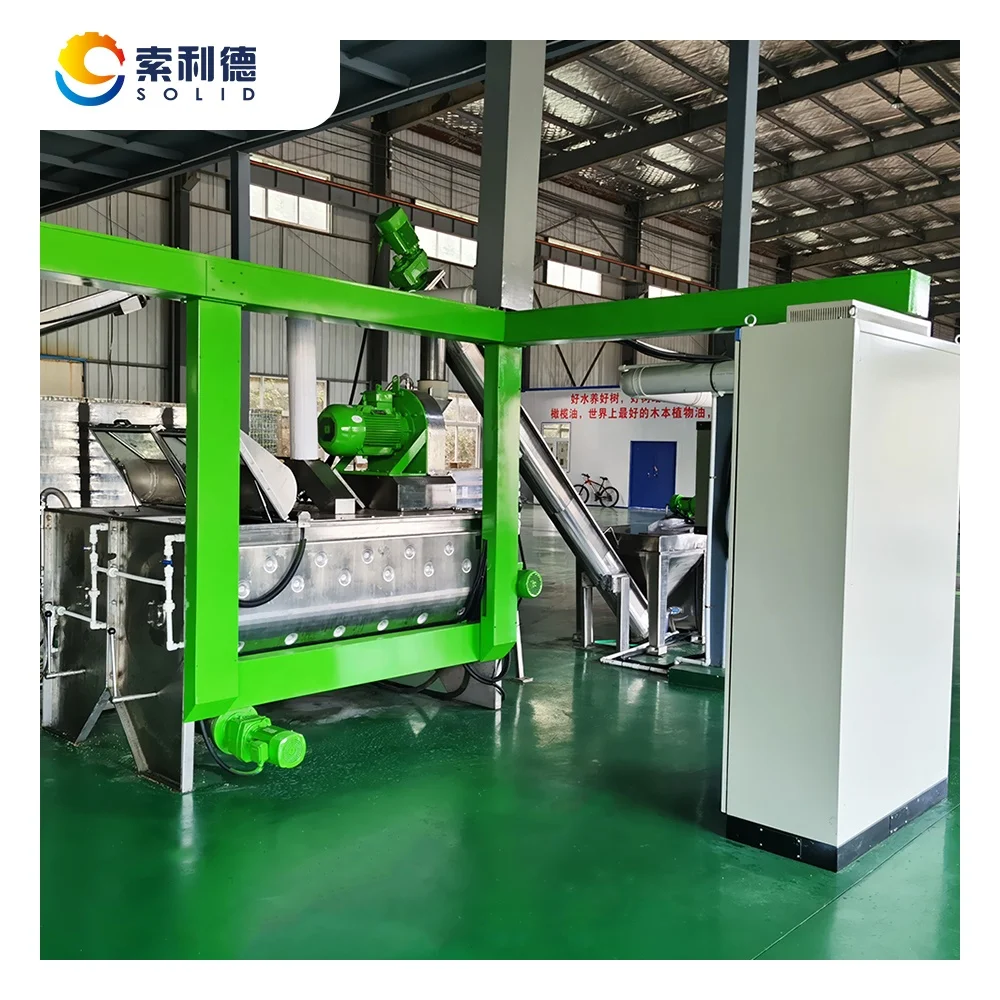

3.- avocado paste malaxing system

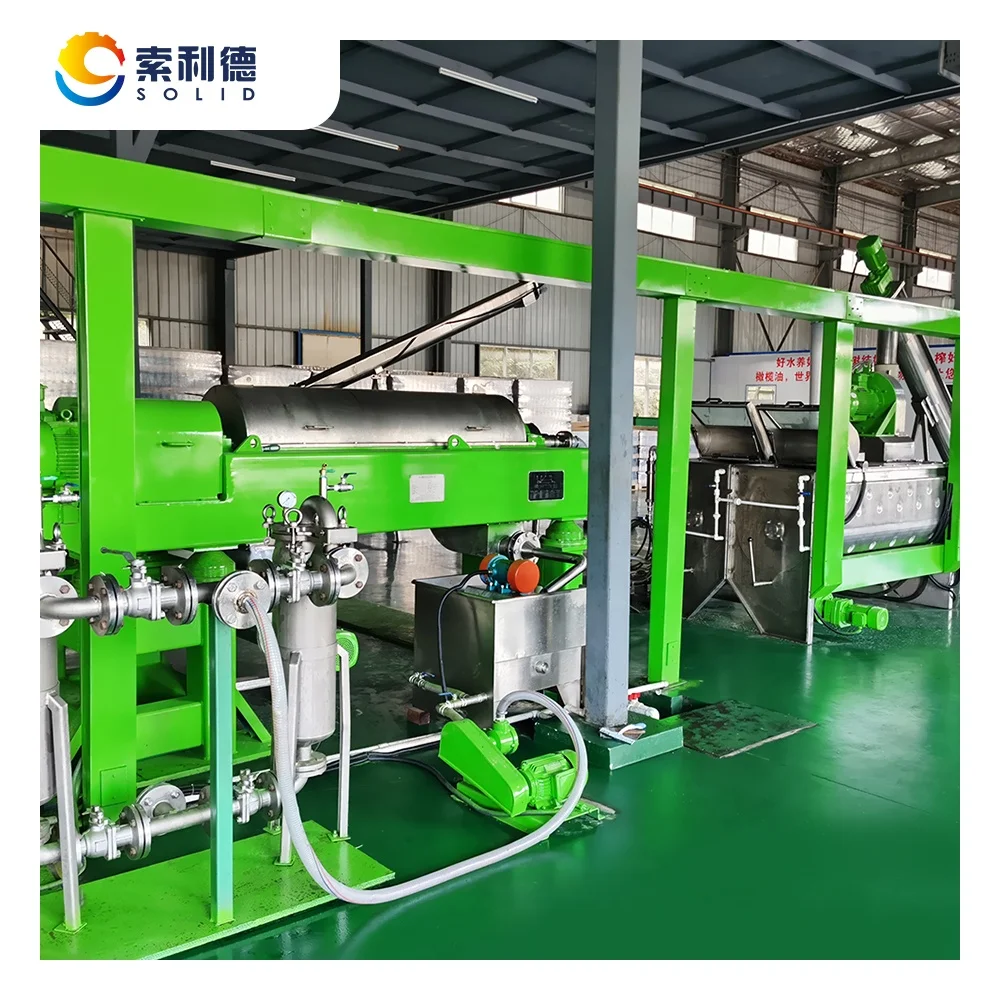

4.- avocado oil extraction system

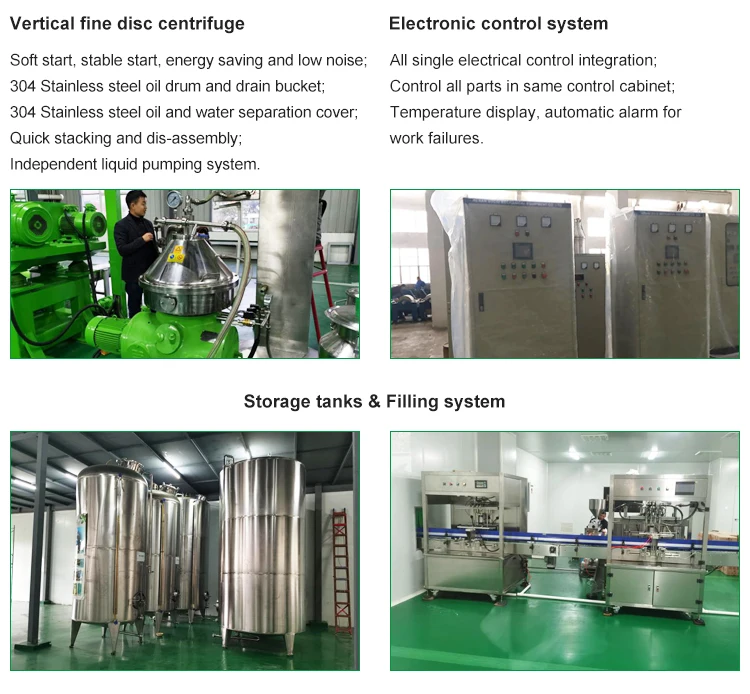

5.- avocado oil purification system
6.- avocado oil storage and bottling system

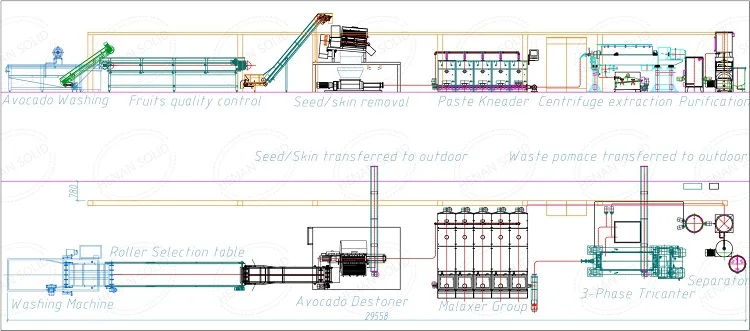

Process Drawing

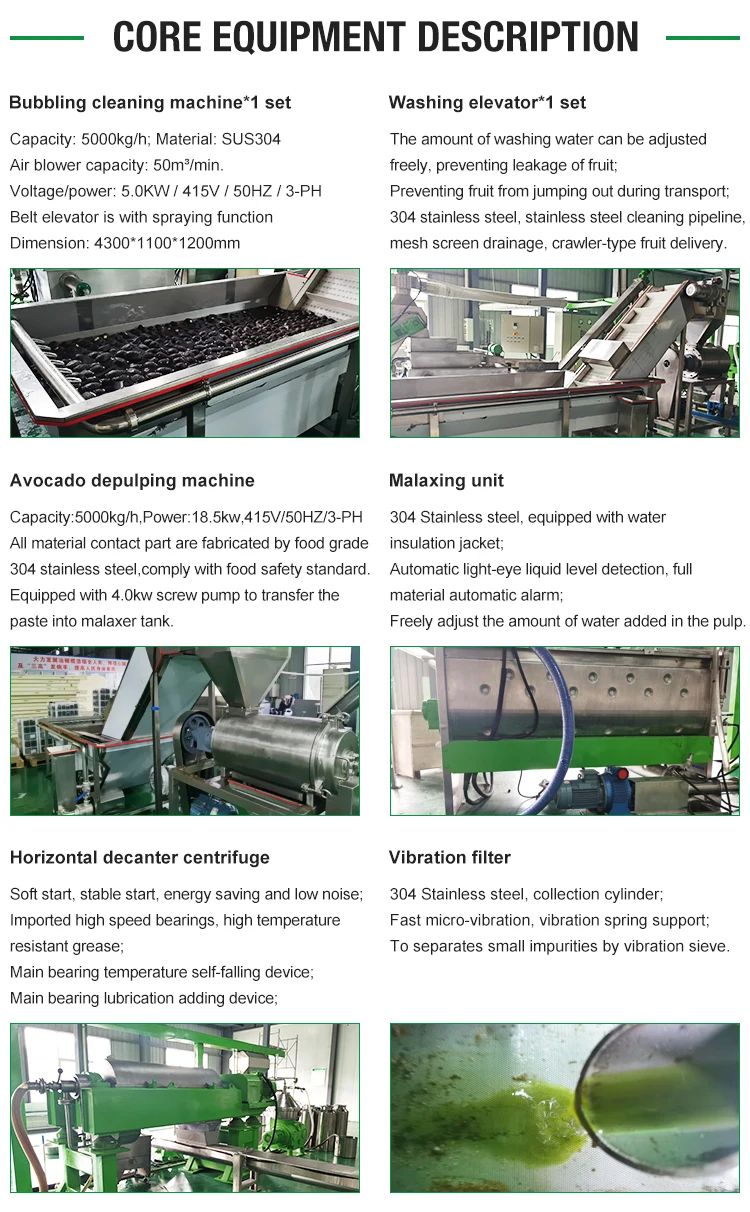

Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |
1 | AVOCADO FRUITS WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | AVOCADO FRUITS DESTONER | FOOD GRADE SUS304 | / | 1 |
3 | PASTE MALAXING TANK | FOOD GRADE SUS304 | / | 4 |

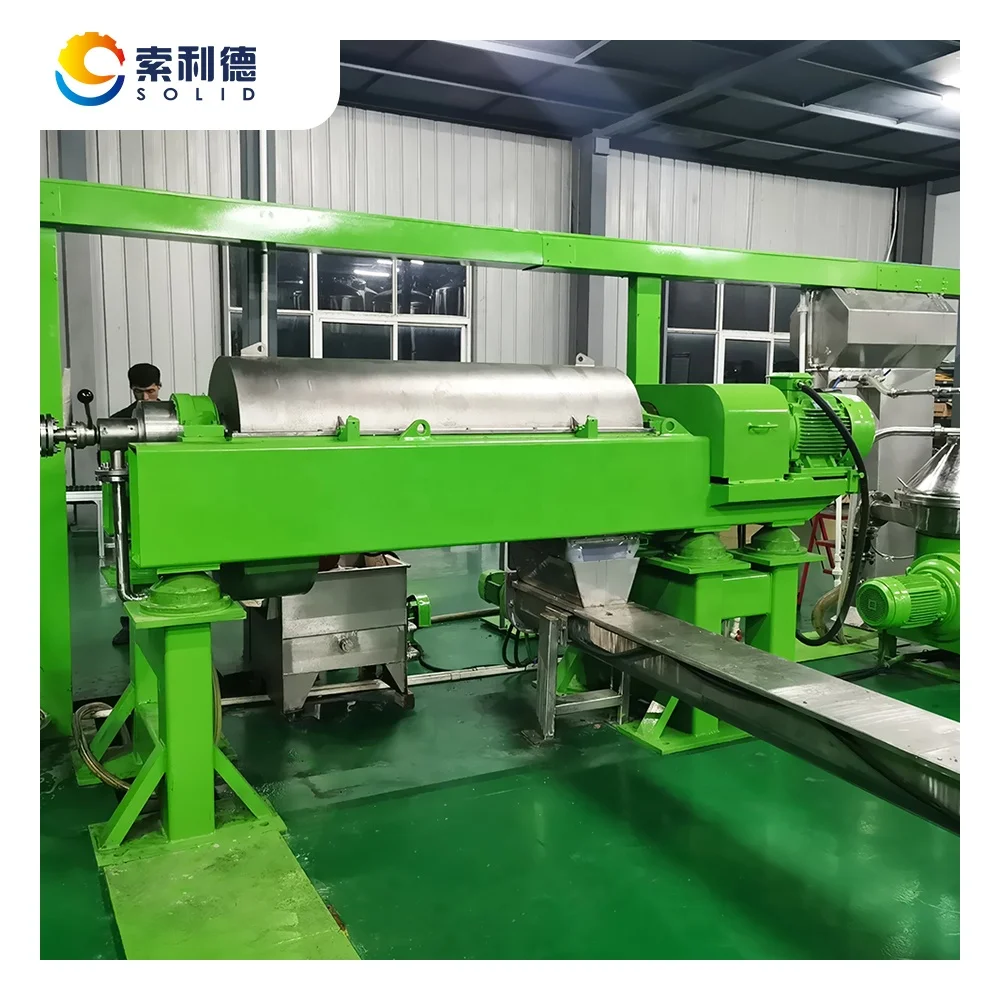

4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | VERTICAL DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CARBON STEEL | / | 1 |
Different Models for Choice
(The following capacity is based on the avocado fruits input)
CPAO-500 | CPAO-1000 | CPAO-2000 | CPAO-3000 | CPAO-5000 | CPAO-8000 |
500KG/H | 1000KG/H | 2000KG/H | 3000KG/H | 5000KG/H | 8000KG/H |
