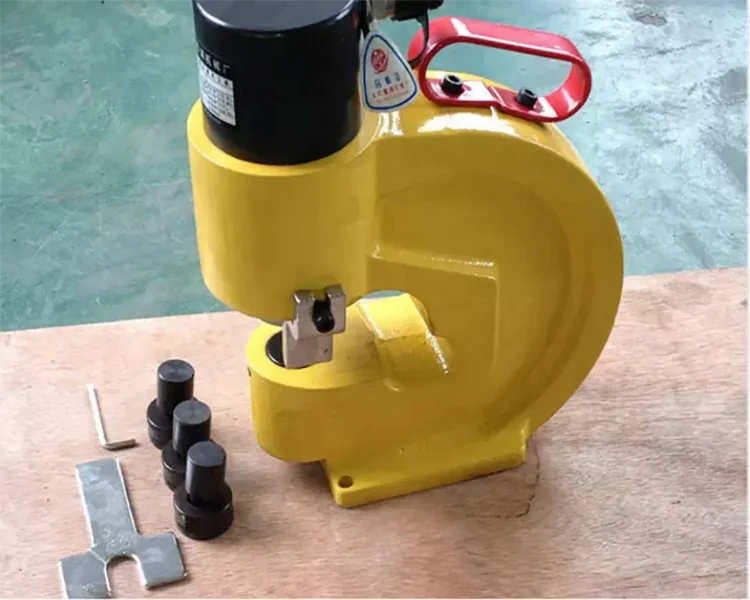

CH 60 Hydraulic Busbar Hole Punching Tool

CH-60 Hydraulic Bus bar Hole Punching Tool For Metal Hole Punching

Tools Introduction

Hydraulic Punching Tools CH-60 is a remote control tool, works with an external hydraulic pump (Hand Foot or Electric pump). It is designed to punch round holes on Cu/Al Busbar. With 4 pairs standard punching dies (10.5 / 13.8 / 17 / 20.5mm), punching hole size is between diameter 10.5mm and diameter 20.5mm. Busbar thickness should below or equivalent to 8mm. With hydraulic power, 4 pairs sharp punching dies, easy fast and clean punching can be achieved.

Specification

1. Application: Punch Round Holes on Cu/Al Busbar

2. Punching Capacity: Dia. 10.5mm-Dia. 20.5mm

3. Busbar Thickness: Below or equivalent to 8mm

4. Output: 31T  Throat Depth: 95mm

5. Weight: 13.5kg  Size: 350*245*110mm

6. Package: Steel Case

Features

Operation speed of  CH-60 Hydraulic Hole Puncher is fast than electric drill. It only need a few seconds for punching and there is no burr after punching.

With pressing mechanism design, punching precision is good.

With the hydraulic pump as power, it can used in no power site.

1. Remote Control Style: Works with an external hydraulic pump. With the help of hydraulic power, punching become easy and fast. Foot Hand and Electric Hydraulic pumps are all available in our products range

2. 4 Pairs Standard Punching Dies: For precise punching, select proper dies accoding to application

3. Dies Size: 10.5mm  13.8mm  17mm  20.5mm

4. Punching Dies Customization is Available if samples and Drawings can be provided

5. Steel Case Package: Protect Tools well

Detailed Product Description and function

1. manual hand pump operated, for copper pipe, steel tube, plastic water pipe

   It is suit for common water pipe, wire pipe, carbon steel pipe, conduit tube, bending the angle 90

   The upper plate of the new design is cut by one time, it won’t be broken.

   This machine could bend pipes toward any direction you want;the largest bending angle is 90°

2. Suitable for use in bending brass pipes,steel pipes,hydraulic pipes,coated and uncoated pipes.

3. We can make moulds in other specifications according to customers requirements

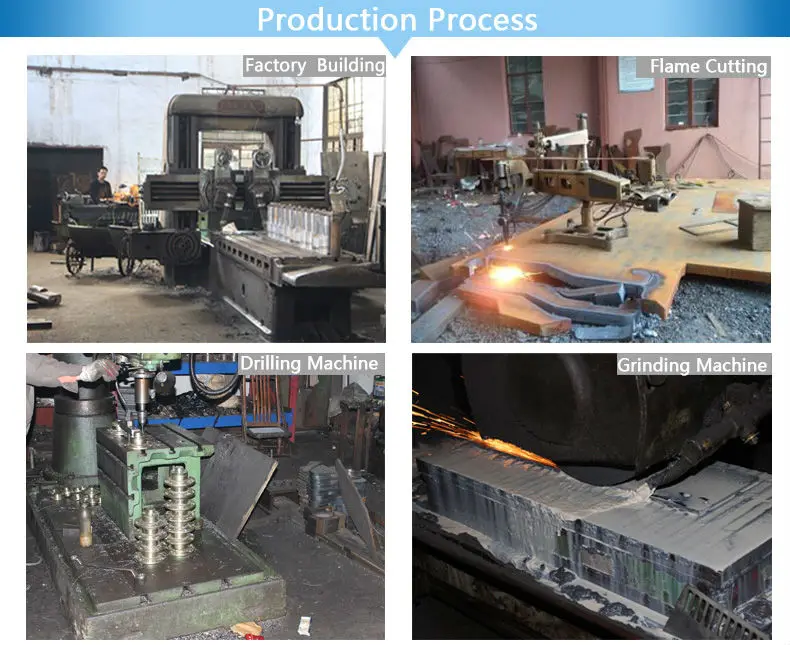

Quality Control

We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.

Our Values

1, Take First-Class Quality as Target and First-class Service.

2, As Responsibility, To Succeed By Scientific Management.

3, Customer in Heart, Quality in Hand, Technology in the Lead.

Technical Data
