Высококачественная 3 резервуара из нержавеющей стали или 4 или 5 резервуаров типа CIP
- Category: Washer >>>
- Supplier: Shanghai Easireal Technologies Co. Ltd.
Share on (1600328757900):
Product Overview
Description

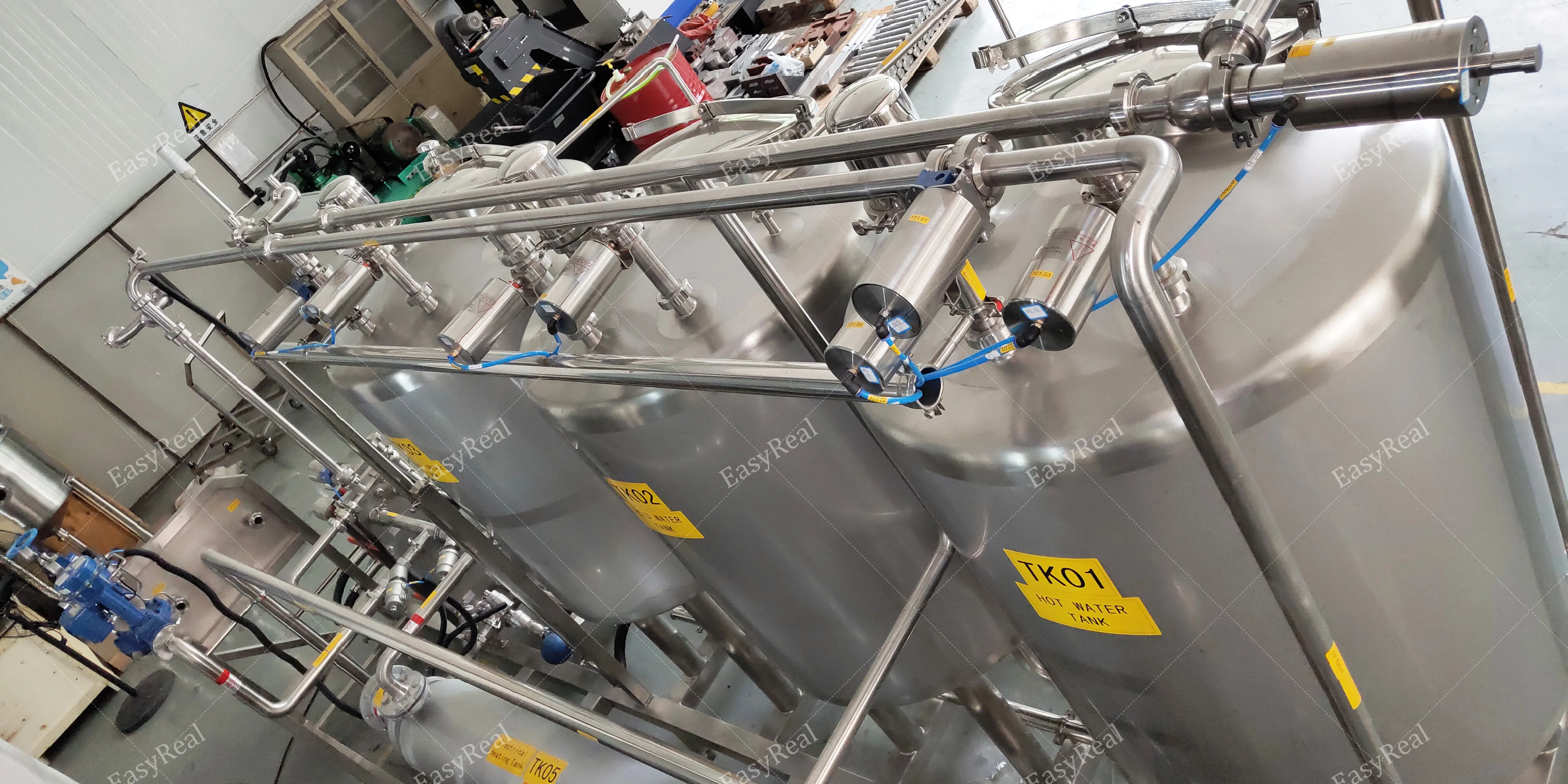

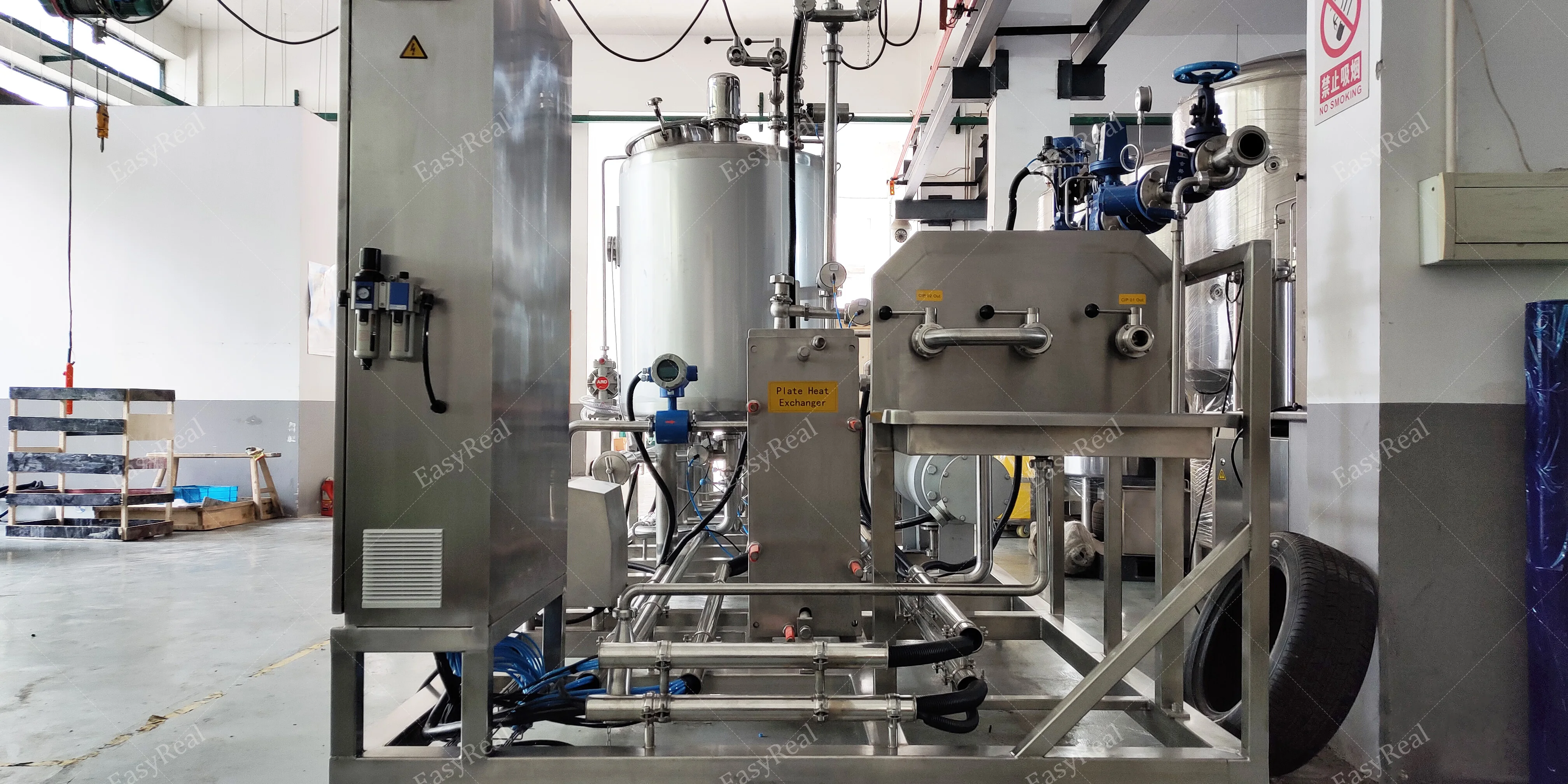

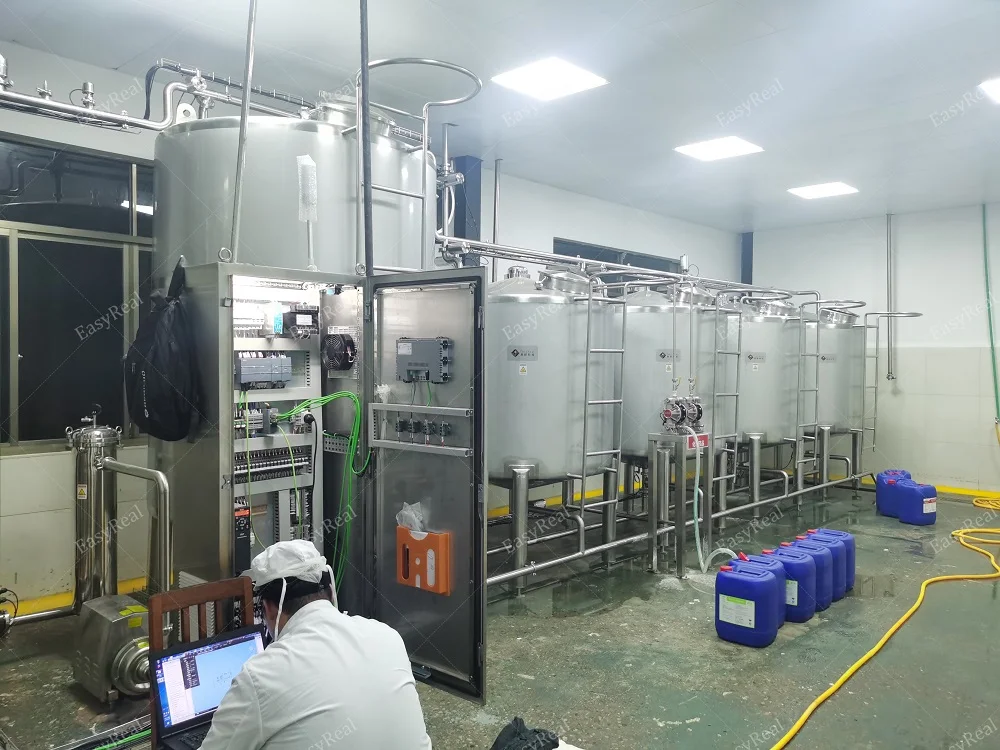

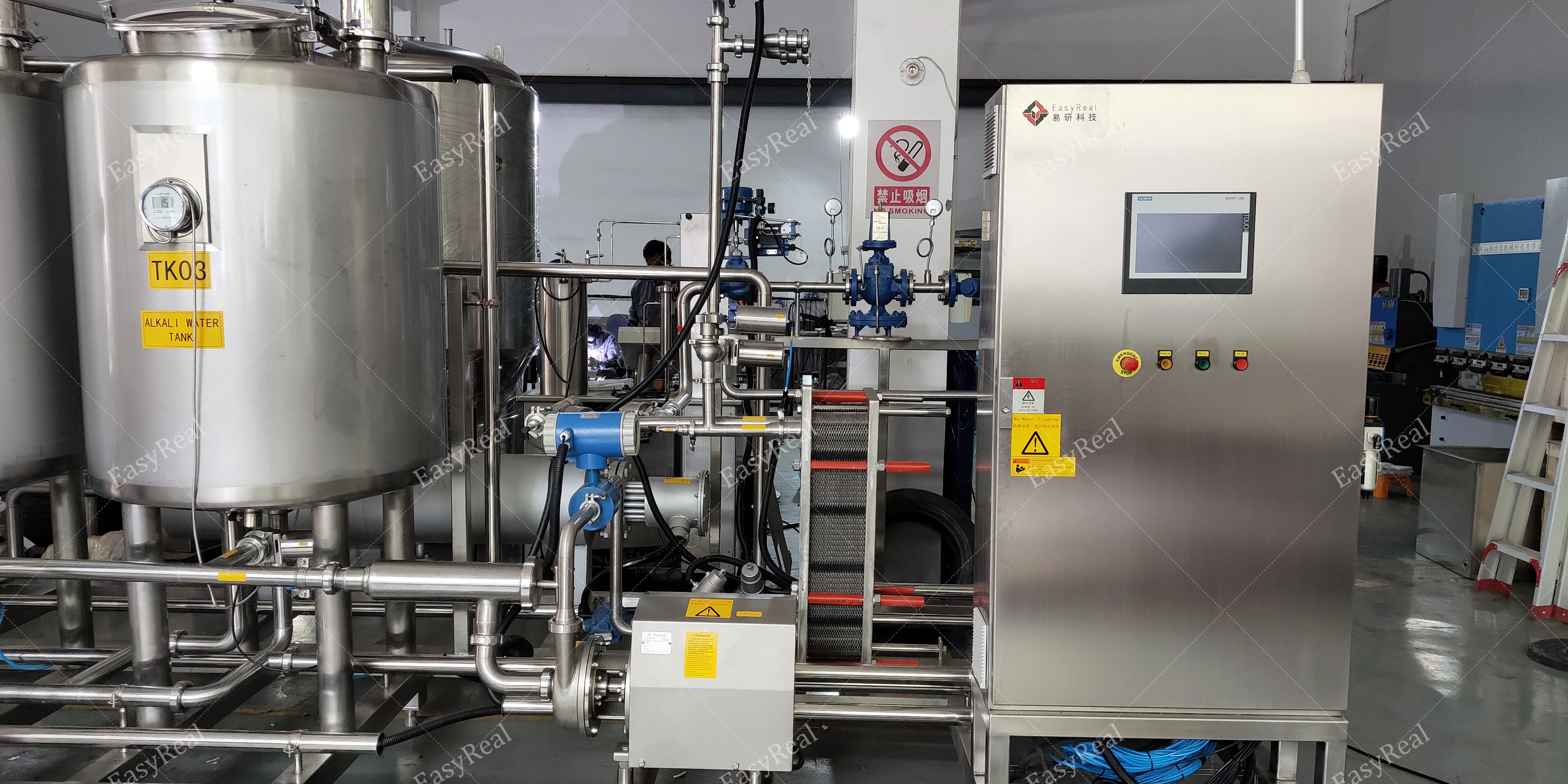

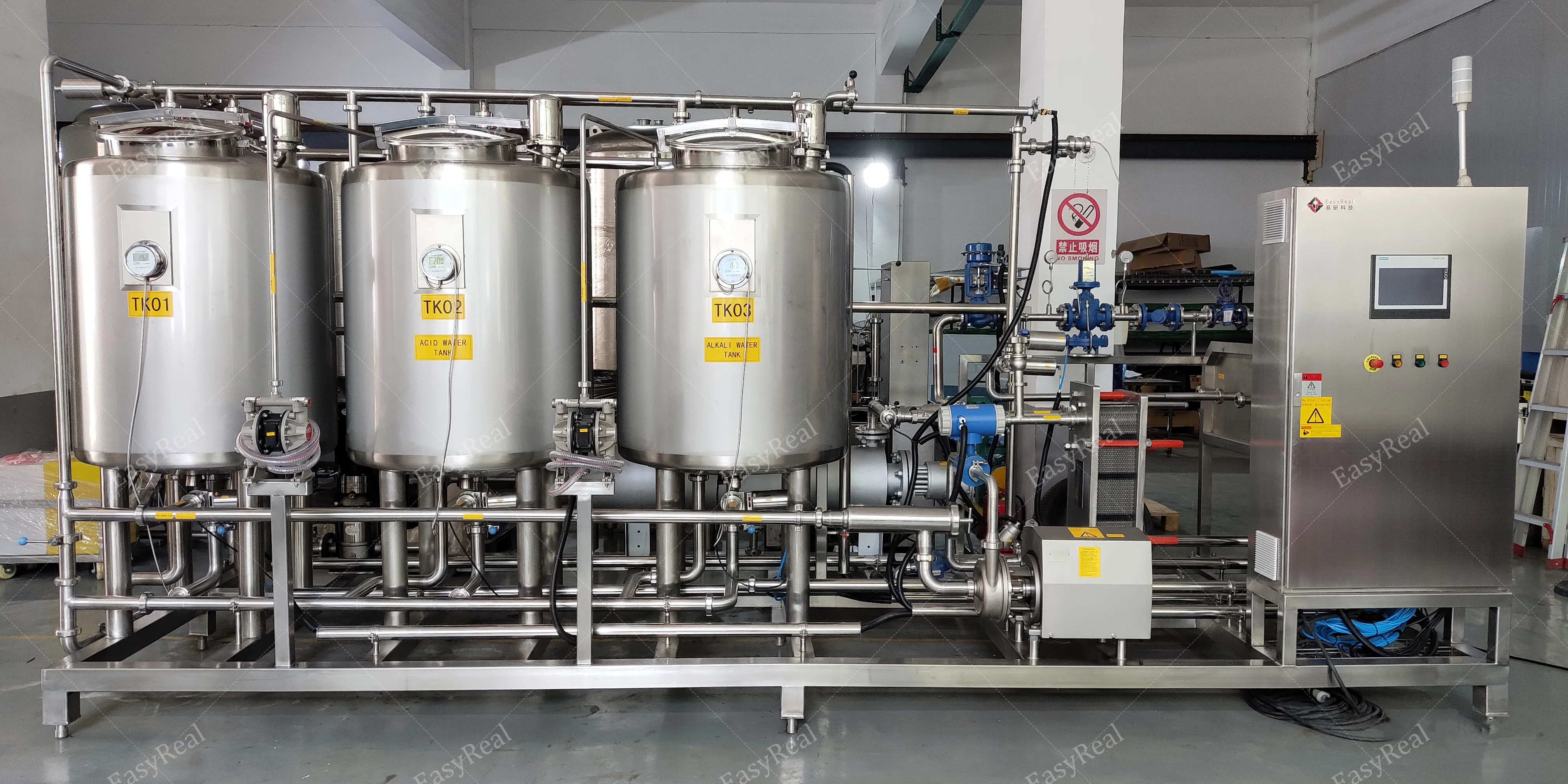

Automatic CIP cleaning system
Equipment introduction
The automatic CIP cleaning system is suitable for on-site cleaning of material pipeline equipment in dairy factories, breweries, beverage and general food factories. The main material is high-quality 304 or 316L stainless steel. The system is composed of alkali tank, acid tank, water tank, pipeline and pneumatic valve, conductivity meter (optional), discharge pump, heat exchange system and control system. It uses centrifugal pump to transport cleaning solution for forced circulation in material pipeline and equipment to achieve the purpose of cleaning.
Item | Value |
Processing | Washer |
Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms |
Standard | Combined Italian technology and confirm to Euro-standard |
Application | Clean in the place |
Function | washing machines, tanks and pipes in line |
Control system | Independent control system |
Key links | International famous brands |
Main structure | SUS304 and SUS316L stainless steel |
Degree of automation | Fully automatic and semei-automatic and manual for choice |
Standard configuration
1. Independent Siemens control system and man-machine interface monitoring operation;

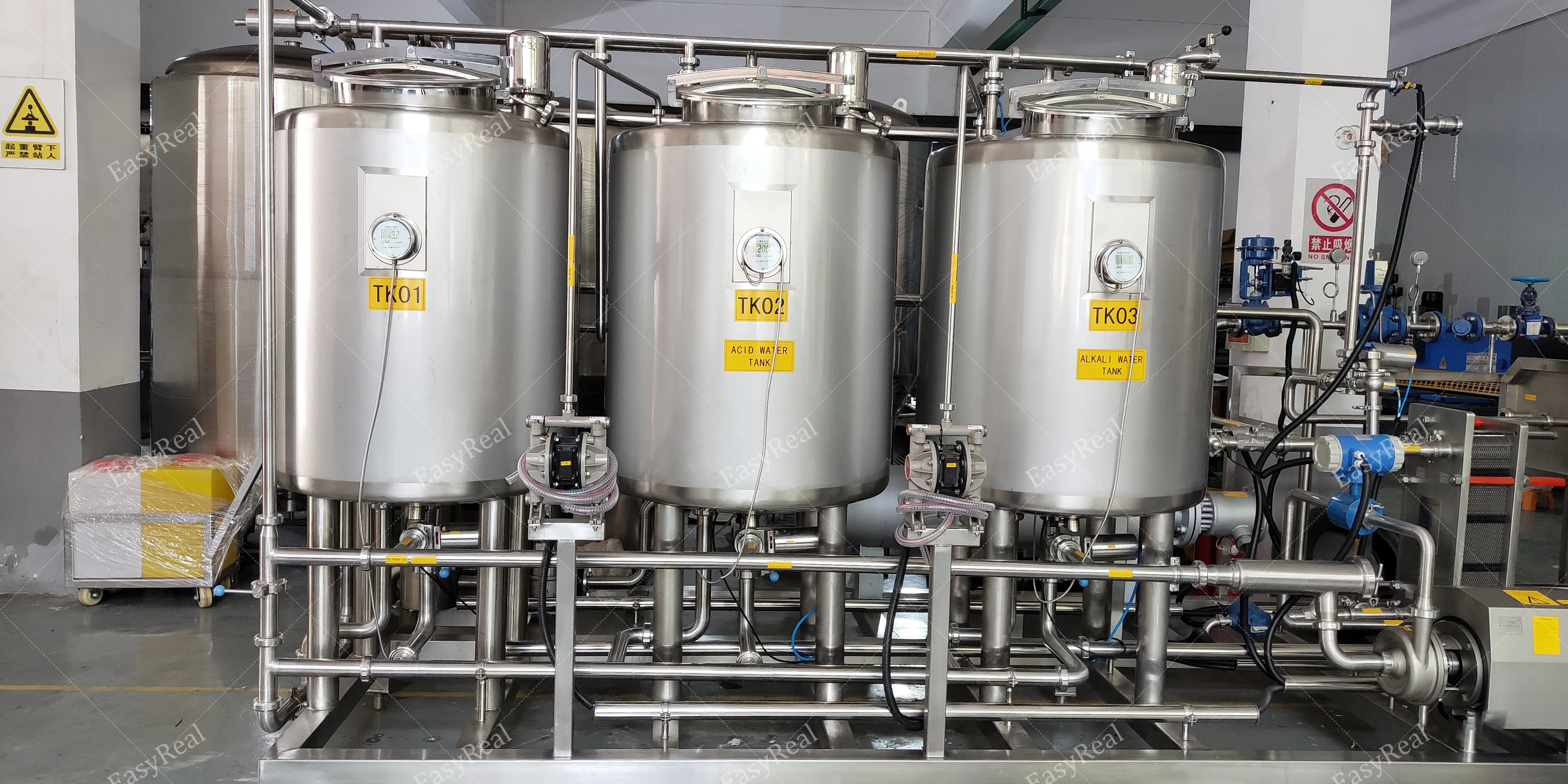

2. CIP cleaning solution storage tank (including acid solution storage tank, alkali solution storage tank, hot water storage tank and clean water storage tank);
3. Concentrated acid tank and concentrated alkali tank;
4. CIP liquid outlet centrifugal pump;
5. American aro Ingersoll Rand pneumatic diaphragm pump;
6. Plate heat exchanger (plate or tube structure);
7. Spirax sarco steam valve of speasak, UK;
8. German IFM flow switch;
9. German e + H conductivity meter (optional).
2. CIP cleaning solution storage tank (including acid solution storage tank, alkali solution storage tank, hot water storage tank and clean water storage tank);
3. Concentrated acid tank and concentrated alkali tank;
4. CIP liquid outlet centrifugal pump;
5. American aro Ingersoll Rand pneumatic diaphragm pump;
6. Plate heat exchanger (plate or tube structure);
7. Spirax sarco steam valve of speasak, UK;
8. German IFM flow switch;
9. German e + H conductivity meter (optional).
Introduction to control system

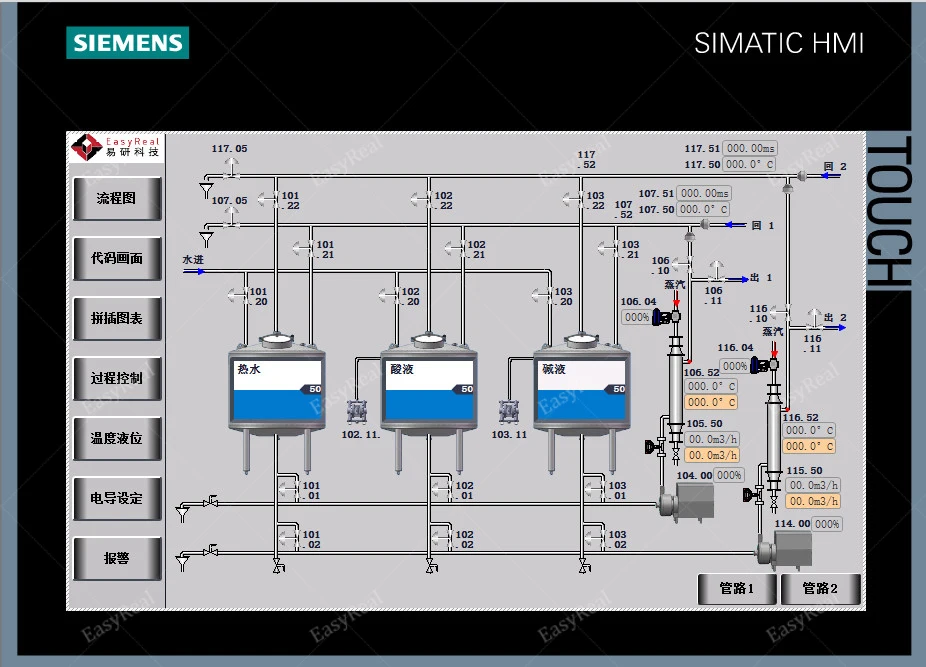

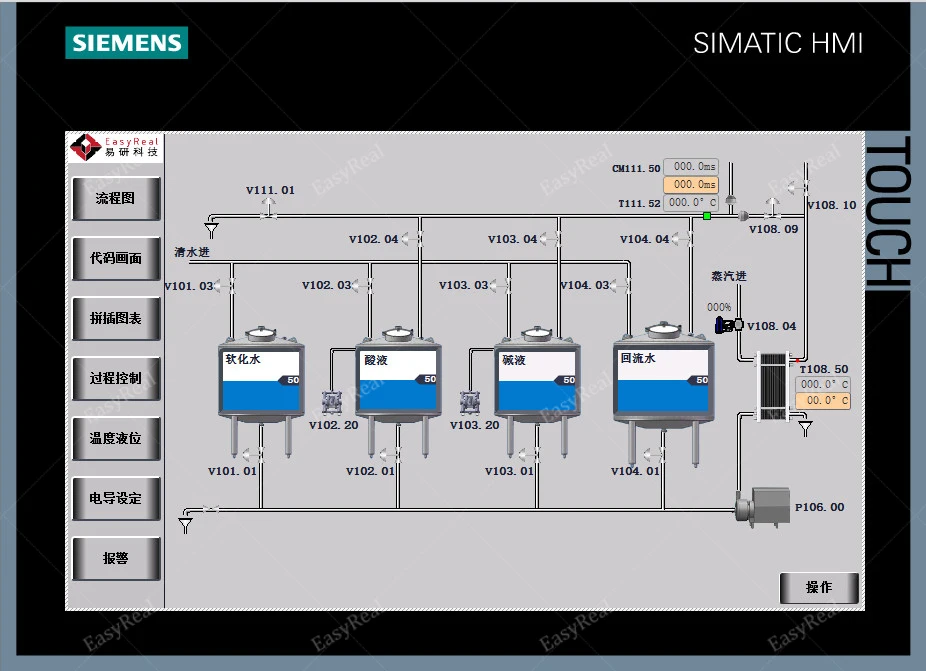

The system has an independent control system, adopts PLC programming control, and the color man-machine interface touch screen displays the whole cleaning process and various control parameters. The temperature of cleaning solution can be set, the pH in the tank can be set, the cleaning time can be set, the cleaning sequence can be set, and the pH of cleaning reflux can be set to realize the following automatic control:
1. Automatic control of cleaning fluid flow
2. Automatic control of cleaning fluid temperature
3. Automatic compensation control of liquid level in tank
4. Automatic compensation of acid and alkali concentration in tank
5. Automatic control operation of acid liquor, alkali liquor and hot water commutation
6. System alarm device.
1. Automatic control of cleaning fluid flow
2. Automatic control of cleaning fluid temperature
3. Automatic compensation control of liquid level in tank
4. Automatic compensation of acid and alkali concentration in tank
5. Automatic control operation of acid liquor, alkali liquor and hot water commutation
6. System alarm device.
GUARANTEES & SERVICES
1. ALL MATERIALS CONTACT WITH FOOD ARE FOOD GRADE, MEETING THE REQUIREMENTS OF FOOD PRODUCTION.
2. PROVIDE COST-EFFECTIVE PRODUCTION LINES AND EQUIPMENT WITH THE MOST REASONABLE DESIGN.
3. PROFESSIONAL TECHNICAL DESIGN, FLOW CHART, FACTORY LAYOUT, EQUIPMENT DRAWING, ETC. TECHNICAL SUPPORT.
4. PROVIDE RELATED TECHNOLOGY CONSULTING AND SALE SERVICE FOR FREE.
5. INSTALLATION AND COMMISSIONING.
6. ALL OF OUR EQUIPMENT WITH 12 MONTHS WARRANTEE, AND LIFELONG AFTER SALE SERVICE.
Q1:Are you a trading company or a manufacturer?
A1:We are a manufacturer. We can supply you Turn-key Solution according to your specific requirements. We have much experience infruits and vegetables processing area.
Q2:How can I get more related information of your machines?
A2:Just feel free to contact us. We will send you pictures or videos for your reference. And our colleague will give you some professional suggestions and help you design suitable solution after further communication.
Q3： What’s the price of the machines?
A3：Our machines aren’t standard. We can customize suitable machines according to customers’ specific requirements. If you need theaccurate price, just feel free to contact us and let us know your requirements.
Q4：This is the first time I cooperate with your factory. How can I trust you about the machine quality?
A4： Before ordering the machine, we will make the offer very clear. For example, the material thickness, the brand etc. Please come to visit us before you make final decision, It’s what we sincerely hope. We also have the video call and will show all the details we have in the factory.
