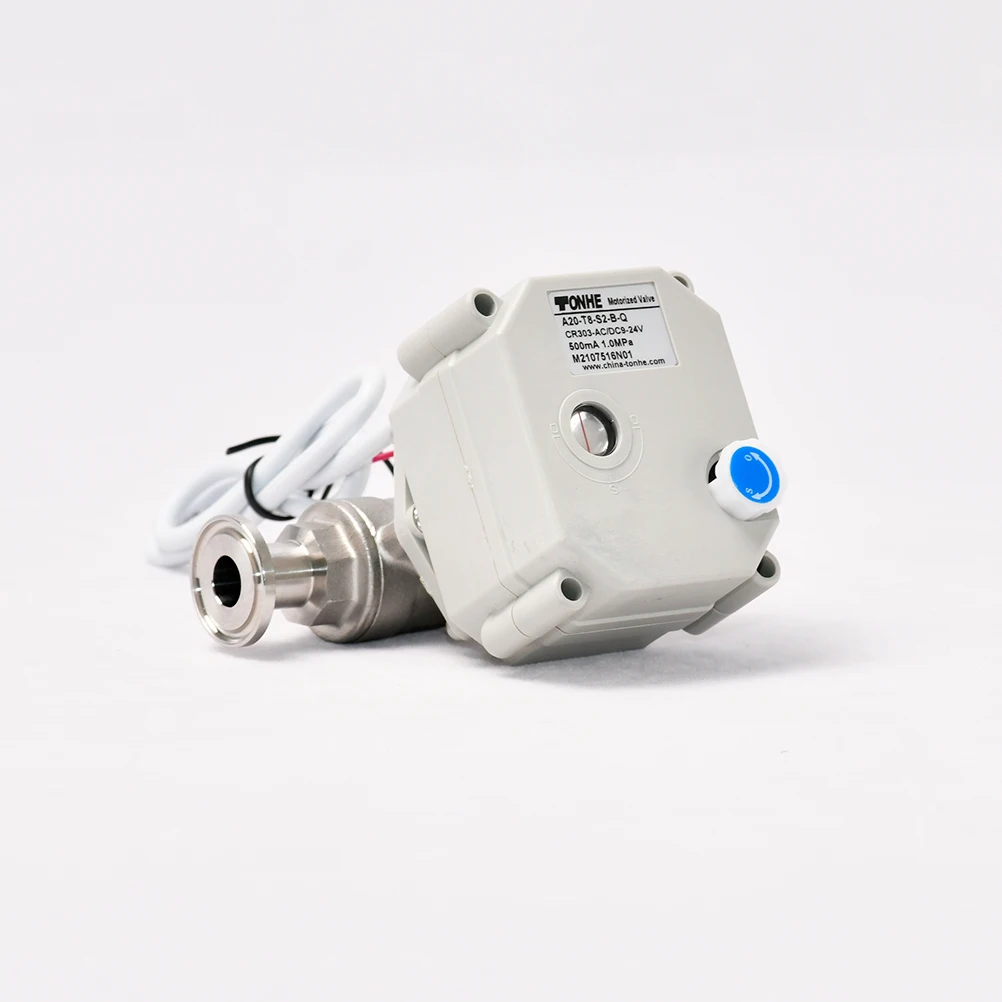

Manual function 3/8' small size 3 wire control SS304 Electric valve
- Category: >>>
- Supplier: Taizhou Tonhe Flow Control Co. Ltd.
Share on (1600328813289):
Product Overview
Description
Technical Parameters:
| Size | DN10 3/8'' |
| Circulation medium | Fluid,air |
| Rated voltage | AC110-230V |
| Wiring control methods | CR303 |
| Working current | less than 500mA |
| On/Off time | less than 5s |
| Life time | 70000 times |
| Valve body material | stainless steel SS304 |
| Actuator rotation | 90° |
| Sealing material | EPDM & PTFE |
| Actuator material | Engineering plastics |
| Max.torque force | 2N.m |
| Cable length | 0.5m, 1.5m (optional) |
| Environment temperature | -15~50℃ |
| Liquid temperature | 0~120℃ |
| Manual override | Yes |
| Indicator | Yes |
| Protection class | IP67 |
Sizes,valve materials,working voltages and wirings are various and will affect prices, can contact sales directly for special requirements.
Features:

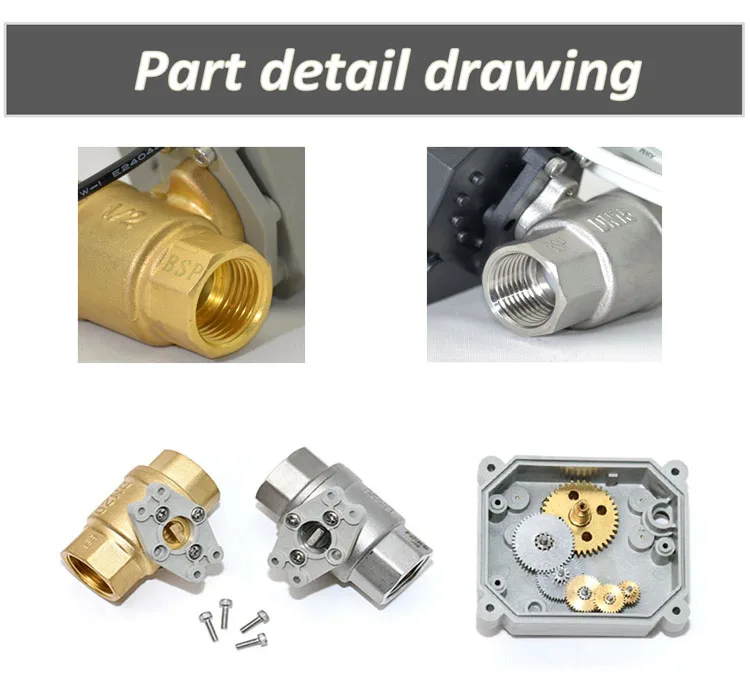

1. All-copper gear design,high accuracy output torque,especially for multi-channel scaling system.
2.Small size,compact structure.
3.A variety of control methods,either to accept remote valve position control signal,but also the feedback signal in place for computer intelligence unit testion.
4.Good sealing performance.

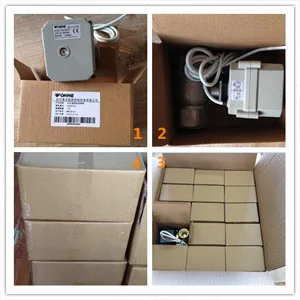

Packing method:
1pc/inner carton,8 inner ctn/ master ctn
packing requirements and packing qty negotiable
Inspection:
Taizhou Tonhe Flow Control Equipment Co.,Ltd is located in a beutiful city Huangyan,Taizhou,Zhejiang,China, specialized in the development,design,manufacture,sales and technical servise of electric ball valve.Our products are exported to many contries and areas all over the world,mainly in Europe&America,which won customer's trust and praise.

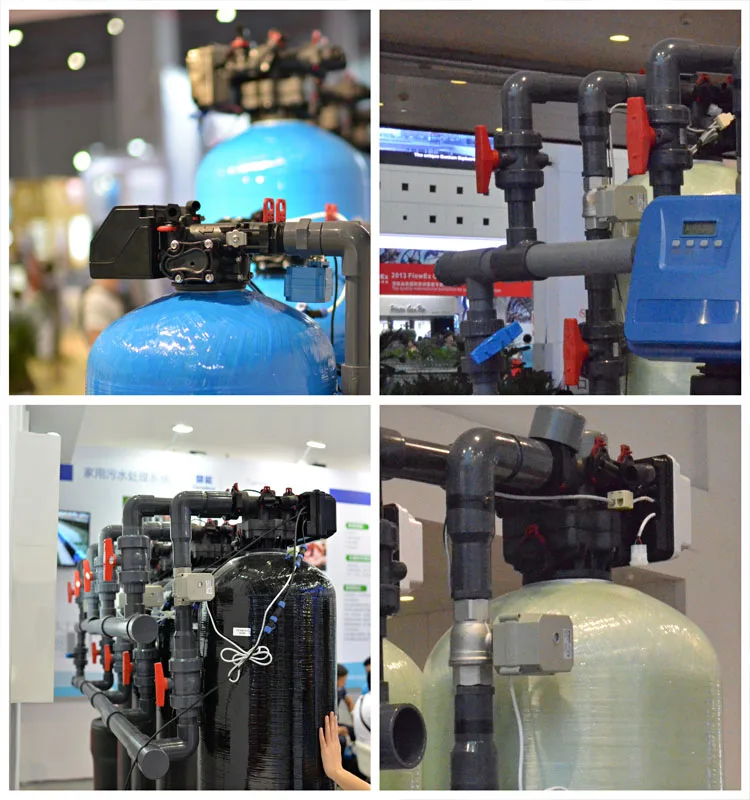

Application range:
1.air pump tank automatic drainage
2.automatic watering
3.water treatment
4.energy saving
5.industrial automation
6.other small equipment
Why us:
1. full stock and deliver with a short time
2.OEM and ODM allowed, logo printing or oppointed design available
3.good quality, competitive price,professional sales team with fast response and reliable service
4.professional production team and inspection team
5.Counting cheapest shipping cost for you and make invoice at once
6.Email tracking No.for better tracing parcels.
Contact way:
Contactt me before ordering~
Sale: Esther
Tel.:+86-576-81100233
Mob.: +86 18072535389(wechat)
Taizhou Tonhe Flow Control Equipment Co.,Ltd
