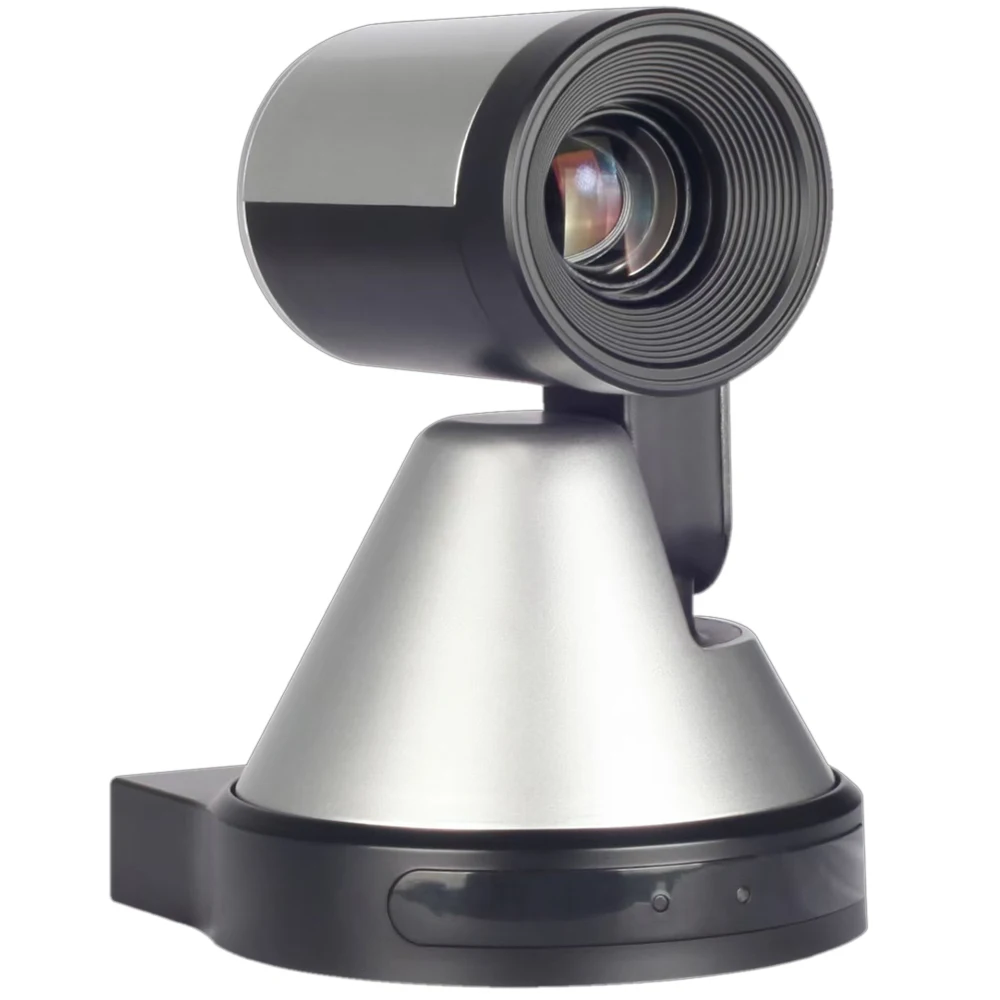

Item Name | 4MP HD Video Conference Camera | |
Image Sensor | T31X+4335 | |
Effective Pixel | 4MP | |
Len Option 1 | 4X, F=2.8mm~12mm | |
Len Option 2 | 10X, F=4.7mm~47mm | |
View Angle | Wide: D:67.6° H:64.8° V:41.2°; Tele:D:7.15° H:5.8° V:4.38° | |
Lens Aperture | F1.8~F2.8 | |
Focus Range | 0.5M~+∞ | |
Focus Way | AUTO/MANUAL | |
WDR | OFF/DWDR | |
Outside Connector | ||
Video Output | USB2.0 | |
Power Connector | DC12V(2A) | |
Conntrol Connector 1 | RS232 (IN/OUT) | |
PTZ Parameters | ||
Control Protocol | PELCOD-D/PELCOD-P | |
Baud Rate | 1200/2400/4800/9600 | |
Pan Range | 0~355° | |
Pan Speed | 0.1°~100° | |
Tilt Range | -30°~+90° | |
Tilt Speed | 0.1°~50° | |
Zoom Speed | Auto-match with the zoom and focus | |
Mechanical Zero Calibration | Support | |
OSD Character | Support | |
Preset Point | 255PCS | |
Control Distance | ≦10M | |
Power Supply | DC12V (2A) | |
Consumption | ≤10W | |
Working Temperature | -15℃~+50℃ | |
Working Environment | Indoor | |
Working Humidity | 20%~80% | |
