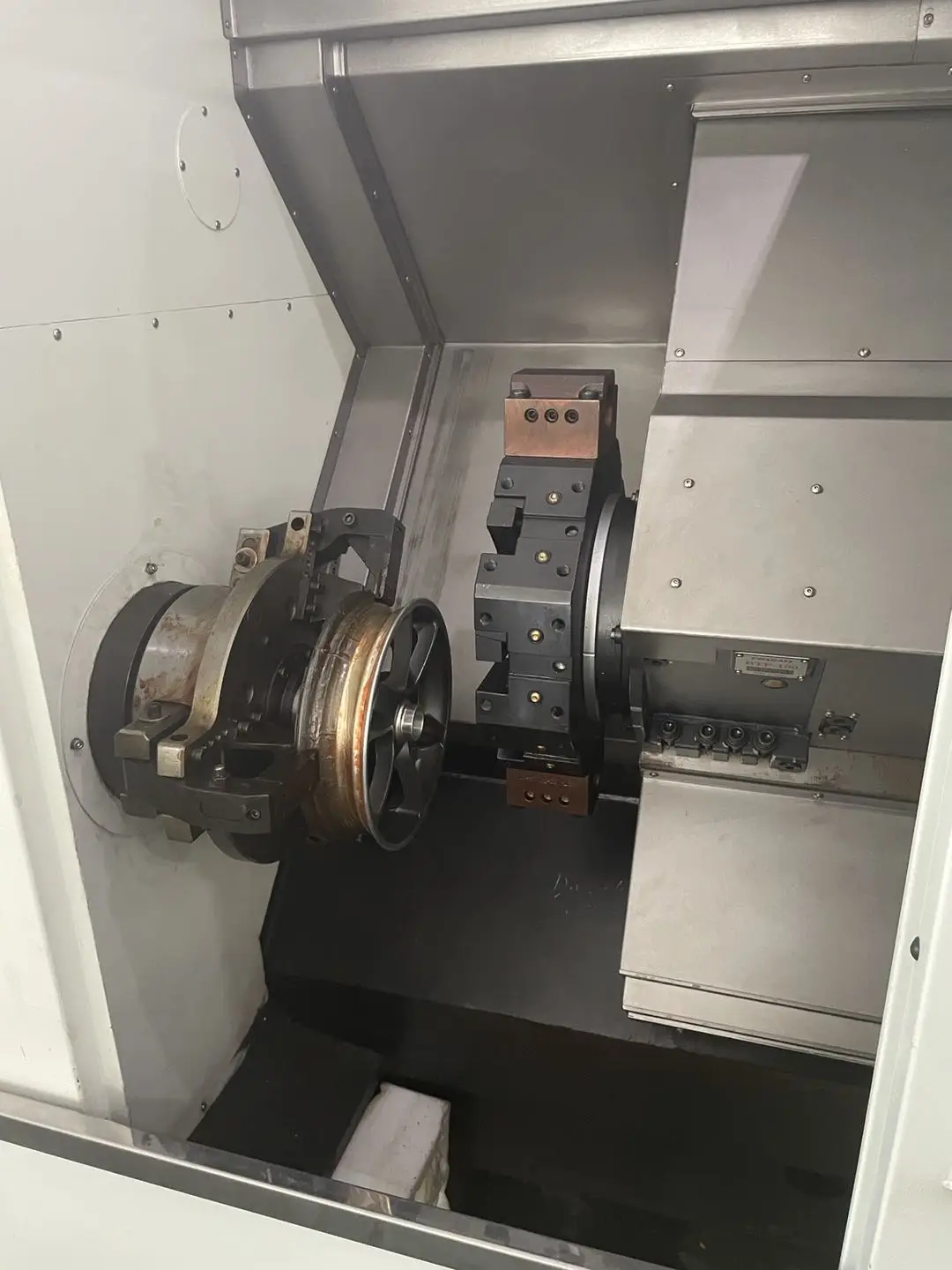

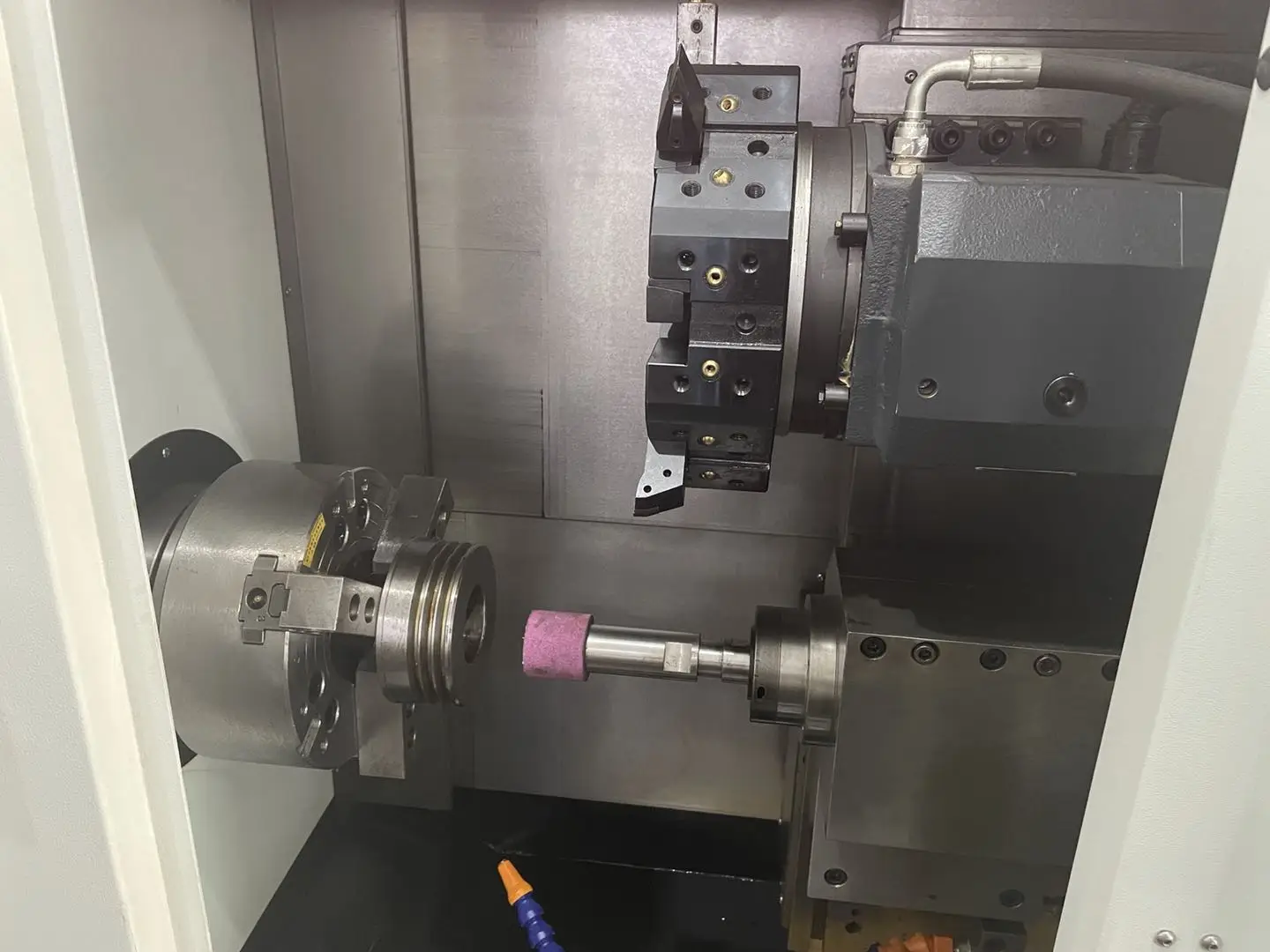

CL20 CNC Slant Bed Lathe Fanuc Turret Lathe Hydraulic Chuck Table Tailstock High Class

Share on (1600328840732):


Price:

Quantity:


Product Overview

Description



Product Description




Specification


item
CL20
Condition
New
Type
Horizontal
Slant Bed Lathe
Max. Swing Over Bed
440mm
Max Cutting Diameter for Shaft
260mm
Max Cutting Diameter for Disc
300mm
Spindle Bore(mm)
62/87
Chuck Size(hydraulic)
8"/10"
Spindle Motor Power(kW)
11/15
Spindle Speed
45-4500rpm
X Travel
165mm
Z  Travel
500mm
Max Cutting Length
430/450
X/Z Fast Speed
20/24 m/min
Turret Type
Hydraulic 8 /12station
Tool Size
20x20
Indexing time
0.5S
Travel of Tailstock
460mm
Tailstock Quill Stroke
130mm
Tailstock Quill Diameter
80mm
Certification
CE ISO
CNC Control System
Fanuc 0i-MF(5)
Positioning Accuracy
0.015mm
Repeatability
0.004mm
Warranty
1 Year
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
1 Year
Core Components
Bearing, Motor, Gear, PLC
Dimension
4150x1620x1760mm / 4500Kg


Packing & Delivery




Seaworthy wood packing


Company Profile






Sealion Machine Tool is a professional company for metal cutting machine tools. We supply different kinds of machine tools to various countries, such as South Africa, Malaysia, Korea, Indonesia, Singapore, Thailand, Italy, etc. We offer our customer tailor-made technology support and 7x24 after sale service. SEALION innovates and offers turnkey solutions for both production lines and individual machines.
Sealion Machine Tool specialized in lathe in both vertical and horizontal, floor type boring & milling machine, CNC machining center and rotary table. The production facility is located in Anhui, Wuhu. Based on the 30,000 square meter plant, we manage to satisfy all demands of our customers.
YOUR MACHINE IS MY MISSION!


FAQ


1. who are we?
We are based in Shanghai, China, start from 2019,sell to Southeast Asia(40.00%),Africa(20.00%),Eastern Asia(20.00%),South Asia(10.00%),North America(10.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
conventional Machine Tool,CNC Machine Tool,Lathe,Boring & milling Machine,Machining Center

4. why should you buy from us not from other suppliers?
Sealion Machine Tool is a professional company for metal cutting machine tools. We supply different kinds of machine tools to various countries. We offer our customer tailor-made technology support and 7x24 after sale service.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: null;
Language Spoken:English
