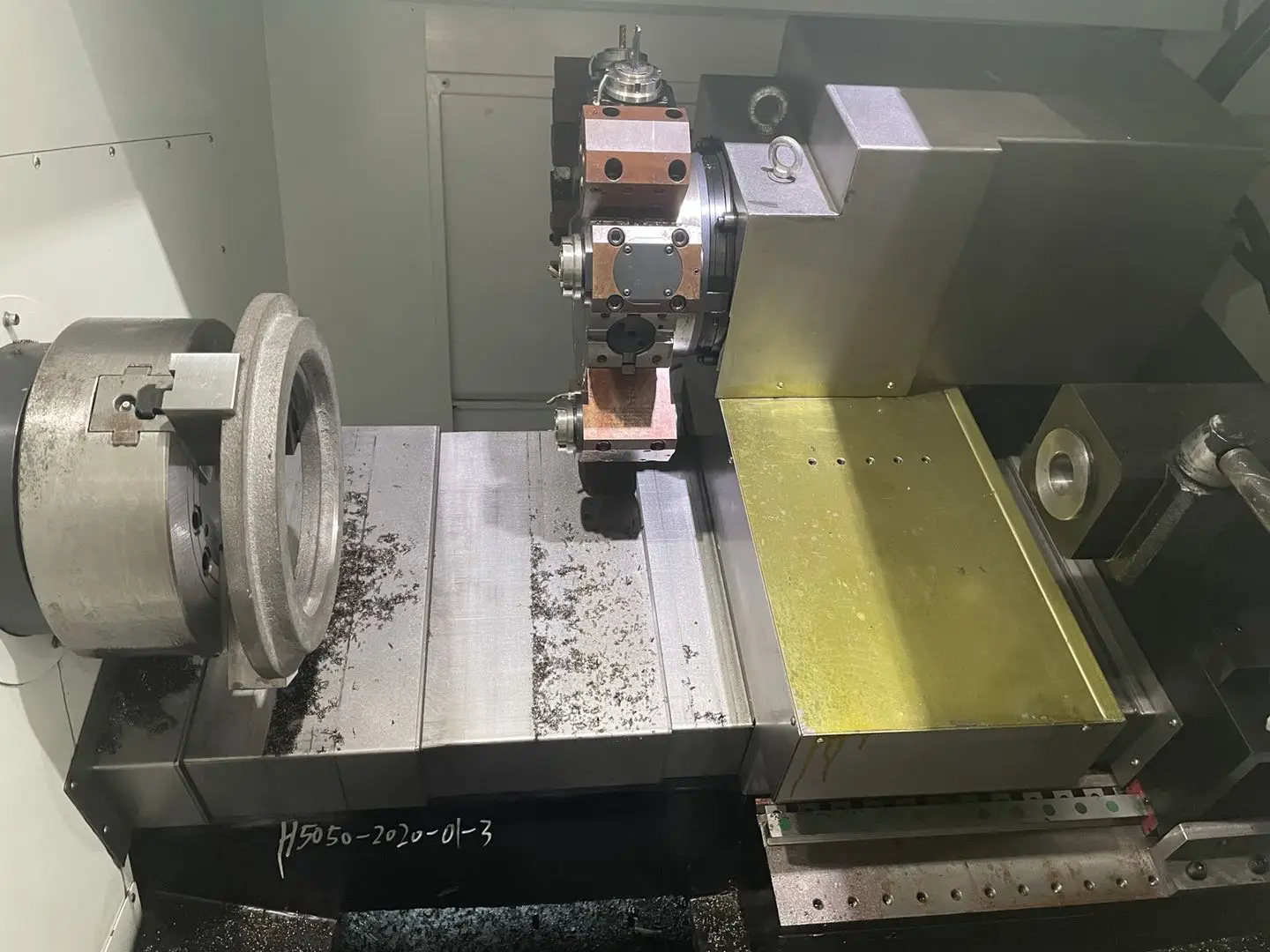

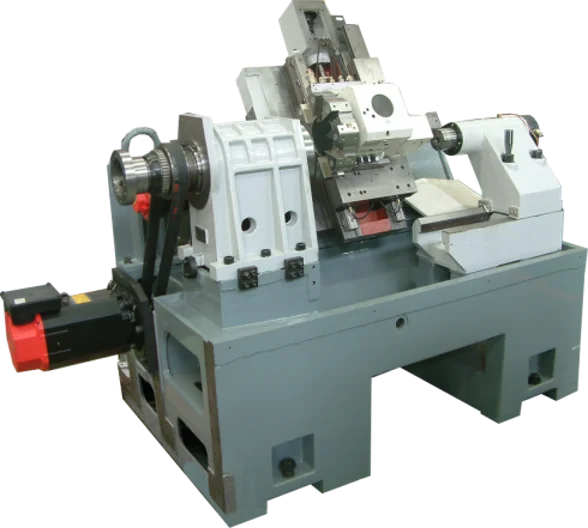

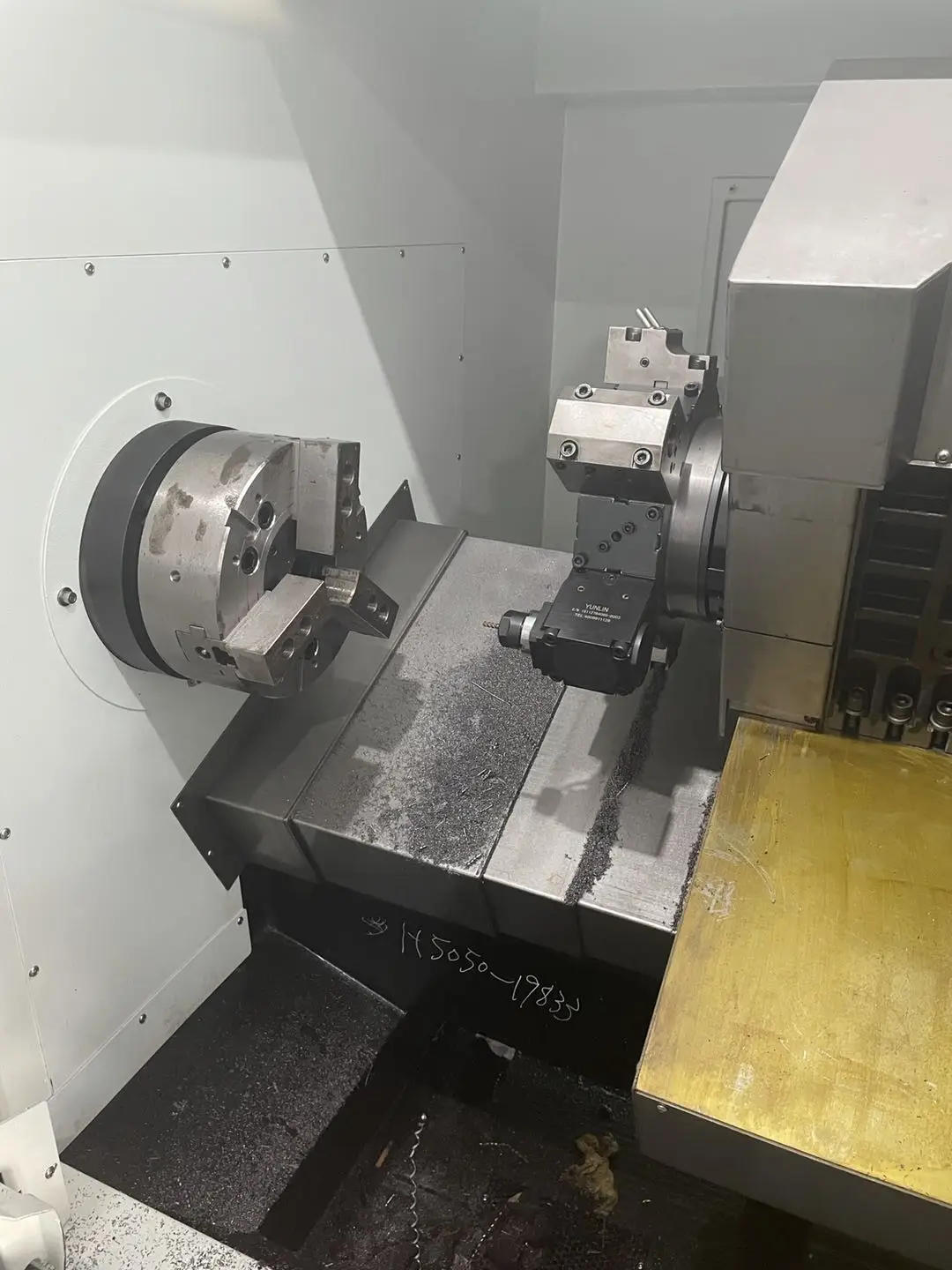

item | CL15 |
Condition | New |
Type | Horizontal |
Slant Bed Lathe | |
Max. Swing Over Bed | 400mm |
Max Cutting Diameter for Shaft | 165mm |
Max Cutting Diameter for Disc | 200mm |
Spindle Bore(mm) | 46 |

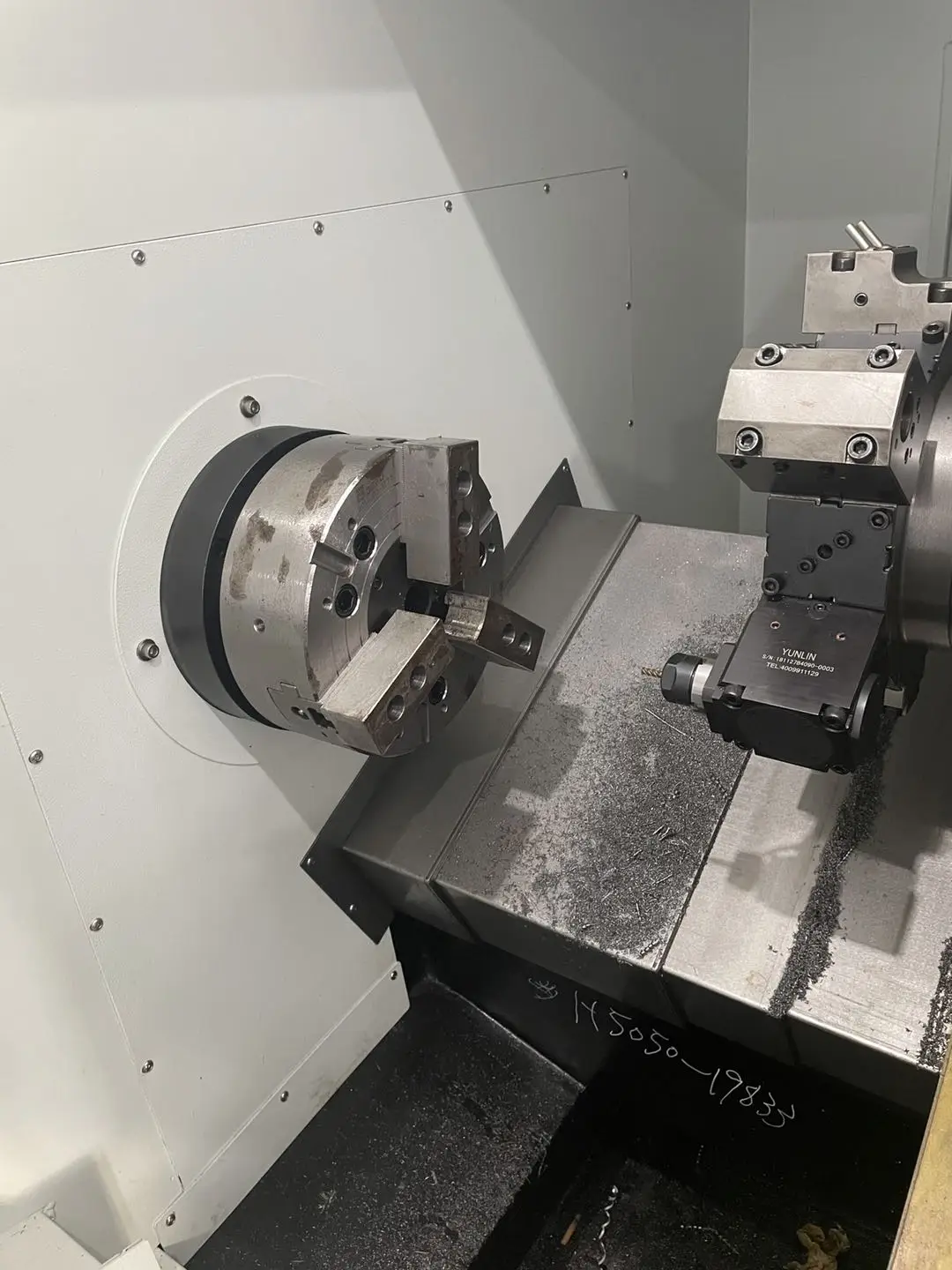

Chuck Size(hydraulic) | 6" |
Spindle Motor Power(kW) | 7.5/11 |
Spindle Speed | 50-5000rpm |
X Travel | 120/260mm |
Z Travel | 340mm |
Max Cutting Length | 250/330 |
X/Z Fast Speed | 20/24 m/min |

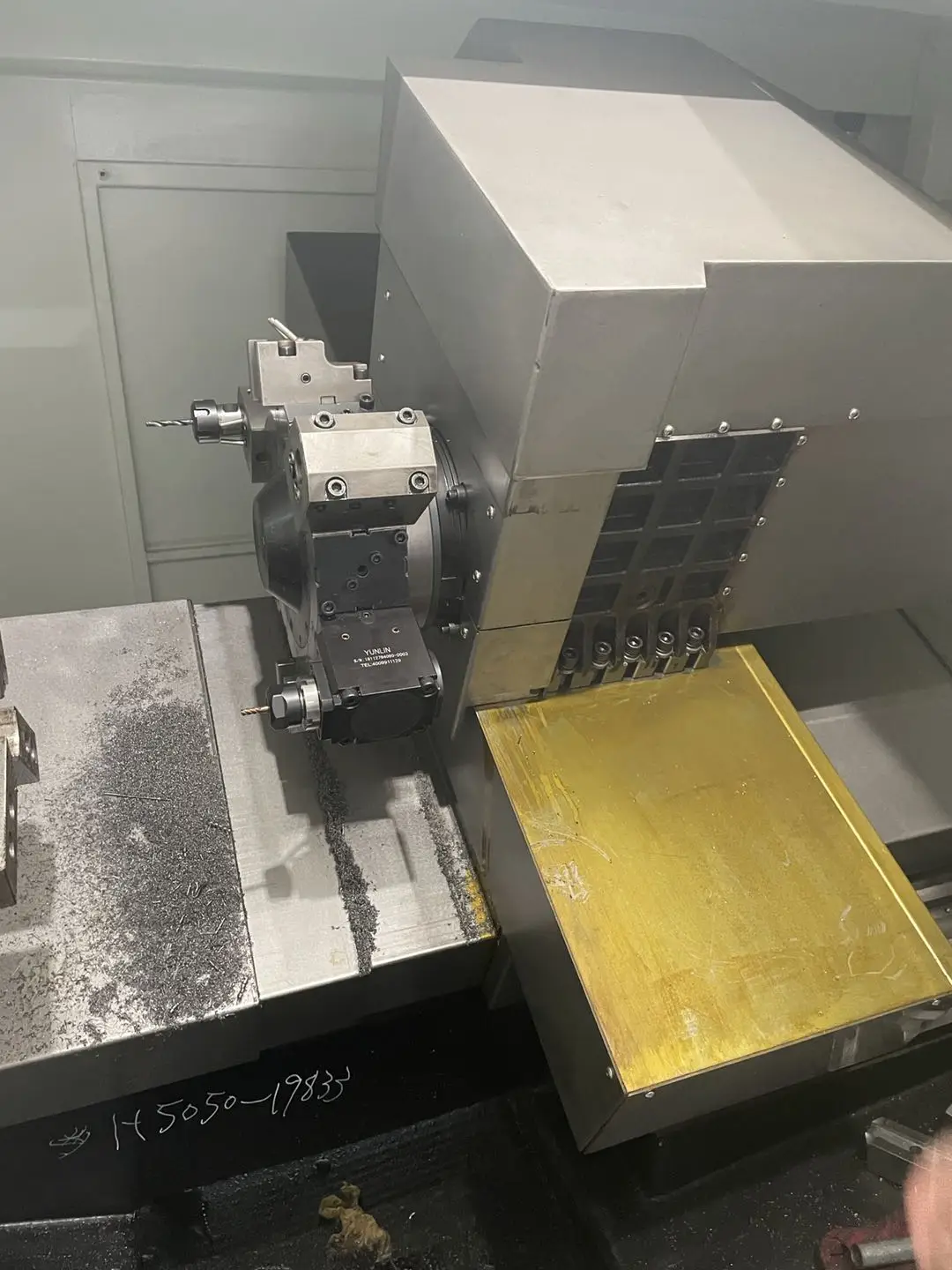

Turret Type | Hydraulic 8 station |
Tool Size | 20x20 |
Indexing time | 0.5S |
Travel of Tailstock | 300mm |
Tailstock Quill Stroke | 130mm |
Tailstock Quill Diameter | 80mm |
Certification | CE ISO |
CNC Control System | Fanuc 0i-MF(5) |
Positioning Accuracy | 0.015mm |
Repeatability | 0.004mm |
Warranty | 1 Year |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Bearing, Motor, Gear, PLC |
Dimension | 3720x1525x2052mm / 3400Kg |
