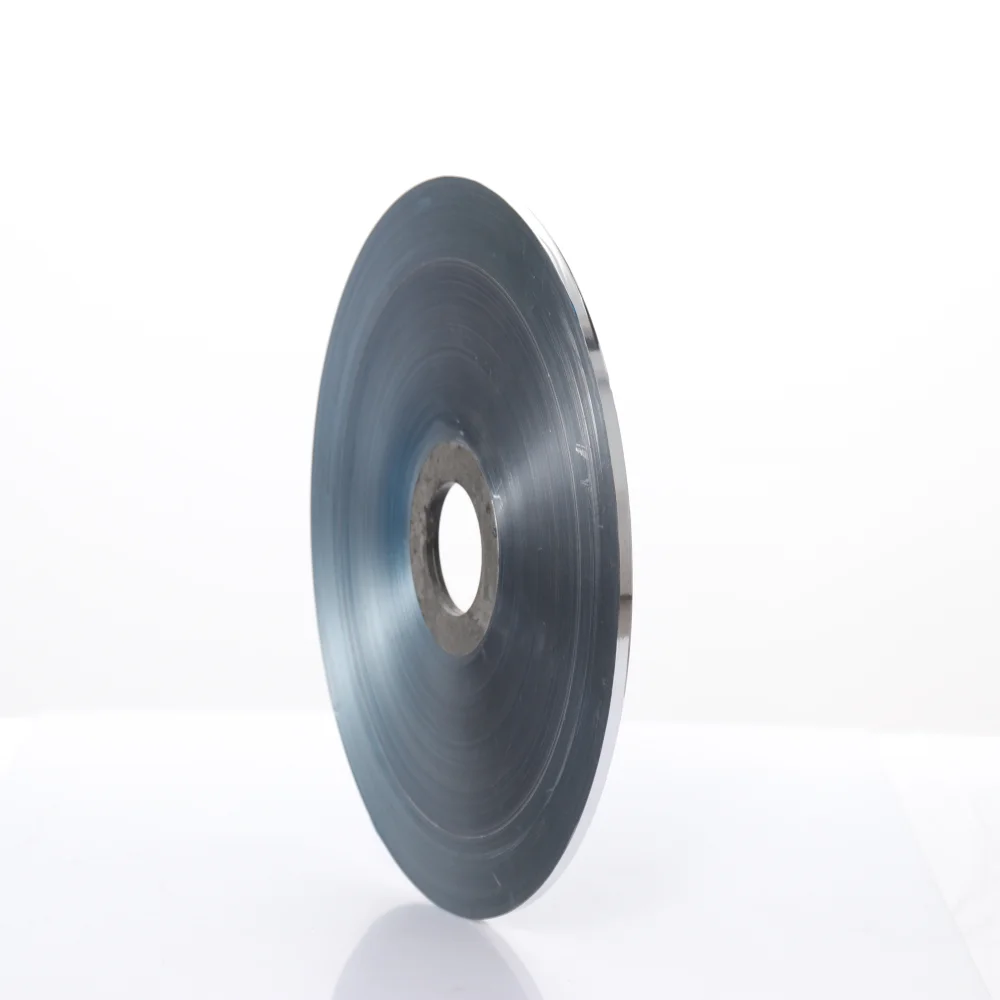

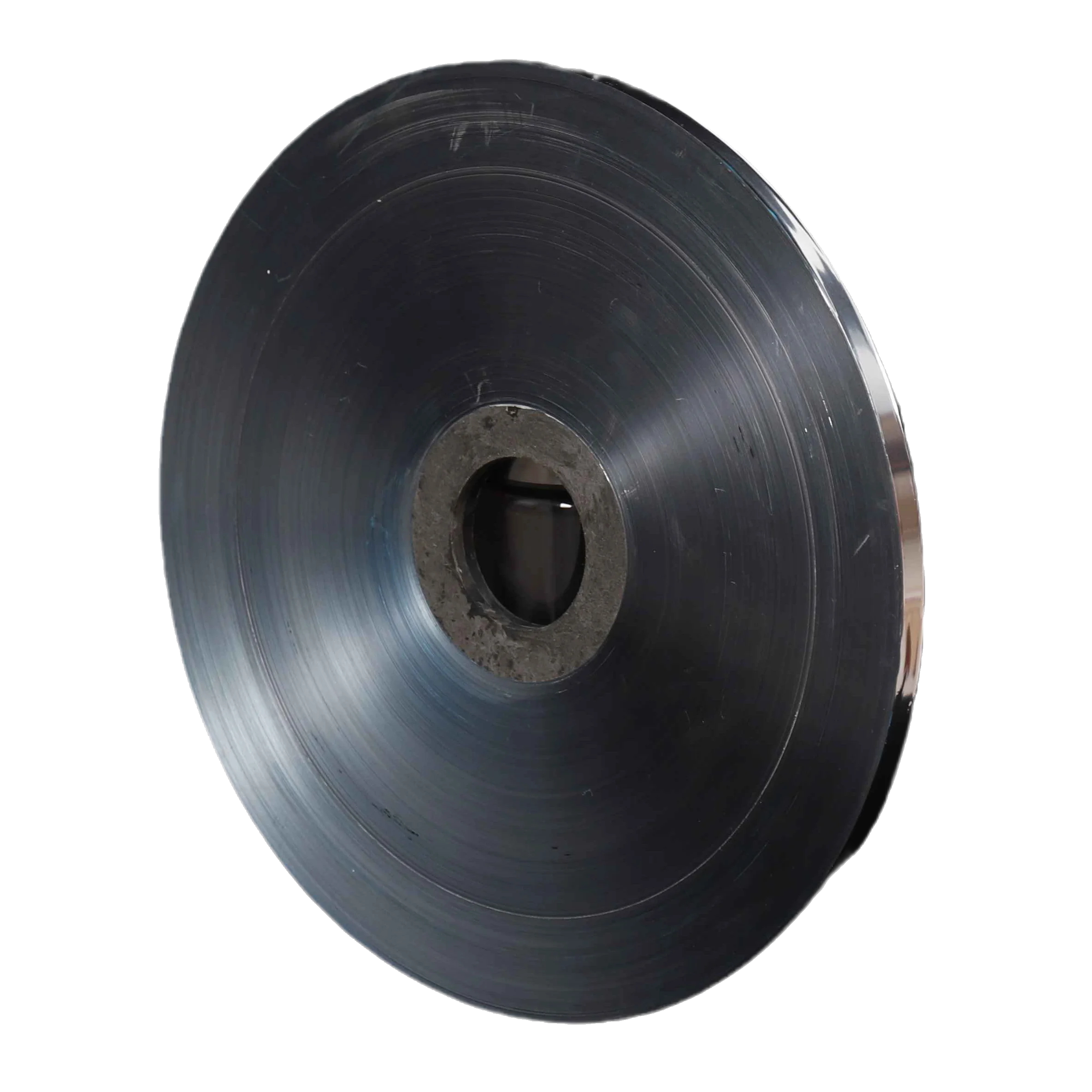

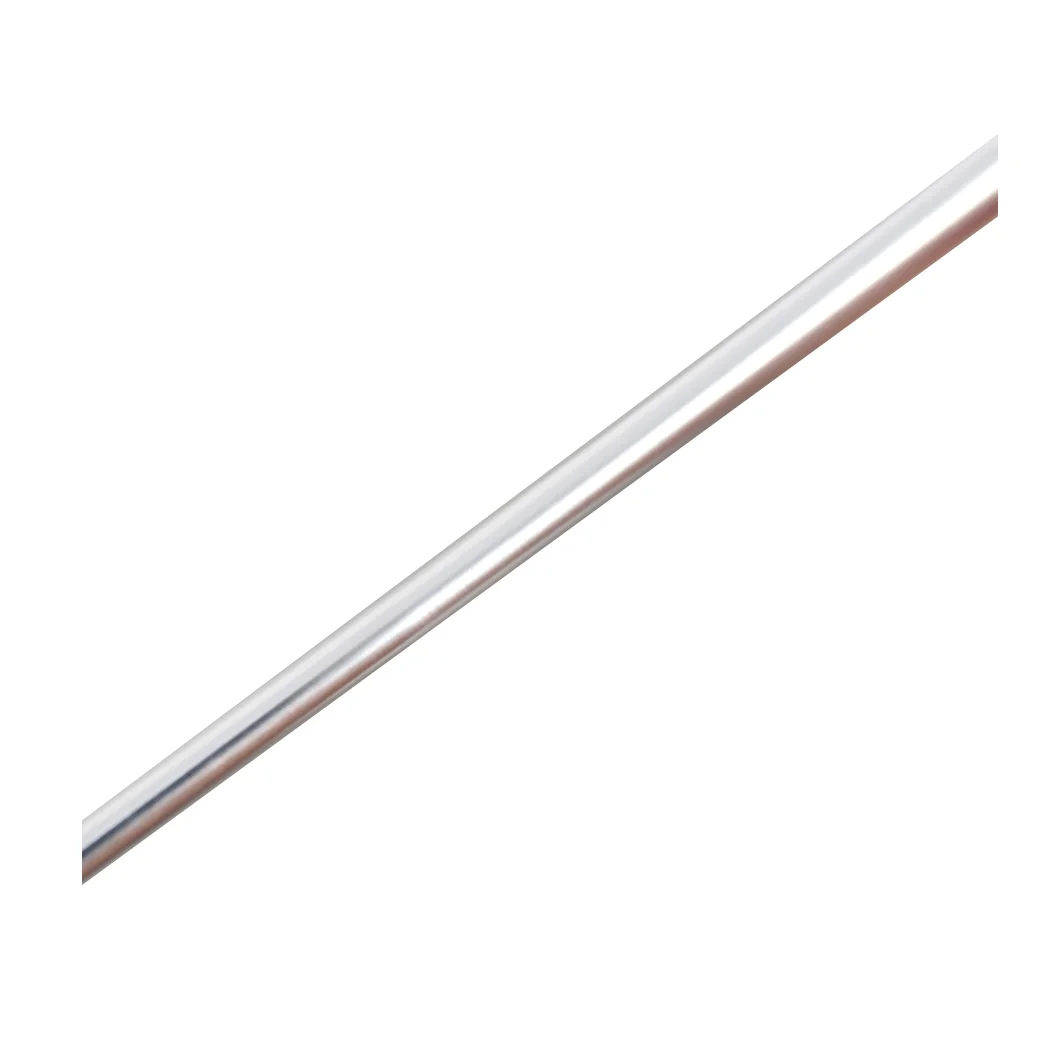

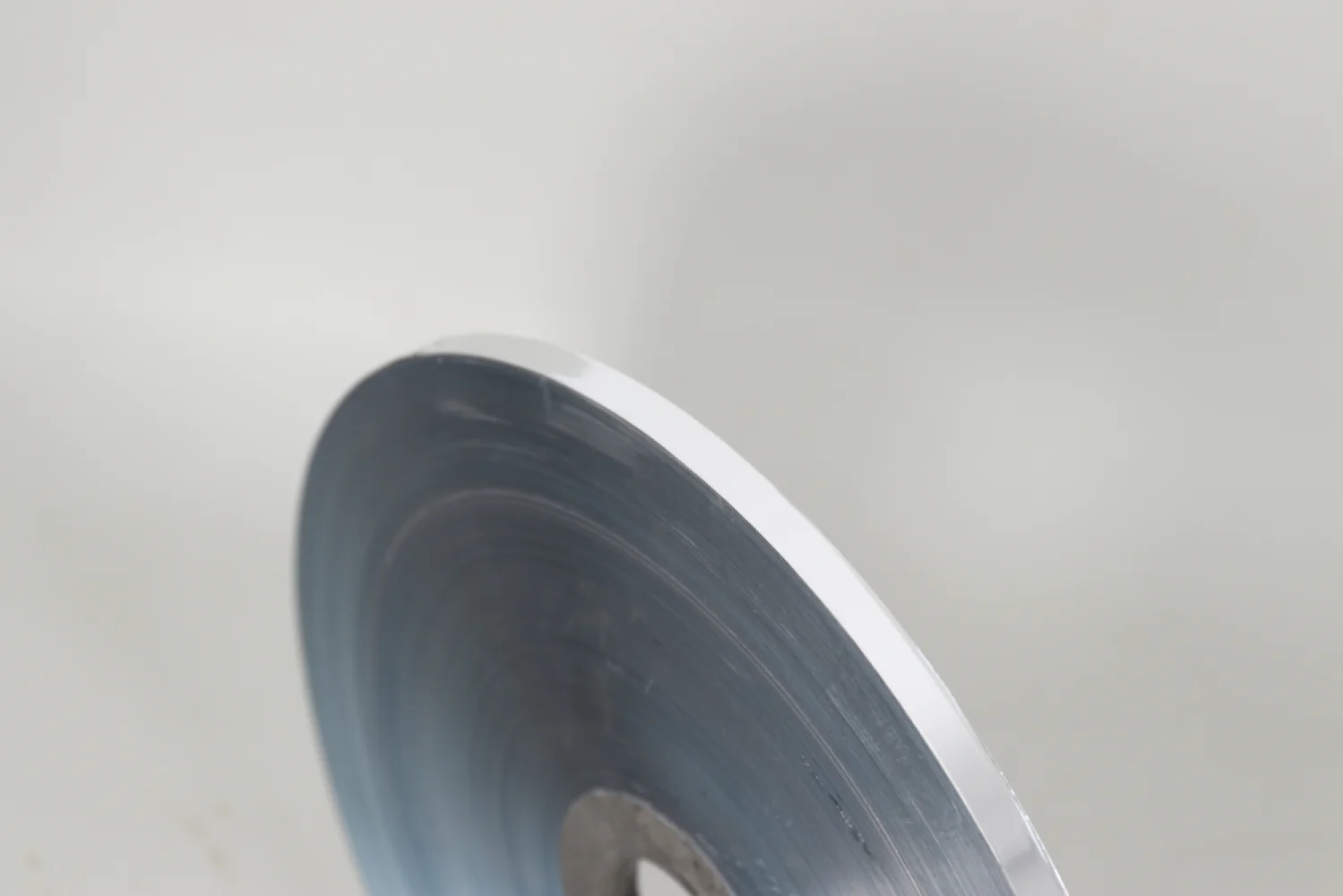

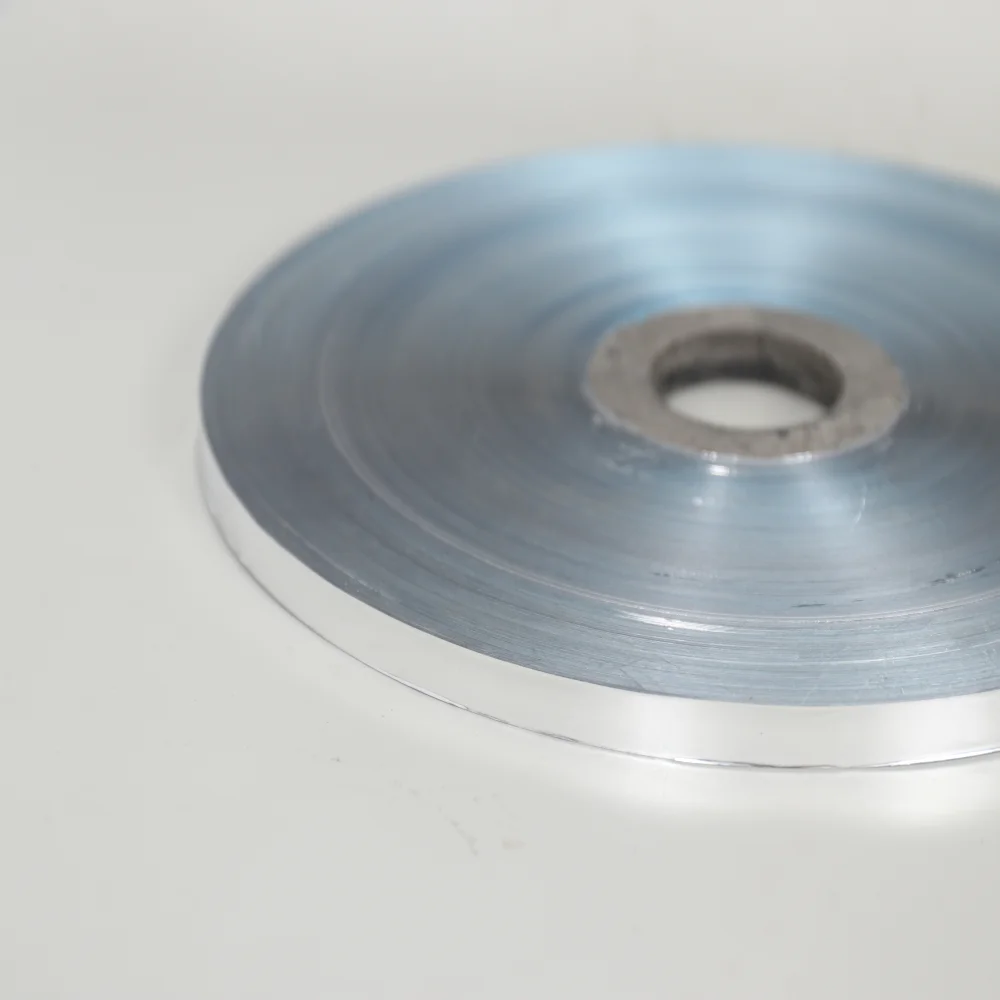

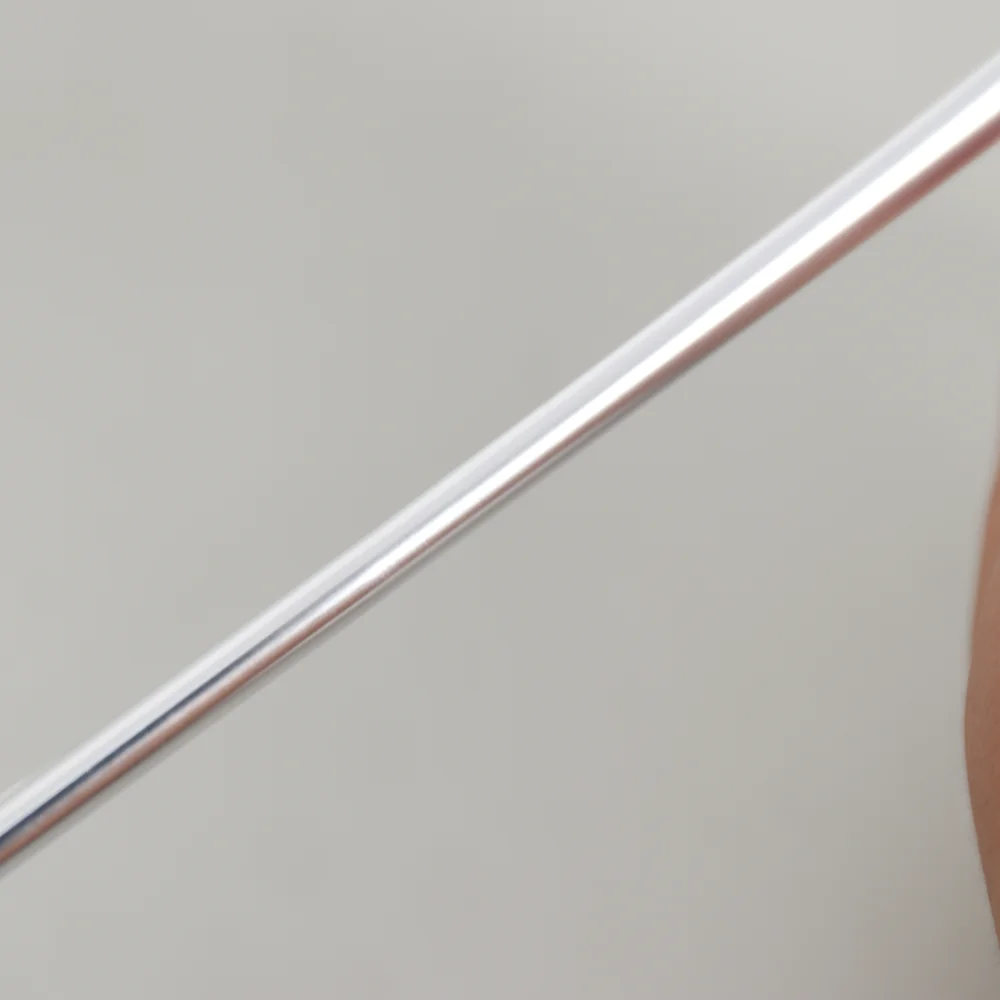

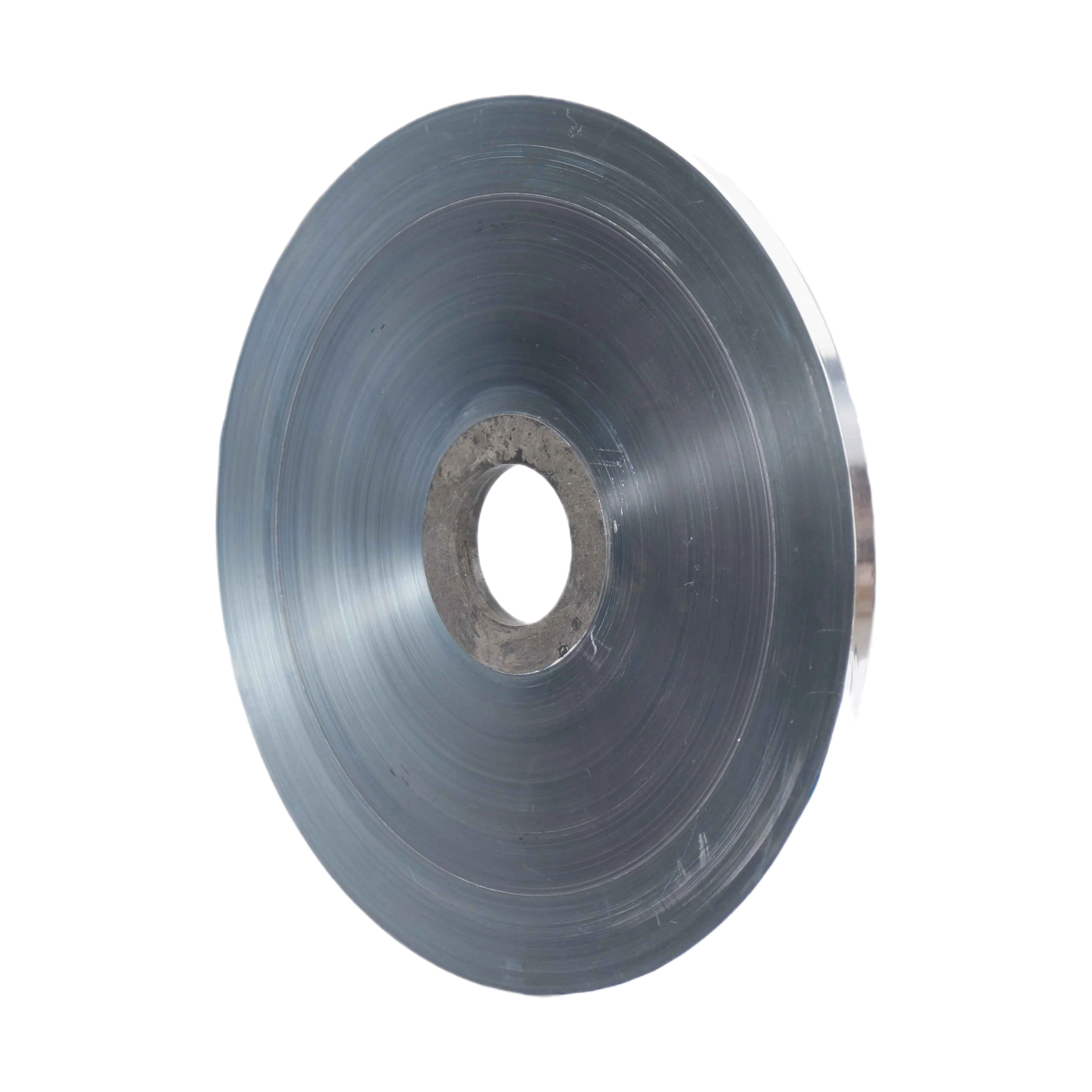

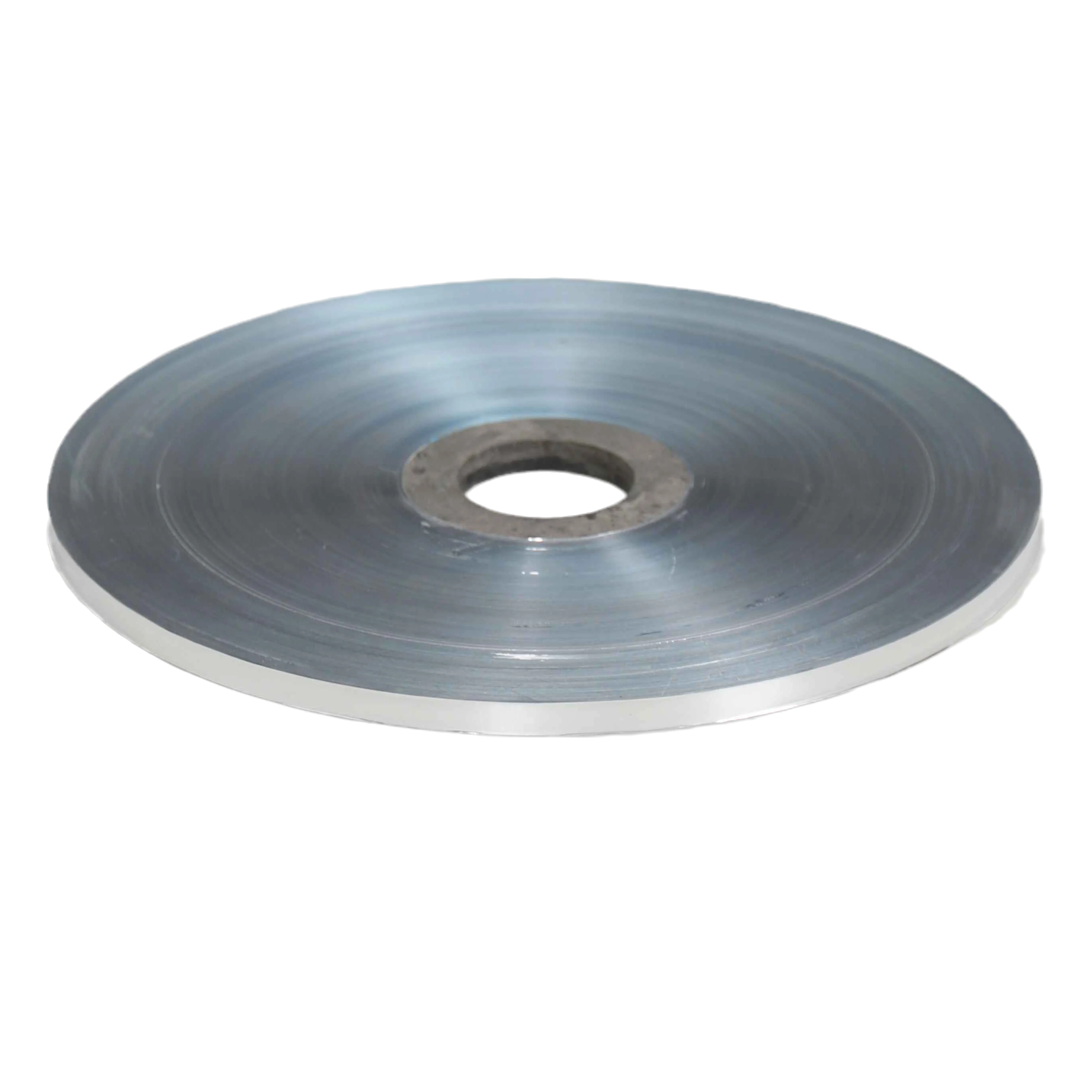

Aluminum foil Mylar tape for wire and cable shielding protection
- Category: >>>
- Supplier: Changzhou Shineworld Industry Co. Ltd.
Share on (1600328895183):
Product Overview
Description
Product Introduction
1. Application:
The Aluminum Polyester Tape is made of soft aluminum foil and polyester film was combined with gravure coating. The structure is composed with aluminum foil layer and polyester film (Al / PET) layer.
Product Feature
² High Tensile Strength | ² Light Unit Weight |
  | |
² Strong peel strength |
|
  | |
2. Specification
Thickness (micron) | Structure | Tensile Strength (%) | Tensile strength (Mpa) | Weight (g/m2) | Peel strength (N/cm) |
22±10%μm | AL7/PET12 | ≥35 | ≥60 | 39±10% | ≥6.3 |
25±10%μm | AL7/PET15 | ≥35 | ≥60 | 43±10% | ≥6.3 |
30±10%μm | AL9/PET20 | ≥35 | ≥60 | 51±10% | ≥6.3 |
25±10%μm | AL9/PET12 | ≥35 | ≥60 | 45±10% | ≥6.3 |
27±10%μm | AL9/PET15 | ≥35 | ≥60 | 49±10% | ≥6.3 |
35±10%μm | AL9/PET23 | ≥35 | ≥60 | 61±10% | ≥6.3 |
27±10%μm | AL12/PET12 | ≥20 | ≥60 | 53±10% | ≥6.3 |
30±10%μm | AL15/PET12 | ≥20 | ≥60 | 62±10% | ≥6.3 |
43±10%μm | AL20/PET20 | ≥20 | ≥60 | 86±10% | ≥6.3 |
53±10%μm | AL25/PET25 | ≥20 | ≥60 | 107±10% | ≥6.3 |
70±10%μm | AL40/PET25 | ≥15 | ≥60 | 147±10% | ≥6.3 |
65±10%μm | AL50/PET12 | ≥10 | ≥60 | 156±10% | ≥6.3 |
73±10%μm | AL50/PET20 | ≥15 | ≥60 | 167±10% | ≥6.3 |
Values shown are for references only. For more accurate figures, please ask for technical data sheets. | |||||
3.Roll size Packing
² The OD depends on tape width and customer requirement.
For other sizes please contact us.
Type | ID (mm) | OD (mm) | Standard Width (mm) | Core |
Pad | 52(2“), 58(2.3“), 76(3“), 83(3.25“), 102(4“), 152(6“) | Up to 600 | ≥5 | Plastic, Paper |
Spool | 76(3“) | 200-350 | Up to 35 | Paper |
Jumbo | 76(3“), 152(6“) | 300-600 | 500,720 | Paper, Metal |
4.Delivery
The product will be packed in paper carton with PE film bag and foam paper inside. It is then sealed and inserted in a wooden case or packed on a wooden pallet. After it is fixed, an external plastic coversheet is wrapped around it to avoid water penetration.
Related Products
Company Information
Customer Photos
Our Certificates
Packaging & Shipping
FAQ
Q1: Are you a trading company or manufacturer?
A1: We are manufacturer.
Q2: What about the MOQ?
A2: Generally, the MOQ is one ton.
Q3: How long is your delivery time?
A3: Generally, 3-7 days for goods in stock and 10-30 days for goods make-to-order. And we will make the delivery ASAP with guaranteed quality.
Q4: Do you provide samples? is it free or extra?
A4: Yes, we could offer the sample for free. Customer just need to bear the freight cost which will also be returned in formal order.
