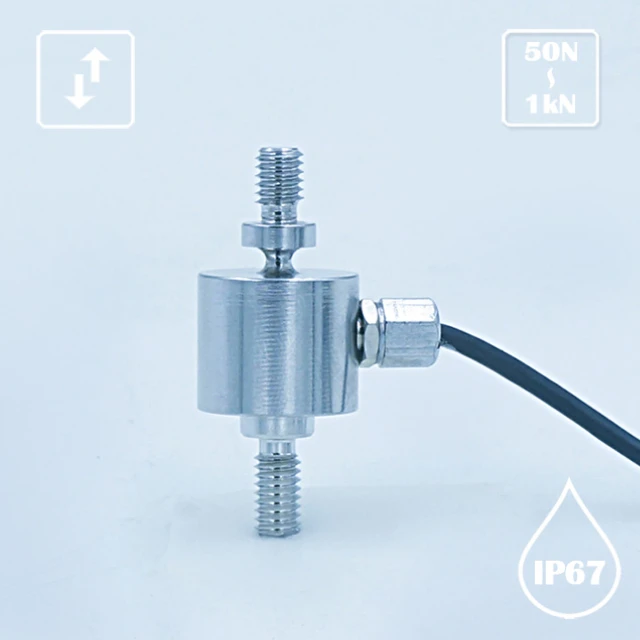

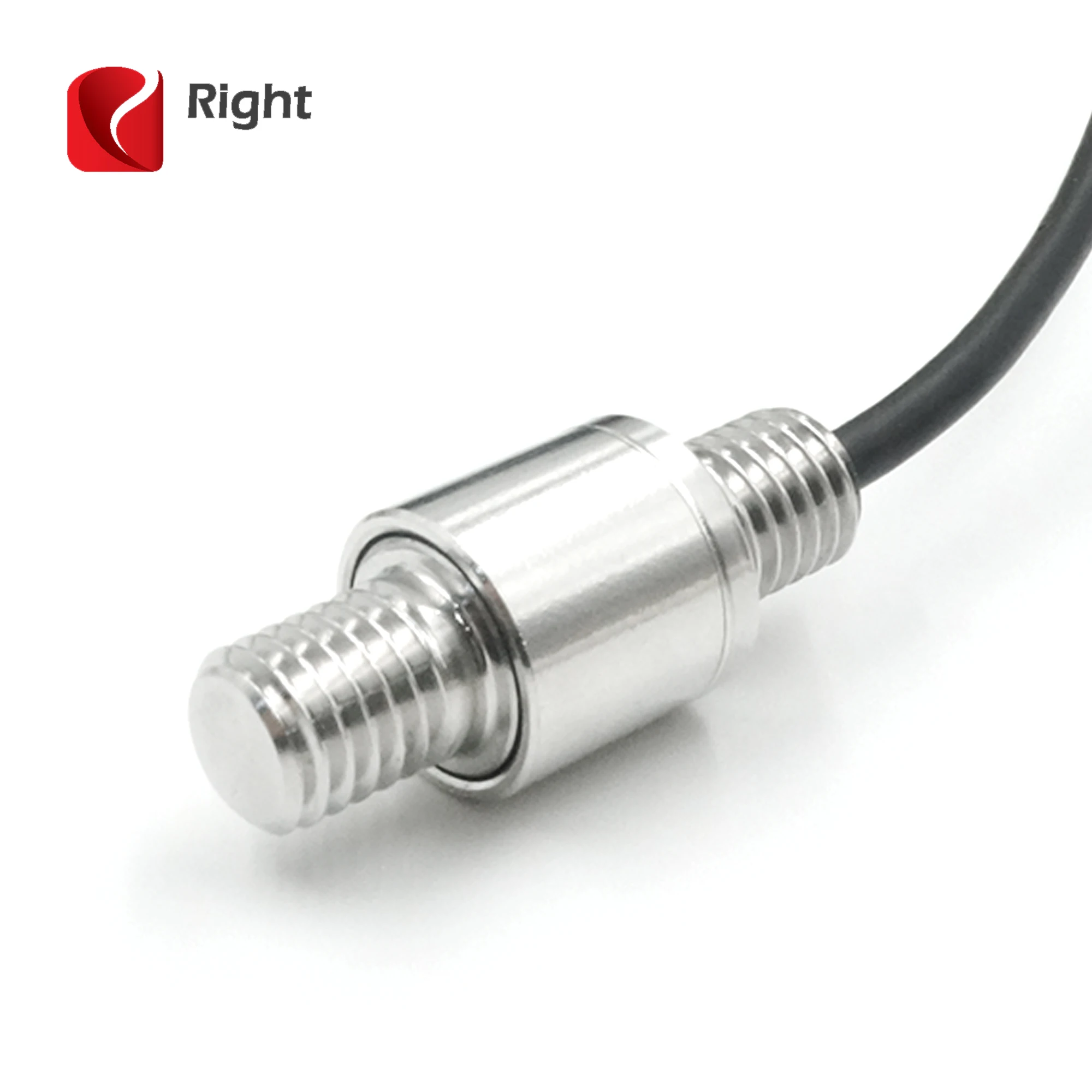

T301 Stainless Steel 1000N Digital Miniature Tension and Compression inline Type Load Cell IP67
- Category: >>>
- Supplier: Changzhou Right Measurement And Control System Co. Ltd.
Share on (1600328944892):
Product Overview
Description
Products Description
Specifications | ||
Capacity | 50,100,200,500,1000N | |
Rated output | 1.0±20%mV/V | |
Zero balance | ±0.05 mV/V | |
Non-linearity | 0.5%F.S. | |
Hysteresis | 0.5%F.S. | |
Repeatability | 0.5%F.S. | |
Creep(30min) | 0.2%F.S. | |
Temp.effect on output | 0.02%F.S./10℃ | |
Temp.effect on zero | 0.02%F.S./10℃ | |
Input impedance | 800-1100Ω | |
Output impedance | 800-1100Ω | |
Insulation | ≥5000MΩ/100VDC | |
Recommended excitation | 5~12V | |
Maximum excitation | 15V | |
Compensated temp range | -10~60℃ | |
Operation temp range | -20~80℃ | |
Safe overload | 150%F.S. | |
Ultimate overload | 200%F.S. | |
Cable size | φ2×4000mm | |
Material | stainless steel | |
Weight approx. | 0.1kg | |
Application Show
Company Profile
Certifications

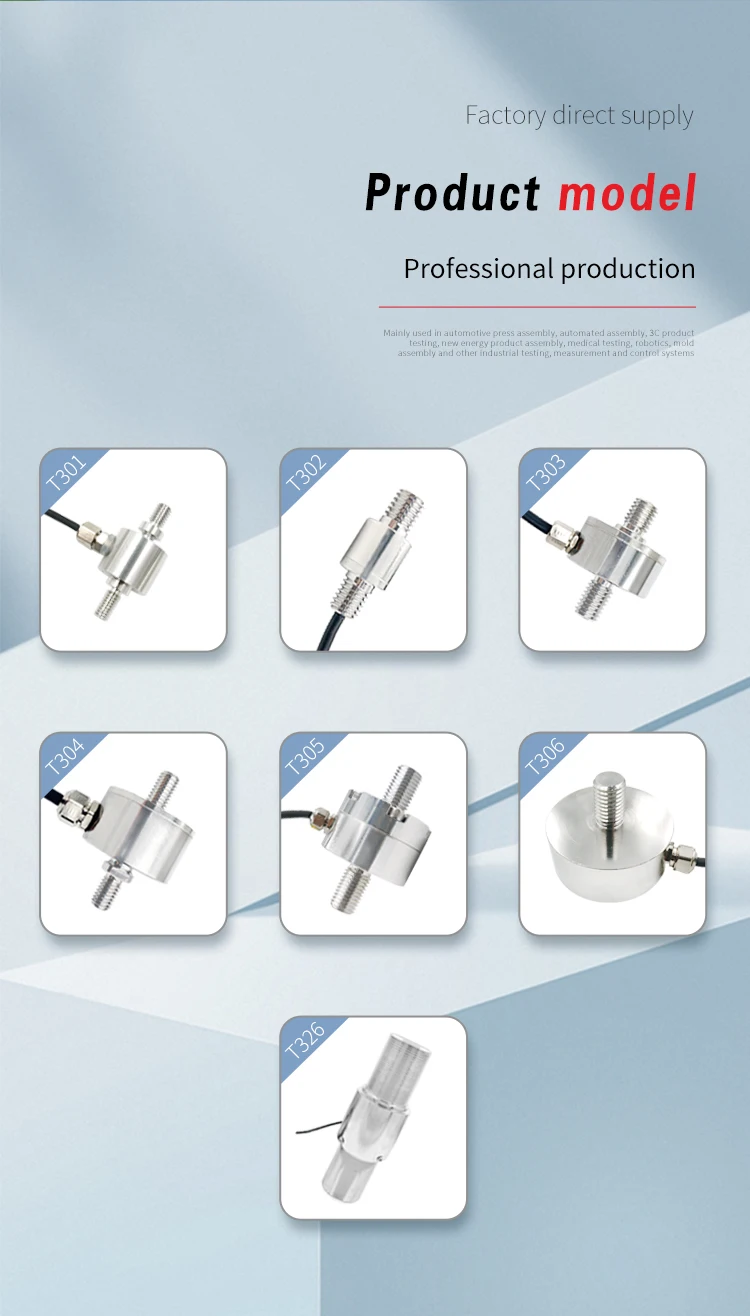

Related Product Display
FAQ
Q1. What are your terms of packing? | ||||||||
A: Generally, we pack our goods in bulks or wooden box, suitable for shipping container. | ||||||||
Q2. How about your delivery time? | ||||||||
A: Generally, it will take 10 to 15 days after receiving your advance payment. The specific delivery time depends on the items andthe quantity of your order. | ||||||||
Q3. What is your terms of payment? | ||||||||
A: T / T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay thebalance. | ||||||||
Q4. What are your terms of delivery? | ||||||||
A: EXW, FOB, CFR, CIF. | ||||||||
Q5. Can you produce according to the samples? | ||||||||
A: Yes, we can produce by your samples or technical drawings. | ||||||||
