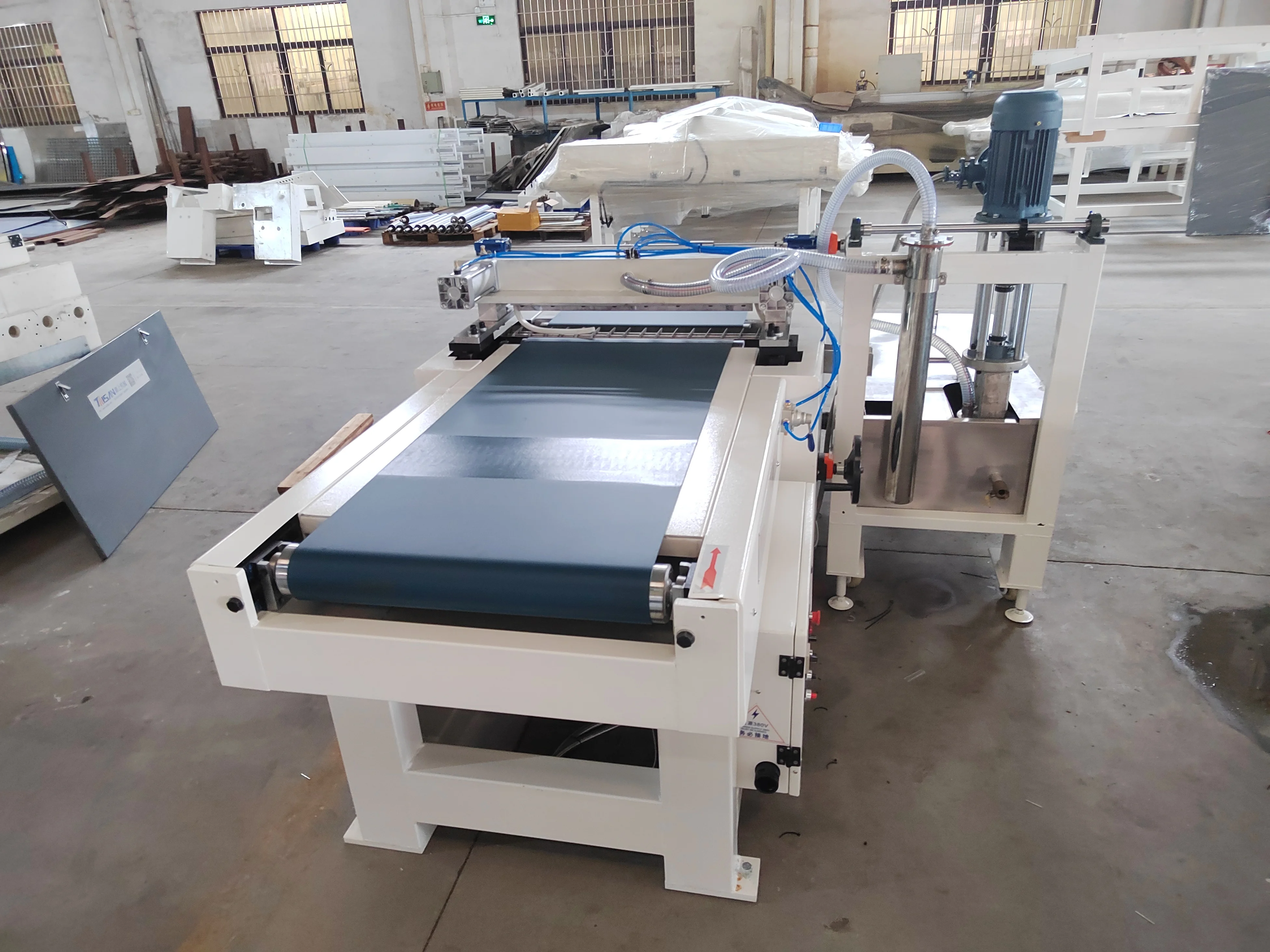

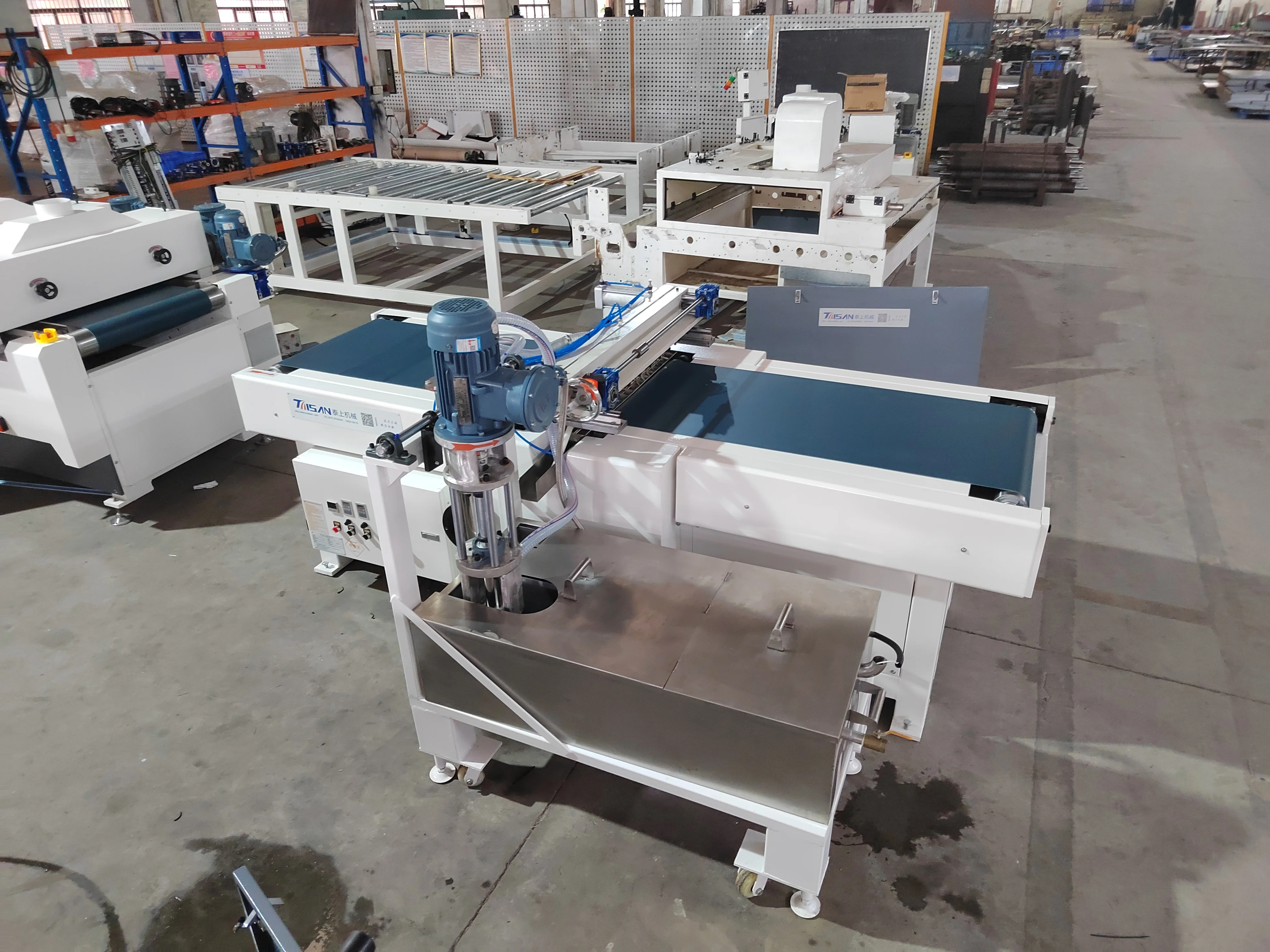

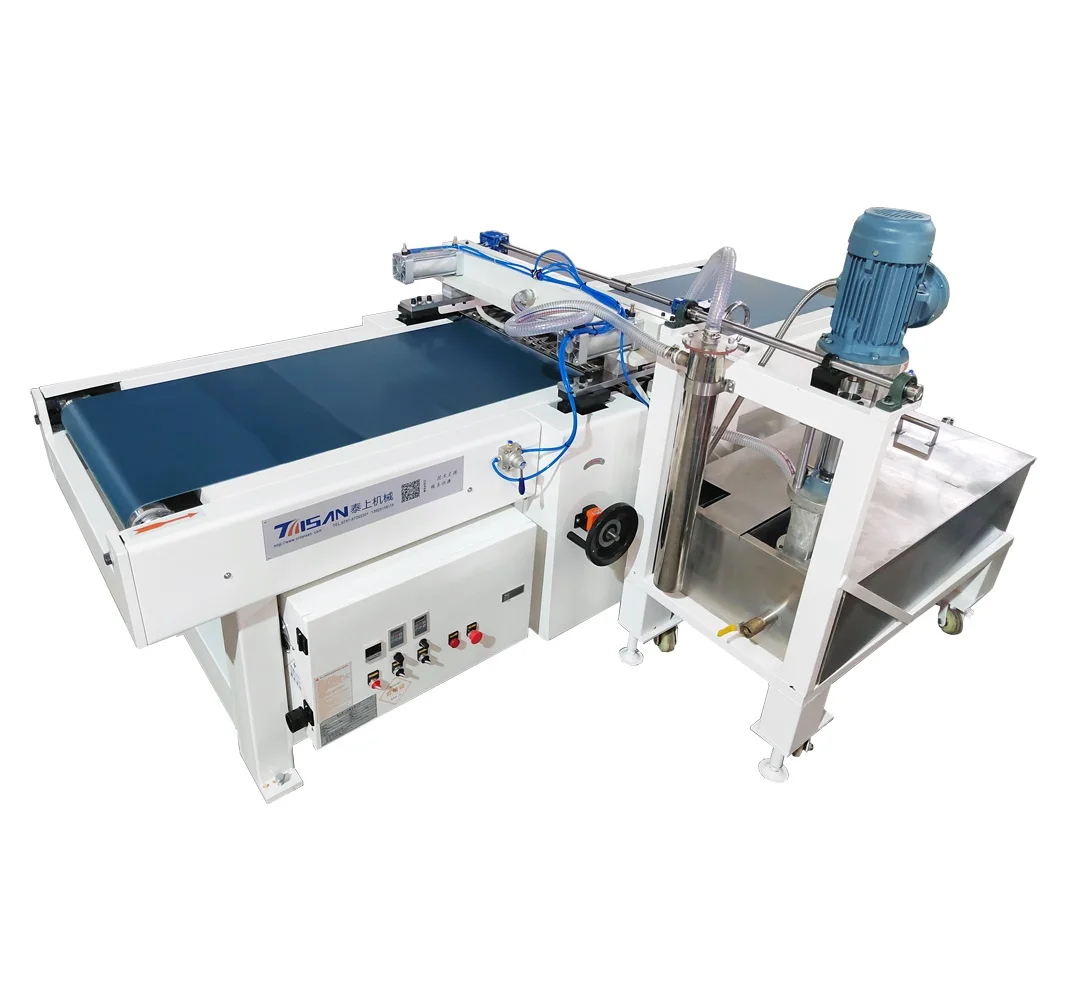

curtain coater for mirror effect high gloss
- Category: >>>
- Supplier: Foshan Taisan Machinery Co. Ltd.
Share on (1600328954136):
Product Overview
Description
Product Description
Suitable product :This equipment suit for furniture, door, leather,ceramic tiles making UV/PU/NC surface treatment.
Working principle:Special oil pump pumping the oil ,curtain coating the surface by the import curtain knife.
Coating advantage:Surface of production has high light and mirror surface effect; high efficiency, environment friendly, good paint film, replace manufal spraying paint.
After Sales Service
Working width | 1320mm |
Working height | 2-80mm |
Feeding speed | 5-60m/min |
Feeding power | 1.5KW |
Heating power | 6KW |
Transmit power | 2.2KW |
pump power | 0.75KW |
Paint type | UV/PU/PE |
Paint dosage | 40-300g/m2 |
Voltage | 380V50HZ |
Curtain coating advantage
After heat treatment, the spray curtain cutting tool is finely polished to ensure that there is no scar, impact and dent on the cutting edge and blade, and manual inspection and treatment later to ensure its quality and precision of the cutting edge;
The curtain head adopts the modulating 220-225hb electroplated iron core, which is matched with the special customized iron core
to highlight the backwave handwheel of 20mm, so that the control degree is accurate;
The heating barrel is made of 304# stainless steel, and the u-shaped heating tube is equipped to make the heating temperature
even.
The curtain head adopts the modulating 220-225hb electroplated iron core, which is matched with the special customized iron core
to highlight the backwave handwheel of 20mm, so that the control degree is accurate;
The heating barrel is made of 304# stainless steel, and the u-shaped heating tube is equipped to make the heating temperature
even.

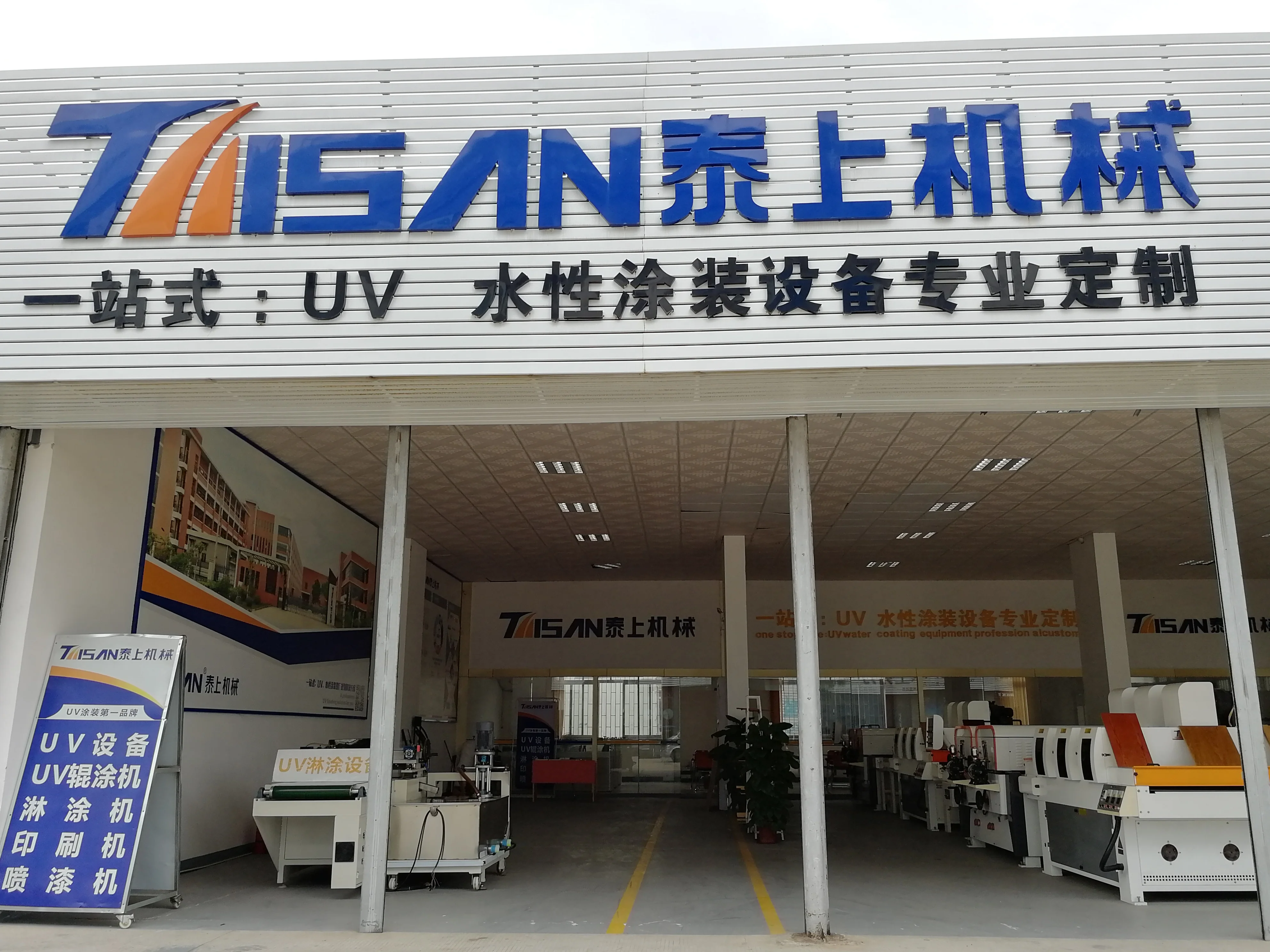

Company Introduction

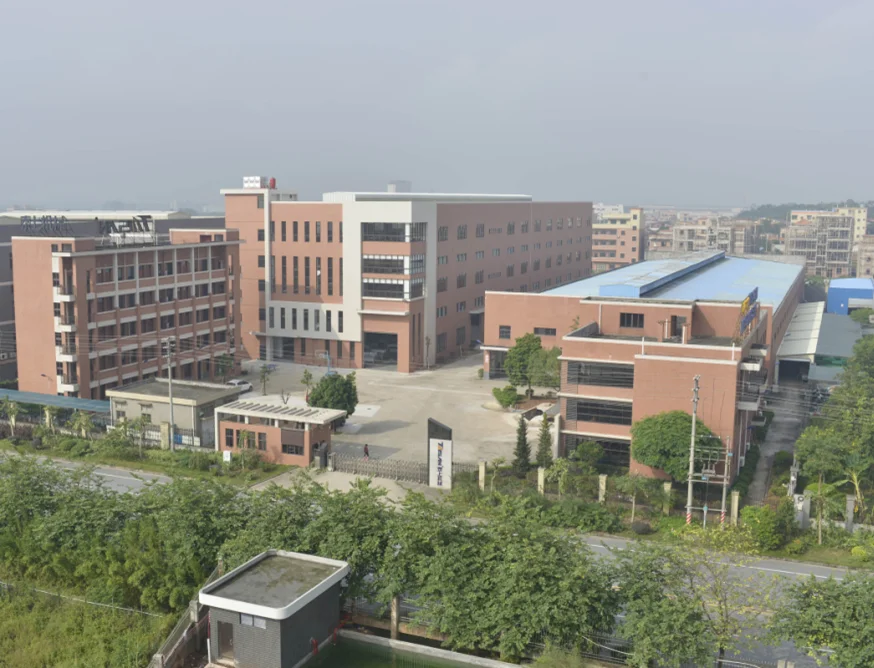

Foshan Taisan Machinary Co., Ltd , located in the Center Science and Technology industrial Park, is a modern science and technology enterprise with its own R&D , manufacturing and sales. It was established in 2001, with a registered capital of 10 million yuan, and the plant construction area over 30,000 square meters with large mechanical processing equipments : machine tools, processing center , sheet metal cutting machines, bending machines, gantry milling machines etc.
Our company's sales network is throughout the country 's 23 provinces.Product export grows rapidly these years , at a speed of 65% increase per year, mainly exported to South-east, Russia , Western Europe, South America.
Taisan has a strong development system , an independent technology innovation, and a new product testing center, Taisan got a number of CE certificates . And the Taisan was called "the most competitve brand".
Our company's sales network is throughout the country 's 23 provinces.Product export grows rapidly these years , at a speed of 65% increase per year, mainly exported to South-east, Russia , Western Europe, South America.
Taisan has a strong development system , an independent technology innovation, and a new product testing center, Taisan got a number of CE certificates . And the Taisan was called "the most competitve brand".
Our Services & Strength
Enterprise concept: the customer satisfactory , enhance brand, employees get development:
The core proposition: we are trying to!
For the future: we will be guided by market demand, make on the Thai customers the most trusted brand a more comprehensive and professional service.
The core proposition: we are trying to!
For the future: we will be guided by market demand, make on the Thai customers the most trusted brand a more comprehensive and professional service.
