Product Overview
Description
Product Description

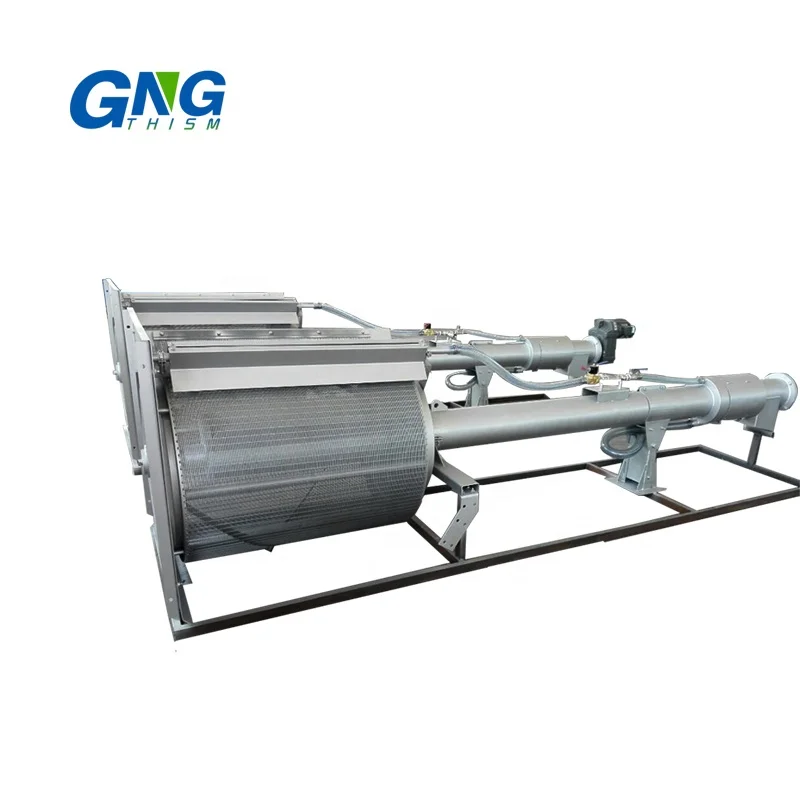

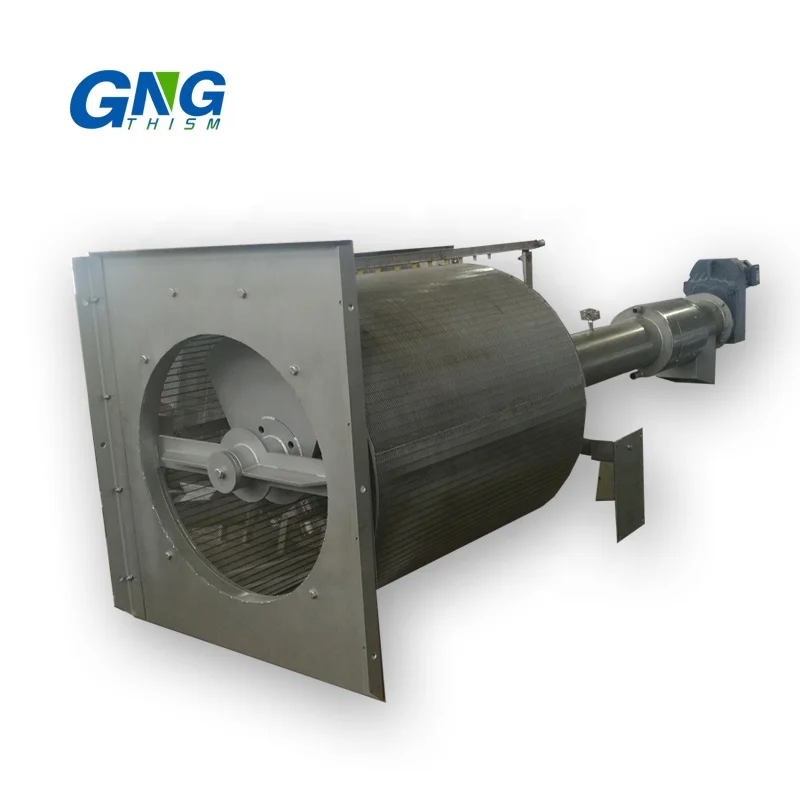

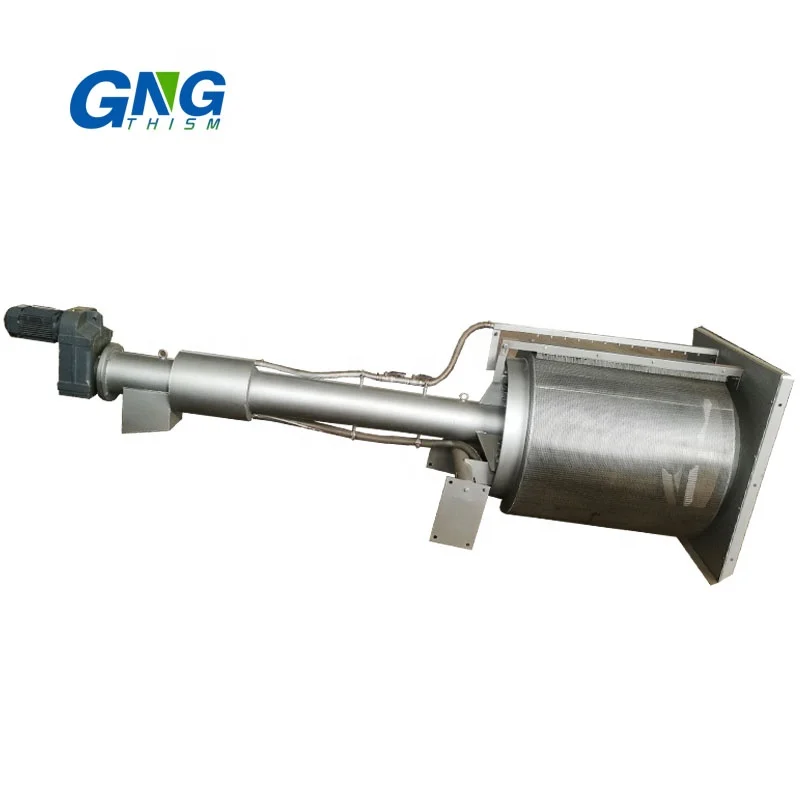

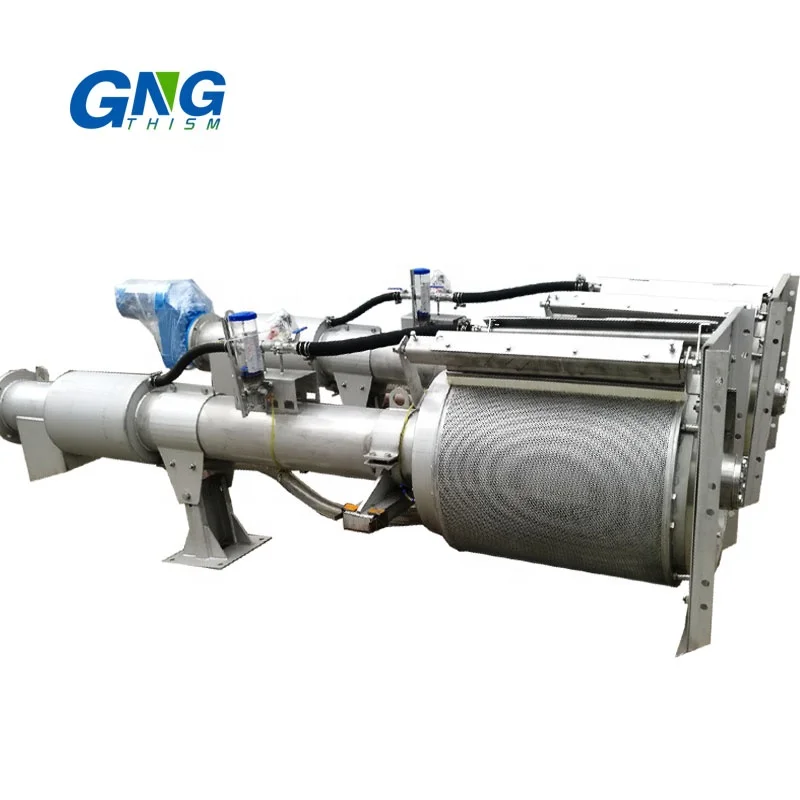

Automatic rotating drum screen filter
The screening elements can be either wedge wire spaced at 0.5-6mm, or 1-6mm perforated drums. Depending on the aperture size selected and the screen diameter(screen basket diameter of up to 3000mm are available), the throughput can be individually adjusted to specific site requirements.
The Rotary Drum Screen is completely made of stainless steel and can be installed either directly in the channel or in a separate tank
The Rotary Drum Screen is completely made of stainless steel and can be installed either directly in the channel or in a separate tank

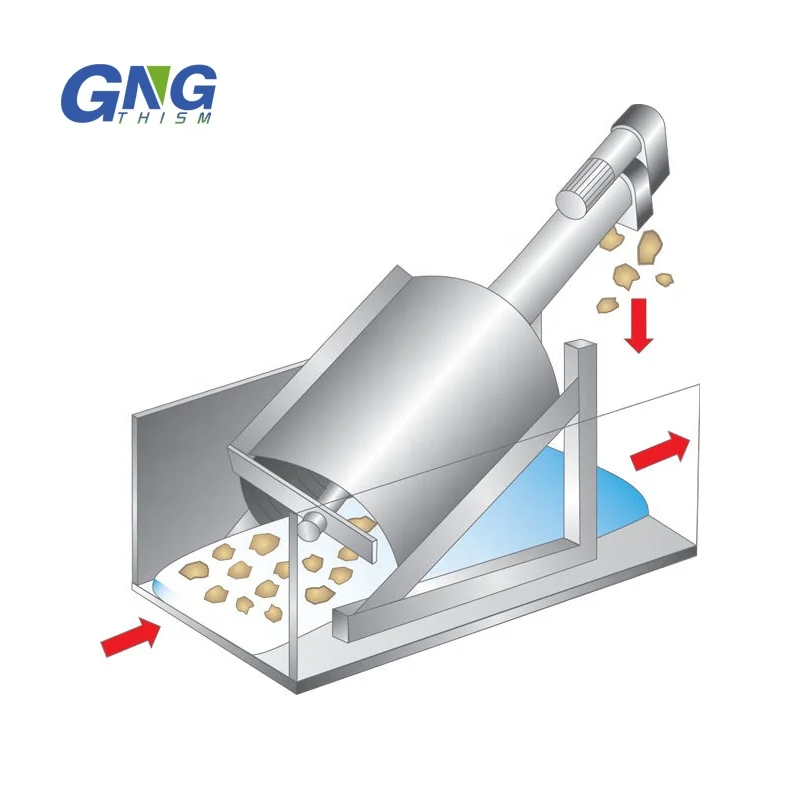

Overall Structure
Technical Parameters
Model | GNZG- 600 | GNZG- 800 | GNZG- 1000 | GNZG-1200 | GNZG-1400 | GNZG-1600 | GNZG-1800 | GNZG- 2000 | ||
Drum Diameter (mm) | 600 | 800 | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 | ||
Drum Length I (mm) | 500 | 620 | 700 | 800 | 1000 | 1150 | 1250 | 1350 | ||
Transport Tube d (mm) | 219 | 273 | 273 | 300 | 300 | 360 | 360 | 500 | ||
Channel Width b (mm) | 650 | 850 | 1050 | 1250 | 1450 | 1650 | 1850 | 2070 | ||
Max Water Depth H4 (mm) | 350 | 450 | 540 | 620 | 750 | 860 | 960 | 1050 | ||
Installation Angle | 35° | |||||||||
Flow rate (m/s) | 1.0 | |||||||||
Volume (m3/h) | Mesh (mm) | 0.5 | 80 | 135 | 235 | 315 | 450 | 585 | 745 | 920 |
1 | 125 | 215 | 370 | 505 | 720 | 950 | 1205 | 1495 | ||
2 | 190 | 330 | 555 | 765 | 1095 | 1440 | 1830 | 2260 | ||
3 | 230 | 400 | 680 | 935 | 1340 | 1760 | 2235 | 2755 | ||
4 | 235 | 430 | 720 | 1010 | 1440 | 2050 | 2700 | 3340 | ||
5 | 250 | 465 | 795 | 1105 | 1575 | 2200 | 2935 | 360 | ||
Main Features
1. The uniformity of water-distribution increases the treating capacity
2. The machine is driven by chain transmission, of high efficiency
3. It is equipped with reverse flushing device to prevent the screen clogging
4. Double overflow plate to prevent wastewater splash
Project Case
Packaging & Shipping
Packing & Shipping
Company Information
Our Company
Jiangsu Guonong Environmental Protection Co., Ltd is the professional water treatment R&D manufacturer. It is located in Yixing city, Jiangsu Province, China
Our products include Fine Bubble Disc Diffuser, MBBR Media, Sludge Dewatering Machine, Automatic Chemica Dosing System. Dissolved Air Flotation(DAF), Drum Filter Screen, Screens and Fine Screens, Grit-water separator, Screw Conveyor, Nano Bubble Generator, etc
After years of exploration and practice, our company has developed into a comprehensive service system.
Now, more than 80% of our products are exported to Southeast Asia, The Middle East, Europe, North America, Latin America, and so on. We also have many agents in Southeast Asia, North America and Latin America.
We insist on "Quality first, Reputation Foremost", our mission is" To be the best integrated water treatment supplier Worldwide"
