Portable electric steel cable tow trailer ATV winch with wireless remote control mounting bracket for sale wholesale
- Category: >>>
- Supplier: Changzhou Zangoo International Trade Co. Ltd.
Share on (1600329132398):
Product Overview
Description
Product Description
Overview
* 【Huge Winch Power】 1.8hp / 1.3kw output permanent magnet DC 12V motor to provide power. The stable and reliable all-metal three-stage planetary gear has strong traction, with a line speed of 3.6 feet per minute at full load and 9.5 feet per minute at no load.
* 【Dual Remote Control】 Equipped with 2 wireless remote controls and 1 wired remote control, which can support you to use the winch in different situations. The range of the wireless remote control is 10M. The wireless remote switch is not restricted by terrain and weather, and is easy to operate.
* 【Scope of Application】 Suitable for various complex terrain conditions, such as rocks, soil, and sand, specially designed for UTV, ATV, ships, cars, trucks, jeeps, modified vehicles and multi-purpose trailers.

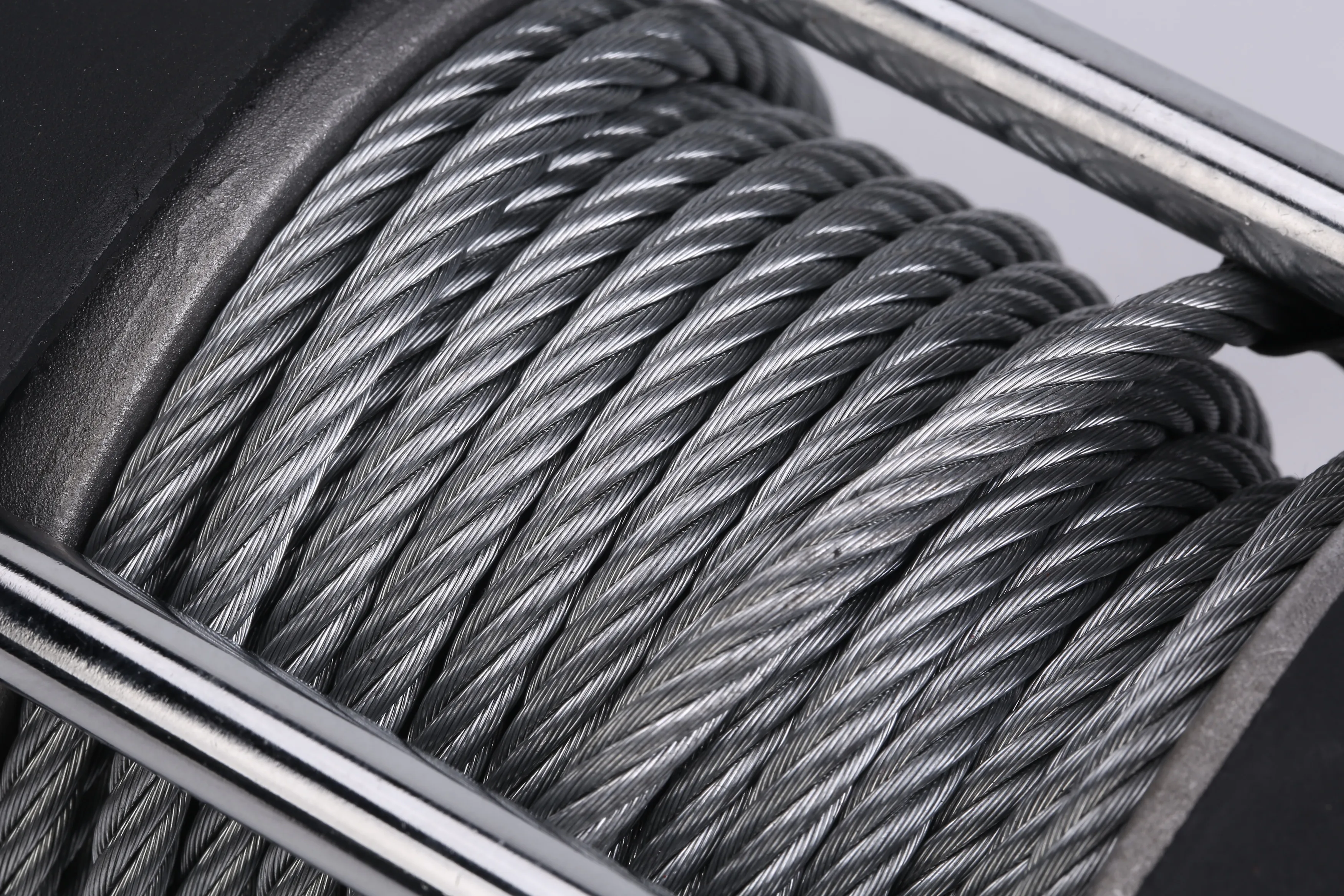

* 【Safety Guarantee】 It is made of all-metal structure and powder-coated surface, which has corrosion resistance and effectively protects internal components from impact. The durable 50-foot-long thickened steel wire rope has high strength, strong tensile force, and is not easy to deform, which can ensure safe and reliable power under any circumstances.
* 【Warranty】 The winch provides lifetime technical support and one-year limited warranty. If you have any questions during the purchase, please feel free to contact us, we will answer your questions within 24 hours.
* 【Huge Winch Power】 1.8hp / 1.3kw output permanent magnet DC 12V motor to provide power. The stable and reliable all-metal three-stage planetary gear has strong traction, with a line speed of 3.6 feet per minute at full load and 9.5 feet per minute at no load.
* 【Dual Remote Control】 Equipped with 2 wireless remote controls and 1 wired remote control, which can support you to use the winch in different situations. The range of the wireless remote control is 10M. The wireless remote switch is not restricted by terrain and weather, and is easy to operate.
* 【Scope of Application】 Suitable for various complex terrain conditions, such as rocks, soil, and sand, specially designed for UTV, ATV, ships, cars, trucks, jeeps, modified vehicles and multi-purpose trailers.
* 【Safety Guarantee】 It is made of all-metal structure and powder-coated surface, which has corrosion resistance and effectively protects internal components from impact. The durable 50-foot-long thickened steel wire rope has high strength, strong tensile force, and is not easy to deform, which can ensure safe and reliable power under any circumstances.
* 【Warranty】 The winch provides lifetime technical support and one-year limited warranty. If you have any questions during the purchase, please feel free to contact us, we will answer your questions within 24 hours.
ATV Winch
The ANE Electric Trailer Winch(4500 lbs) kit includes everything you need to start winching, including cables and contactor, a mounting channel, roller fairlead and a wiring kit with contactor, and a remote controlled switch,etc. This winch kit is the perfect combination of power and performance to use with your ATV, trailer, boat or snowmobile.Whether you need to winch an old tractor from a pasture or pull a friend out of a ditch, trailer winches can be a lifesaver. Trailer winches have literally thousands of recreational and commercial uses. Once you add a winch to your trailer, you will wonder how you ever did without.
With a rated line pull of 4500 lbs. mount this ANE electric winch on your ATV or side by side with the mounting channel to quickly harness the strength of its 1.4 HP (12-Volt) DC permanent magnet motor. The super-duty aircraft cable is less prone to fraying, even when used in highly abrasive terrain, such as in rocks, mud, or sand. This incredibly strong cable is guided onto the 1.5 x 2.8 in. drum through the reliable roller fairlead to maximize the life of the cable.
The 3-stage planetary gear system along with the free-spooling clutch and ergonomic mini-rocker handlebar switch offer excellent
control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have
the stopping power you need for each job. With a gear reduction ratio of 153:1, the winch boasts a line speed of 2.6 ft. per
minute with a full load, and 10.8 ft. per minute with no load.
control while winching. Designed with your safety in mind, this winch features dynamic braking of the winch drum so you'll have
the stopping power you need for each job. With a gear reduction ratio of 153:1, the winch boasts a line speed of 2.6 ft. per
minute with a full load, and 10.8 ft. per minute with no load.
Specification
item | value |
Place of Origin | China |
Jiangsu | |
Brand Name | zangoo |
Model Number | SL2000lb-w-1 |
Power Source | Electric |
Application | Tow Trailer |
Capacity | 4500lbs |
Product name | ATV winch |
Gear Train | Dierential Planetary |
Rated Line Pull(Single Line) | 4500lbs single line |
Motor | Permanent magnet, 1.4kw/1.9hp |
Cable(Dia*L) | Diameter(5.3mm) Length(10m) |
Gear Reduction Ratio | 153:1 |
Control | Remote switch |
NW/GW | 9kg*10kg(1pcs) |
Packing Size | 43*30.5*36CM |
Drum Size | 37mm*72mm |

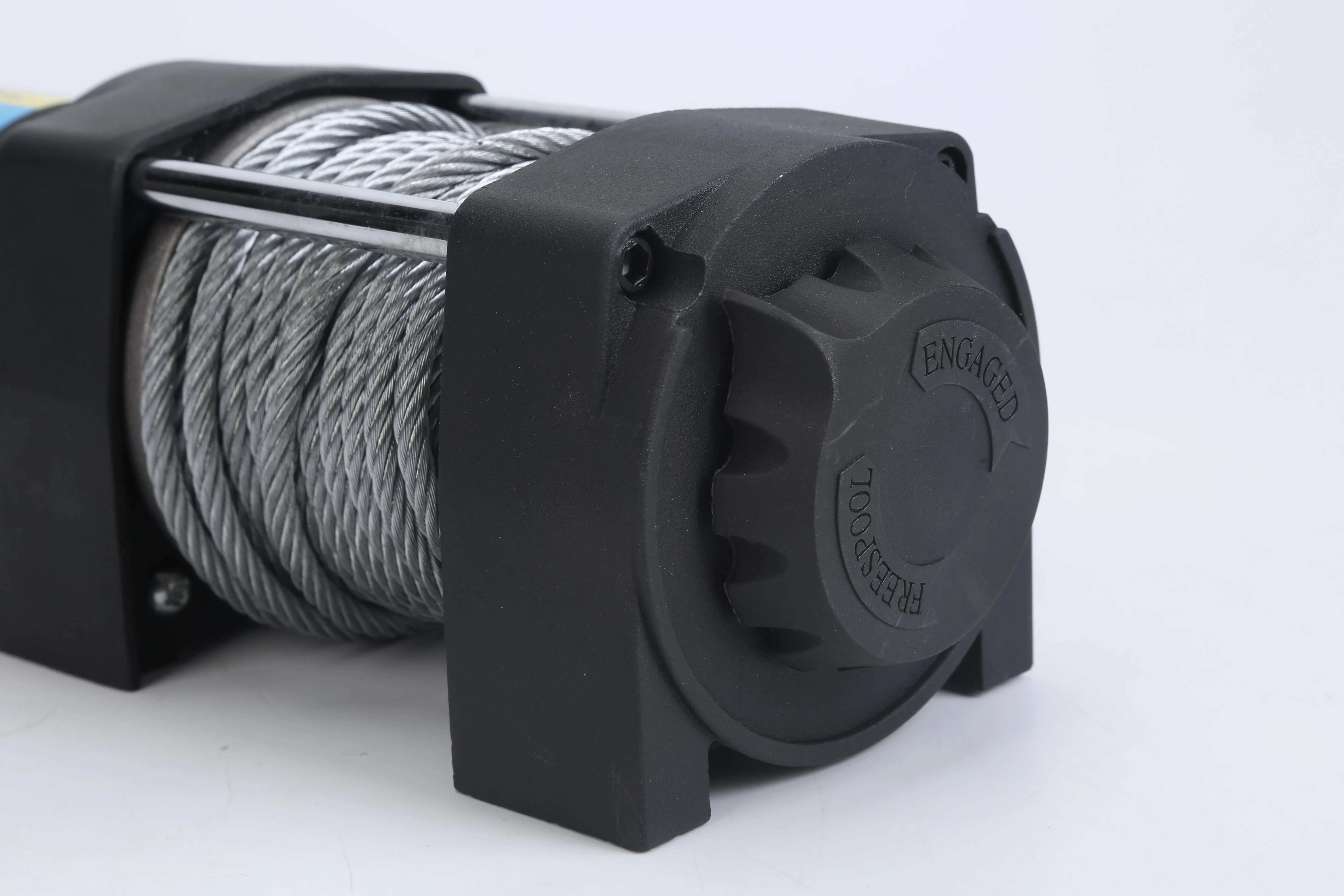

Clutch | Sliding ring gear |
Braking | Automatic in- the-drum |
Overall Dimension(L*W*H) | 316*120*106mm |
Mounting Bolt Pattern | 166*76mm |
MOQ | 10 |
Why install an electric winch?
When off-road enthusiasts encounter stubborn rocks, rugged mountain roads and muddy waterways in the wild, the presence of the
winch can help you save yourself easily.
When ordinary SUV users encounter heavy snow, heavy rain and windy days when driving in the city, the winch can also help you get out of trouble.
Whether you are an off-road enthusiast or an ordinary urban SUV user, the winch is your ideal choice.

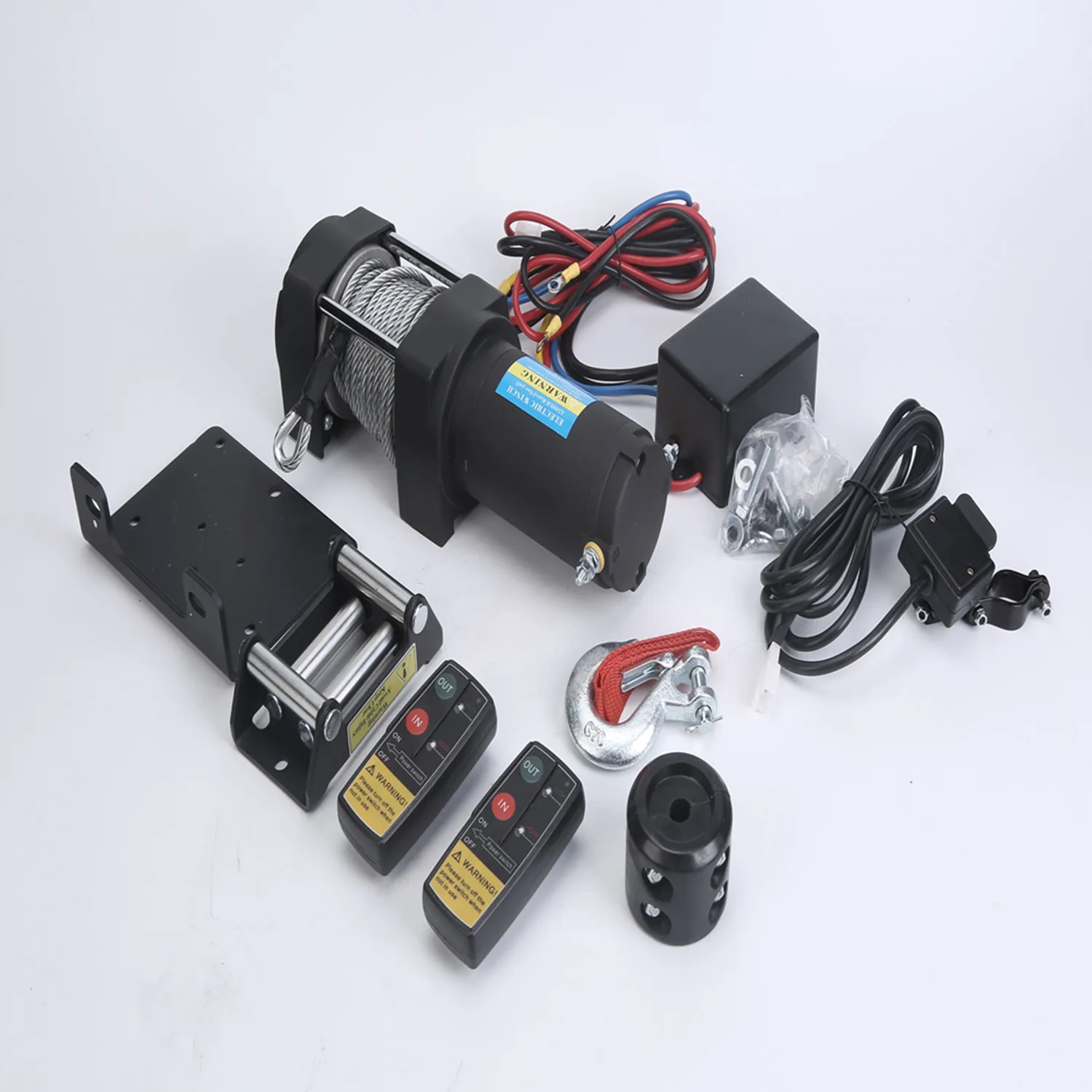

Package Includes
1 X 4500 pounds electric winch
1 X 50 feet long steel rope
4 X cable
1 X control box
1 X Installation hardware
1 X hook
2 X wireless remote control (battery required)
1 X wired remote control
1 X mounting plate
1 X Aluminum fairlead
1 X Winch Cable Hook Stopper
1 X Product Manual
After-sales Service
If you have any questions about our products, please feel free to contact us, we will provide you with 24-hour service.
When off-road enthusiasts encounter stubborn rocks, rugged mountain roads and muddy waterways in the wild, the presence of the
winch can help you save yourself easily.
When ordinary SUV users encounter heavy snow, heavy rain and windy days when driving in the city, the winch can also help you get out of trouble.
Whether you are an off-road enthusiast or an ordinary urban SUV user, the winch is your ideal choice.
Package Includes
1 X 4500 pounds electric winch
1 X 50 feet long steel rope
4 X cable
1 X control box
1 X Installation hardware
1 X hook
2 X wireless remote control (battery required)
1 X wired remote control
1 X mounting plate
1 X Aluminum fairlead
1 X Winch Cable Hook Stopper
1 X Product Manual
After-sales Service
If you have any questions about our products, please feel free to contact us, we will provide you with 24-hour service.
