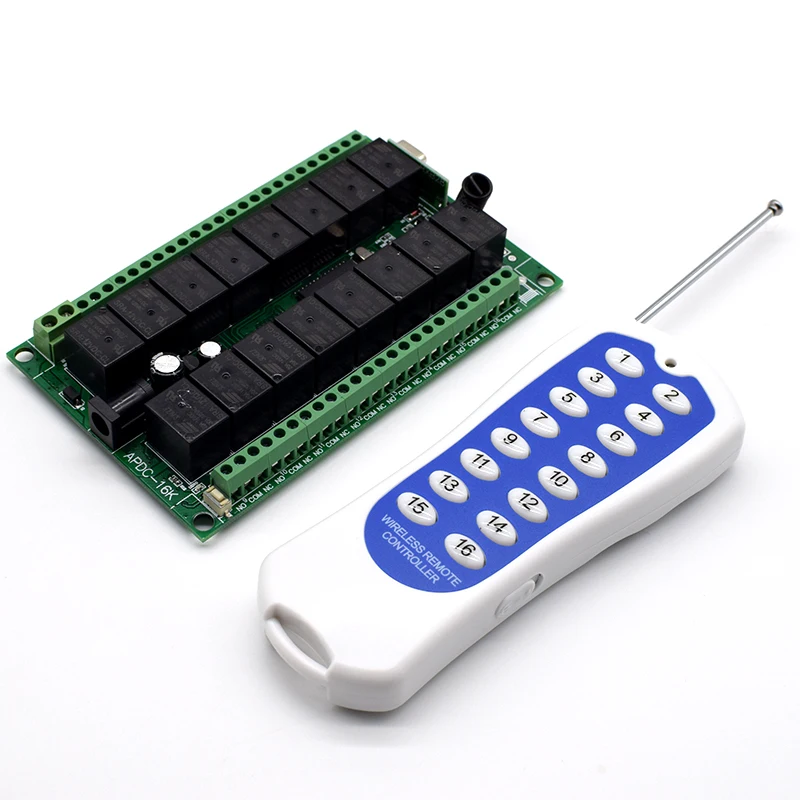

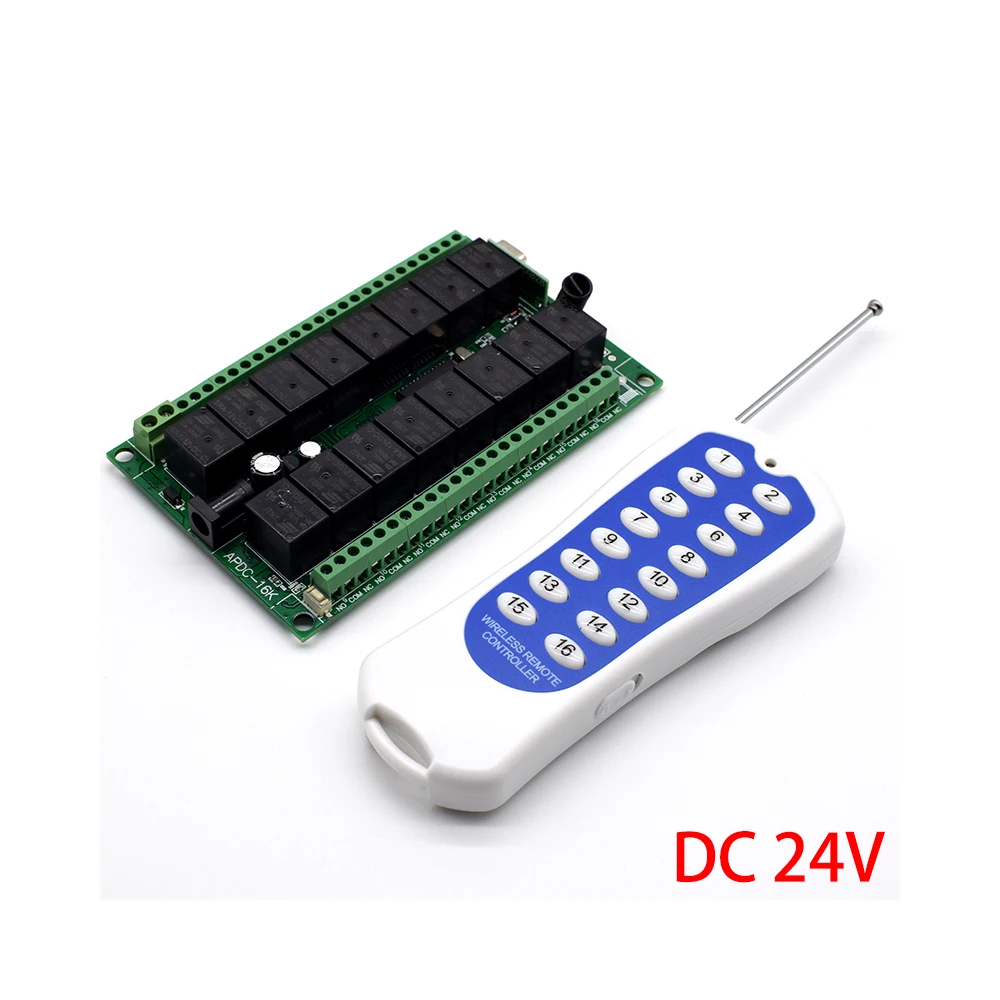

DC12V 24V 16CH 1000M Long Range Radio Controller RF Wireless Remote Control Switch System 16 Channel 16 Gang Transmitter 433MHz
- Category: >>>
- Supplier: Shenzhen Mixiyou Technology Co. Ltd.
Share on (1600329168560):
Product Overview
Description
Product Description

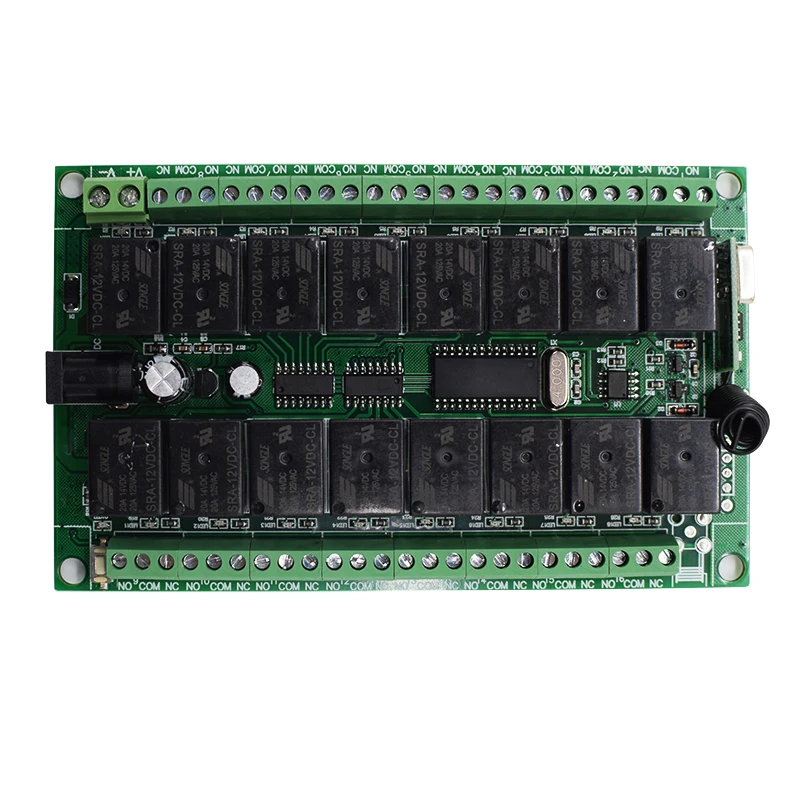

Name | DC 12V 24V 16 CH channel RF Wireless Remote Control Switch & 16 button Remote Control System Receiver Transmitter 433MHz 16CH Relay |
Quiescent Current | less than 10mA |
Working Voltage | 12V or 24V |
Quiescent Current | less than 10mA |
Working Frequency | 433MHz Optional |
Thank you for purchasing our company design and manufacture of wireless intelligent controller, 16 road for 16 relay switch output signal and work with a light, can make the motor to control device to achieve positive and reverse;Or, conversion of switch and the various special control program requirements.Mainly used in electric door, window, hoisting equipment, gateway, advanced, industrial control and security industry and other fields.
The wireless controller, receiver with high confidentiality, large storage capacity, stable performance, low power consumption characteristic, and easy to use, without the traditional jump line or dial the code switch coding, the wireless signal emitted by just put the remote control for the receiving controller receives and storage, can be realized.Lost in use process, if learn good remote control need to clear the receiving controller in the storage of information, will not be lost by the remote control to remote control of the receiving controller, to regain access to relearn again by the master to use.
The wireless controller, receiver with high confidentiality, large storage capacity, stable performance, low power consumption characteristic, and easy to use, without the traditional jump line or dial the code switch coding, the wireless signal emitted by just put the remote control for the receiving controller receives and storage, can be realized.Lost in use process, if learn good remote control need to clear the receiving controller in the storage of information, will not be lost by the remote control to remote control of the receiving controller, to regain access to relearn again by the master to use.
Way to work
APDC - 15/16 l have five works: signal self-locking, signal interlocking, signals the lock, and since the locks and the lock
1, the signals from the lock - press 1 key learning
2 lock, signal, press 2 key learning
3, signal interlocking, press the remote control 3 key learning
4, 1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist, press the 4 key learning
5, signal 1 self-locking and 2 ~ 16 road not lock coexist, according to the 5 key learning remote control
1, the signals from the lock - press 1 key learning
2 lock, signal, press 2 key learning
3, signal interlocking, press the remote control 3 key learning
4, 1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist, press the 4 key learning
5, signal 1 self-locking and 2 ~ 16 road not lock coexist, according to the 5 key learning remote control
The output mode
1, the signals from the lock: press 1 key learning
Press key 1, and 1 key corresponding relay merger keep absorption, then press 1, no. 1 relay disconnected;Press key # 2 and # 2 keys corresponding relay merger keep absorption, and then press 2, no. 2 relay disconnected;3 ~ 16 B,Bkey work according to the loop.
Press key 1, and 1 key corresponding relay merger keep absorption, then press 1, no. 1 relay disconnected;Press key # 2 and # 2 keys corresponding relay merger keep absorption, and then press 2, no. 2 relay disconnected;3 ~ 16 B,Bkey work according to the loop.
Note: if you learn good receiver want to change to other function, please will study receiver again after the qing code to code.
Learning methods:
After the learning key light on, press the receiver is to let it go, into the learning state;The function of according to their
own needs to choose according to the study, a button of the remote control receiver after receiving the signal indicator lights flashing once said about learning success.
own needs to choose according to the study, a button of the remote control receiver after receiving the signal indicator lights flashing once said about learning success.
Remove method:
Long press on the receiver about eight seconds until the indicator light goes out, says it has clear success.The receiver can store different coding about remote control 30.
The main technical indicators
1, working voltage: 12 VDC (24 VDC can be customized)
2, the static current: 7 ma or less
3, working temperature: - 20 to + 70
4, receiving sensitivity: p - 105 DBM
5, working frequency: 433 MHZ
6, the control voltage, an optional ac or dc
7, the output current: 5 a or less
8, size: 125 mm x 78 mm x 30 mm
2, signal not lock: press 2 remote control study
Hold the remote control key 1, and the corresponding relays and 1 key, let go after the relay disconnect, press key # 2 and with the corresponding relay and 2 key, let go after disconnection;3 ~ 16 key work according to the loop.
3, signal interlocking, press the remote control 3 key learning
Press 1 key, relay merger keep absorption of no. 1, press 2, no. 1 relay disconnect, merger with 2 keys corresponding relay suck keep;3 ~ 16 key work according to the loop.
4, 1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist: press the 4 key learning
Corresponding with the remote control 15 relay, among them 1 ~ 8 road for self-locking function, 9 ~ 16 road for the lock
function.
5, signal 1 self-locking and 2 ~ 16 road not lock coexist: according to the 5 key learning remote control
16 and corresponding remote control relay, among them 1 road for self-locking function, 9 ~ 16 road for the lock fun
2, the static current: 7 ma or less
3, working temperature: - 20 to + 70
4, receiving sensitivity: p - 105 DBM
5, working frequency: 433 MHZ
6, the control voltage, an optional ac or dc
7, the output current: 5 a or less
8, size: 125 mm x 78 mm x 30 mm
2, signal not lock: press 2 remote control study
Hold the remote control key 1, and the corresponding relays and 1 key, let go after the relay disconnect, press key # 2 and with the corresponding relay and 2 key, let go after disconnection;3 ~ 16 key work according to the loop.
3, signal interlocking, press the remote control 3 key learning
Press 1 key, relay merger keep absorption of no. 1, press 2, no. 1 relay disconnect, merger with 2 keys corresponding relay suck keep;3 ~ 16 key work according to the loop.
4, 1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist: press the 4 key learning
Corresponding with the remote control 15 relay, among them 1 ~ 8 road for self-locking function, 9 ~ 16 road for the lock
function.
5, signal 1 self-locking and 2 ~ 16 road not lock coexist: according to the 5 key learning remote control
16 and corresponding remote control relay, among them 1 road for self-locking function, 9 ~ 16 road for the lock fun
Programming method
Signal not lock: press 2 remote control study
Hold the remote control key 1, and the corresponding relays and 1 key, let go after the relay disconnect, press key # 2 and with
the corresponding relay and 2 key, let go after disconnection;3 ~ 16 key work according to the loop.
Signal interlocking, press the remote control 3 key learning
Press 1 key, relay merger keep absorption of no. 1, press 2, no. 1 relay disconnect, merger with 2 keys corresponding relay suck
keep;3 ~ 16 key work according to the loop.
1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist: press the 4 key learning
Corresponding with the remote control 15 relay, among them 1 ~ 8 road for self-locking function, 9 ~ 16 road for the lock
function.
Signal 1 self-locking and 2 ~ 16 road not lock coexist: according to the 5 key learning remote control
16 and corresponding remote control relay, among them 1 road for self-locking function, 9 ~ 16 road for the lock fun
Hold the remote control key 1, and the corresponding relays and 1 key, let go after the relay disconnect, press key # 2 and with
the corresponding relay and 2 key, let go after disconnection;3 ~ 16 key work according to the loop.
Signal interlocking, press the remote control 3 key learning
Press 1 key, relay merger keep absorption of no. 1, press 2, no. 1 relay disconnect, merger with 2 keys corresponding relay suck
keep;3 ~ 16 key work according to the loop.
1 ~ 8 signal self-locking and 9 ~ 16 road not lock coexist: press the 4 key learning
Corresponding with the remote control 15 relay, among them 1 ~ 8 road for self-locking function, 9 ~ 16 road for the lock
function.
Signal 1 self-locking and 2 ~ 16 road not lock coexist: according to the 5 key learning remote control
16 and corresponding remote control relay, among them 1 road for self-locking function, 9 ~ 16 road for the lock fun

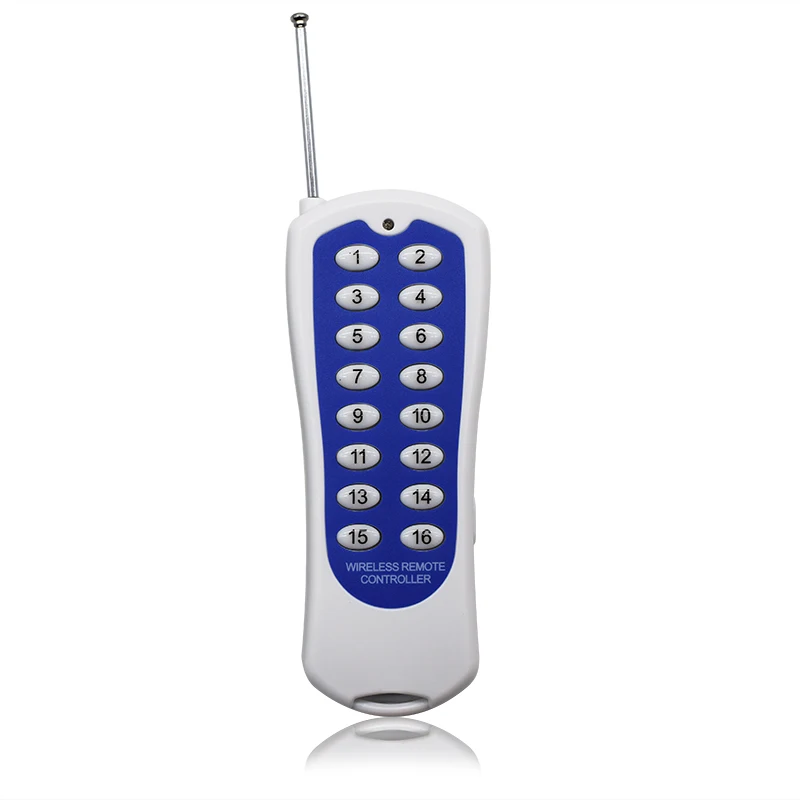

About transmitter
Remote Control Distance:0-200 M ( Ideal Distance without any block and signal interfere , it would rise and fall about 10%-90%
with the block and signal interference.)
Encode: PT2262
Frequency: 433 MHz
Size: 105mm x 49mm x 15mm
Power Supply: 1 X 12V/23A Battery （Without battery）
Details Images
Packing&Shipping
1 pcs/small packing box, 30-50 pcs/bag 500/carton
