Nitrogenous fertilizer production plant Phosphate fertilizer potash fertilizer granulator product line equipment
- Category: >>>
- Supplier: Zhengzhou Chengxiang Heavy Industry Machinery Co. Ltd.
Share on (1600329205100):
Product Overview
Description

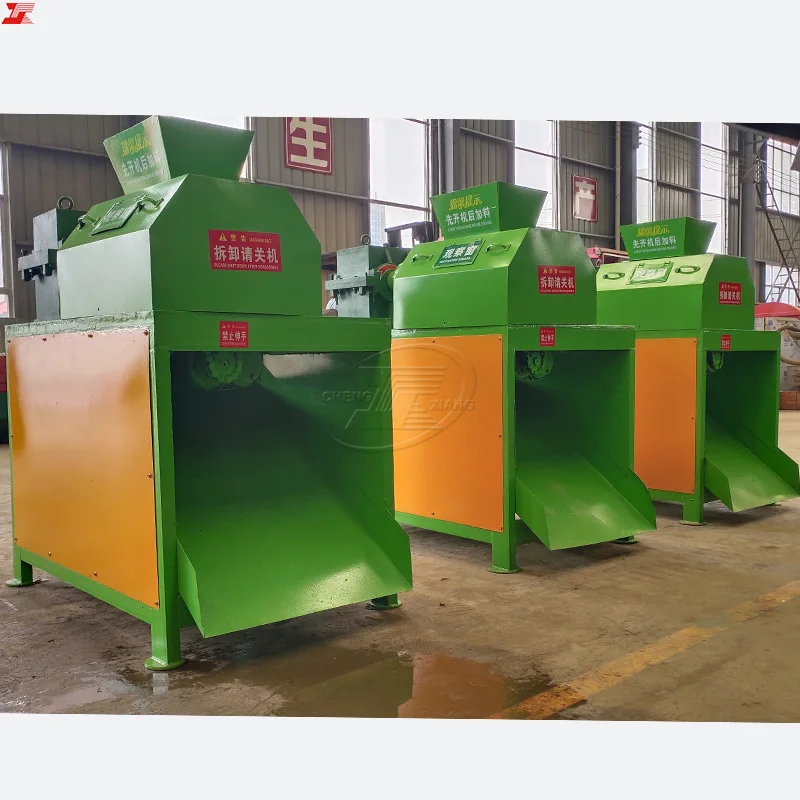

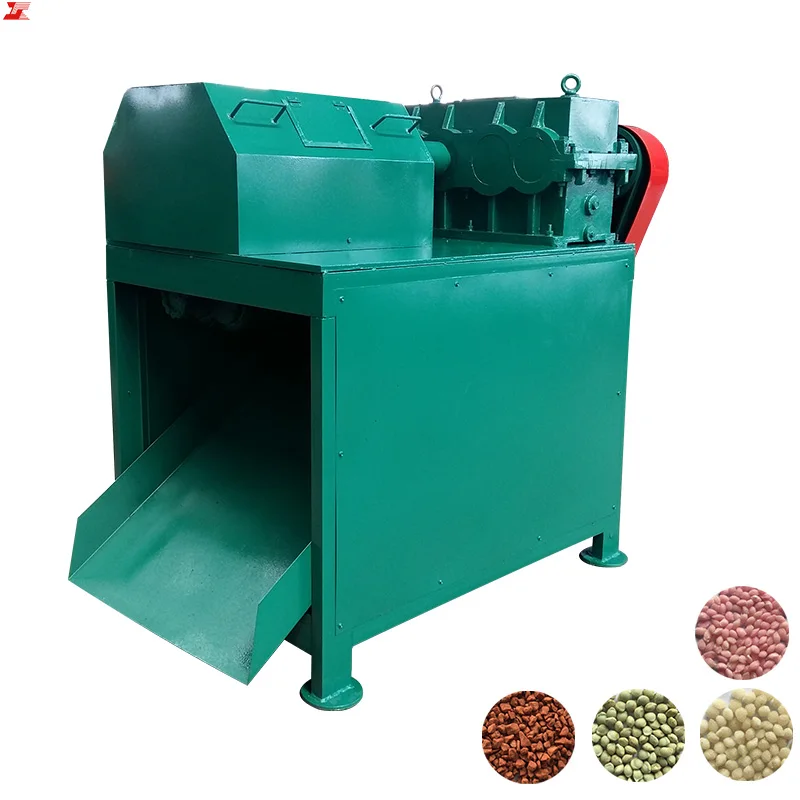

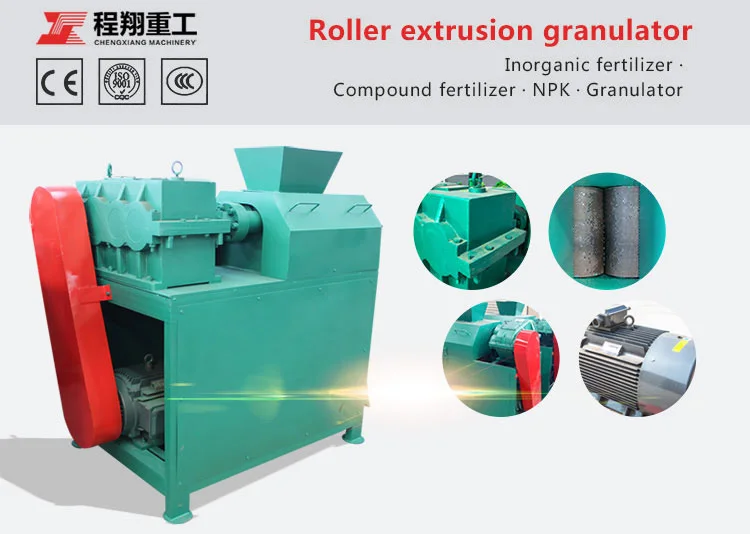

The Roller extrusion granulator
The Roller extrusion granulator does not need to be dried,and is produced at room temperature.The product is rolled and formed at one time,so that the product quality meets the requirements of the compound fertilizer technical specifications,and the high-,medium-,and low-concentration special compound fertilizers and compounding used inthe production of various crops are used.A new generation of energy-saving and consumption-reducing products in the fertilizer industry.It is also suitable for granulationof various raw materials such as chemical feed.

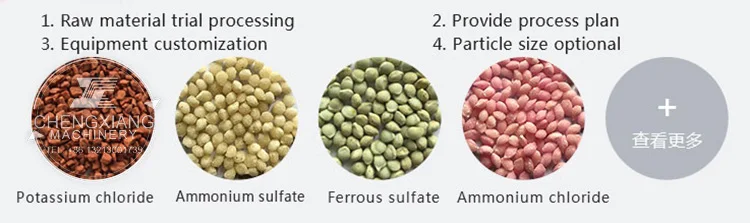

Potassic fertilizers : potassium sulfate, potassium chloride,plant ash etc.
Nitrogen fertilizers : ammonium chloride, ammonium sulfate, ammonium sulphate etc.
Phosphate fertilizer : superphosphate, triple superphosphate, calcium magnesium phosphate.
SUnit crushed strength : 10-25N
Shape of finished products : oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.
Material moisture requirement : not more than 10%
The rate of ball formation : 95%
Output : 1-4t/h ( can combine multiple granulators work together to increase output, see below
technical process chart).
Granule size : 3-8mm (popular market granule diameter: 2.8-4mm)
Shape of finished products : oval, irregular, wheat shaped, etc., can also be customized according to customer requirements.
Material moisture requirement : not more than 10%
The rate of ball formation : 95%
Output : 1-4t/h ( can combine multiple granulators work together to increase output, see below
technical process chart).
Granule size : 3-8mm (popular market granule diameter: 2.8-4mm)

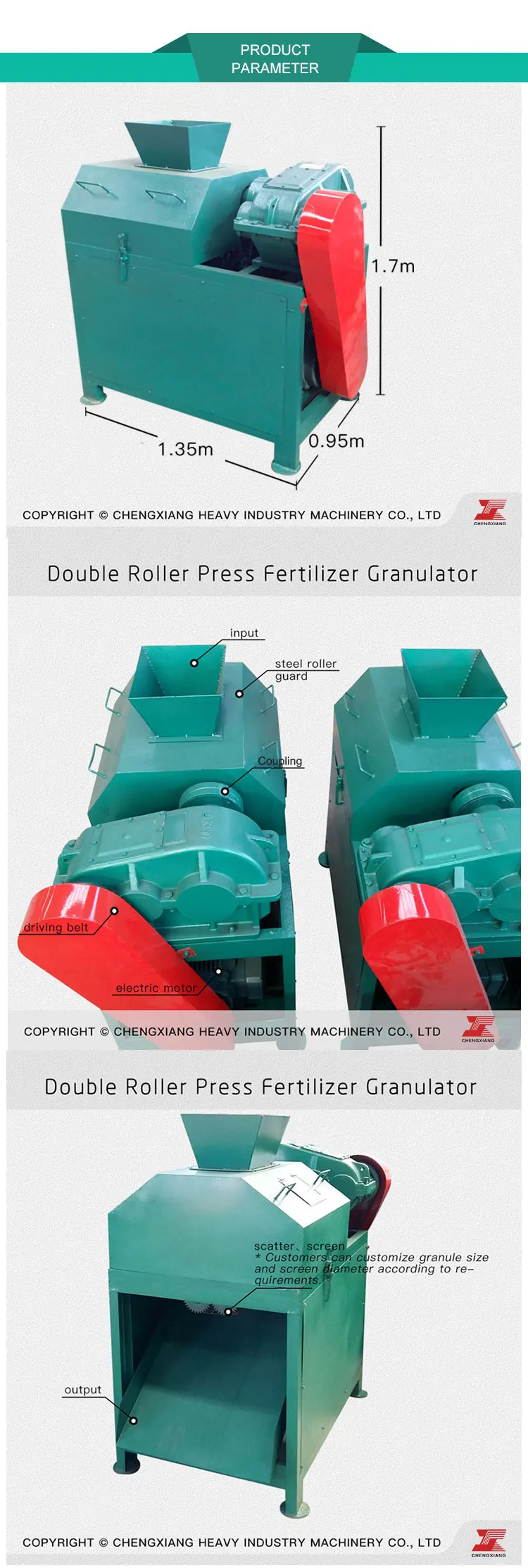

1.Double shaft power output, each shaft through coupling to drive its roller to do synchronous work in opposite direction, granule forming is better and the strength is higher.
2.The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide the drawing of roller adjustment and operation steps.
3. All machines before leave the factory, had carried out the test and trial production by professional workers.
2.The design of contraposition adjustment of ball socket is simple and convenient for the client to adjust by themselves. Provide the drawing of roller adjustment and operation steps.
3. All machines before leave the factory, had carried out the test and trial production by professional workers.
Model | Capacity (t/h) | Power (KW) | Roller Size (φ) | Feed Size （mm） | Granule Size(φ) | Gear Reducer Model | Moisture Of Raw Materials(%) |
DZJ-I 1.0 | 1-1.5 | 15 | 150×220 | ≤0.5 | 3-10 | ZQ350 | 5-15 |
DZJ-I 2.0 | 1.5-2.5 | 18.5 | 150×300 | ≤0.5 | 3-10 | ZQ400 | 5-15 |
DZJ-I 3.0 | 2-3 | 30 | 186×300 | ≤0.5 | 3-20 | ZQ400 | 5-15 |
DZJ-II 1.0 | 1-2 | 15 | 150×220 | ≤0.5 | 3-10 | special purpose | 5-15 |
DZJ-II 2.0 | 1.5-2.5 | 18.5 | 150×300 | ≤0.5 | 3-20 | special purpose | 5-15 |
Manufacturing process

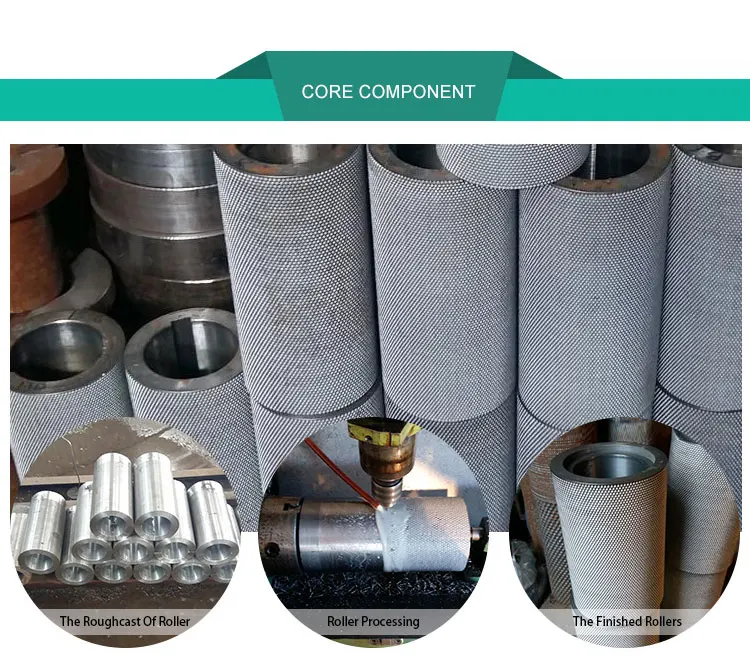

The roller was first forged and processed from special materials into roughcast, and then machined by numerical lathe and milling machine to be finished product. The roller with the features of rusty resistance, acid and alkali resistance, long service life, not easy to crack .

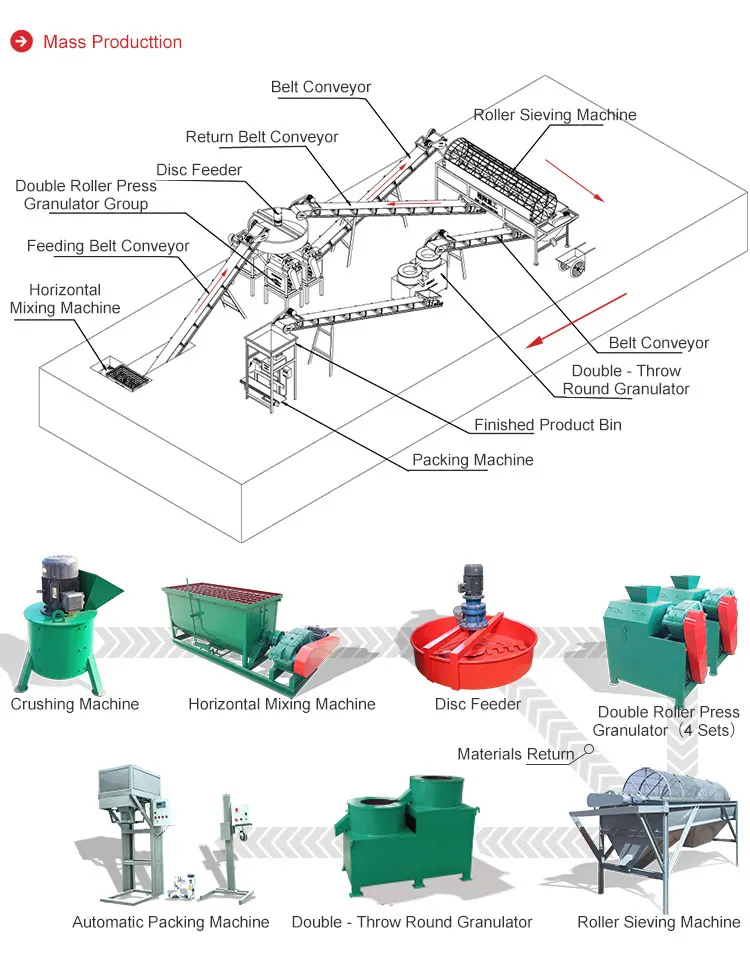

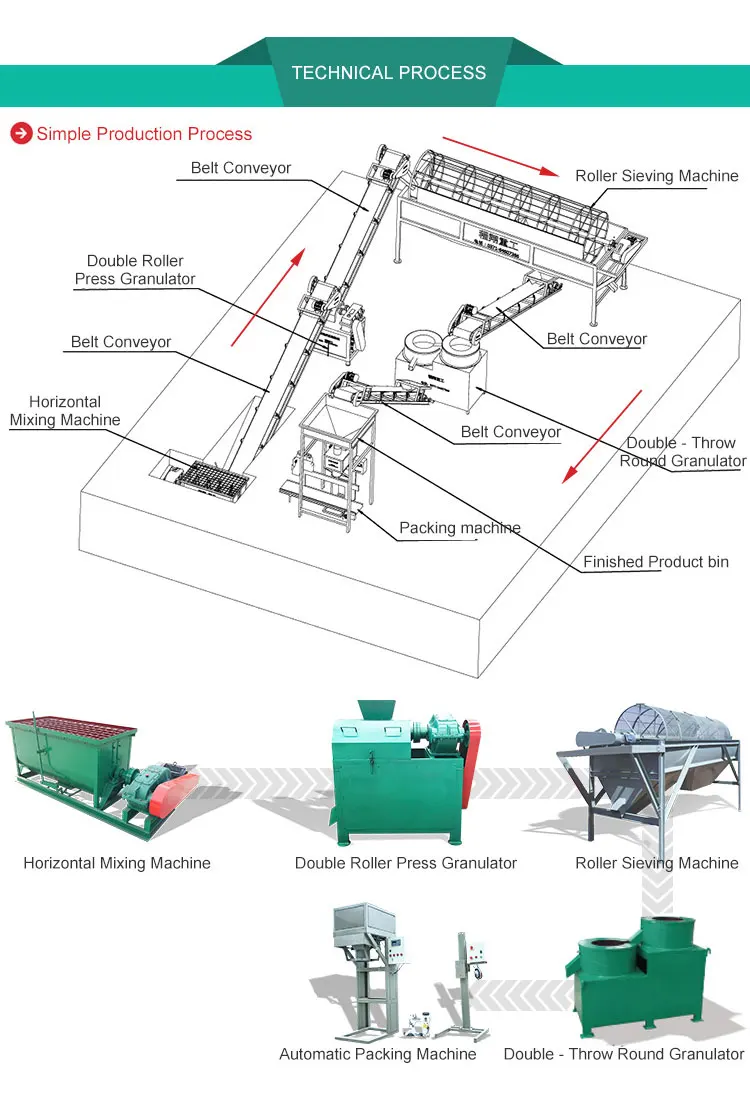

Working flow: input ( If blocked, use chain crusher to deal with ) ---- granulation - screening (select the right sieving hole diameter)----finished granules---- the next process (optional equipment: 1, screening machine: the size of the granules will be more accurate. 2, coating machine: make the appearance of the granules more good. 3, weighing and package: facilitate the sale and transportation of products.

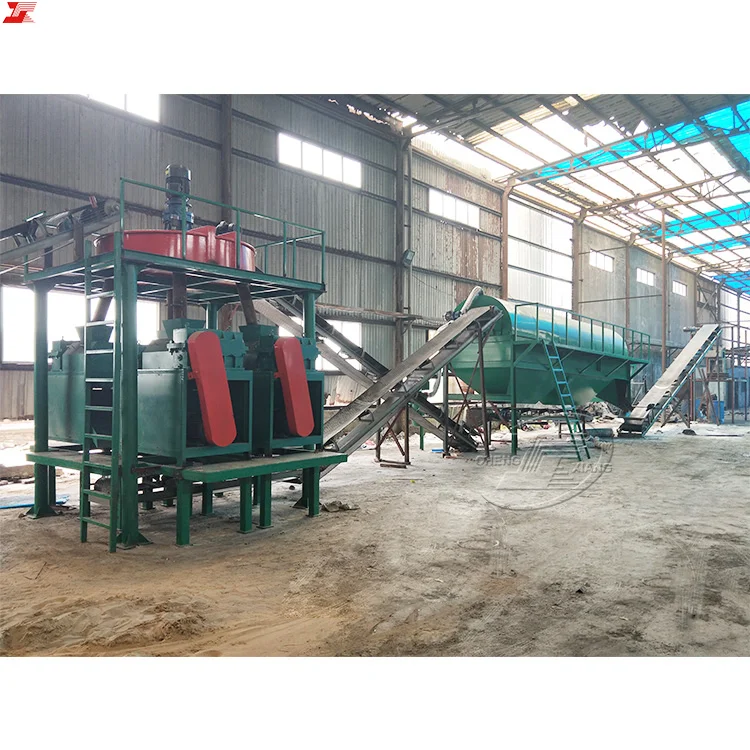

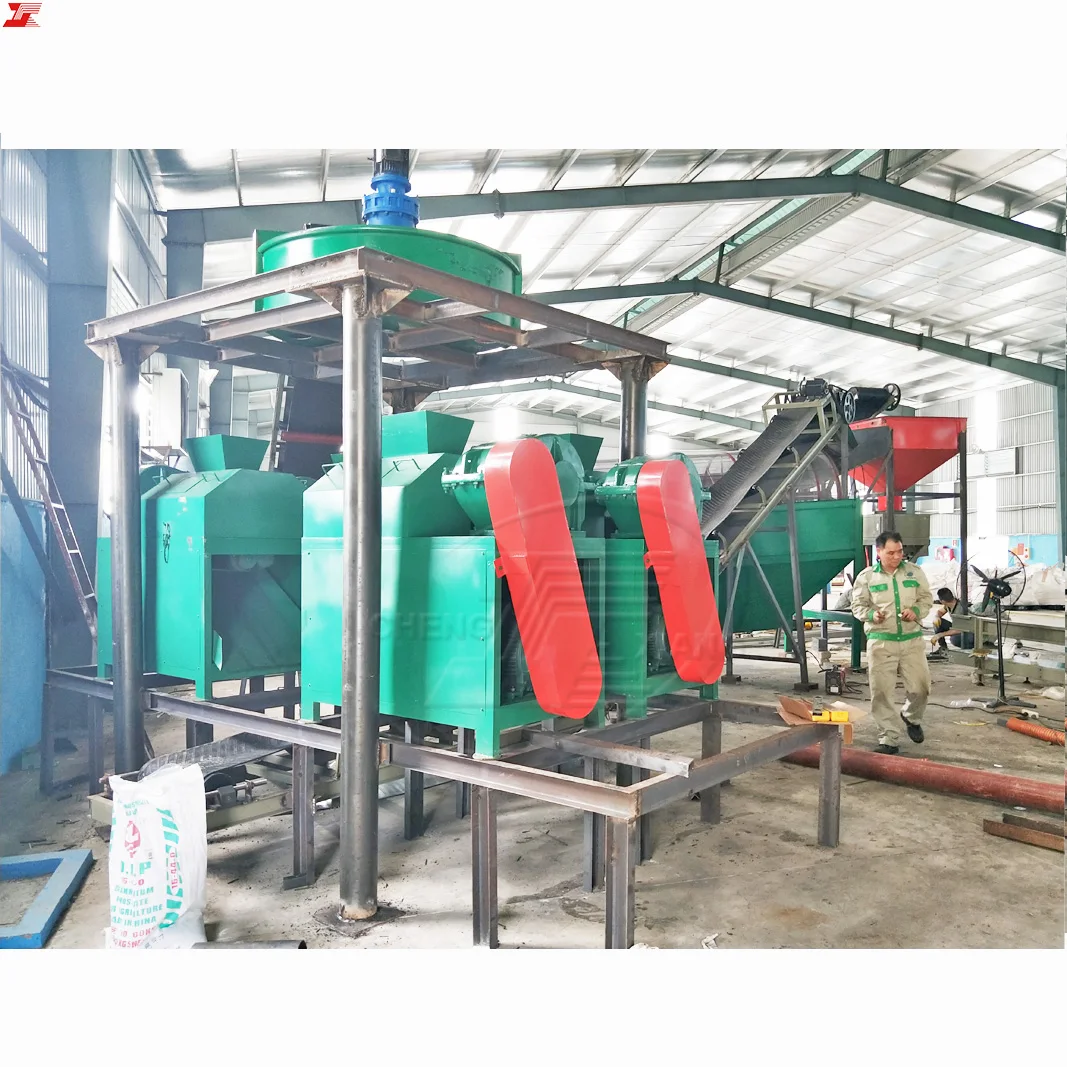

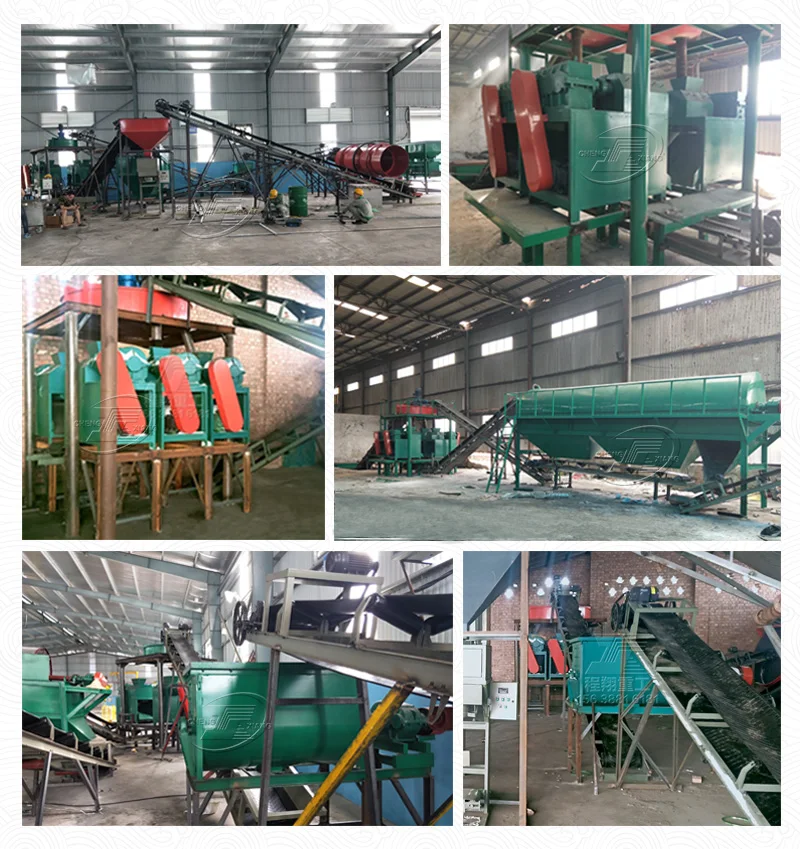

Customer Site

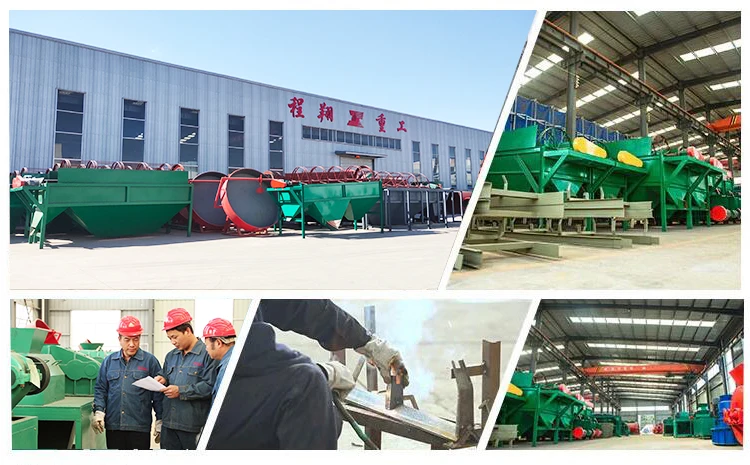

Company Profile
Main business: organic fertilizer equipment, compound fertilizer equipment, BB fertilizer equipment
Cheng Xiang Heavy Industry founded in 1995, located in xingyang industrial park, Zhengshang new district, zhengzhou city. The company, has standardized R&D department, and has accumulated many years of production experience, is oriented to realize the automation of fertilizer equipment, implements of design and manufacturing. The development aim of our company is to achieve the goal of intellegence, automation, mechanization of fertilizer machinery industry in China.
Our company's products are distributed in domestic provinces and regions in China, and have been exported to Russia, Vietnam,Thailand, Malaysia, Philippines, Myanmar and other countries etc.
Our company's products are distributed in domestic provinces and regions in China, and have been exported to Russia, Vietnam,Thailand, Malaysia, Philippines, Myanmar and other countries etc.
