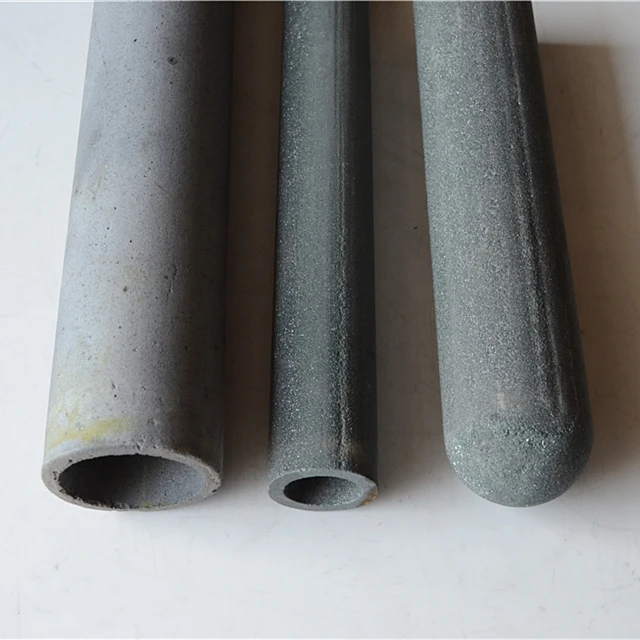

High quality refractory Silicon Carbide burner nozzle/SiSiC burner tube
- Category: >>>
- Supplier: Liling Xing Tai Long Special Ceramic Co. Ltd.
Share on (1600329286309):
Product Overview
Description

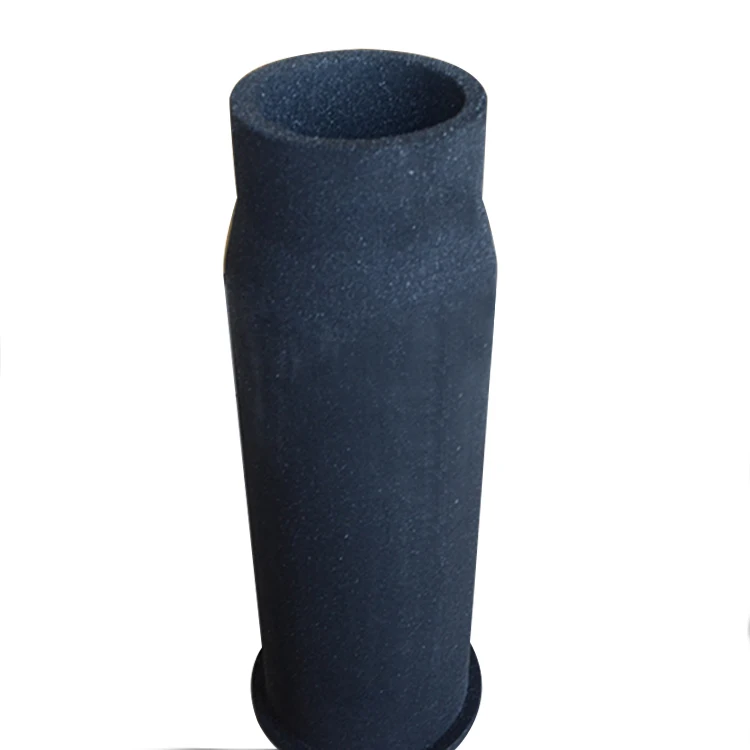

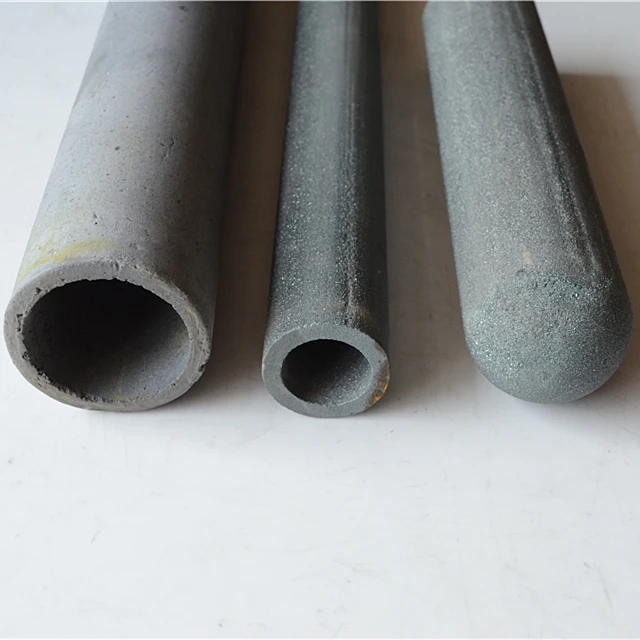

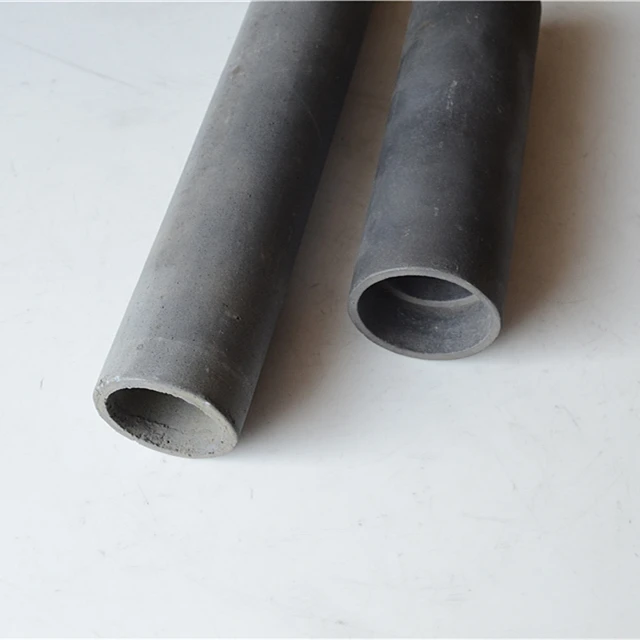

High quality Refractory Silicon Carbide Burner Nozzle/SISIC Burner Tube
Related Products
Product Description

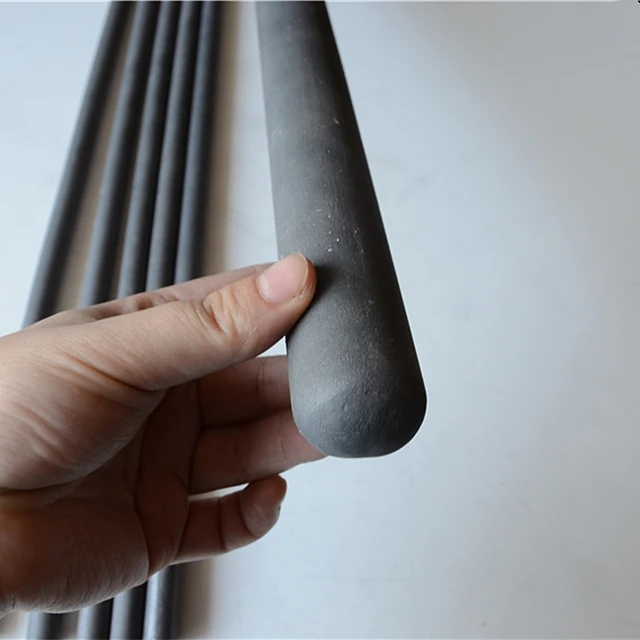

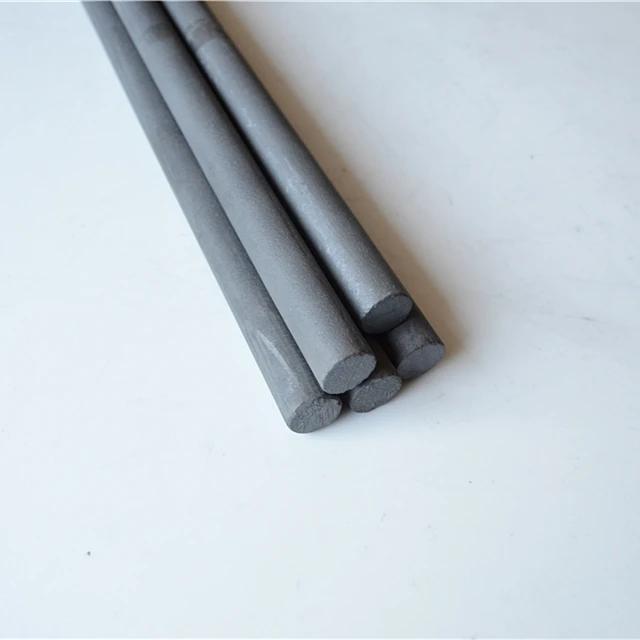

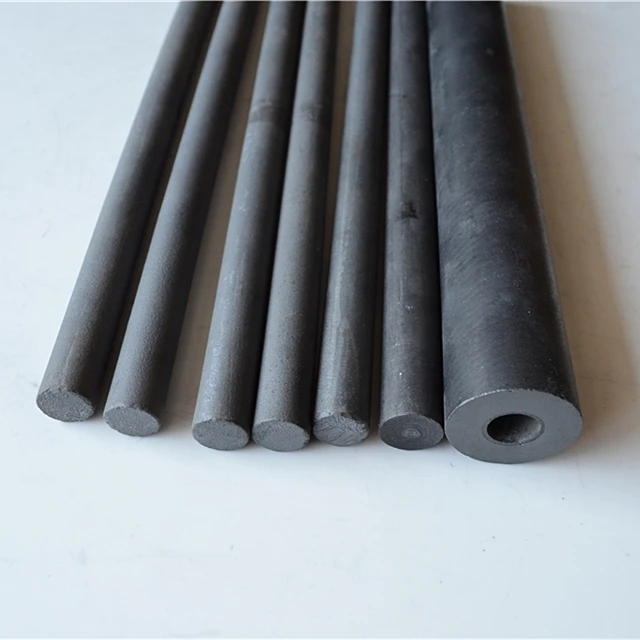

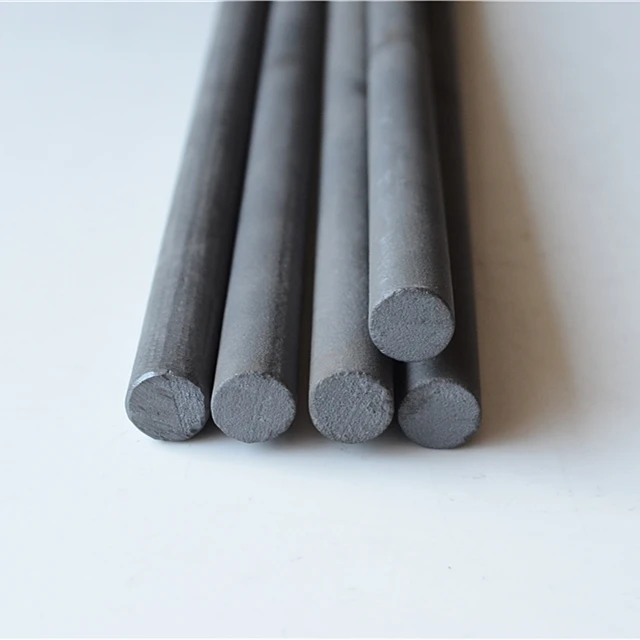

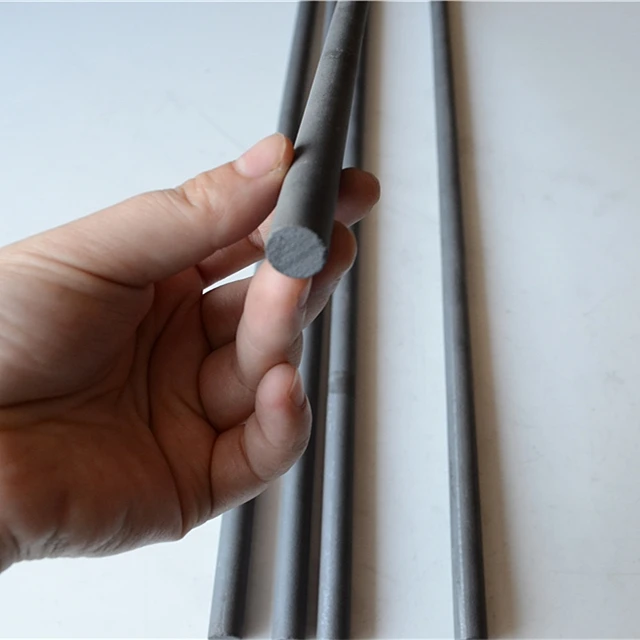

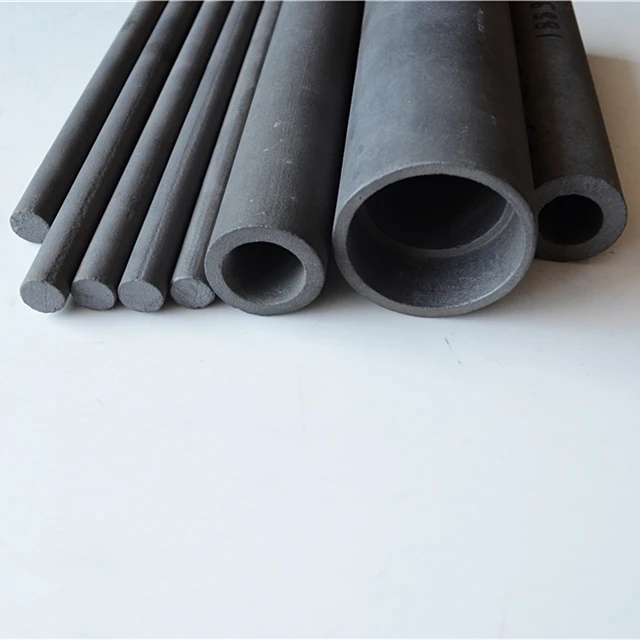

1. SW (Standard) of sic heating element rods:
SW Silicon Carbides are used in applications ranging in temperature from 600°C up to 1500°C in both air and controlled atmospheres. Although the type of atmosphere used will determine the maximum recommended element temperature.
This kind of silicon carbide elements can be mounted either vertically or horizontally. The elements of our product are
available in the range of 10 to 54mm diameter. The total length can vary up to 4500mm.
Diameter | Length of Hot zone | Length of Cold End | Overall Length | Resistance | Diameter | Length of Hot zone | Length of ColdEnd | Overall Length | Resistance | |
8 | 100-300 | 60-200 | 240-700 | 2.1-8.6 | 30 | 300-2000 | 250-800 | 800-3600 | 0.4-4.0 | |
12 | 100-400 | 100-350 | 300-1100 | 0.8-5.8 | 35 | 400-2000 | 250-800 | 900-3600 | 0.5-3.6 | |
14 | 100-500 | 150-350 | 400-1200 | 0.7-5.6 | 40 | 500-2700 | 250-800 | 1000-4300 | 0.5-3.4 | |
16 | 200-600 | 200-350 | 600-1300 | 0.7-4.4 | 45 | 500-3000 | 250-750 | 1000-4500 | 0.3-3.0 | |
18 | 200-800 | 200-400 | 600-1600 | 0.7-5.8 | 50 | 600-2500 | 300-750 | 1200-4000 | 0.3-2.5 | |
20 | 200-800 | 250-600 | 700-2600 | 0.6-6.0 | 54 | 600-2500 | 300-750 | 1200-4000 | 0.3-3.0 | |
25 | 200-1200 | 250-700 | 700-2600 | 0.4-5.0 |
2. U-TYPE of sic heating element rods:
U shape Silicon Carbide is consists of two silicon carbide rod with same diameter. Each rod has both hot zone and
cold end with identical resistance. Two rods are connected by the low resistance SiC. Also the connector could be
used as holder according to different requirements.
Diameter | Length of Hot zone | Length of Cold End | Centre distance | Diameter of Centre | Length of Connector |
14 | 400 | 300 | 30 | 22 | 55 |
16 | 400 | 300 | 35 | 25 | 60 |
20 | 500 | 400 | 40 | 30 | 70 |
25 | 700 | 450 | 55 | 38 | 90 |
30 | 1500 | 650 | 65 | 45 | 110 |
35 | 1500 | 650 | 90 | 45 | 120 |
40 | 2400 | 850 | 110 | 56 | 150 |
3. W-TYPE of sic heating element rods:
3-phase elements are available in 2 different types: SGC (Dumbbell), SGD(Standard).
These elements are self-bonded silicon carbide formed by re-crystallization of silicon carbide at high temperature. It
consists of three high-purity silicon carbide rods connected at one end by a silicon carbide crossbar. The joints, also
formed from silicon carbide, fully bond the components into a structurally homogeneous body. SGC elements are
designed for vertical installation in standard float glass bathes and SGD elements for horizontal installation. They
can be connected directly on three-phase power supply and is a one-side terminal type which permits drawing out
the terminals from the roof of the furnace. All elements can be delivered with a wide range of accessories for
trouble-free and energy-saving operation
Diameter | Length of Hot zone | Length of Cold End | Centre distance | Diameter of Centre | Length of connector |
14 | 400 | 300 | 30 | 22 | 90 |
16 | 400 | 300 | 35 | 25 | 95 |
20 | 500 | 400 | 40 | 30 | 120 |
25 | 700 | 450 | 55 | 38 | 140 |
30 | 1500 | 650 | 65 | 45 | 170 |
35 | 1500 | 650 | 90 | 45 | 190 |
40 | 2400 | 850 | 110 | 56 |
Packaging & Shipping

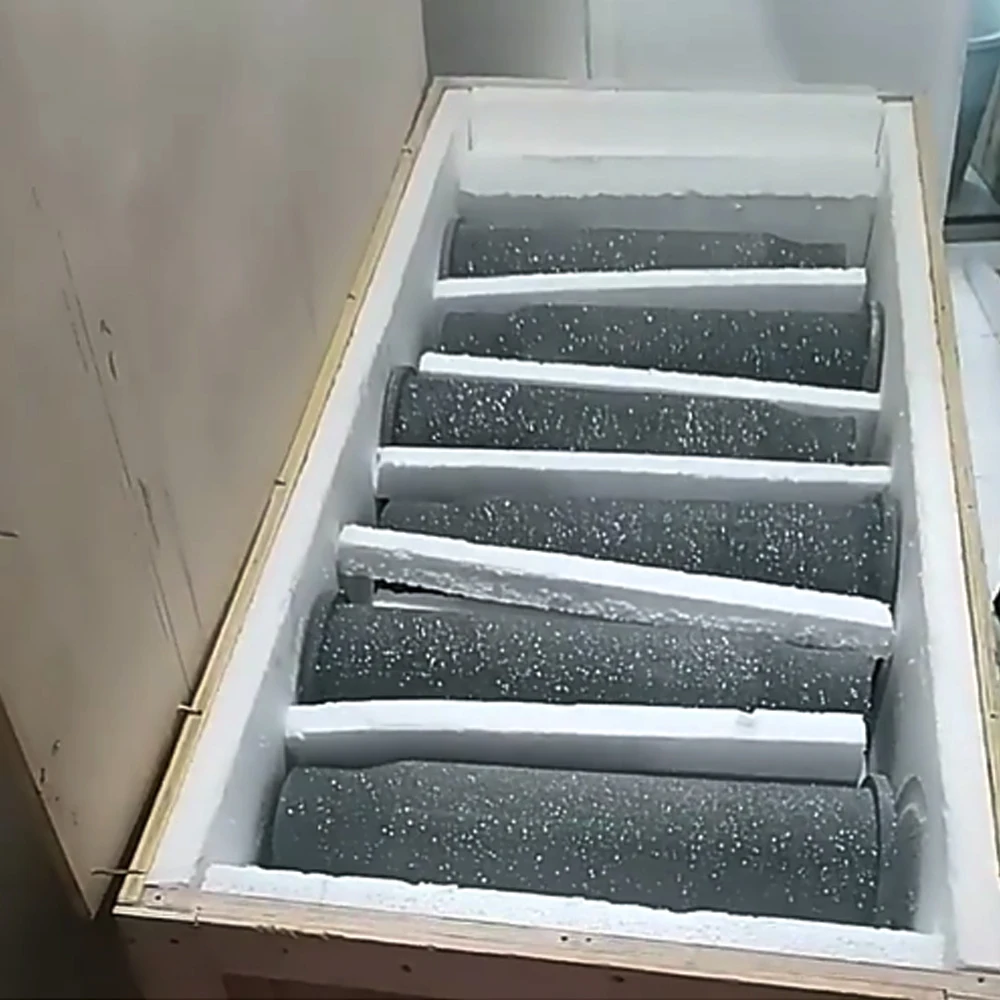

Packaging of silicon carbide ring: PE bag inside outer carton(930*630*230mm),finally make the wooden pallet(950*950mm 950*1000mm) or according to your requirement
Shipping of silicon carbide ring: delivery within 15 days after confirm the order.
Company Information
FAQ
Why us?
* Professional manufacturer since 1997.
* Strict quality control on production process and tolerance.
* Free samples available
* Customized production based on your drawing or specification
* On-time delivery and reliable support and service
* Inventory available for quick shipment
* We keep confidentiality of all the drawings and business information between us.
Are you a trading company or a manufacturer?
* We are a manufaturer.
Can you provide the free samples?
* Yes,we can offer free sample if we have it in stock,but the courier fee is to be collected.
Do you accept customized production based our specification?
* Yes,we offer OEM and ODM service. Just send us your drawing if you have it. If you don’t have a drawing, just tell us your idea, we will work out the drawing for you.
What's the delivery time?
* 7 working days for standard products 30 days for customized products.
What is the MOQ?
* No limit to the quantity. We can offer the best proposal and solutions according to your condition.
What is the payment terms you accept?
* T/T,LC,Western Union,moneygram are acceptable.
How to deal with the faulty?
* Firstly, Our product are produced in strict quality control system and the defective rate will be less than 2%.
If there are problems with the product, we will provide free replacement.
