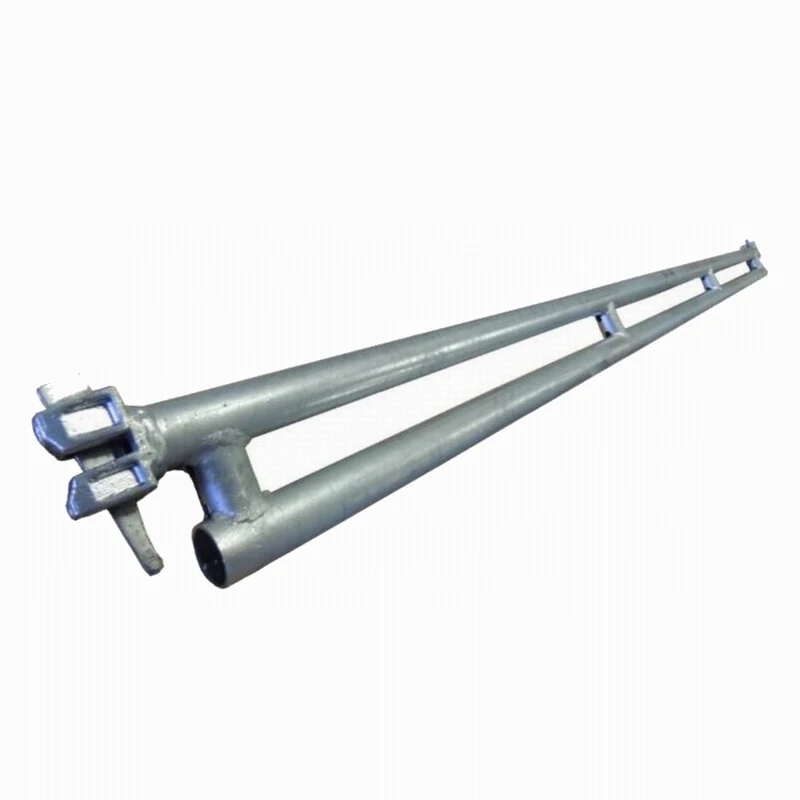

Construction Materials Hot Dipped Galvanized Ring Lock Scaffolding Double Ledgers for Building Construction
- Category: >>>
- Supplier: Guangzhou Shuangma Steel Template Co. Ltd.
Share on (1600329328116):
Product Overview
Description
Our Advantages
1 | 35 years of scaffolding experience and construction services. |
2 | Great production capacity of more than 1000tons per month which ensure faster delivery. |
3 | Modern factory and before/after sales technical supports. |
4 | Good reputation and relationship with China's top shipyard companies. |
5 | Varied types of scaffolding supply to satisfy different demands of clients. |
6 | Has own Powder Coating production line, to provide fine coating for scaffolding. |
Product Description

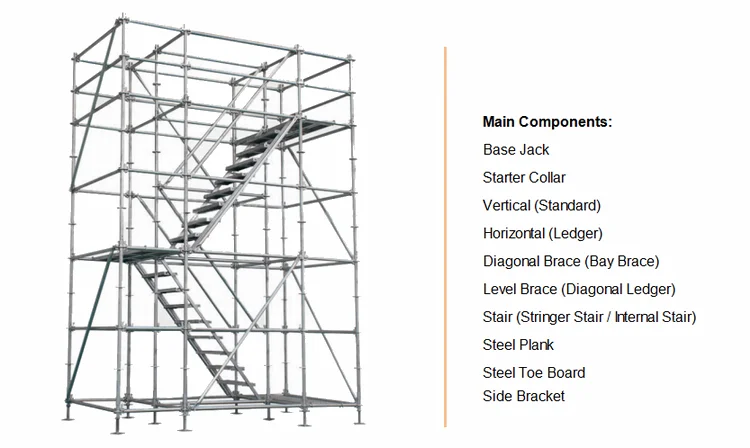

Ringlock Scaffolding, also called all roound scaffolding, is one of the most popular modular system scaffolding for construction. It is widely used in the construction industry, such as building, bridge, viaduct, petrochemical, shipyard, aircraft maintenance, etc. It supports to access work and platform as a temporary structure in building construction, or temporary stage platform /grandstand for events, and also plays a heavy load duty in many kinds of project.
Features and Advantages of Ring Lock Scaffolding
Speed of Erection: Ring Lock System provides major savings in erection and dismantling time thus minimizing on-site costs. When not in use, its modular construction ensures minimal space requirement for storage.
Simplicity: The unique Ring Lock rosette allows up to 4 horizontals and 4 braces to be secured to a single rosette at one level by simply hammering the captive wedge lock pin into place.
Versatility: Ring Lock System is extremely versatile. It can be erected for straight, curved or circular configuration for both access and support, and also for independent and mobile towers.
Strength: Both vertical and horizontal members are manufactured from ø48.3x3.25mm (1.90" O.D x 10 gauge) high strength steel tubing.
Durability: There are no loose components on the Ring Lock System that can be lost or requires maintenance. All components are Hot Dipped Galvanized Finish.

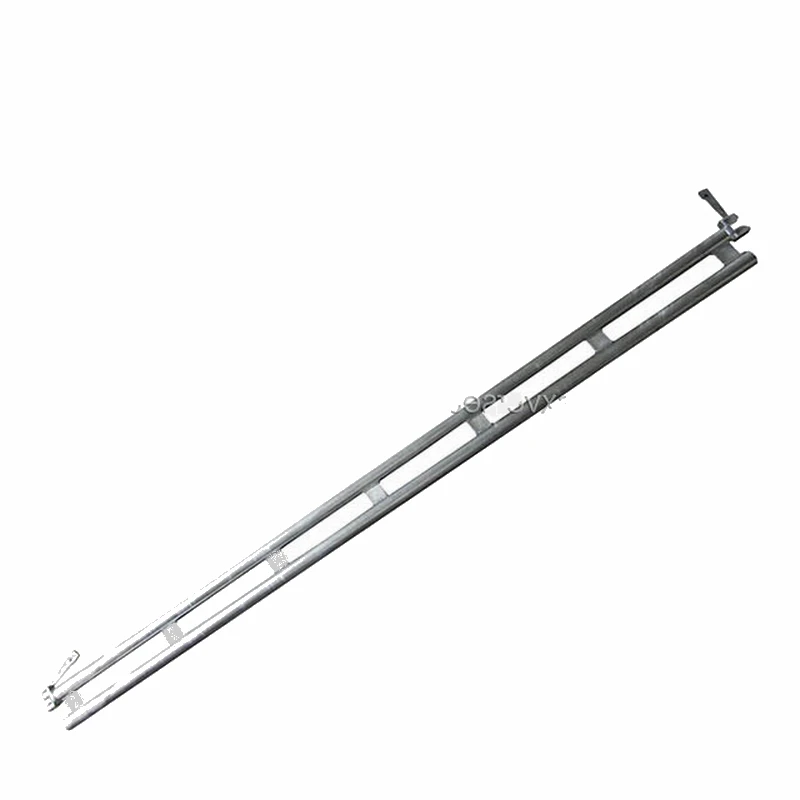

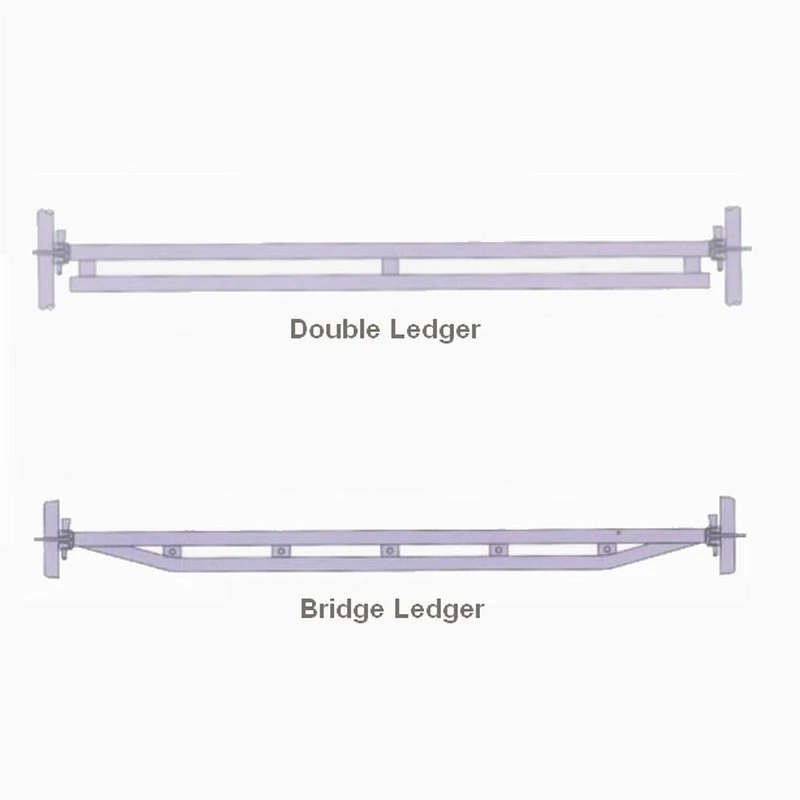

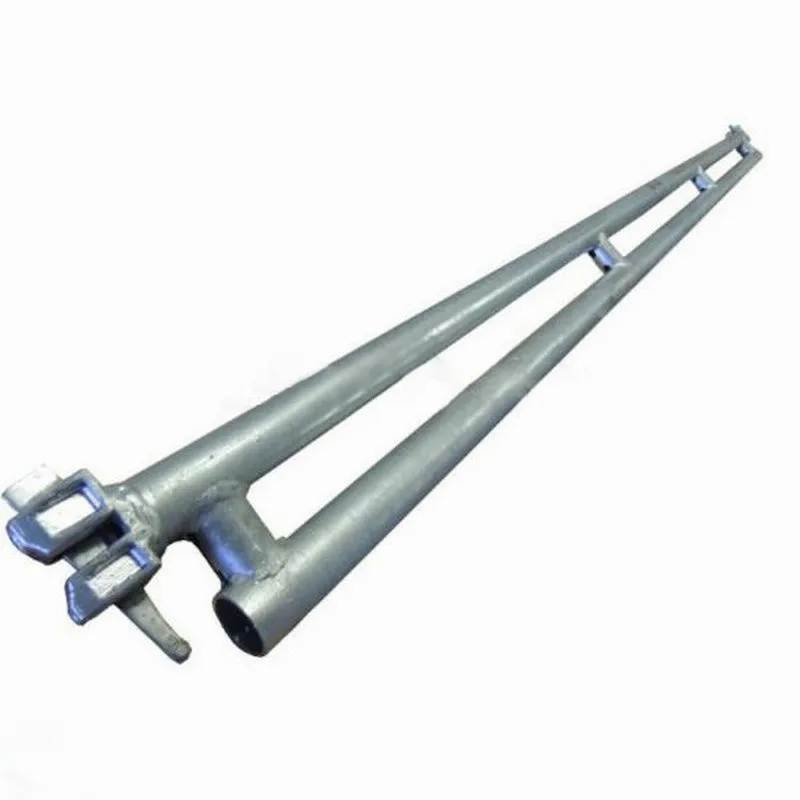

Ring Lock Scaffolding Double Ledger
Code | Description | Material | Size | Weight(kg) | Weight(lbs) |
RS.DL.152 | 1.52M Double Ledger | Ø48.3x3.25mm; Q235-Q355 | 1524mm (5') | 11.67 | 25.73 |
RS.DL.183 | 1.83M Double Ledger | 1829mm (6') | 14.10 | 31.09 | |
RS.DL.213 | 2.13M Double Ledger | 2134mm (7') | 16.25 | 35.83 | |
RS.DL.244 | 2.44M Double Ledger | 2438mm (8') | 18.71 | 41.25 | |
RS.DL.305 | 3.05M Double Ledger | 3048mm (10') | 23.32 | 51.41 |
Specification
item | value |
Type of Scaffolding | Ringlock Scaffolding System |
Warranty | 3 years |
Certificates | BS1139, EN12810 |
After-sale Service | Online technical support |
Project Solution Capability | graphic design, 3D model design, total solution for projects |
Application | industrial scaffolding project |
Design Style | Traditional |
Place of Origin | Guangdong, China |
Model Number | RS.DL |
Brand Name | SHUANGMA |
Material | Q235/Q355 Steel |
Tube | 48x3.25mm |
Length | 1.52-3.05m |
Accessories | 9mm Rossette, Casting Steel Ledger Head, 6mm Wedge Pin |
Type of Welding | automatic welding |
Surface Treatment | hot dip galvanized |
Packing | Steel Pallets |
Manufacturing Technique
Material and Cutting Workshop
All materials, include CHS/RHS/SHS tubes, plate, PFC , angle steel, etc, will be inspected when entering into warehouse.
Automatic Cutting Machine
The maching can cuts tubes, PFC, angle steel in bundle, and cut the materials into the set length automatically.
Automatic Hole-Punching Machine
This machine is specially designed for hole-punching. It is controlled by computer and can be automtic feed and punching.
Steel Plank Production Line
The production line is specially fabricated steel planks in 240mm wide. It automatically do plank forming, punching and cutting process.
Automatic Welding Machine
This machine is specially designed for ring lock scafold vertical welding. It can weld 6 rossettes at the same time with high efficiency and high welding quality. Also ledger welding machine can do round welding for other scaffold items, such as steel props.
Powder Coating Production Line
The production line do good coating job for scaffold items. Before coating, we do sandblasting firstly to clean the steel surface so that the powder can be well electrostatic adherence.
We take many efficient measurements to ensure our scaffolding in good quality.
Material Inspection
When materials enter into warehouse, inspection for sizes, surface, mill certificate must be checked.
Material Test
Further flattening test/flaring test shall be done when there is special requirements for the products.
Welding Penetration Test
This test is to check if the welds of ring lock scaffold and assure the safety work when in construction.
Zinc Slag Cleaning
Clean the Zinc slag of tube inside for sure the screw jack can be inserted the vertical freely.
Thickness Gauge
To check the thickness of powder coat or hot dip galvanization, ensure the scaffolds are in good coating protection.
Third Party Inspection
Third party inspection is the last inspection for scaffolding before they are shipped out.
Company Profile
SHUANGMA SCAFFOLDING

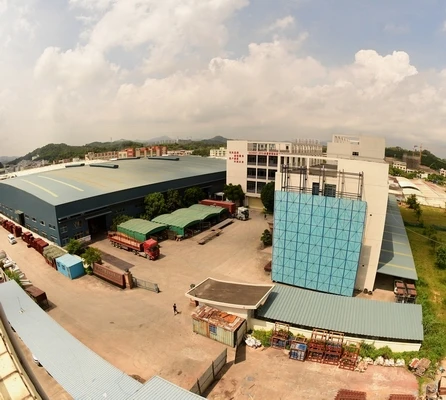

Started from 1986, SHUANGMA is a mature enterprise which integrates the manufacture, sales and construction services of scaffolding, formwork and metal stucture. The company covers land area of 50000sqmt and factory constuction area more than 28000sqmt, and production capacity more than 1000tons per month. The company locates in North-east outskirt of Guangzhou City, about 55km closes to Guangzhou Baiyun International Airport and Huangpu Port / Nansha Port, has convenient and faster delivery.
Since its establishment, SHUANGMA has set up friendly partnerships with many shipyards. Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction.
Besides, our products have been passed SGS and Intertek tests of EN12810/BS1139/EN74, and sold well both domestically and internationally and gained reputation globally.
Our Products
Our main products include: Ring Lock scaffolding, Cross Lock scaffolding, kwikstadge scaffolding, Cup Lock scaffolding, Framework scaffolding, Shoring Props, Stair system, Movable scaffolding, self-climbing scaffolding system, aluminum scaffolding, and so on.
Need high quality products with good prices and services? Contact us now !
Need high quality products with good prices and services? Contact us now !
Packing & Delivery

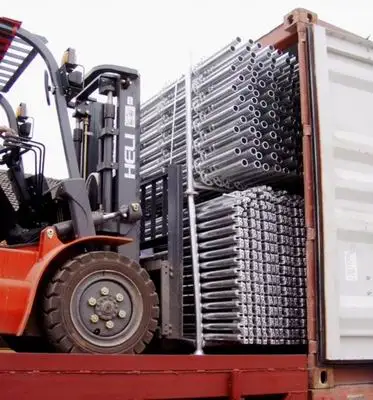

On Steel Pallets
Certifications
Membership of China Formwork And Scaffold Association
Standard Committee Membership of China Construction Materials Rental Contractor Association.
Scaffold Projects
FAQ
1. who are we?
We are based in Guangdong, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(25.00%),South
America(10.00%),Africa(10.00%),North America(6.00%),Mid East(5.00%),Eastern Asia(2.00%),Oceania(2.00%). There are total about
501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding
4. why should you buy from us not from other suppliers?
Qualitify Product with Reasonable Price, Big Capacity with 30,000 square meters factory size and more than 500 staffs. High OEM
developed ability with more than 20 years engineers team
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish,Portuguese
We are based in Guangdong, China, start from 2008,sell to Domestic Market(40.00%),Southeast Asia(25.00%),South
America(10.00%),Africa(10.00%),North America(6.00%),Mid East(5.00%),Eastern Asia(2.00%),Oceania(2.00%). There are total about
501-1000 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Scaffolding
4. why should you buy from us not from other suppliers?
Qualitify Product with Reasonable Price, Big Capacity with 30,000 square meters factory size and more than 500 staffs. High OEM
developed ability with more than 20 years engineers team
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T;
Language Spoken:English,Chinese,Spanish,Portuguese
