Building Materials 610mm Metal Rib Lath
US $6.00-$10.00
Precast Concrete Combi Anchor ISO3834 EN1090
- Category: >>>
- Supplier: Qingdao Skywalker Intelegent Manufacture E-Commerce Co. Ltd
Share on (1600329346972):
Product Overview
Description
Product Description

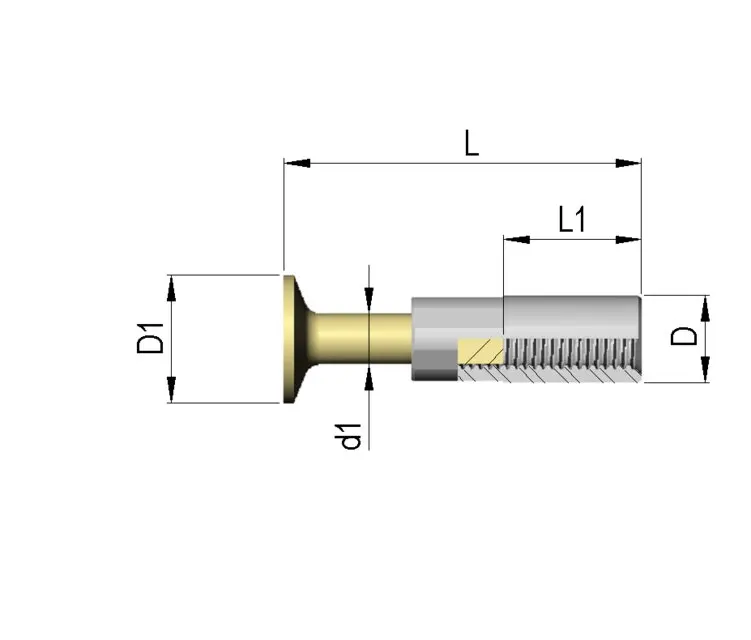

PRODUCT SPECIFICATIONS | ||||||||||
DIA M | LOAD | L | L1 | D1 | D | |||||
12 mm | 1,3 T | 70 mm | 45 mm | 25 mm | 17 mm | |||||
12 mm | 1,3 T | 100 mm | 45 mm | 25 mm | 17 mm | |||||
16 mm | 2,5 T | 75 mm | 58 mm | 35 mm | 22 mm | |||||
16 mm | 2,5 T | 100 mm | 58 mm | 35 mm | 22 mm | |||||
16 mm | 2,5 T | 140 mm | 58 mm | 35 mm | 22 mm | |||||
20 mm | 4 T | 90 mm | 74 mm | 45 mm | 27 mm | |||||
20 mm | 4 T | 180 mm | 74 mm | 45 mm | 27 mm | |||||
24 mm | 5 T | 110 mm | 87 mm | 50 mm | 32 mm | |||||
24 mm | 5 T | 200 mm | 87 mm | 50 mm | 32 mm | |||||
30 mm | 7,5 T | 155 mm | 101 mm | 60 mm | 39 mm | |||||
30 mm | 7,5 T | 240 mm | 101 mm | 60 mm | 39 mm | |||||

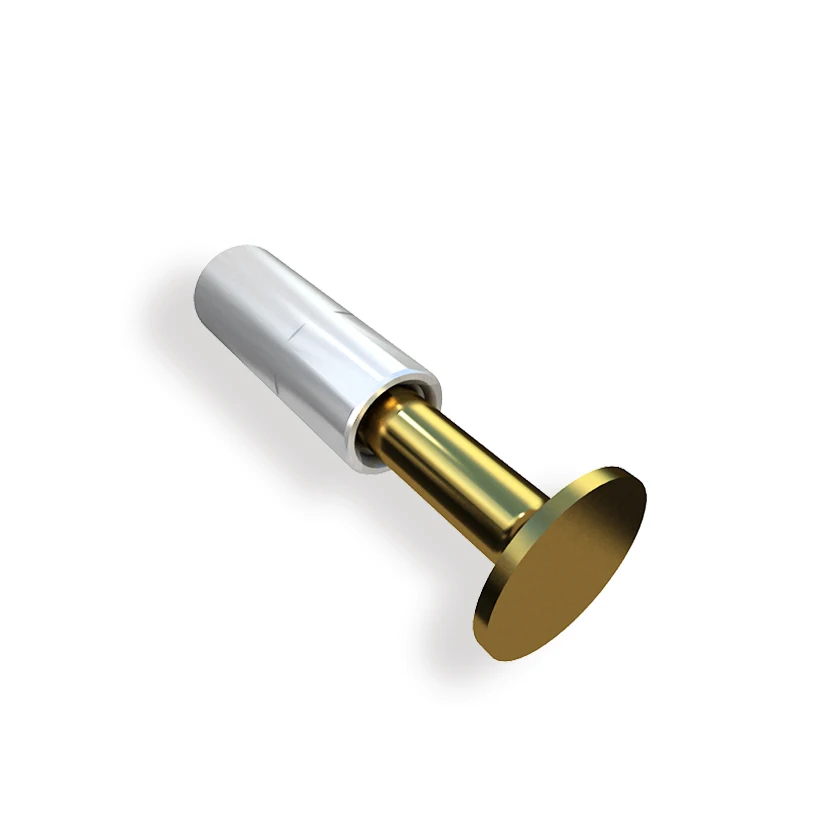

COMBI ANCHOR
Combi anchor are used for lifting various sizes of precast concrete panels. The insert and lifting rod are connected
by thread, to increase load ability.
The combi anchors are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The combi anchors meet the requirements for safe lifting and handling of concrete elements.
Surface treatment insert: Electro galvanised or A4 Stainless steel
Material insert: S355J2 or A4 Stainless steel
Material rod: S355J2.
All items are:
CE Marked
With traceability no
Delivered with 3.1 certificate
Can be delivered as private label
by thread, to increase load ability.
The combi anchors are designed and manufactured in accordance with EU Machinery Directive 2006/42/EC and VDI/BV-BS 6205. The combi anchors meet the requirements for safe lifting and handling of concrete elements.
Surface treatment insert: Electro galvanised or A4 Stainless steel
Material insert: S355J2 or A4 Stainless steel
Material rod: S355J2.
All items are:
CE Marked
With traceability no
Delivered with 3.1 certificate
Can be delivered as private label
Specification
Product Name | COMBI ANCHOR |
Material | Steel |
Application | Building Construction |
Certification | ISO9001 Certificated |
Sample | Free sample is aceepted |
Using Range | Construction,etc |
Port | Qingdao,tianjin,shanghai |
Package | Nylon Bags then in wooden Pallet |
Company Profile
Skywalker is a manufacturer and global supplier of components for precast, formwork, construction and industrial products for many different industries. We only produce in our own factories on modern high technology machines which insure maximized cost efficiencies. We offer both standard and customer designed solutions in both large and small order quantities. The production is based on high quality, safety, values as well as profitability. To insure that all processes and products are produced and controlled according to ISO 9001/ EN 1090-2.
Skywalker is a family owned company with representation departments placed in United States, Germany, France and Denmark, and more then 450 employees worldwide. We are close to our customers in both technical and cultural perspective, which guarantee our customers safety, stability,
performance and credibility.
Skywalker is a family owned company with representation departments placed in United States, Germany, France and Denmark, and more then 450 employees worldwide. We are close to our customers in both technical and cultural perspective, which guarantee our customers safety, stability,
performance and credibility.
Certifications
Packing & Delivery
FAQ
1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
