KNZD 27 GSM WaterProof Telephone Intercom System Industrial Handset Phone Wall Mount Trackside Bank Telephone 2G 3G 4G
- Category: Telephones & Accessories >>>
- Supplier: Koon Technology (shenzhen) Ltd.
Share on (1600329355234):
Product Overview
Description
Product Description
Emergency Phone Weatherproof and Vandal proof SOS Intercom
Emergency Phone Features:
1. Cold-roll steel body, vandal & tamper-resistant hardware, easy installation.2. Waterproof rating IP55 dust proof.
3. Full keypad with memory, 10 button programmable telephone, support free dial.
4. Magnetic reed hook-switch.
5. Lightening protection to ITU-T recommendation K.21 for analog version
6. Heavy duty handset with hearing aid compatible receiver.
7. Handset with industrial strong metal cord.
8. POE power supply or DC12V powered for Voip version
9. SUS keypad keep waterproof and dusty proof.
10. Temperature range from -40 degree to +70 degree.
11. Support echo cancellation for Voip version.
12. Remote software upgrade, configuration and monitoring for Voip version.
13. Optional 7 minute time out to release the line if the handset is left off hook. (This function upon buyer’s requirement).
14. Powder coated in UV stabilized polyester finish, gray white, blue, red, support OEM.
15. The housing covered with a layer of reflective label for easy identification at night. Optional
16. Application: Prison, bank, airport, school, metro, railway station, LRT, hotel, supermarket and pedestrian areas in cities
etc.
Detailed Images

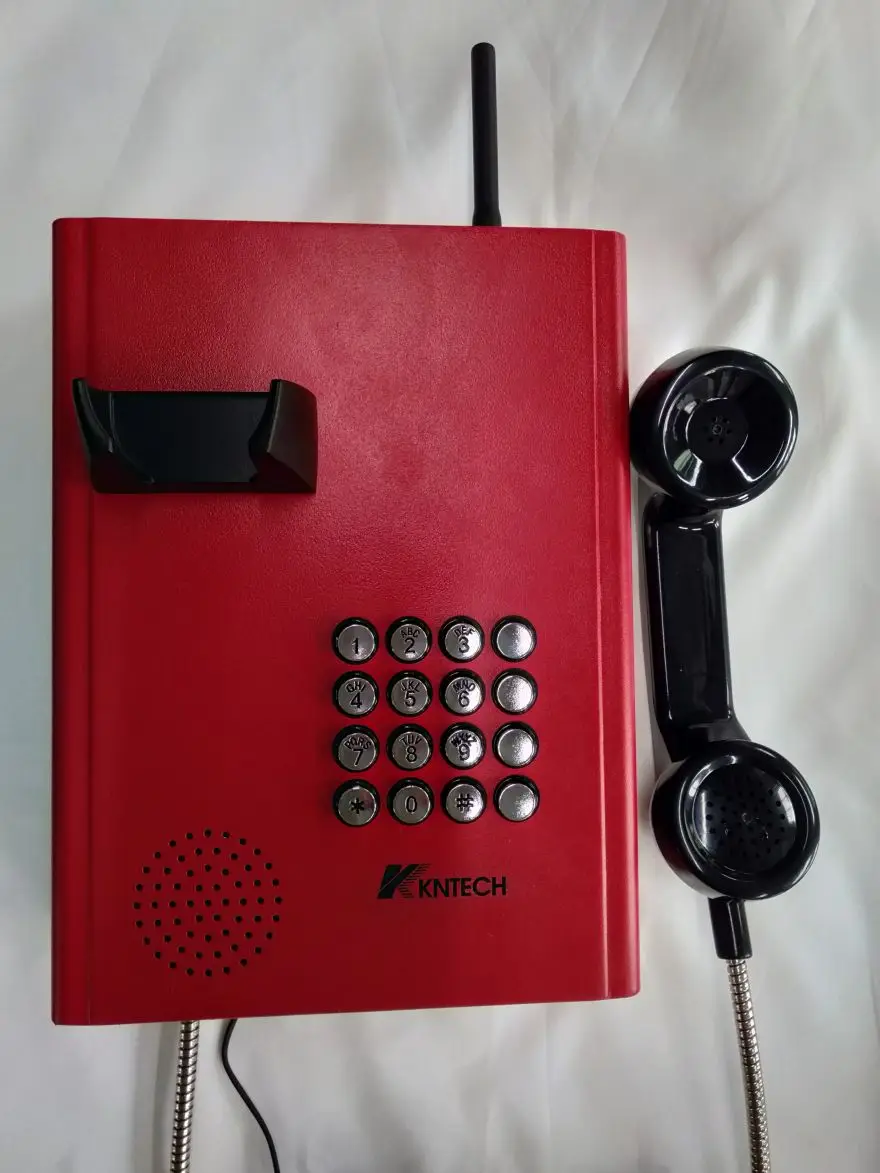

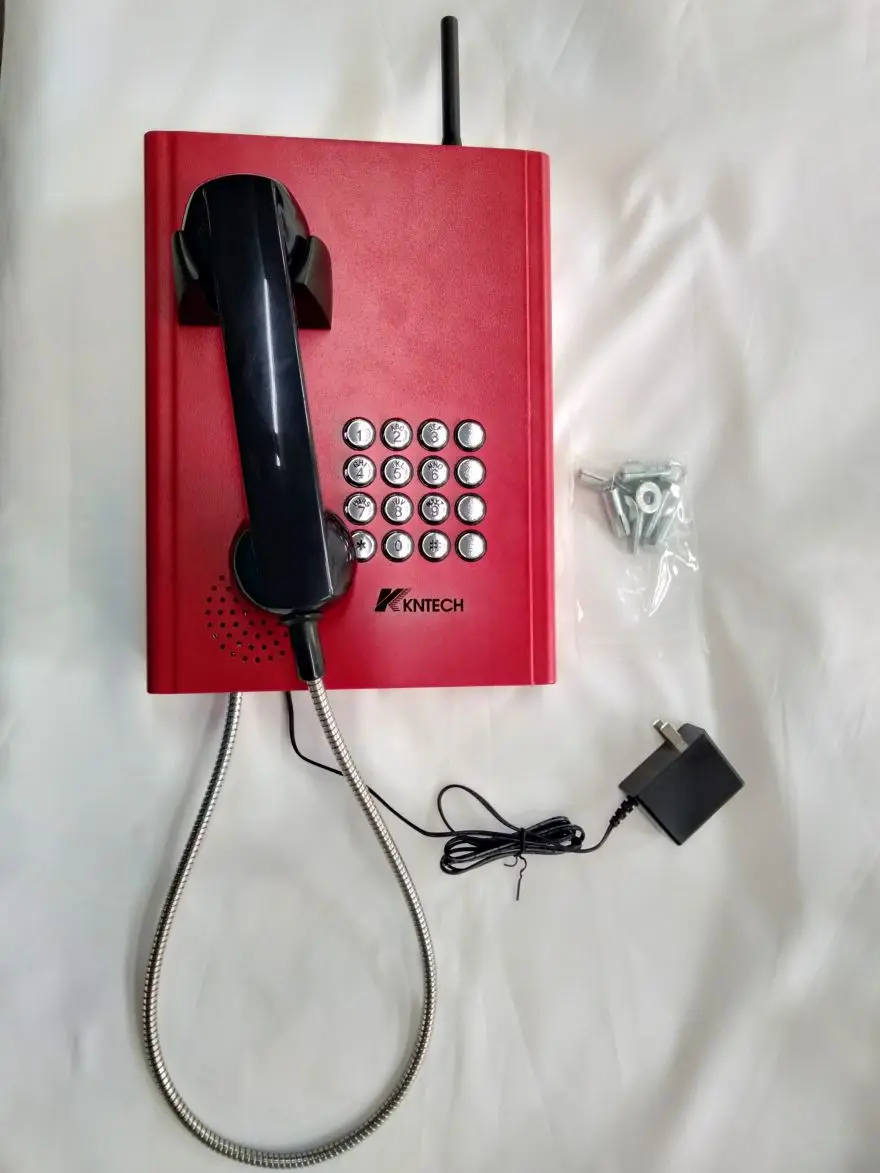

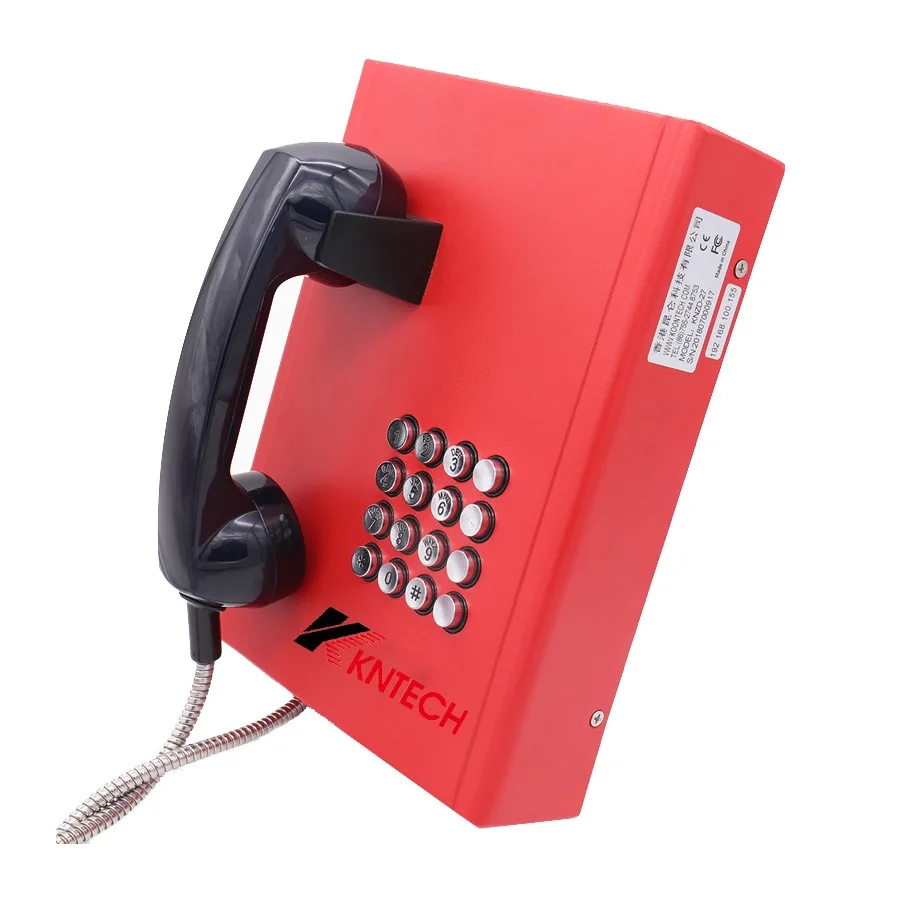

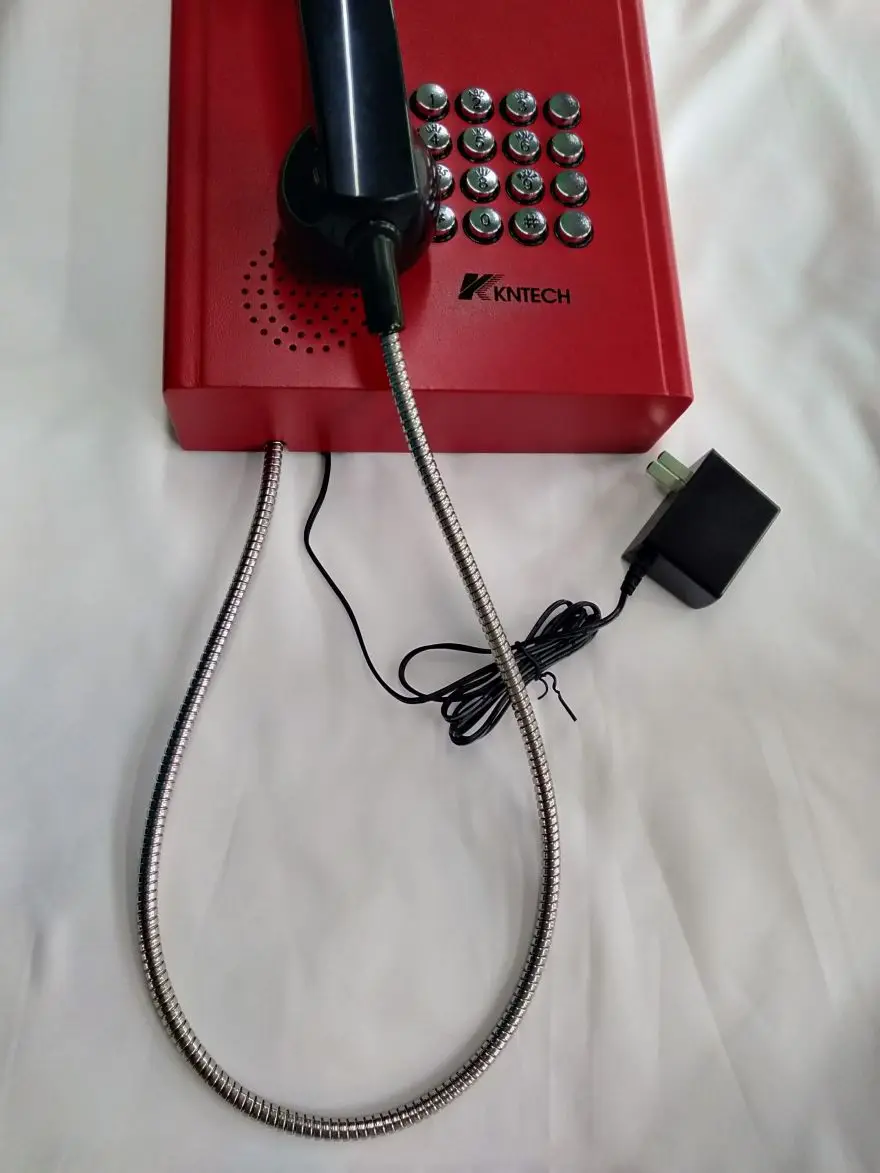

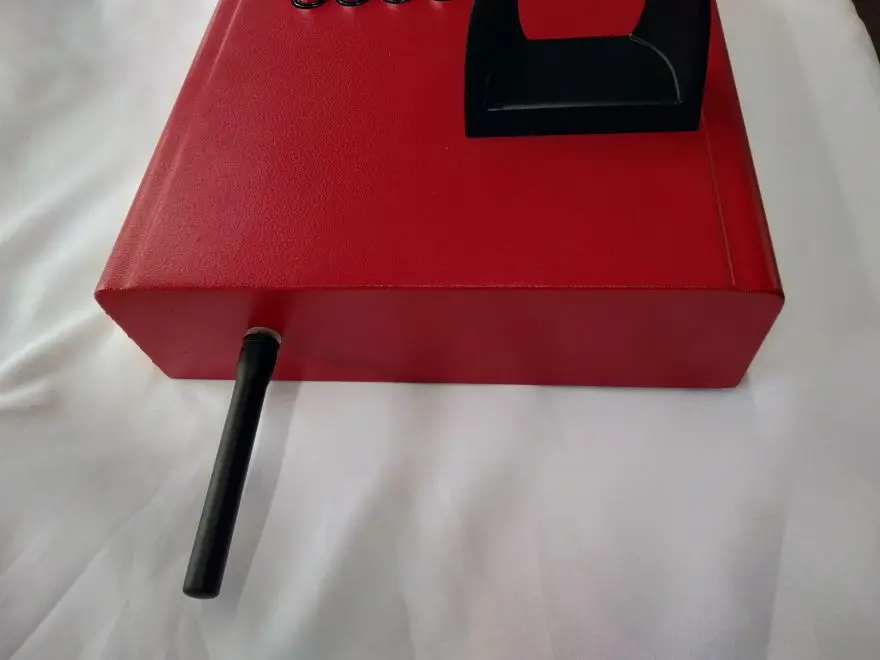

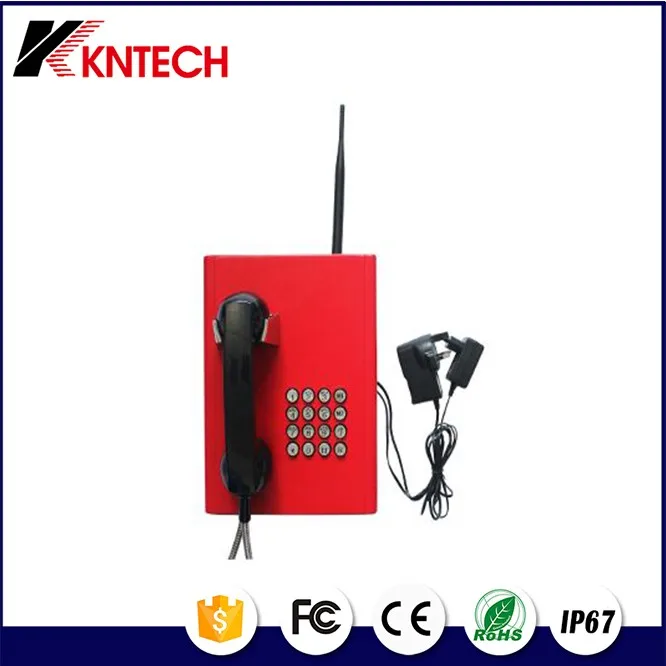

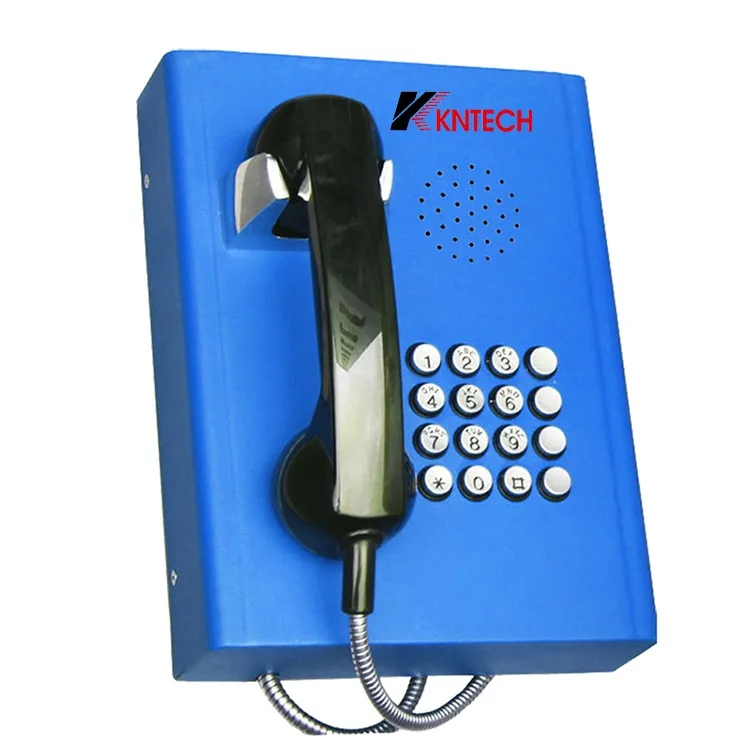

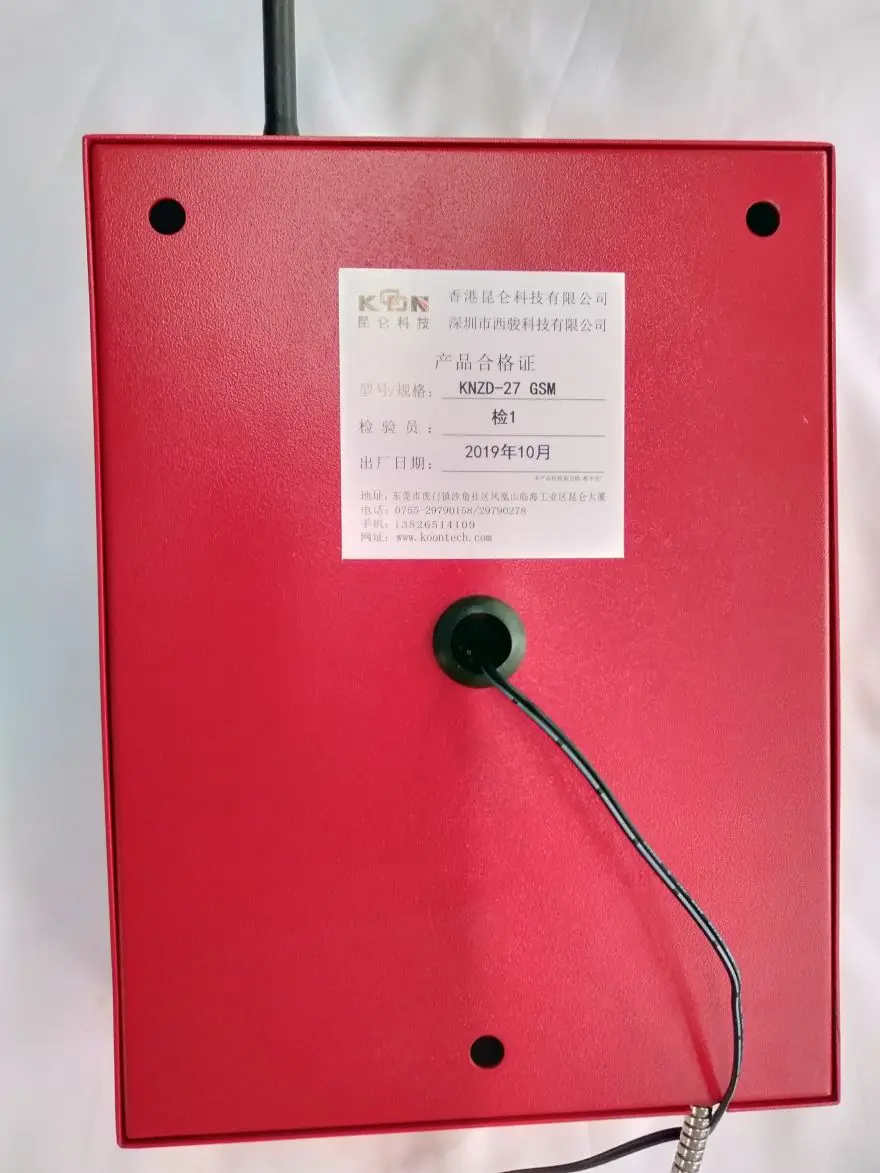

KNZD-27 Intercom Photos Show:
SPECIFICATION - Analogue
1. PSTN analogue telephone
2. DTMF dialing
3. MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable
6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16
digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%
~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than
60dB(A)
3. MTBF:100000hours
4. MTTR: 2 hours
5. Connection: RJ11 screw terminal pair cable
6. Sound level of ringing:over 70dB(A).
7. Call transmission index:(5KM)SLR<12,RLR<-1,stmr>10, output impedance is 600 Ohm.maximum distance: 7KM
8. Applicable for various types of SPC exchange PABX and dispatching exchange system with feeding voltage of 33-60V.
9. Connection: RJ11 screw terminal pair cable (or RJ11 Socket of plug upon request),with stainless steel cable protected
10. Super strong function is available for dialing 12 groups of numbers stored in the memory,(maximum length of each number is 16
digits)
11. Standard frequency:low frequency group:697. 770. 852. 941Hz,high frequency group:1209. 1336. 1477Hz, frequency deviation:-1.5%
~ +1.5%
12. Ambient temperature:-30 ~ +60 degree. Relative humidity:10%~95% Atmospheric pressure: 86~106Kpa Circumstance noise:less than
60dB(A)
SPECIFICATION - VOIP
1. VoIP SIP2.0 telephone 2. DTMF dialing
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact
6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load
8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A
10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC
12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),
RSTP(IEEE 802.1d-2004)
3. MTBF100000hours 4. MTTR: 2 hours
5. Auxiliary Contacts:1 Aux Output, dry contact
6. Rated load:0.3 A at 125 VAC; 1 A at 30 VDC
7. Contact Ratings. Load: Resistive load
8. Echo cancellation code:G.167/G.168
9. Rated carry current:1A
10. Max.switching current:1A
11. Max.switching voltage:125 VAC,60VDC
12. Audio Codes:G.711, G.722, G.729
13. IP Protocols:IPv4, TCP, UDP, TFTP, RTP, RTCP, DHCP, SIP
14. Free dial (maximum length of each number is 16 digits)
15. Communication: Full duplex 2-way hands-free communication
16. Call Control Signaling:VOIP SIP Info(DTMF), RFC 2833(DTMF)
17. Network:10/100 BaseTX Ethernet, RJ45 connectors, Cat5e or better
18. Power:Power over Ethernet, IEEE802.3af, Class 0 Local power, 12VDc,Idle 2W, Max 10W
19. Programming:Non-volatile flash memory programming and configuration through Web GUI
20. Management and Operation:DHCP and static IP, remote automatic software upgrade, centralized monitoring, status LED
21. LAN Protocols:Power over Ethernet(PoE,802.3af), WLAN(IEEE 802.3af), Network Access Control(IEEE 802.1x),STP(IEEE 802.1d),
RSTP(IEEE 802.1d-2004)
KNTECH Telephones have wide applications, like metro, highway, railway, marine, mining, tunnel, steel plant, chemical plant, power plant, oil & gas pipe, prison, bank and related industrial application, etc.
Related Products
Our Company
HongKong Koon Technology Co., Ltd. (KNTECH) engage in research and development of Emergency Communications System; PAGA broadcast scheduling; scenic spots, airport tourists help management program; municipal SOS, 110, 119 alarm system; special industrial IP telephones, SOS telephones, IP PABX, Servier, TR069/SNMP/Modbus network management, SIP scheduling system for metro, tunnel, airports, petrochemicals, metallurgy, nuclear power, marine, ship building, bridge, mine and other industries.
Strong R&D team, offer you professional technical support and further customization.
High productivity factory, short lead time and fast delivery for you.
We KNTECH team are always here at your prompt and best service.
Strict Tests to control high quality.
IP66 waterproof test, Salt spray test, Drop test, Dust test, Lightning protection test, High & low temperature test, IK10 test, etc.
System & Solution
KNTECH is not only manufacturer, but also professional telecom integrator.
Except terminal, we also provide customer complete system and solution.
Telecom solution, IP PBX, telephone self-diagnostic system, PAGA system, customization function, etc.
Certifications
KNTECH Industrial Telephones pass lots of certificates, such as IOS, CE, FCC, EMC, TUV, ETL, LVD, AU LVD, SASO, Norway DNV, etc.
Project Reference
KNTECH goods sell to over 100 countries all over the world, very popular for government projects because of high quality and complete solution. Below share some projects.
China Hong Kong |
Hong Kong-Zhuhai-Macau Briage The world's longest sea-crossing bridge |
HongKong Airport |
Express Rail Link XRL Contract 851 |
Shing Mun/ Lion Rock/ Kai Tak Tunnels |
Hong Kong Eastern Harbour Crossing |
Central–Wan Chai Bypass |
Thailand Metros |
Purple line |
Red line |
Green line |
Blue line |
Pink & Yellow line |
Some projects for your reference. | ||||
Australia Sydney Metro North West Line | Israel Metro | Singapore Marine Project | ||
Brazil Sao Paulo Metro | Malaysia Kuala Lumpur Railway | Russia St. Pittsburgh Metro | ||
Germany Berlin Metro | Norway OLSO Metro | Turkey High-speed Railway | ||
Greek Athens Metro | Philippines Manila Railway | Turkey Highway | ||
India New Delhi Metro | Saudi Arabia Riyadh Metro | Slovenia Metro | ||
India Bangalore Metro | Saudi Arabia Mecca Railway | Mexico Metro | ||
India Hyderabad Metro | Saudi Arabia Shoaiba Power Plant | Vietnam Hochimin Railway | ||
India Mumbai Airport | Singapore Sentosa Tunnel | South Russian Railways | ||
India Kochi Metro | Singapore SMT Green Line | Netherlands Bonaire Jail | ||
India Lucknow Metro | Singapore Airport Project | Curacao Jail | ||
India Mumbai Metro | Singapore Thomson Line | Peru Jail | ||
Thailand KMUTT Project | Pakistan CPEC Project | Romanian Prison | ||
Packing & Delivery
Standard Package: | ||
Unit Telephone Size: | 280X210X60 mm | |
Unit Box Size: | 44.5*29*20.5 cm | |
Unit Net Weight: | 4.5 KG | |
Unit Gross Weight: | 5.1 KG | |
6pcs in 1 outer Carton | ||
Carton Size: | 70.5*35*34 CM | |
Carton Goss Weight: | 19.5 KG | |
