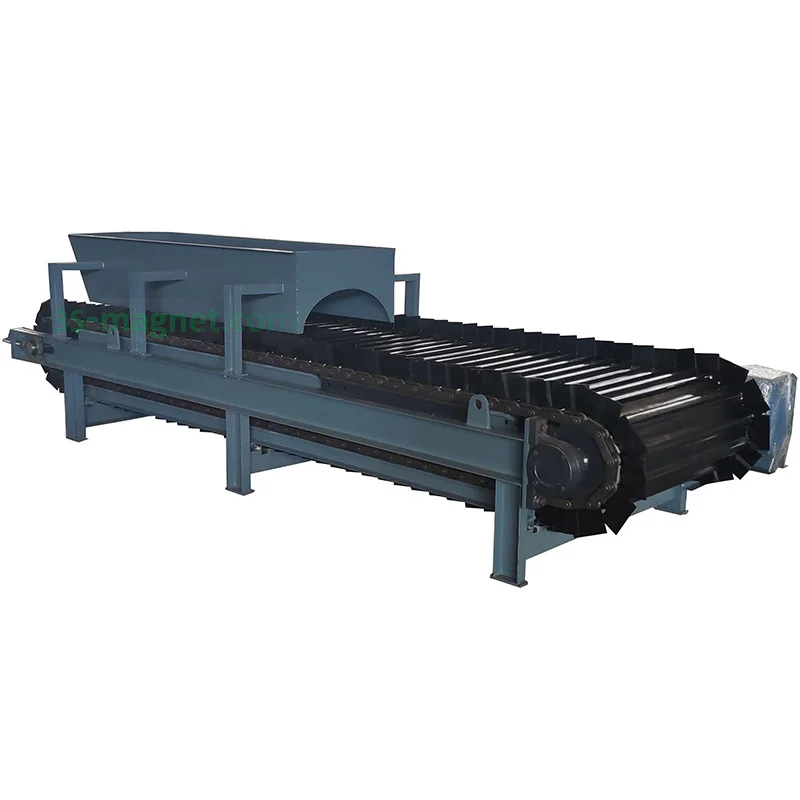

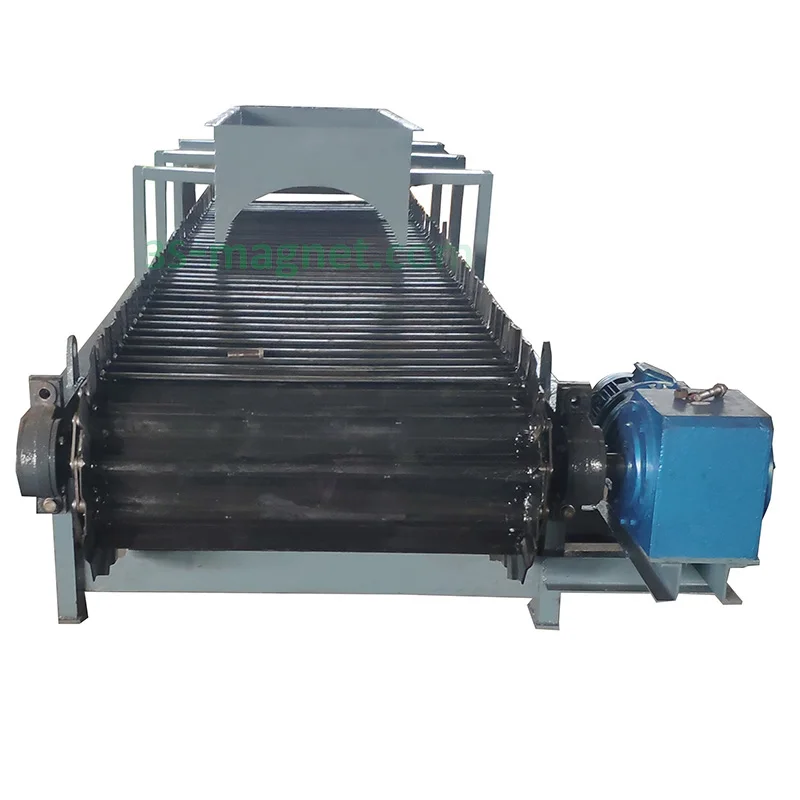

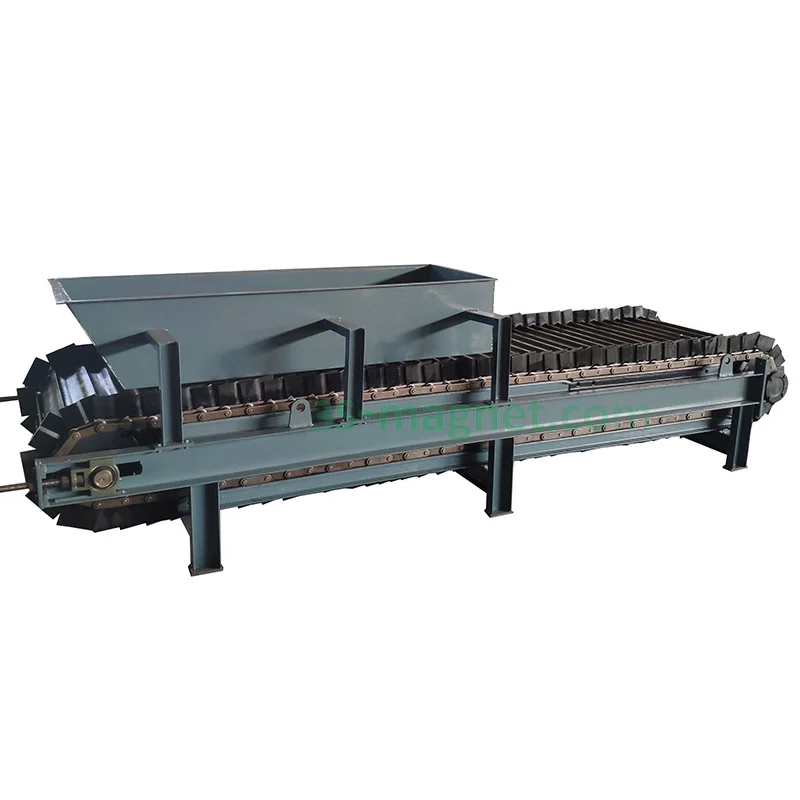

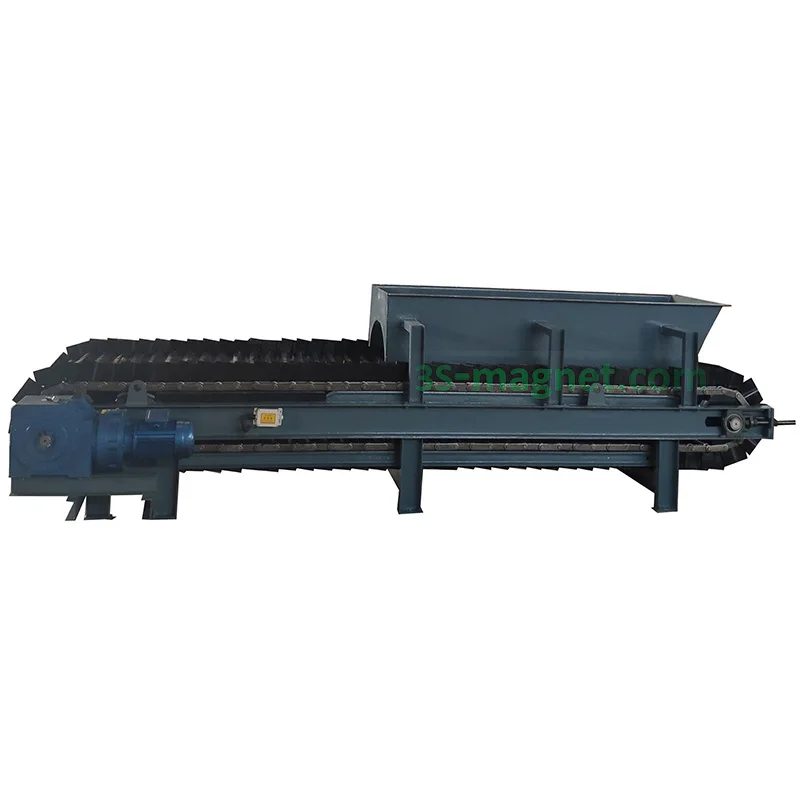

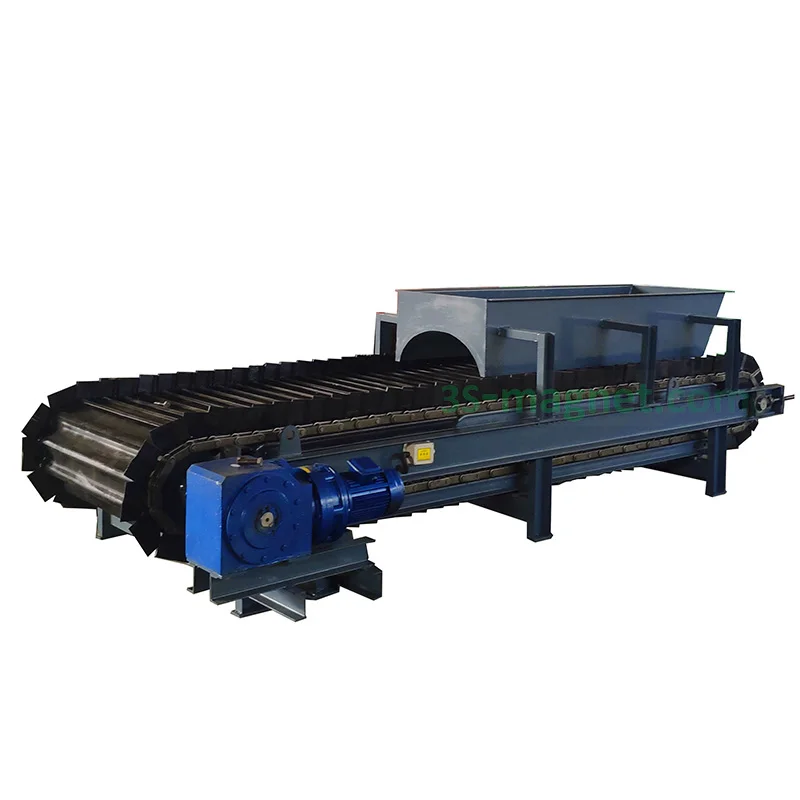

high capacity limestone stone coal apron weigh feeder

Product Overview

Description

limestone stone coal apron weigh feeder



Introduction of apron feeder

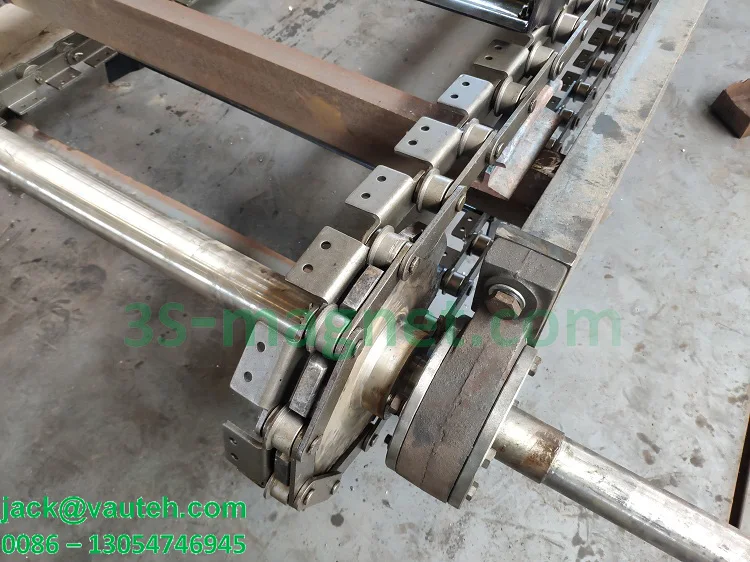

An apron weigh feeder for use in the heavy bulk materials industry includes a feeder frame, a head drive shaft, a pair of tail traction wheels, and a plurality of carry and return rollers. A pair of drive sprockets is mounted on the head drive shaft. The tail traction wheels are aligned with the drive sprockets, respectively.

These Apron Feeders are particularly well adapted to provide solutions for the conveying of moist and sticky bulk materials, such as clay, gypsum, anhydrite, and pozzolana among others, as the slightly arched plates of the Apron Feeder allow cohesive materials to be scraped off easily.

It enjoy the advantage such as traction, less leakage of material, operation smoothly, longer service life and maintenance easily.

Applications of apron feeder



1. Ores


2. Coal


3. Limestone


4. Clay


5. Lime


6. Natural and FGD gypsum


7. Petcoke


8. Aggregates

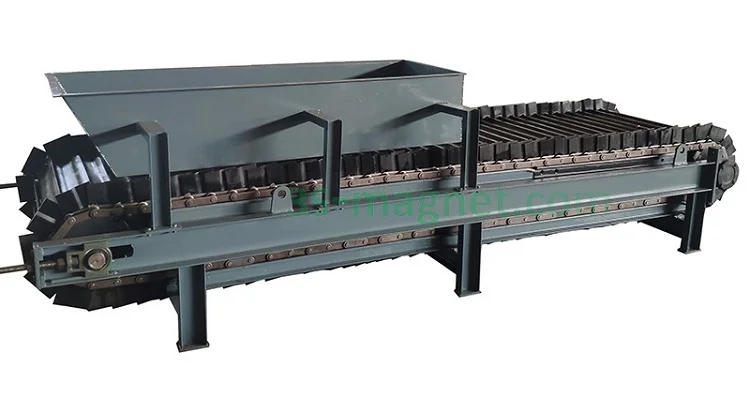

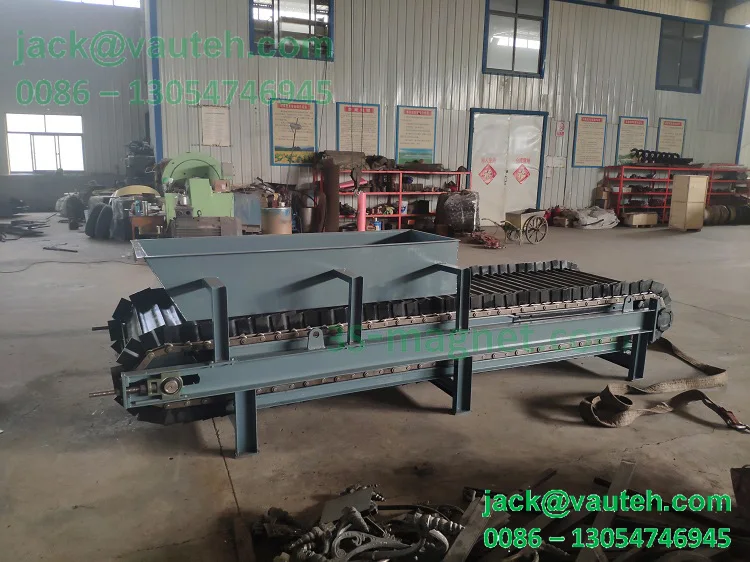

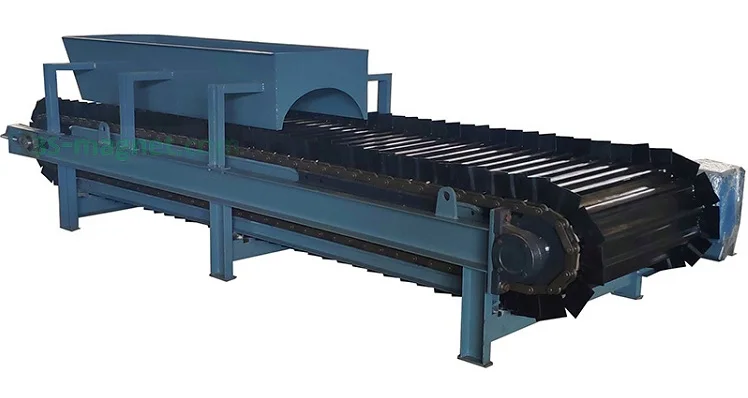

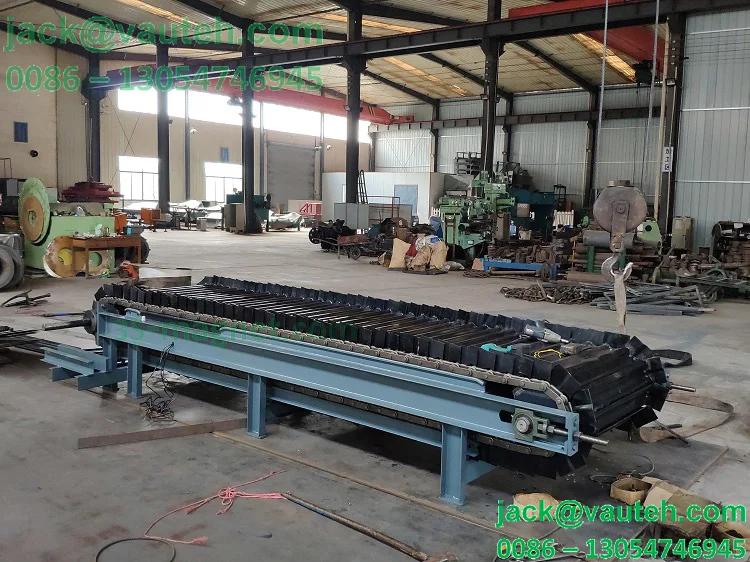

Photos View of apron feeder

apron feeder

chain conveyor

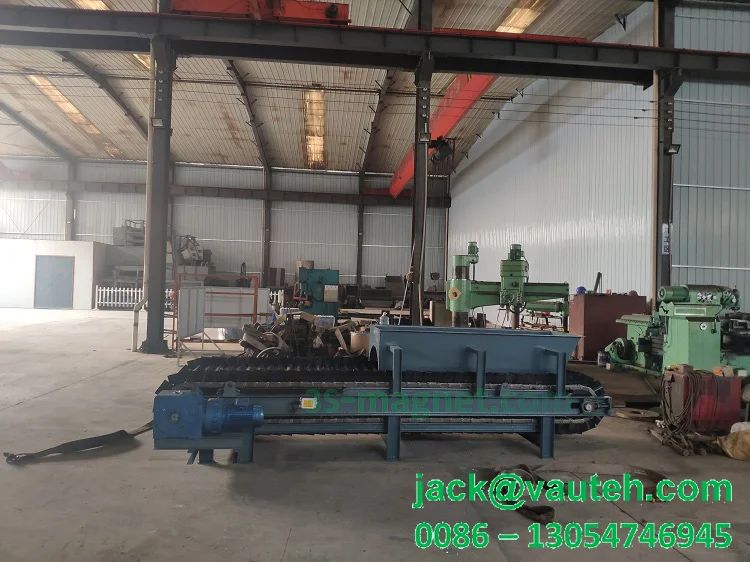

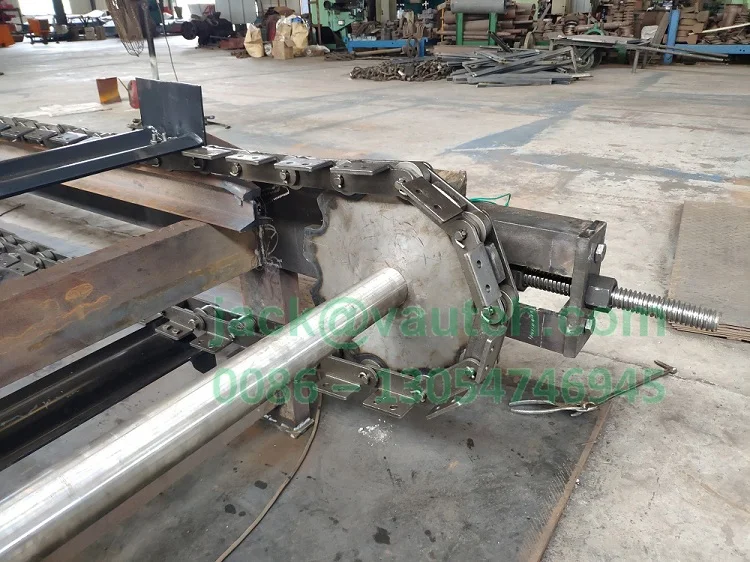

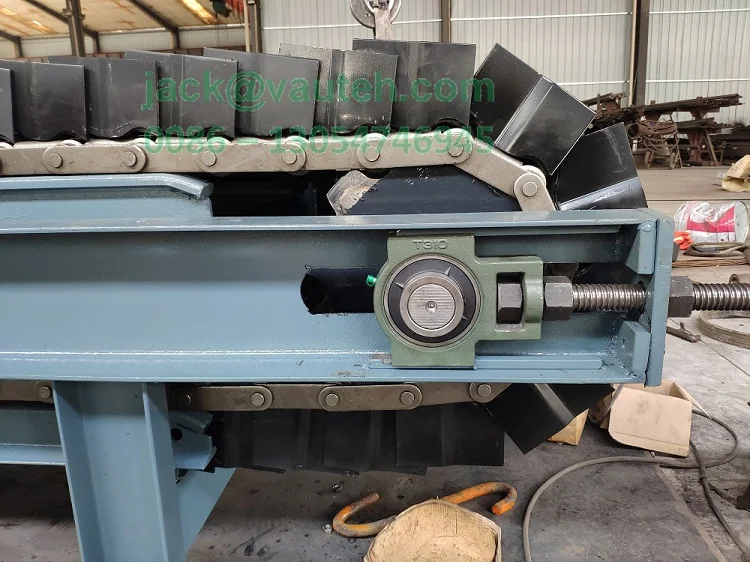

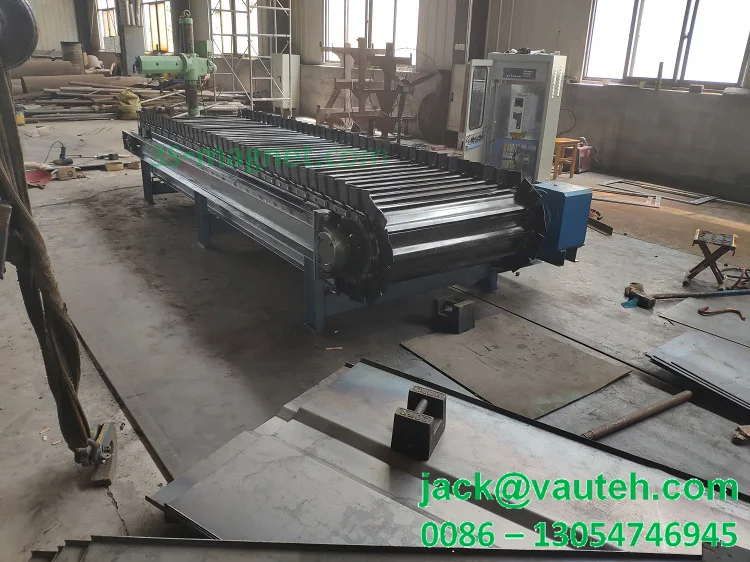

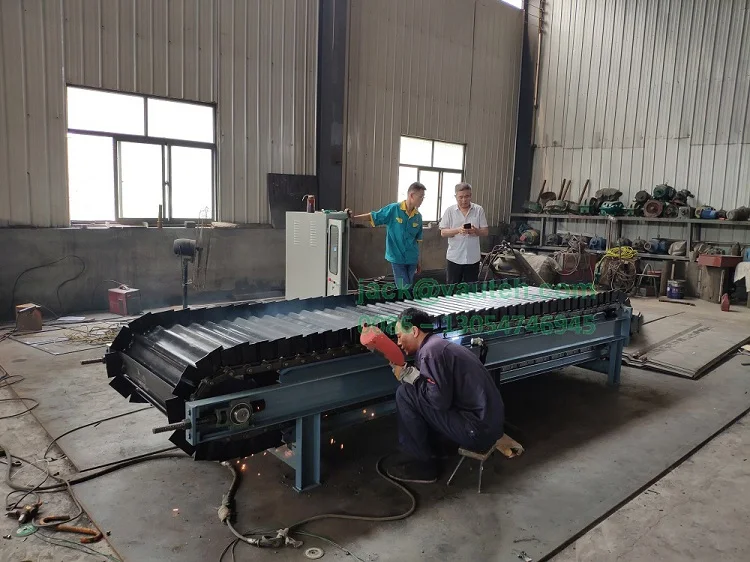

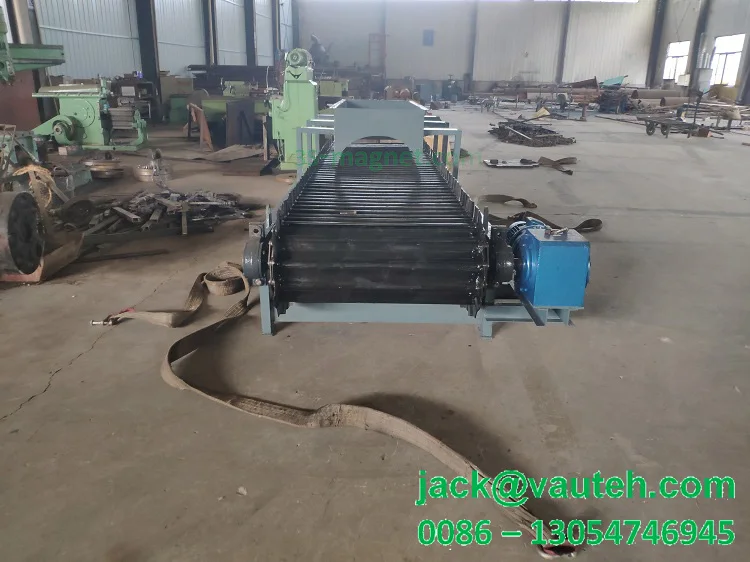

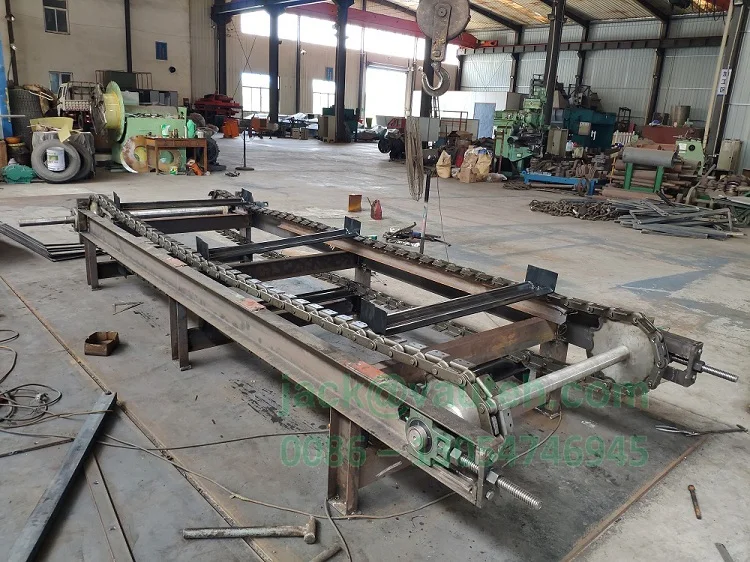

Production view



apron feeder

chain conveyor

apron conveyor

gravity conveyor

apron feeder

chain conveyor

gravity conveyor

conveyor feeder





apron feeder

chain conveyor





 Technical Data of chain conveyor





Model	Plate width	Wheels center distance (mm)	Feeding size (mm)	Capacity (t/h)	Power kw	Weight t
XBW100-6	1000	6000	Less than 500	80-160	11	15
XBW120-6	1200	6000	Less than 600	80-260	11	16
XBW125-6	1250	6000	Less than 600	45-350	11	19
XBW125-12	1250	12000	Less than 600	45-350	18.5	32
XBW150-5	1500	5000	Less than 700	85-500	15	19
XBW150-15	1500	15000	Less than 700	100-500	22	59
XBW180-8	1800	8000	Less than 800	100-800	37	53
XBW180-12	1800	12000	Less than 800	100-800	45	68
heavy gravity mining conveyor chain apron feeder
Prepared by and from:    jack (at) vauteh (dot) com









How to get a quote of chain conveyor?

To make a responsible and exact quote for you, it will be helpful if you can tell us :

(1),what kind of mineral to be processed ?

(2),the metal size to be conveyed ?

(3),conveying capacity per hour?

(3),others to be cleared with our engineer,  where you can receive professional advice about the test analysis, flow chart ,and machine choices.

your contact will keep confidential with us.

With your permission, we would like to send you E-catalogue, photos, and actual video.
