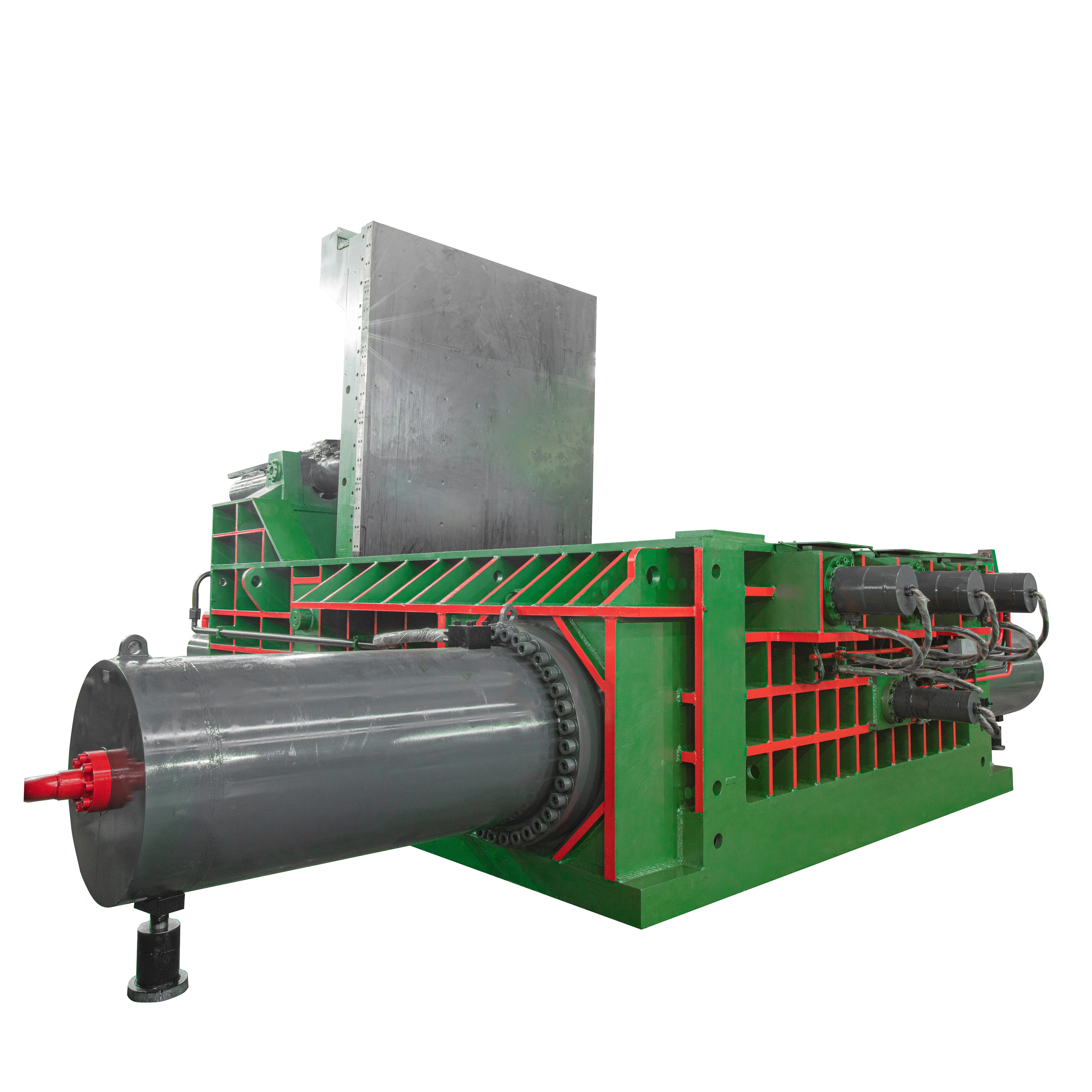

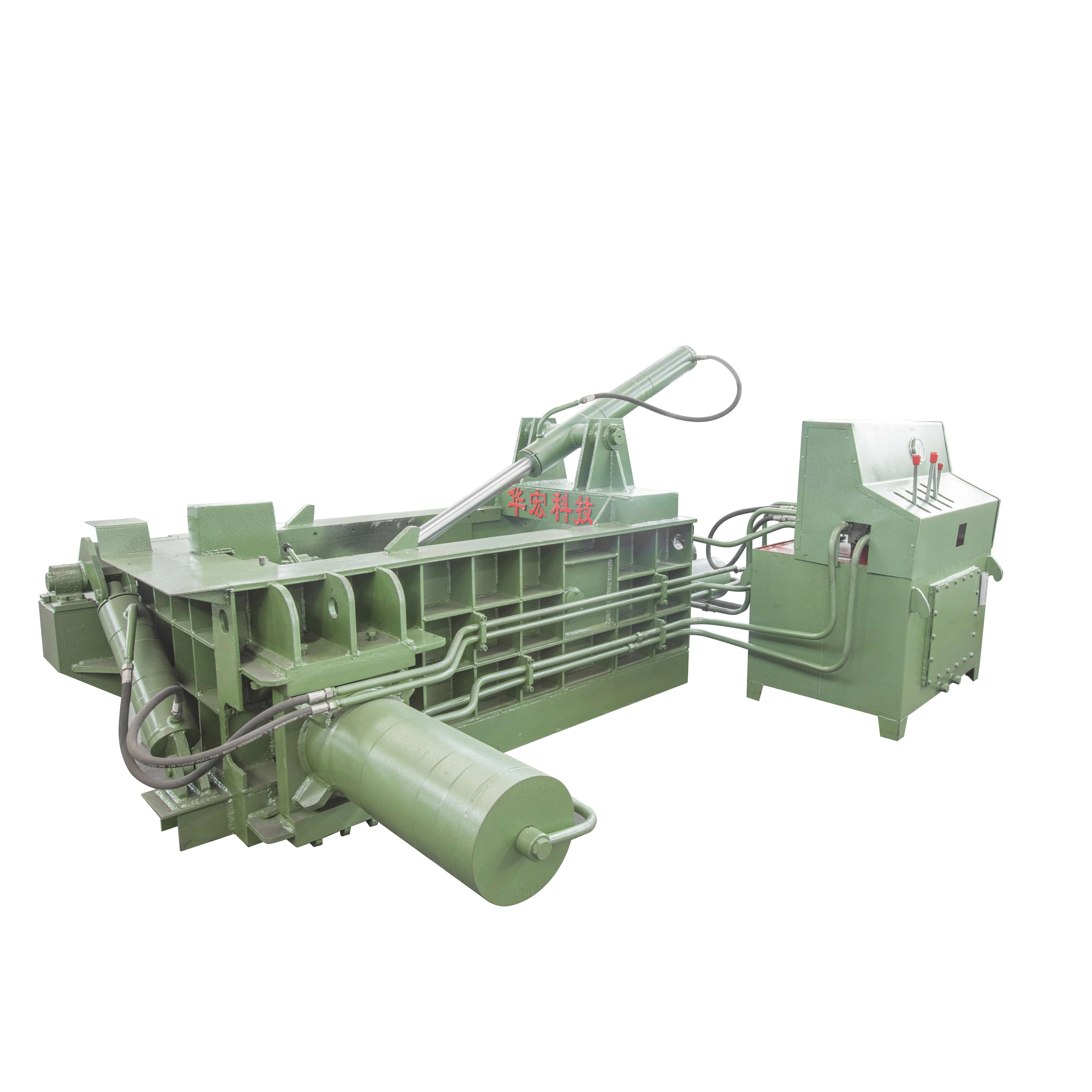

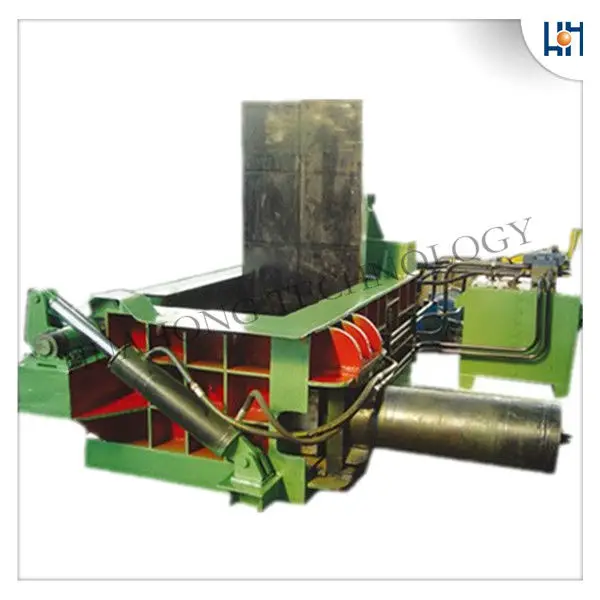

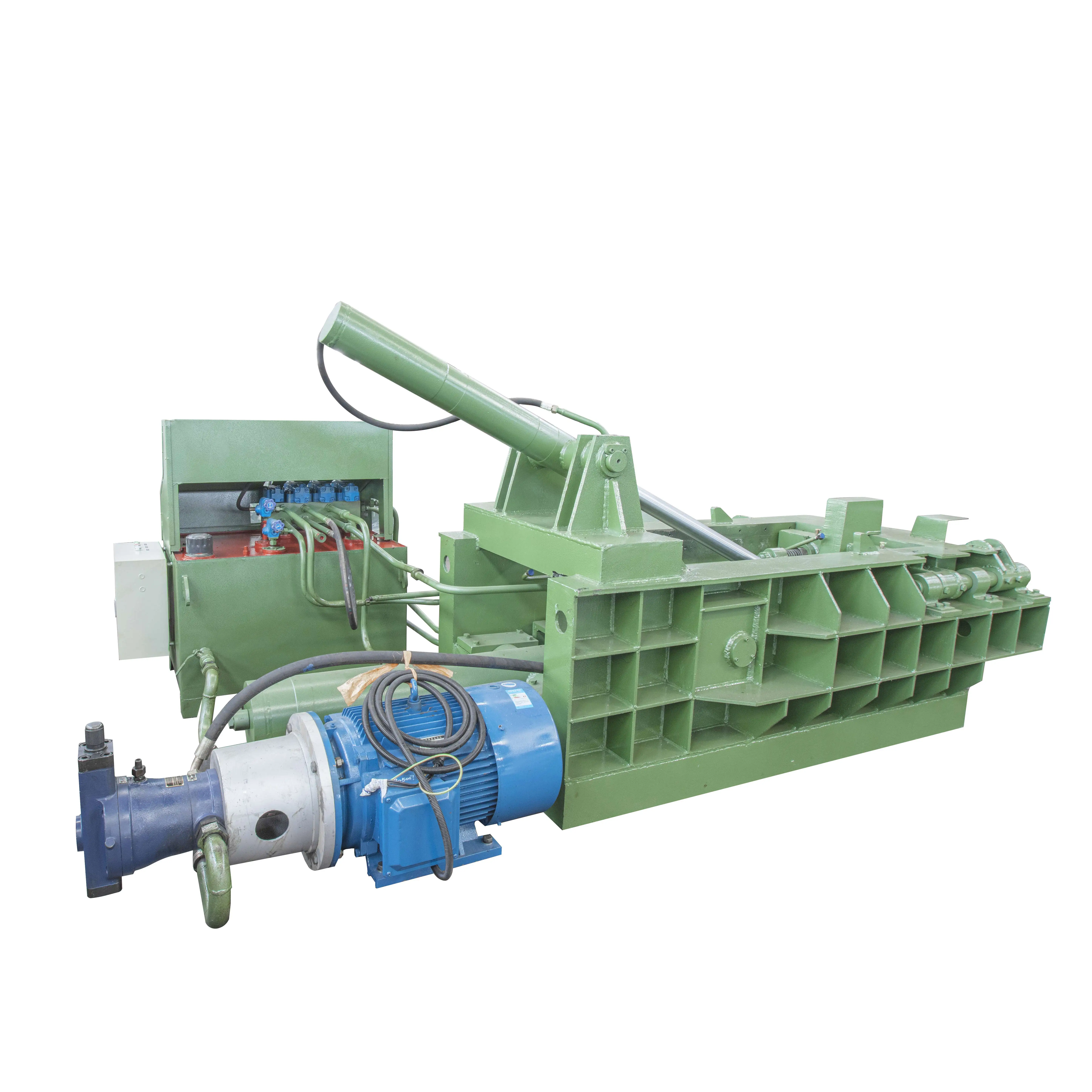

hydraulic scrap metal baling press machine

Product Overview

Description

hydraulic scrap metal baling press machine



Technical Specification:



Model

Main Cyl.Force (ton)

Press Box Size (mm)

Bale Size (mm)

Bale Weight (kg)

Motor (kW)

Y81F-125A	125	1100x700x550	200x200 Octagon 140 Octagon 200	15-35	15
Y81F-125B	125	1100x700x600	230x230	25-40	15
Y81F-125C	125	1150x700x600	250x250 Octagon 230 Octagon 260	30-50	15
Y81F-125D	125	1200x700x600	300x300	50-70	15
Y81F-125E	125	1200x800x600	300x300	50-70	15
Y81F-125F	125	1200x900x600	300x300 Octagon 260	50-70	15/22
Y81F-125G	125	1400x700x700	300x300	60-90	22
Y81F-125H	125	1400x800x700	300x300 Octagon 300	60-90	22
Y81F-125J	125	1400x900x600	Octagon 260 Octagon 300	60-90	22



Features:

a) Hydraulic drive, manual valve operation or PLC control..

b) Bale-discharging:”turn-out”, "push-out”, "forward-out” & manual discharging.

c) Options for different force, press box size, bale shape & size

d)Electrical motor, diesel engine or generator for power.

 Applications:

Y81 series of hydraulic scrap balers are applied in steel mills, recycling plants, ferrous & non-ferrous smelting industry to press scrap metal (steel, copper, aluminum, stainless steel, discarded automobiles, etc)into acceptable furnace charges in shape of cuboids, cylinders & octagons.













Jiangsu Huahong Technology Stock Co.,Ltd. Is a professional manufacturer of the processing equipment for the recycling resources, which was named as “National Import High-Tech Enterprise in Torch plan.” It was listed on the Shenzhen Stock Exchange on Dec.20,2011,(stick code:002645.SZ), Now the company has three wholly-owned subsidiary and holding subsidiaries. It is the vice-president unit of the China Association of Metal Scrap Utilization, China Resource Recycling Association and China National National Recycling, It is the vice-president unit of China Association of Circular Economy(CACE),China Nonferrous Metals Industry Association Recycling Metal Branch(CMRA),It is the member of International Recycling Agency(BIR), the United States Waste Recycling Industry Association(ISRI),the Middle East Recycling Agency (BMR).



Superiority:

a) Up to now, the company has 54 national patents:9 invention patents,44 utility model patents, and 1design patent.

b) The company has a powerful. high-caliber and young research team with great innovation capacity.

c) It owns totally more than 300 sets of large CNC floor type boring and milling machine, plano milling machine, NC lathe, NC cutting machine, CNC machining center and deep hole drilling and boring machine, and digital ultrasonic testing device, direct-reading spectrograph as well as testing devices for other kinds of fine measuring instrument. These test facilities are advanced with complete functions.

d) On Dec.20,2011,Huahong Technology was listed on the Shenzhen Stock Exchange(Stock code:002645),becoming the 31^st public company in the capital market in Jiangyin.

e) The market coverage of Huahong Brand hydraulic equipment is holding a safe lead in the industry in China. The products are sold to more than 30 countries and areas in European, Asian and American markets.

24 hours online service
Enquiry will be replied in 2 hours
One year warranty
Spare parts supply one set of spare parts for free, tool box, operation book.
Free parts for any breakdown with convincing evidence

FAQ:



Q1:How can i get the after-service?



A:We will send you the spare parts by free if the problems caused by us.



    If it is the men-made problems,we also send the spare parts,but you should pay.



Q2:Do you have inspection procedures for press machine ?



A:100% self-inspection before packing.



Q3:Can I have a visit to your factory before the order?



A:Sure,welcome to visit our factory.

      Our factory address: Huahong Industrial Park, ZhouZhuang Town, Jiangyin, Jiangsu P.R China

      Our factory is near Shanghai Pudong Airport.We can pick you up in the airport.

      Hotel booking service is available .

If you want to visit your local customer use site, please contact us to know more details.
