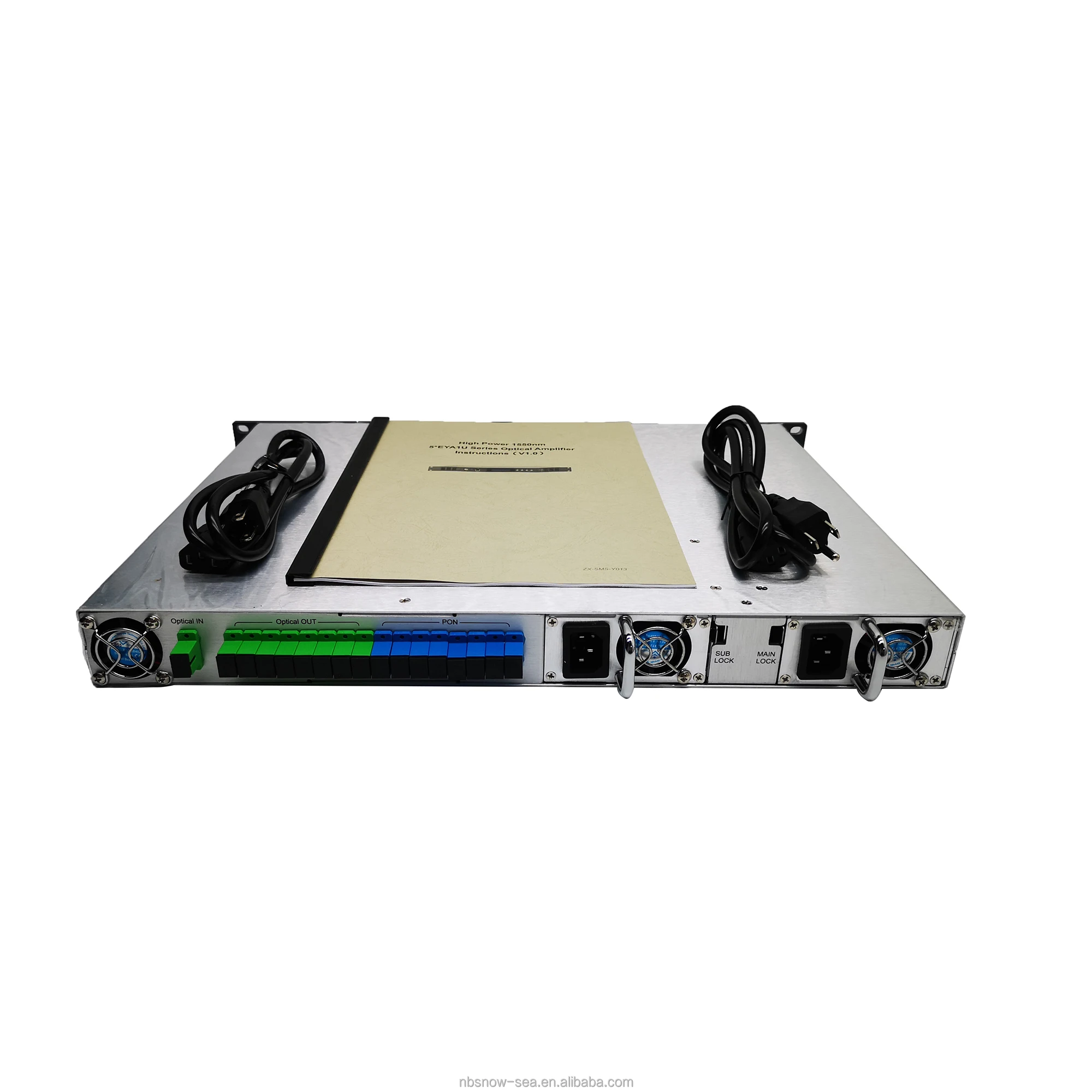

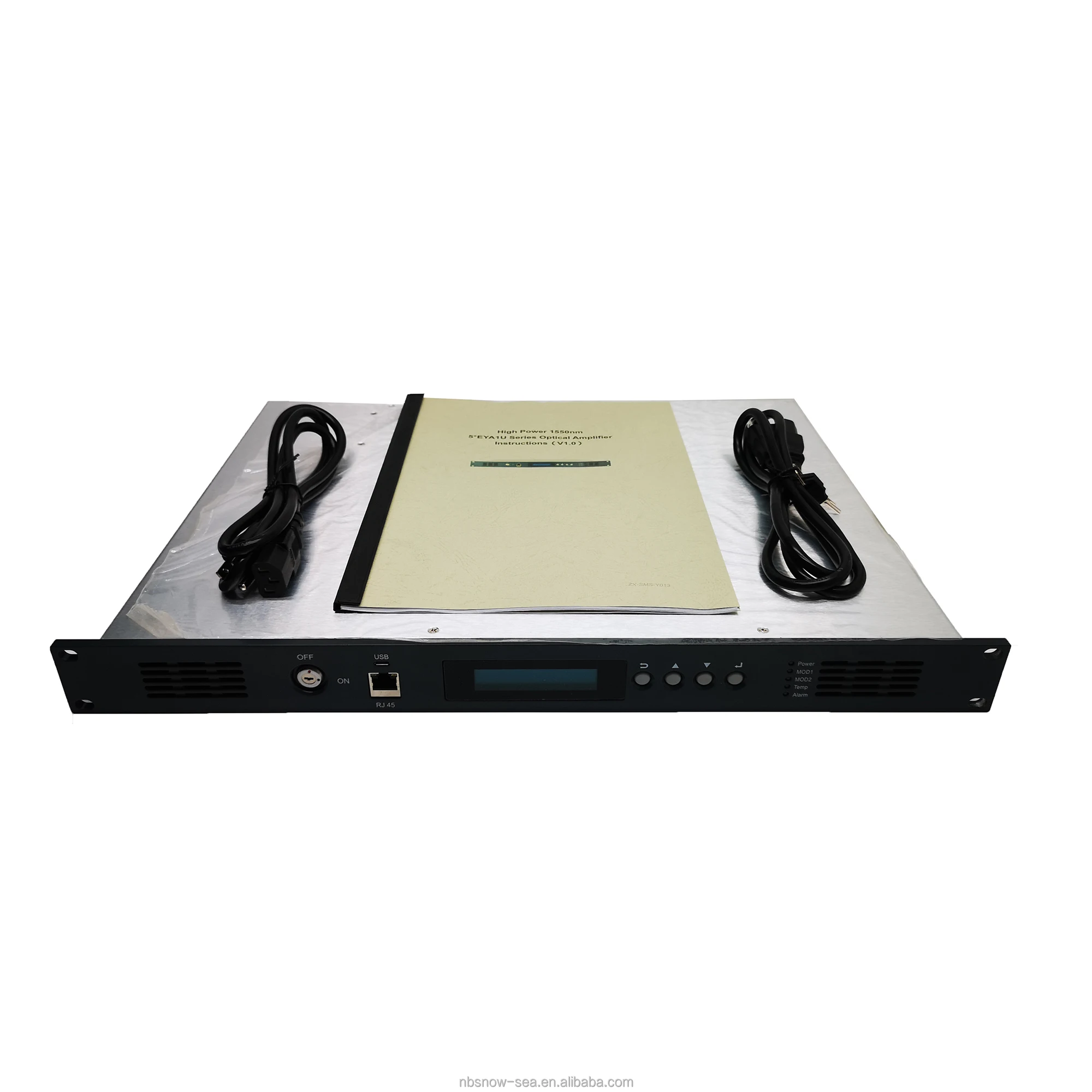

FTTH CATV GPON 1550nm EDFA 8 Port 19dBm Fiber Optical Amplifier EDFA with WDM
- Category: >>>
- Supplier: Ningbo Snow Sea Optoelectronic Technology Co. Ltd.
Share on (1600329637734):
Product Overview
Description
1550nm 8x19dBm Gain Output CATV EDFA Optical Amplifier with WDM and AGC and Dual Power Supply and Simple Network Management Function
Product description
HA5400 series is a high-power multi-ports EDFA with gain spectrum band within 1540~1563nm. It is designed for the application of single channel or 1~8 continuous ribbon channels (ITU wavelength). This series of EDFA offers a flexible and low-cost solution for CATV large area coverage of metropolises and medium-sized cities.

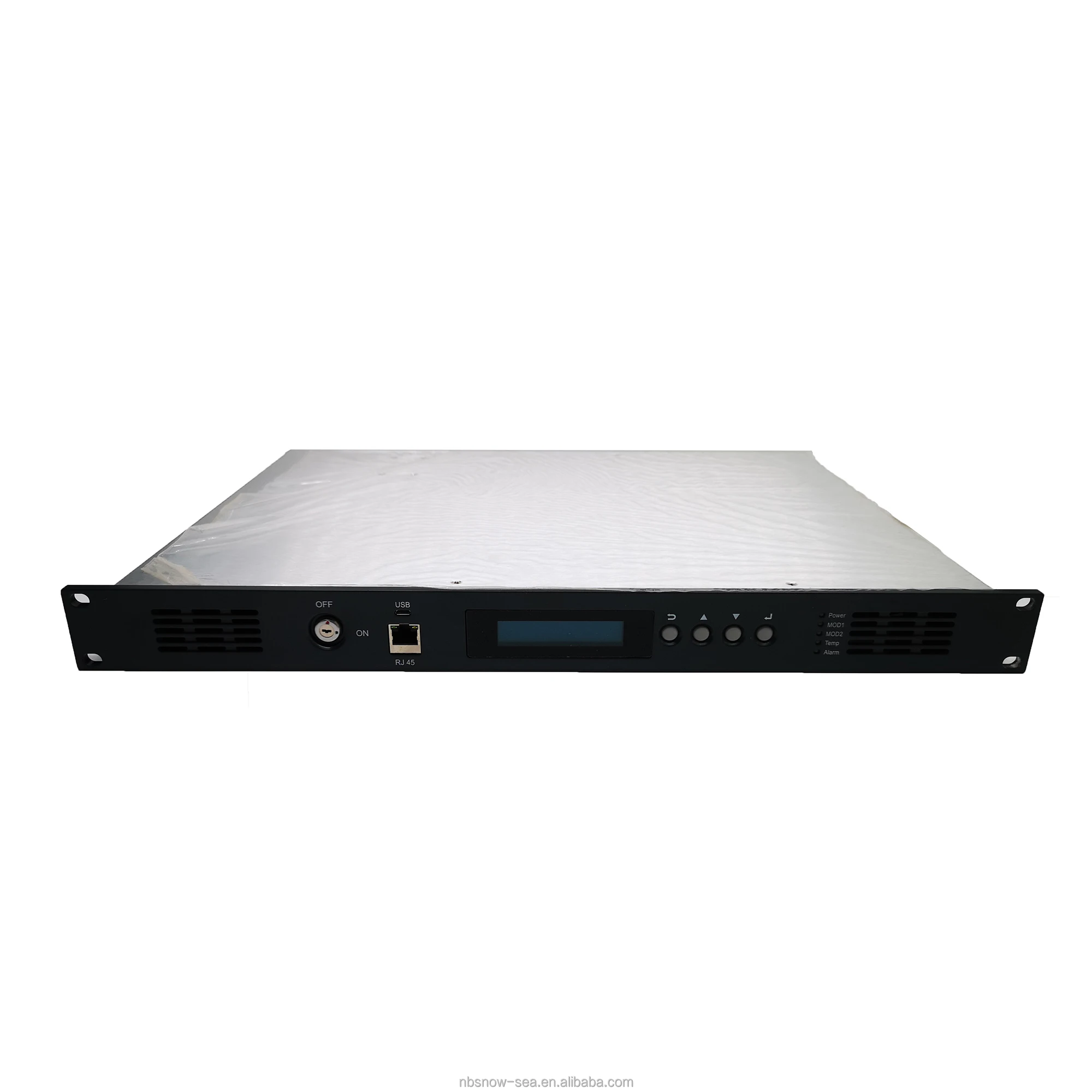

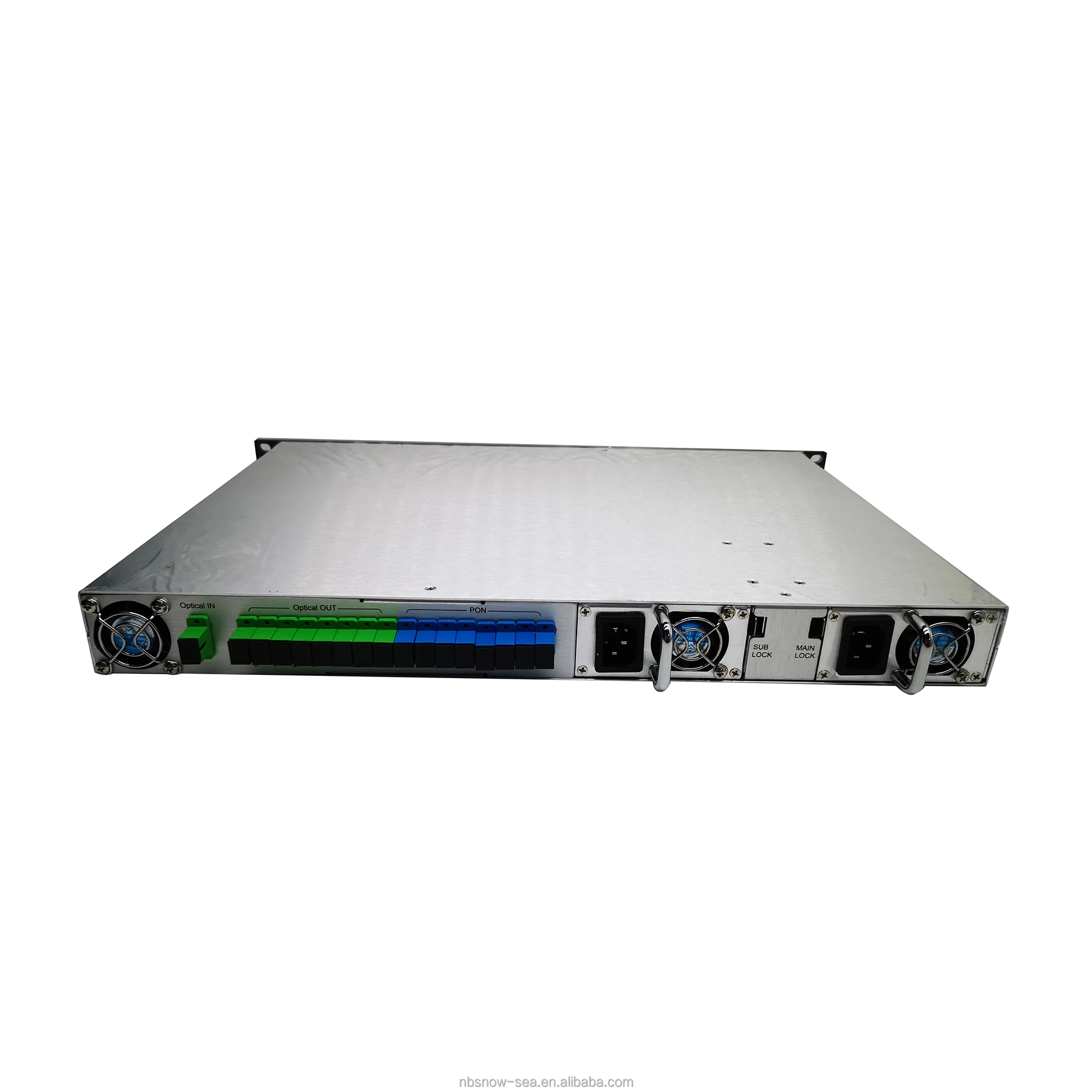

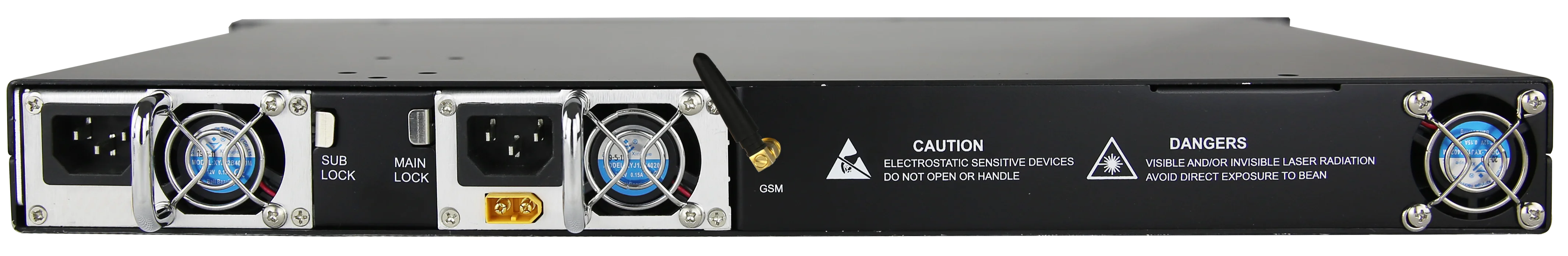

HA5400 EDFA adopts the world's top class pump laser and America OFS erbium-doped optical fiber. Perfect APC, ACC and ATC control, excellent design in the ventilation and heat-dissipation ensure the long life and high reliable work of pump laser. RS232 and RJ45 offer serial commutation and SNMP network management port. The LCD at the front panel offers the work index of all equipment and warning alarm. The laser will switch off automatically if optical power is missing, which offers security protection for the laser. All the optical port of EDFA can be installed in the front panel (also can be in the back panel if customers specify).
EDFA product, for its high quality, high reliable and high cost performance, is the ideal choice of the system integration and system operation.
HA5400A EDFA: 1RU chassis, total output power >1000mW, offers 16 optical outputs at most.
HA5400B EDFA: 2RU chassis, total output power >5000mW, offers 64 optical outputs at most.
Product feature
1540~1563nm operating bandwidth for HA5400 EDFA
500~5000mW (27~37dBm) high output power
8~64 outputs is optional
Low noise, high reliability
APC, ACC, ATC controlled selection (HA5400/P)
Powerful RS232 supervisory instruction
Efficient space, flexible installation and easy operation
Excellent P/P ratio
Main application
AM CATV
Digital CATV
DBS & MMDS
FTTx PON
Technique index
Item | Unit | Technique parameters | Remark | |
Operating bandwidth | nm | 1545 - 1565 |
| |
Optical input power range | dBm | -3 - +10 | Max rang:-10-+10 | |
Optical Switching time | ms | ≤ 5 |
| |
Maximum optical output power | dBm | 41 |
| |
Output power stability | dBm | ±0.5 |
| |
Noise figure | dB | ≤ 6.0 | Optical input power 0dBm, λ=1550nm | |
Return loss | Input | dB | ≥ 45 |
|
| Output | dB | ≥ 45 |
|
Optical Connector Type |
| CATV IN:SC/APC, PON:SC/PC OR LC/PC COM:SC/APC OR LC/APC |
| |
PON to COM port insertion loss |
| ≤ 1.0 | dBm | |
C/N | dB | ≥ 50 | Test condition according to GT/T 184-2002. | |
C/CTB | dB | ≥ 63 |
| |
C/CSO | dB | ≥ 63 |
| |
Power supply voltage | V | A: AC100V - 260V (50 Hz~60Hz) B: DC48V(50 Hz~60Hz) C:DC12V(50 Hz~60Hz) |
| |
Operating temperature range | °C | -10 - +42 |
| |
Maximum operating relative humidity | % | Max 95% no condensation |
| |
Maximum storage relative humidity | % | Max 95% no condensation |
| |
Dimension | mm | 483(L)×440(W)×88(H) | ||
Remark: Output power can be customized by user.

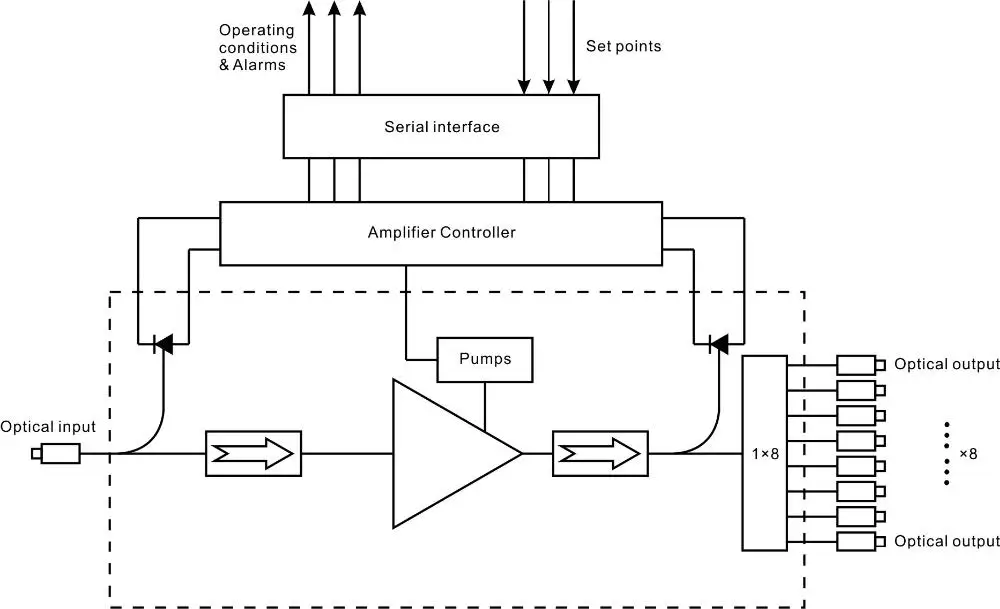

Optic/Electrical schema

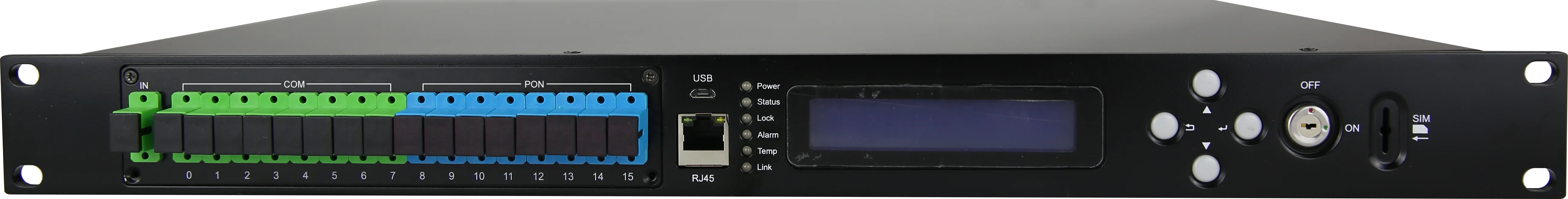

Optical port mode 08 (8 ways optical output)
Product series
Model number | Total output power | Number of output port | Each port output power | Connector |
HA5426A-08 | 26dBm(400mW) | 8 | 15.5 | SC/APC, LC/APC |
HA5426A-16 | 16 | 12.0 | ||
HA5427A-08 | 27dBm(500mW) | 8 | 16.5 | SC/APC, LC/APC |
HA5427A-16 | 16 | 13.0 | ||
HA5428A-08 | 28dBm(630mW) | 8 | 17.5 | SC/APC, LC/APC |
HA5428A-16 | 16 | 14.0 | ||
HA5429A-08 | 29dBm(800mW) | 8 | 18.5 | SC/APC, LC/APC |
HA5429A-16 | 16 | 15.0 | ||
HA5430B-08 | 30dBm(1000mW) | 8 | 19.5 | SC/APC, LC/APC |
HA5430B-16 | 16 | 16.0 | ||
HA5431B-08 | 31dBm(1260mW) | 8 | 20.5 | SC/APC, LC/APC |
HA5431B-16 | 16 | 17.0 | ||
HA5432B-08 | 32dBm(1600mW) | 8 | 21.5 | SC/APC, LC/APC |
HA5432B-16 | 16 | 18.0 | ||
HA5432B-32 | 32 | 14.5 | LC/APC | |
HA5433B-08 | 33dBm(2000mW) | 8 | 22.5 | SC/APC, LC/APC |
HA5433B-16 | 16 | 19.0 | ||
HA5433B-32 | 32 | 15.5 | LC/APC | |
HA5434B-08 | 34dBm(2500mW) | 8 | 23.5 | SC/APC, LC/APC |
HA5434B-16 | 16 | 20.0 | ||
HA5434B-32 | 32 | 16.5 | LC/APC | |
HA5435B-16 | 35dBm(3200mW) | 16 | 21 | SC/APC, LC/APC |
HA5435B-32 | 32 | 17.5 | LC/APC | |
HA5436B-16 | 36dBm(4000mW) | 16 | 22 | SC/APC, LC/APC |
HA5436B-32 | 32 | 18.5 | LC/APC | |
HA5436B-64 | 64 | 15.0 | ||
HA5437B-32 | 37dBm(5000mW) | 32 | 19.5 | LC/APC |
HA5437B-64 | 64 | 16.0 |
Remark: 1. All EDFAs in HA5400 series with specified output power and output ports can be in 2U casing.
2. Please contact us for detailed datasheet of EDFA if special output power and output ports configuration is required.

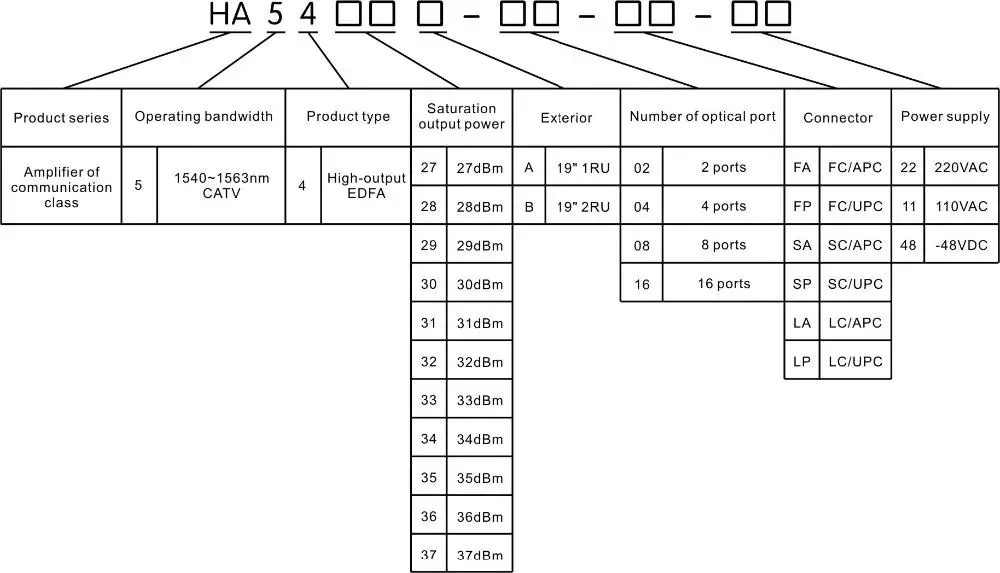

Model explanation
