Note :The price quoted here does not include batteries, chime and SD cards. If you need battery,chime and SD card, please contact us.

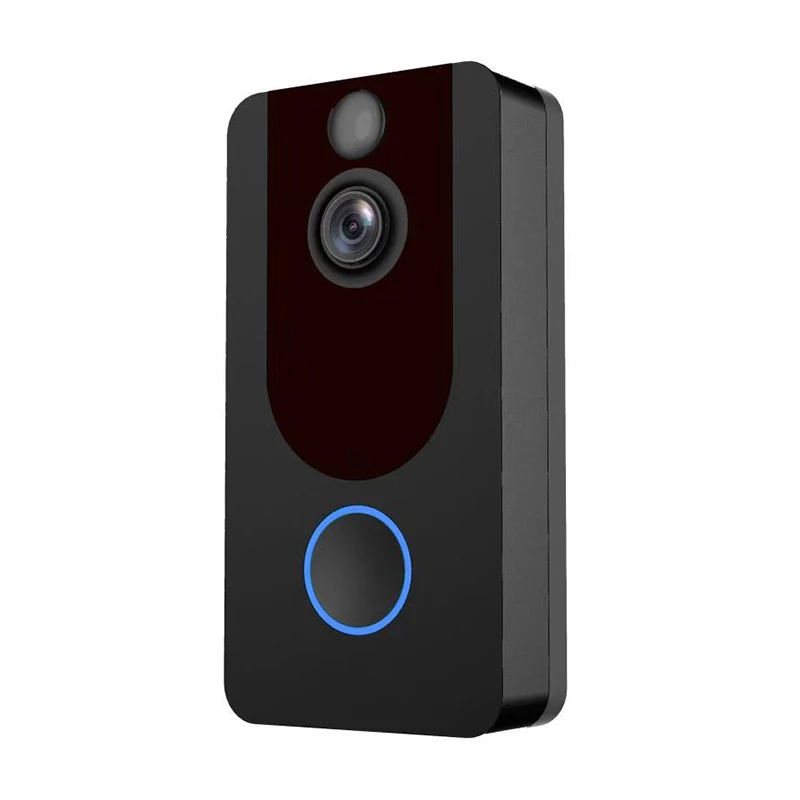

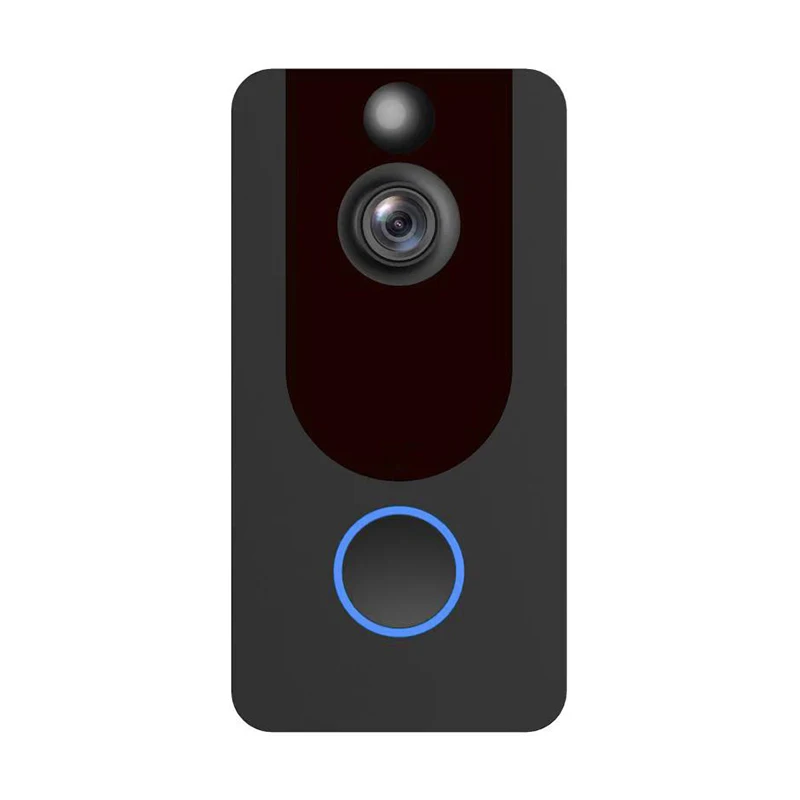

V7 Doorbell Specification |
Specification |
Note |
Chip (CPU) |
T31, Built-in ARM926 @Max. 440MHz High Speed Video Coprocessor |
|
sensor |
GC2053 CMOS Sensor |
|
Lens |
140° Wide-Angle Camera Lens |
|
Sensor performance |
Support automatic white balance, automatic gain control, automatic backlight compensation |
|
Signal to noise ratio |
≥39dB |
|
Minimum illumination |
0.8Lux/F1.4(Color mode),0.3Lux/F1.4(Black and white mode) |
|
Night Vision |
Dual filter automatic switching, 6pcs 850nmΦ28Mil High power infrared light, Night vision 8 meters |
|
Video format |
H.264 |
|
Video Resolution/frames per seconds |
1080P15fps-30fps |
|
When to Record Video |
1. Motion detection triggered
2. Push doorbell button
3. Preview from APP |
|
battery type/capacity |
18650 Li Battery / 2600mAH |
|
Battery discharge time |
2 months (2pcs batteries) |
|
Network protocol |
TCP/IP,HTTP,TCP,UDP,,DHCP,DNS,DDNS,NTP,RTP,P2P,etc. |
|
WIFI |
Support (802.11 b/g/n) |
|
Memory |
Support cloud storage (For now, the hardware doesn't support TF card storage) |
|
Operating Voltage |
DC:5V 1.5A |
|
Working current |
365mA |
|
Charging voltage |
DC 5V / 1A |
|
Storage temperature(℃) |
(0℃~50℃) |
|
Operating temperature (℃) |
(-10~50℃) |
|
Working humidity |
<95% |
|
Wake-up method |
1. Push doorbell button to wakes up
2.wake up by PIR motion detection
3. Wake up from APP |
|
Product Usage |
When you have a visitor, you can see the view, talk with visitor, and record a short video. Without opening the door, you can know what is happening outside the house. |
|
Features |
Wireless connection
ultra-low power consumption
remote active wake-up
Support multiple accounts at the same time |
|
