SUNTECH High Efficiency sewing machines
- Category: Textile Finishing Machines >>>
- Supplier: Zhejiang Strength Machinery Co. Ltd.
Share on (1600329675943):
Product Overview
Description
Products Description

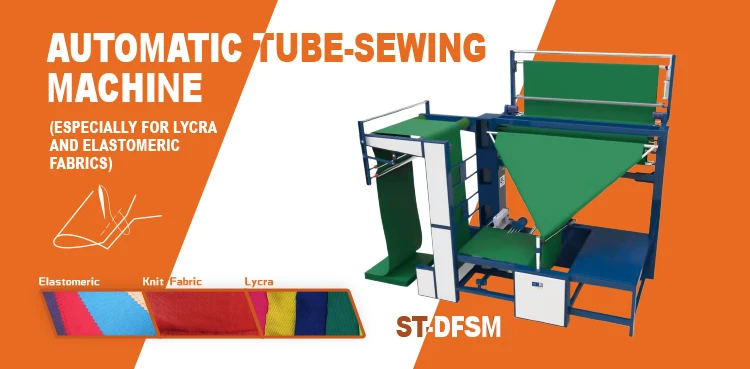

Suntech Automatic Tube-sewing Machine (Especially For Lycra and Elastomeric Fabrics)
ST-DFSM allows the automatization of selvedge sewing operation of knit fabrics for dyeing. Since lycra is increasingly being used in textile industry, a process of heat fixing of the fabric is required before dyeing. For this reason the raw tubular fabric has to be slit open, heat fixed and then sewn in tubular form again to be dyed.
Machine Drawing
Main Technical Features
●Doubling, sewing, plaiting any type of fabrics from plait/loose fabric to plait/loose fabric.
●For proper folding, special systems for thin and sensitive fabrics as well as fabrics with curled edges.
●For proper folding, special systems for thin and sensitive fabrics as well as fabrics with curled edges.
●PLC controlled for synchronized operation .(option)
●Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric
●Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric
guide.Edge alignment error ≤ 6mm.
●Sewing carriage(JUKI Brand Sewing Machine/DDL-8700) with Auto-Search of the fabric edge.
●System of motorized drawing to avoid harmful skids for the seam.
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Single-thread Sewing. Easy to open the thread once the dyeing is finished.
●Sewing carriage(JUKI Brand Sewing Machine/DDL-8700) with Auto-Search of the fabric edge.
●System of motorized drawing to avoid harmful skids for the seam.
●Accurate Length Counting(Y/M)- Counting error ≤0.1m/km.
●Single-thread Sewing. Easy to open the thread once the dyeing is finished.
Technical Specifications
Doubling Speed: | 0-80m/min |
Sewing Speed: | 0-30m/min |
Fabric Width: | 1.2 - 2.4 meters (standard) |
Needle Distance: | 1-5mm (adjustable) |
Dimensions(L*W*H): | 4750*3250*3000mm (for model ST-DFSM-220 only) |
Weight: | 1500kgs(for model ST-DFSM-220 only) |
Electric Specs: | 3Phase - 380V; 50HZ(can be adjusted to suit for different countries) |
Remark: | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Details Images

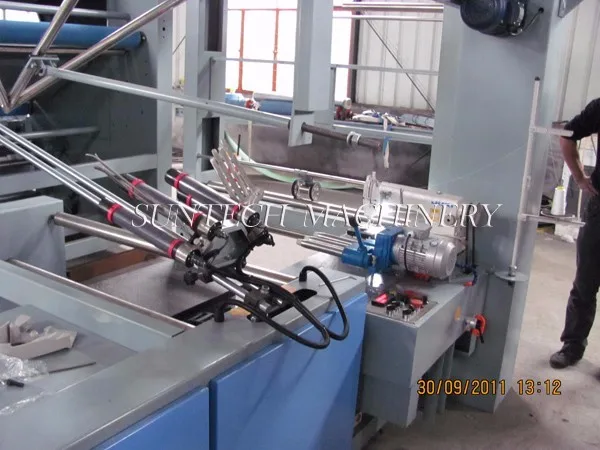

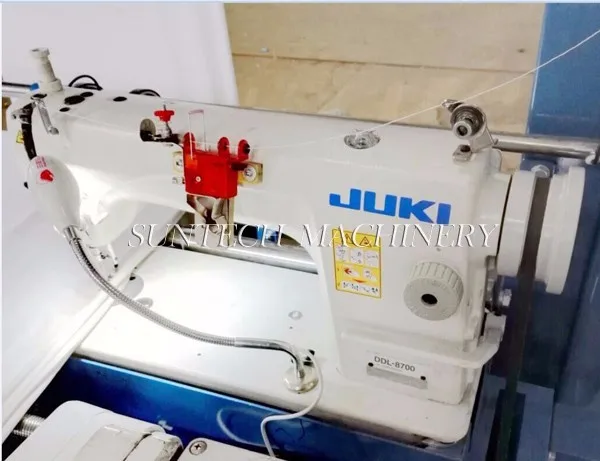

Sewing carriage(JUKI Brand Sewing Machine/DDL-8700) with auto-search of the fabric edge.
>>> Edge-alignment Raster
Automatic alignment of selvedge on the doubling triangle with very sensitive and precise photo-electric guide.

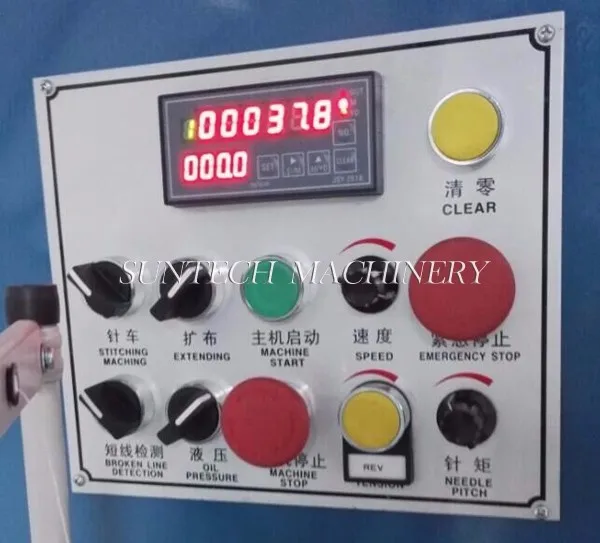

>>> Operation Panel
Operator could control the machine by operation panel.

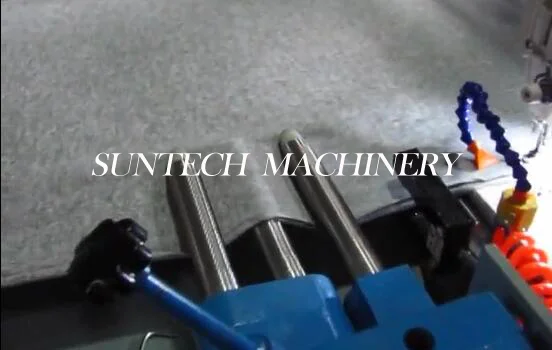

there is an electrical uncurling system & an air blowing device to open the fabric before sewing.
option
