Hot sell 2 Core 4 Core Tight Buffer Armored Cable Ftta Base Station CPRI RRU RRH Outdoor Patch Cord Cable
PRODUCT DESCRIPTION

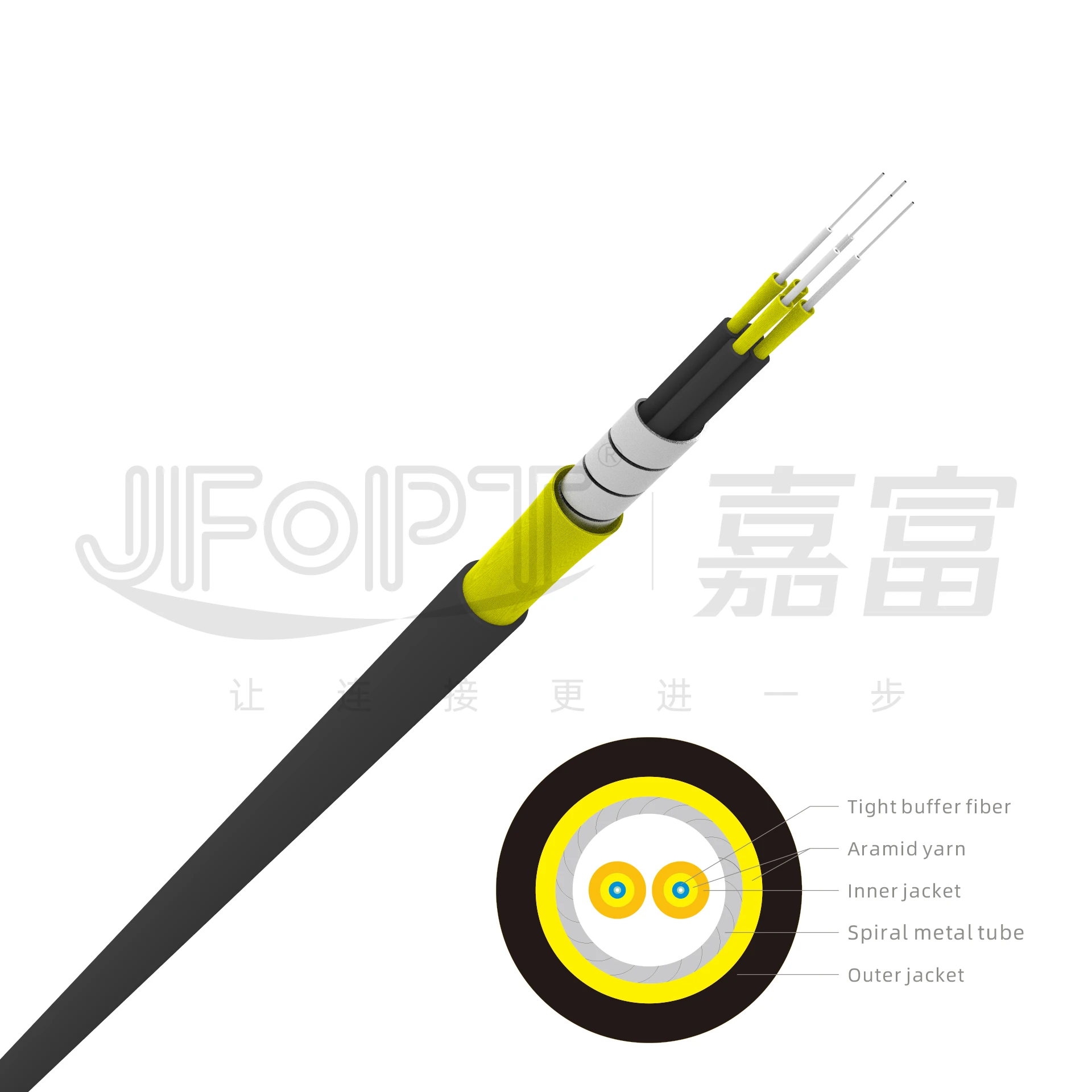

GJFJH Base Station Cable
FTTA is a broadband solution to connect the building baseband unit (BBU) to the remote radio unit (RRU) at the top of the tower by optical fibers to replace all or part of the coaxial network. We JFOPT provides excellent FTTA solutions to reduce installation time and save the cost of installation and maintenance. The whole series of equipment and technology support, include outdoor cable, PDLC outdoor waterproof patch cords, terminal boxes etc.
PRODUCT DETAILS

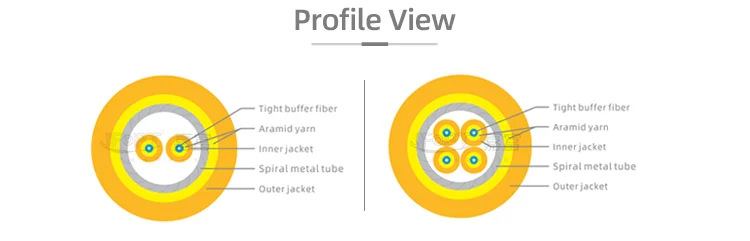

Cable Parameter | ||||||
Item | Specification | |||||
Fiber Count | 2 | 4 | ||||
Sub-unit Jacket | Material | LSZH | ||||
Thickness | 0.4mm±0.05mm | |||||
OD | 2.0mm±0.2mm | |||||
Armored Layer | Material | SUS204 | ||||
OD | 4.8mm±0.3mm | 6.0mm±0.3mm | ||||
Thickness | 0.4mm±0.05mm | |||||
Gap | 0.3mm±0.10mm | |||||
Strength Member | Aramid Yarn | |||||
Outer Jacket | Material | LSZH | ||||
Color | Black | |||||
Thickness | 0.9mm±0.1mm | 1.1mm±0.1mm | ||||
OD | 7.0mm±0.3mm | 7.5mm±0.1mm 8.0mm±0.1mm | ||||
Mechanical and Environmental Characteristics | ||||||
Item | Specification | |||||
Fiber Count | 2 | 4 | ||||
Tension Resistance (N) | Long Term | ≥ 600 | ≥ 800 | |||
Short Term | ≥ 1000 | ≥ 1200 | ||||
Crush Resistance (N/10cm) | ≥ 3000 | |||||
Nominal Weight (kg/km) | 65 | 85 | ||||
Operating Temperature ( ℃) | -40 ~ +80 | |||||
Storage Temperature ( ℃) | -40 ~ +80 | |||||
Fiber Parameters | ||||||||||
Single Mode | ||||||||||
Item | Unit | G652D | G657A1 | G657A2 | ||||||
Mode Field Diameter | 1310nm | μm | 9.1±0.4 | 8.8±0.4 | 8.8±0.4 | |||||
1550nm | μm | 10.4±0.5 | 9.8±0.5 | 9.8±0.5 | ||||||
Cladding Diameter | μm | 125±1 | 125±0.7 | 125±0.7 | ||||||
Cladding Non-circularity | % | ≤ 1 | ≤ 0.7 | ≤ 0.7 | ||||||
Core-cladding Concentricity Error | μm | ≤ 0.6 | ≤ 0.5 | ≤ 0.5 | ||||||
Coating Diameter | μm | 245±7 | 245±5 | 245±5 | ||||||
Coating Non-circularity | % | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ||||||
Cladding-coating Concentricity Error | μm | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ||||||
Cable Cutoff Wavelength | nm | ≤ 1260 | ≤ 1260 | ≤ 1260 | ||||||
Attenuation Coefficient | 1310nm | dB/km | ≤ 0.4 | ≤ 0.4 | ≤ 0.4 | |||||
1550nm | dB/km | ≤ 0.3 | ≤ 0.3 | ≤ 0.3 | ||||||
Multimode | ||||||||||||||
Item | Unit | 62.5/125 | 50/125 | OM3-150 | OM3-300 | OM4 | ||||||||
Core Diameter | μm | 62.5±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | 50±2.5 | ||||||||
Cladding Diameter | μm | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | 125±1.0 | ||||||||
Core Non-circularity | % | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ≤ 5.0 | ||||||||
Cladding Non-circularity | % | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ||||||||
Core-cladding Concentricity Error | μm | ≤ 1.5 | ≤ 1.5 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ||||||||
Coating Diameter | μm | 245±7 | 245±7 | 245±7 | 245±7 | 245±7 | ||||||||
Coating Non-circularity | % | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ≤ 6.0 | ||||||||
Cladding-coating Concentricity | μm | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ≤ 12.0 | ||||||||
OFL Bandwidth | 850nm | MHz·km | ≥ 160 | ≥ 500 | ≥ 700 | ≥ 1500 | ≥ 3500 | |||||||
1310nm | MHz·km | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 | ≥ 500 | ||||||||
Attenuation Coefficient | 850nm | dB/km | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 | ≤ 3.0 | |||||||
1310nm | dB/km | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ≤ 1.0 | ||||||||

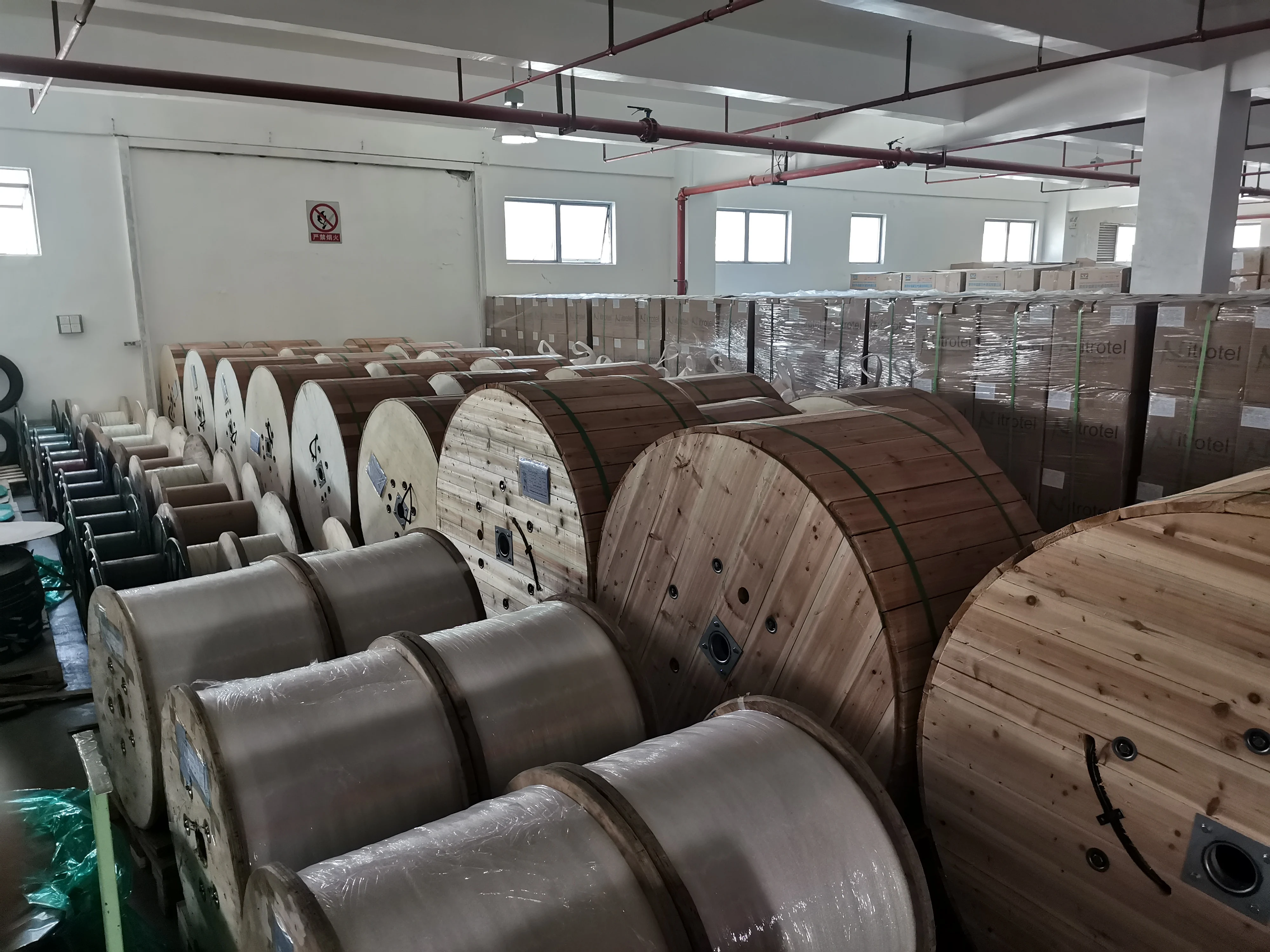

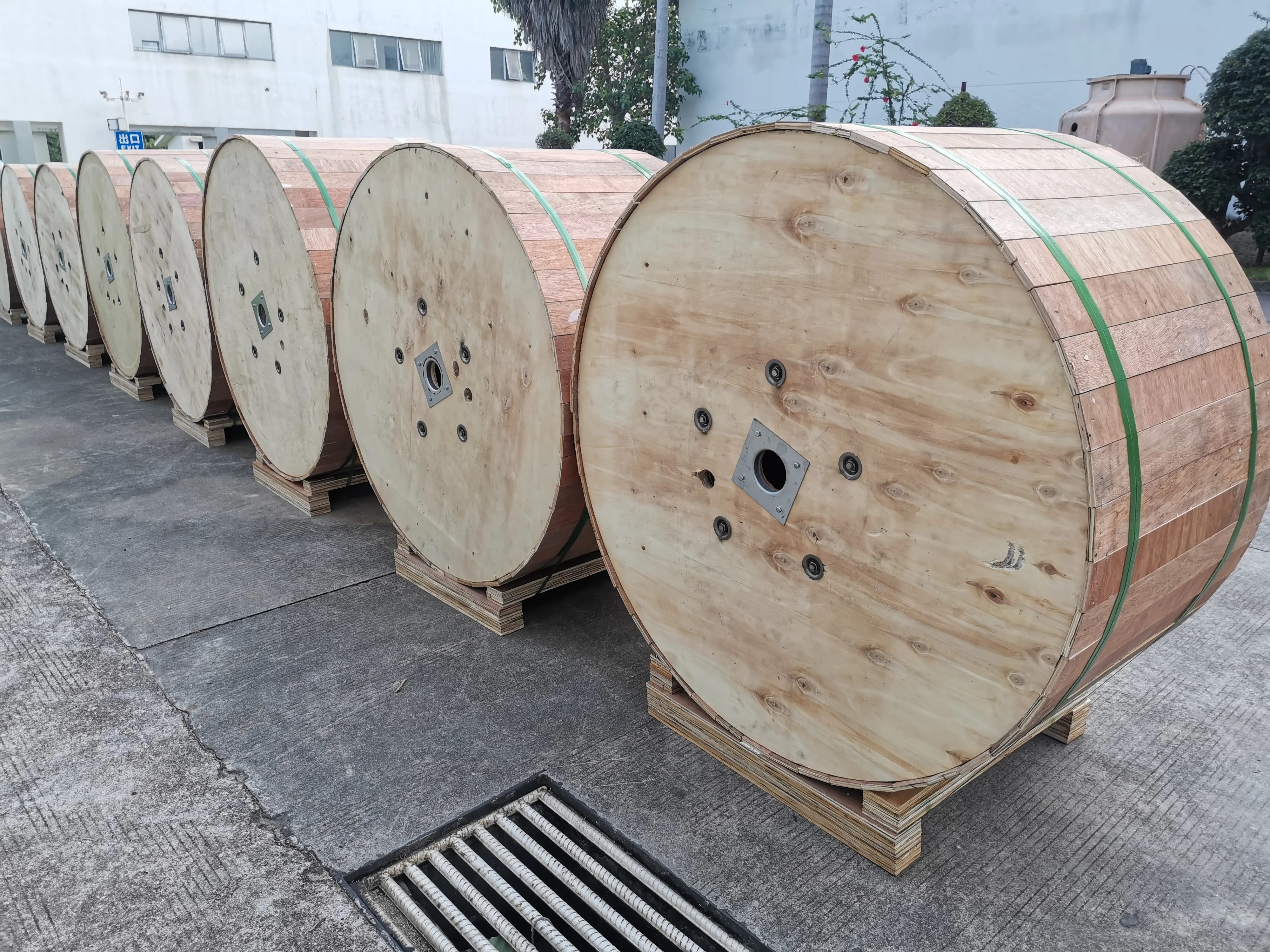

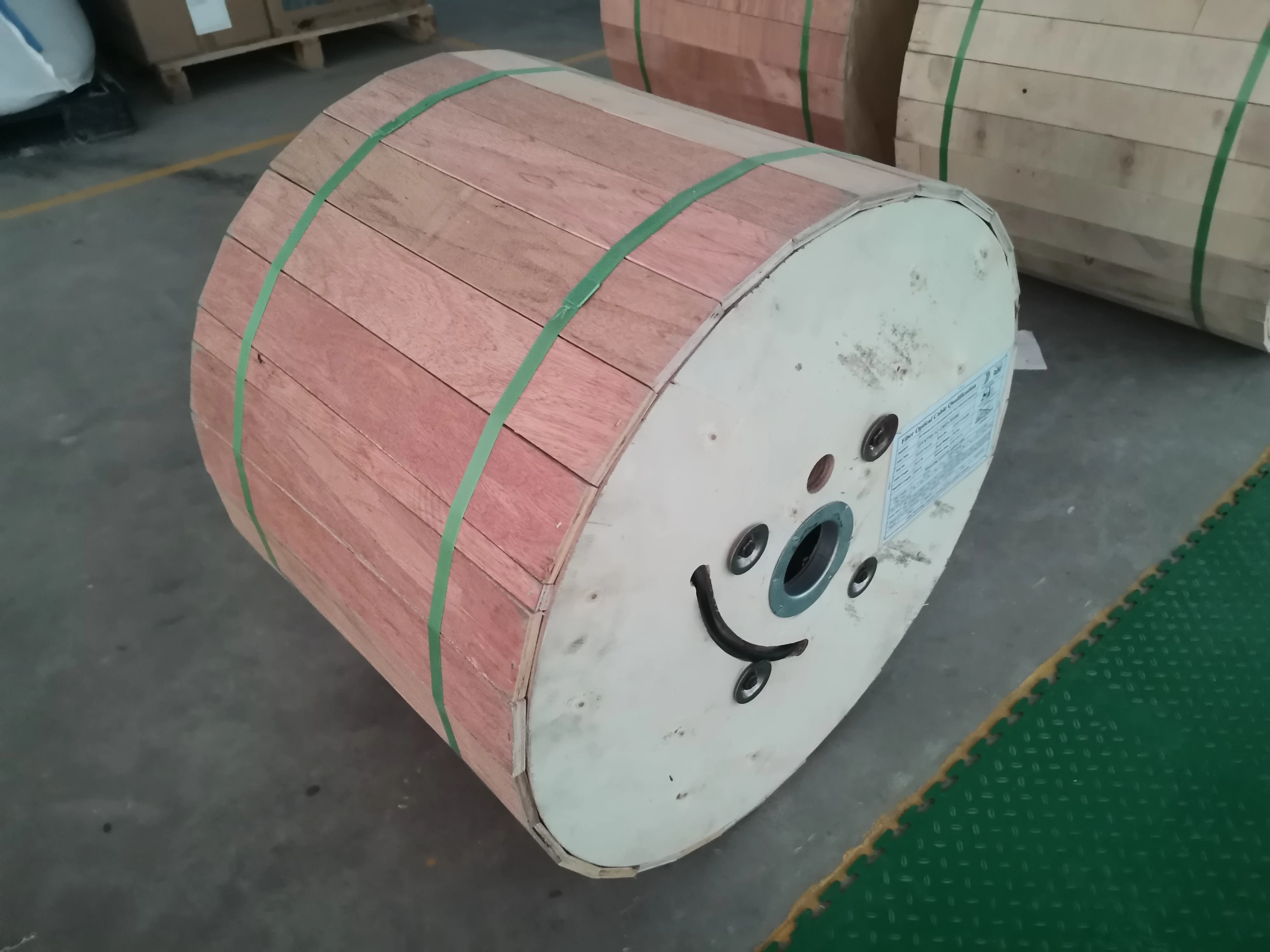

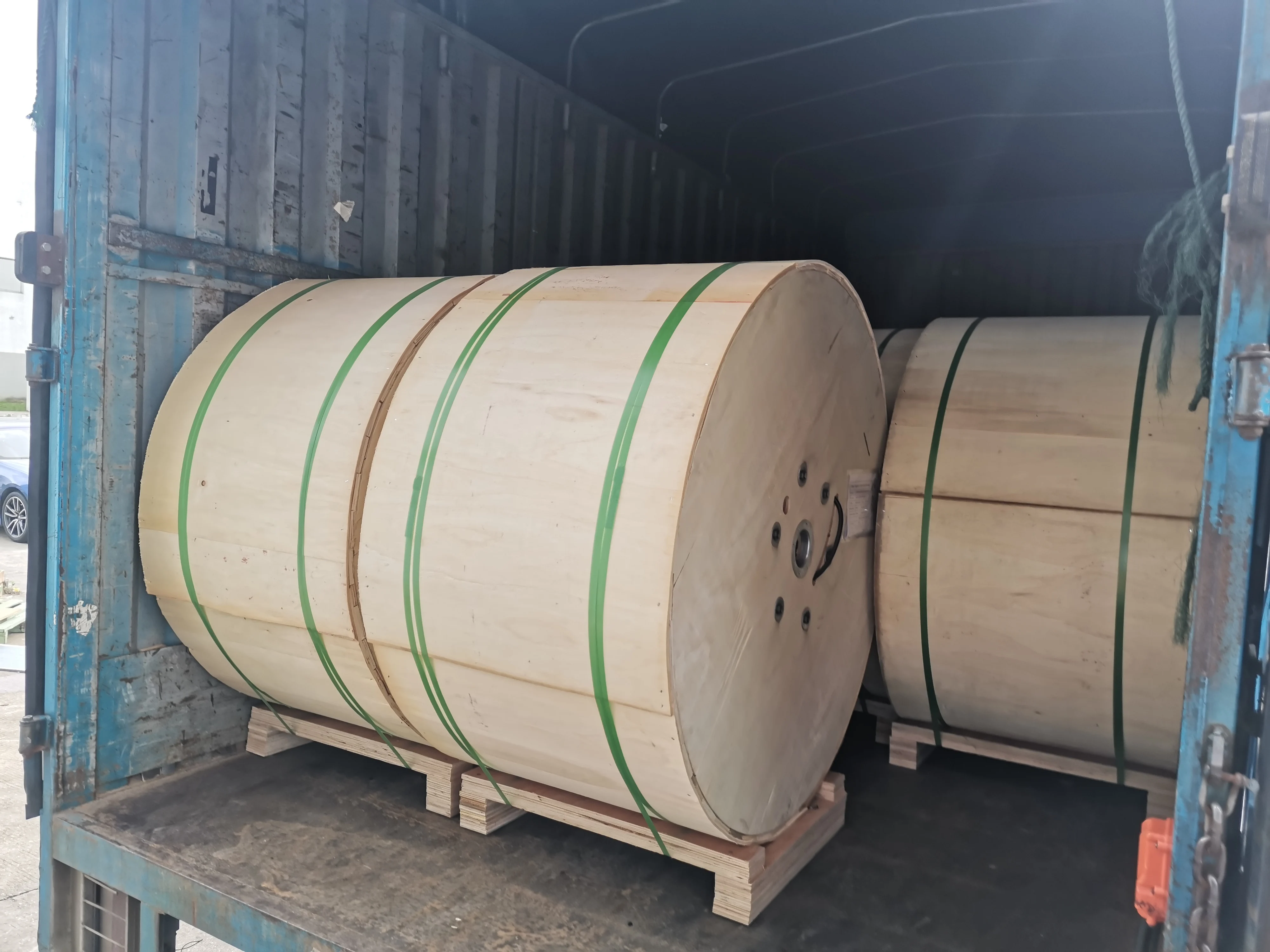

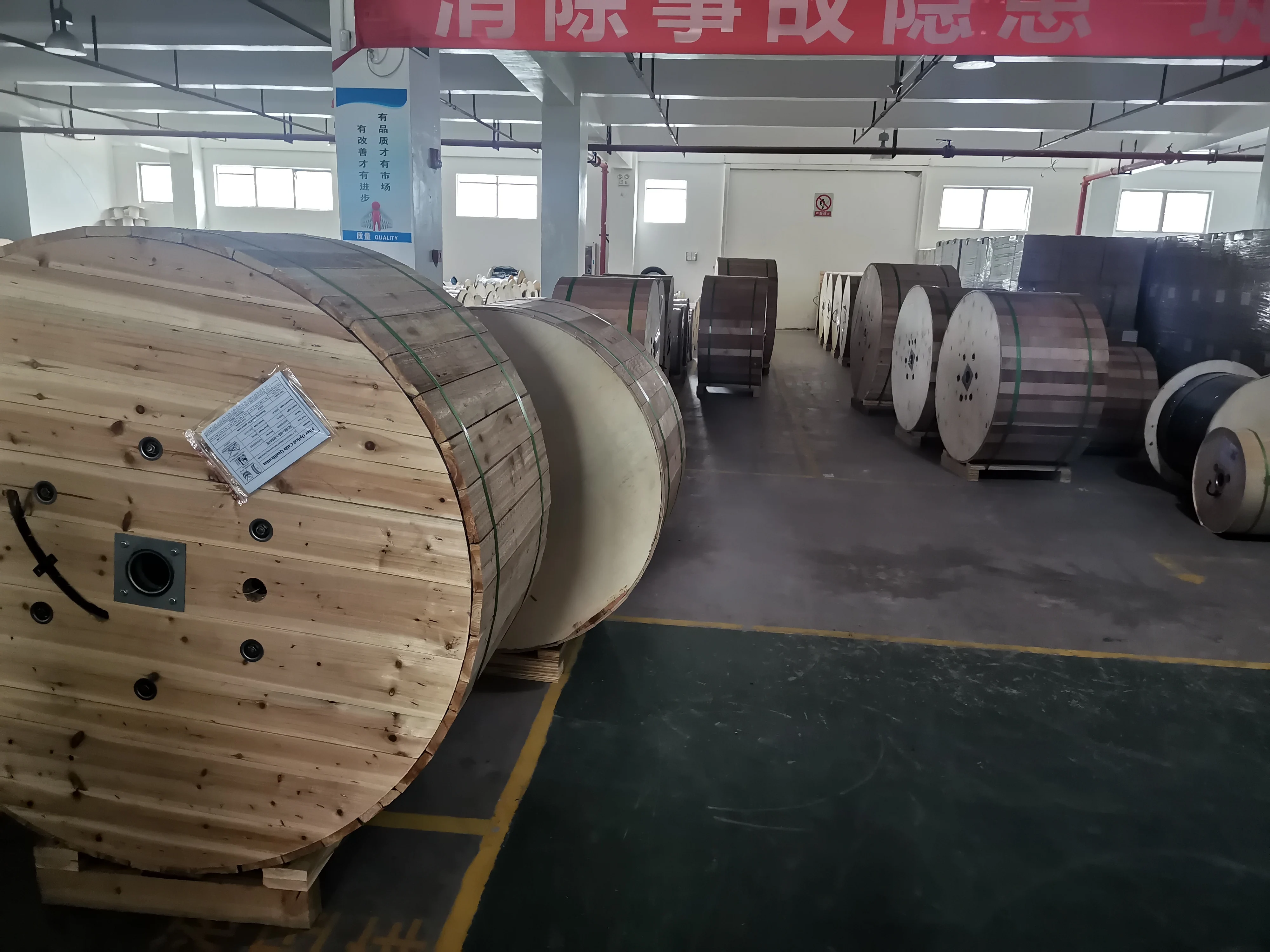

PRODUCT PACKAGING
