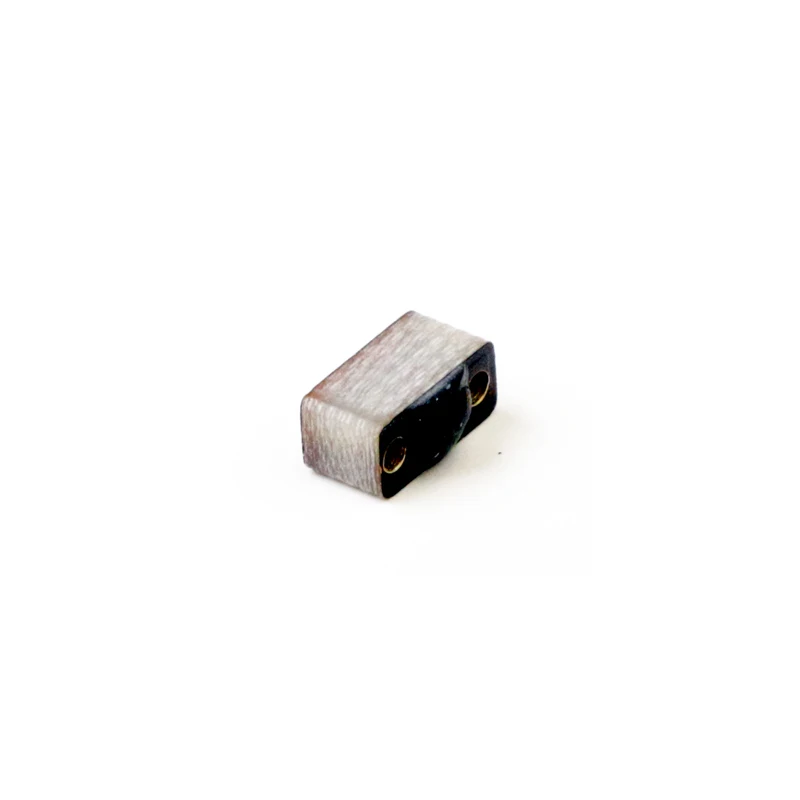

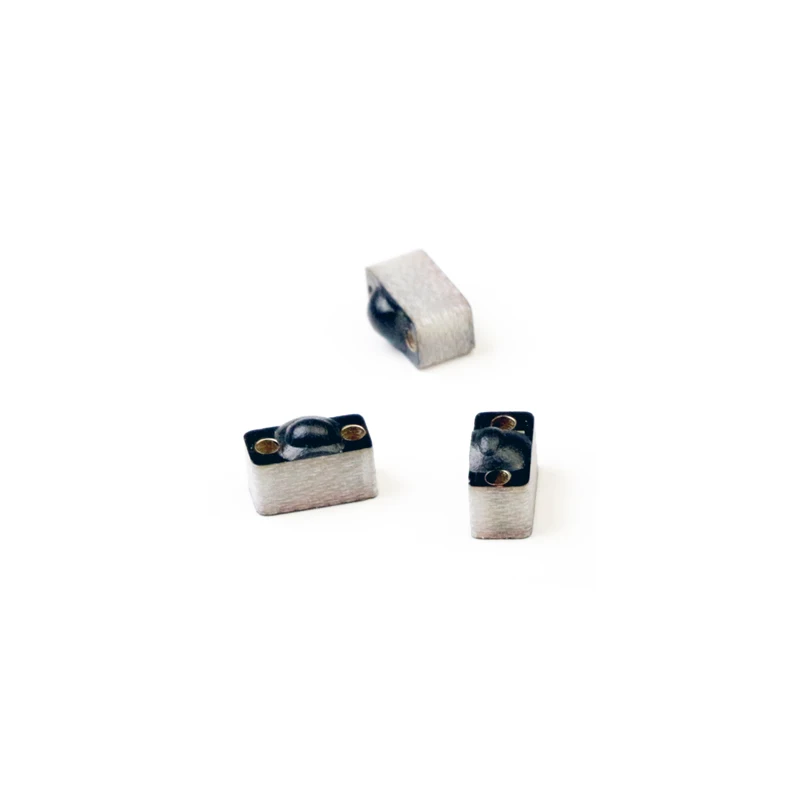

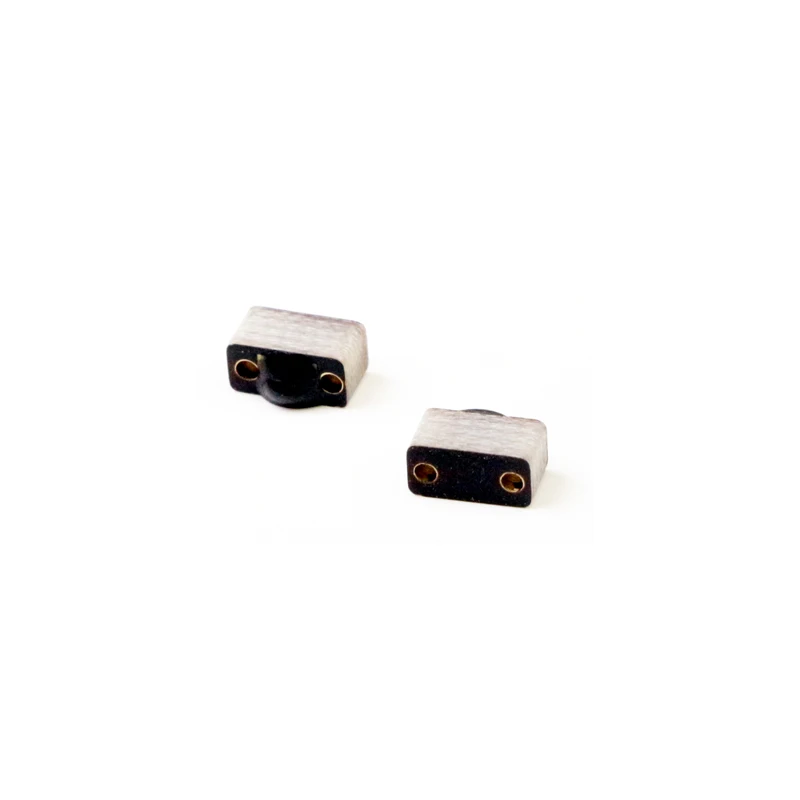

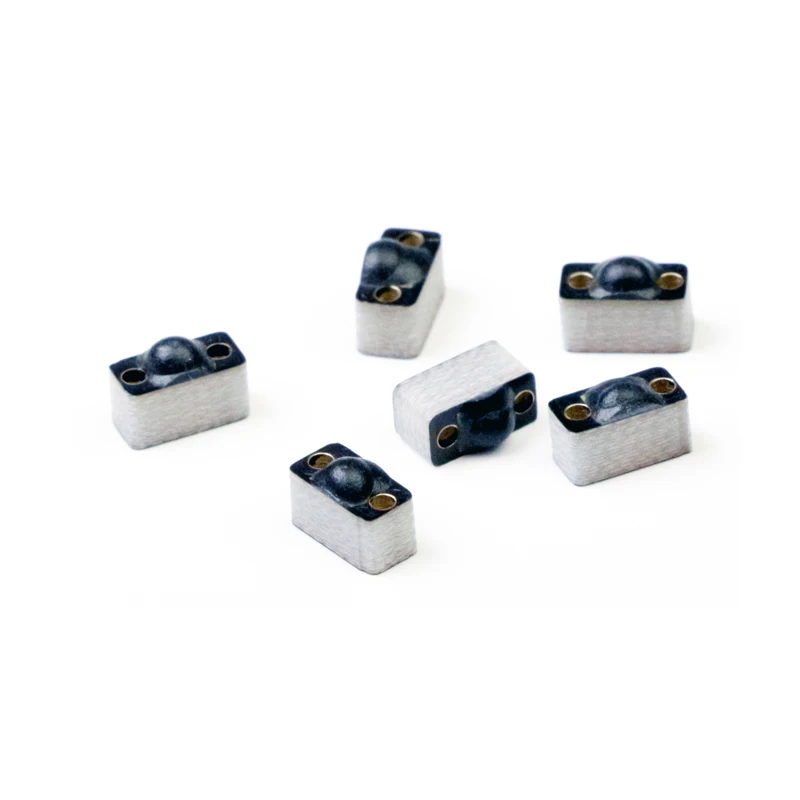

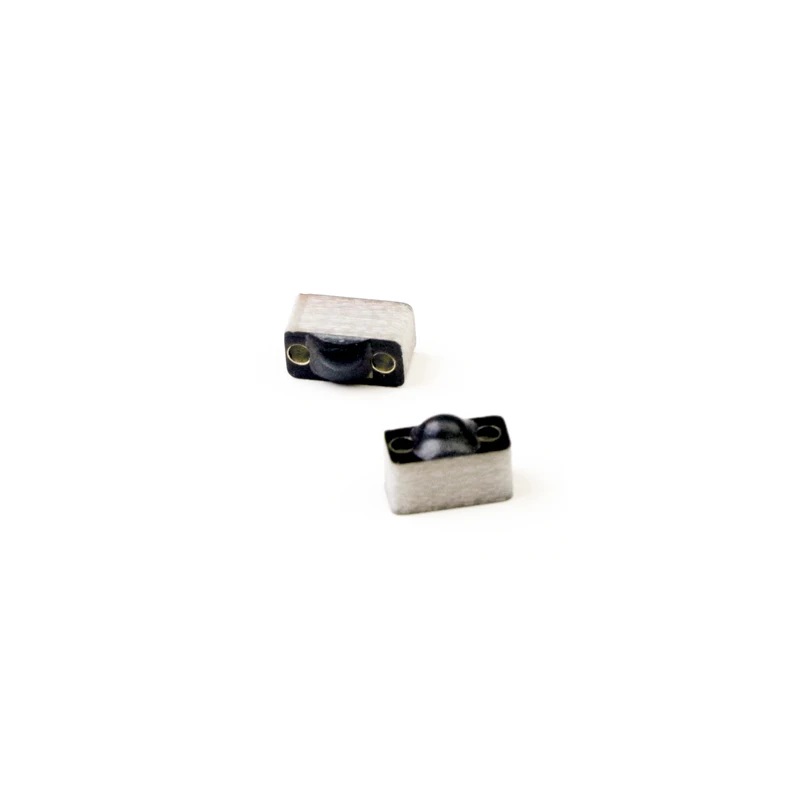

OPPIOT Utra Mini RFID Tag PCB0603 for Access Control & Equipment Authentication
- Category: >>>
- Supplier: Xiamen OPP IOT Technologies Co. Ltd.
Share on (1600329855477):
Product Overview
Description
Product Introduction
UHF Metal Tag everest series: OPP0603
Functional Specifications: | |
RFID Protocol: | EPC Class1 Gen2, ISO18000-6C |
Frequency: | (US) 902-928MHz, (EU) 865-868MHz |
IC Type: | Alien Higgs-3 |
Memory | EPC 96bits (Up to 480bits) , USER 512bits, TID64bits |
Write Cycles: | 100,000 times |
Functionality: | Read/Write |
Data Retantion: | Up to 50 Years |
Applicable Surface: | Metal Surfaces |
Read Range: (Fix Reader: ThingMagic FU-M6-E) | 90cm - (US) 902-928MHz, on metal 80cm - (EU) 865-868MHz, on metal |
Read Range: (Handheld Reader: OP9908, R2000) | 50cm - (US) 902-928MHz, on metal 45cm - (EU) 865-868MHz, on metal |
Warranty: | 1 Year |
Physical Specifications: | |
Size: | 6x3mm |
Thickness: | 4.0mm with IC bump |
Material: | FR4 (PCB) |
Colour: | |
Mounting Methods | |
Weight: | 0.5g |
Environmenal: | |
IP Rating: | IP68 |
Storage Temperature: | -40°С to +150°С |
Operatino Temperature: | -40°С to +100°С |
Certifications: | Reach Approved, RoHS Approved, CE Approved |
