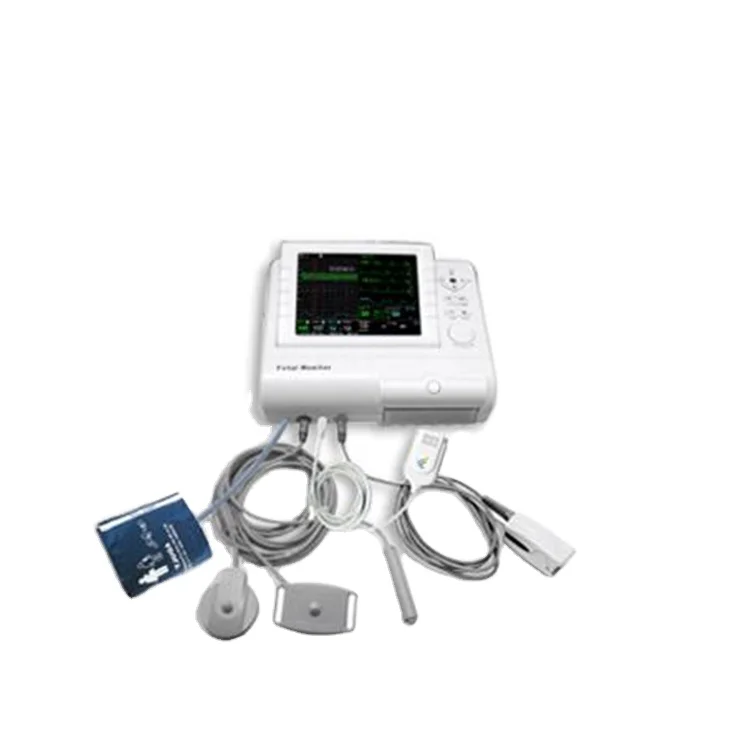

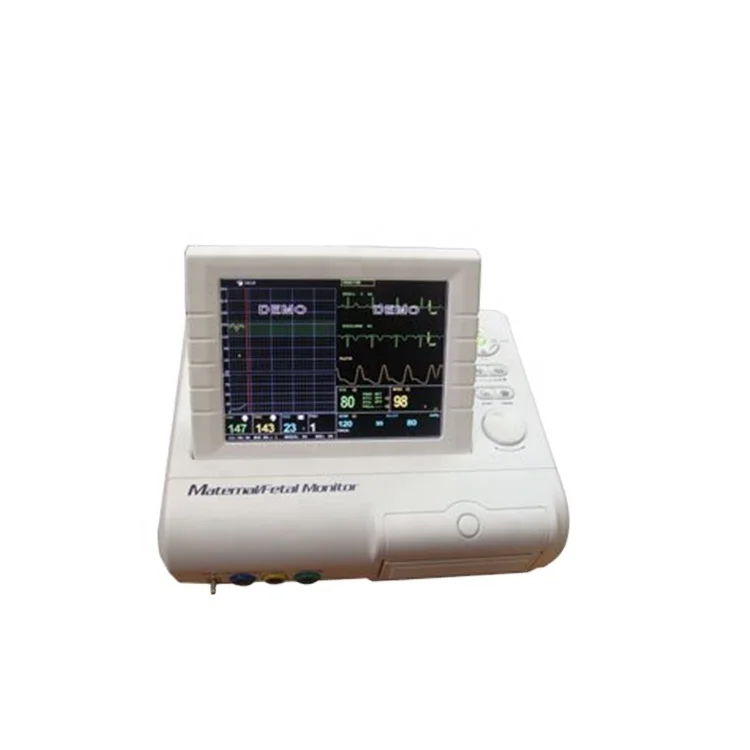

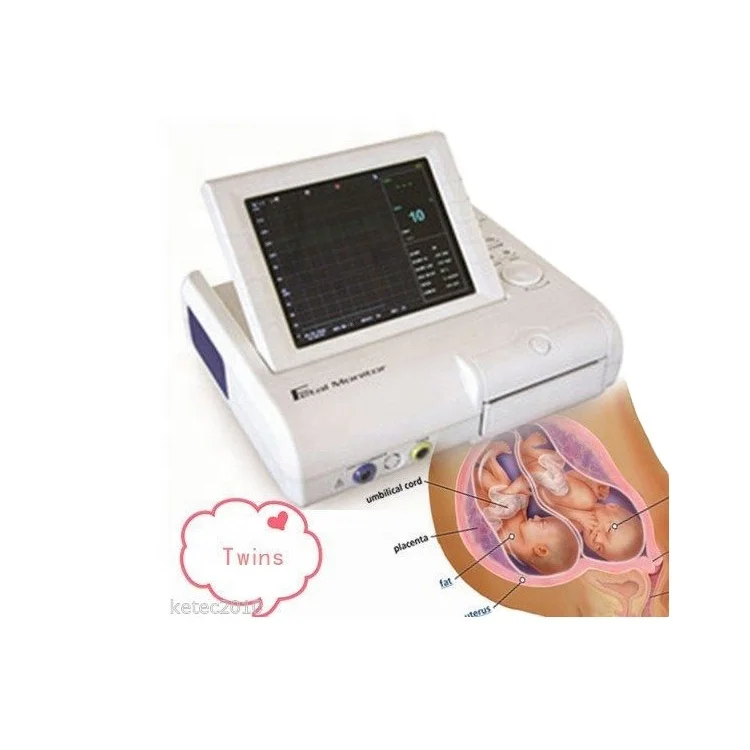

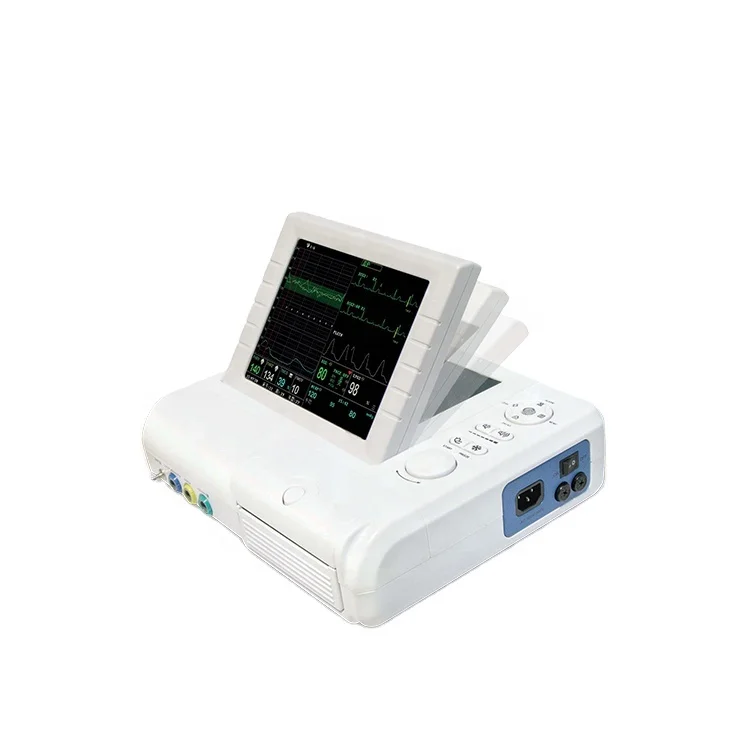

Medical Contec Cms 800f Portable Ctg Optional Twins Maternal Fetal Doppler Heart Rate Monitor
- Category: >>>
- Supplier: Jiangsu Qitai Medical Instrument Co. Ltd.
Share on (1600329872286):
Product Overview
Description
Products Description
Warranty Service | 1 year |
After-sales service | Online technical support |
Origin | Jiangsu, China |
Application | baby |
Model | CMS 800F |
Power Supply | AC 100 ~ 240V, 50/60Hz, Powe < 60VA |
Major Features
1.Single or Twins Ultrasound transducer
2. Data Graph and Trend Table Review of both mother and fetal
3. Built-in thermal printer
4. Built-in Network capability for connect with central monitoring software
5. Programmable alarms
6. All the colors and looks or the parameters can be customsized
7. Multi-face views, select focus on mother or fetal
8. Storage of patient information and data Performance Specifications:
9. Display:8.4" Color TFT
10. Resolution:640x480
11. Display Mode:Standard View,Fetal View,Mother View
12. Indicator:Power indicator light, Alarm sound
13. Interface:Socket for connecting fetal's FHR, TOCO, and
Fetal Movement sensorSocket for connecting mother's ECG,
NIBP and SPO2 sensor. Net Socket(RJ45) for communication cable with
Central Monitoring Station Sofrware.
13. Power Supply:AC 100 ~ 240V, 50/60Hz, Powe < 60VA
14. Trend Graph:Resolution from 1s, 5s, 10s. Maximum time 96 hours.
15. Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000 items.
16. Alarm:Ajustable High and Low limits. Three level audible and vistual alarm.
17. User Configuration:All the color of parameters and waves can be set according to user's willing.
Specification
Type of protection against electric shock: Class Ⅰ
Degree of protection against electric shock:
FHR1, FHR2, TOCO, FMOV, NIBP: type BF applied part
ECG, SpO2: type CF applied part
Voltage: AC 100 V~240 V
Frequency: 50/60 Hz
P<60 VA
Fuse: T1.6AL250V
Display
8.0"color LCD display, 60° convertible screen
Display contents: bed No., pregnancy weeks, age, paper speed, time, volume, alarm status, transducer connection status, recorder
status, FHR data and curve, contraction data and curve, fetal movement times and mark, ECG data and curve, SpO2 data and curve,
NIBP data, etc.
Print
Recording paper: Z-type thermal printing paper
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
Recording contents: hospital name, patient name, case No., bed No., pregnancy weeks, paper speed, date, time, FHR curve,
contraction curve, fetal movement mark, etc.
Trend Recall
Short trend: 1h, resolution: 1s, 5s
Long trend: 72h, resolution: 1, 5, 10 minutes
Alarm event recall:
Recall for 71 alarm events of all parameters and 8/16/32 seconds of corresponding waveform.
Arrhythmia alarm event recall:
Recall for 60 alarm events of arrhythmia and 8 seconds of corresponding waveform
NIBP measurement recall:
Recall for the latest 400 NIBP measurement data
Ultrasound probe
Nominal frequency: 1.0 MHz
Work frequency: 1.0 MHz±10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time space peak intensity: Ispta<100 mW/cm2
The average time space peak intensity: Isata<10 mW/cm2
FHR
Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ±2 BPM
TOCO
Range: 0~100%
Resolution: 1%
Nonlinear error: ≤±10%
RZ way: manual
Fetal Marking
Manual button
ECG
Lead Mode: 3-lead (I, II, III)
5-lead (I, II, III, aVR, aVL, aVF, V)
Waveform: 3-lead, 1-channel
5-lead, 2-channel
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV
HR
Measurement and alarm range: 15~300 bpm
Resolution: 1 bpm
Accuracy: ±1% or ±1 bpm, whichever is greater
NIBP
Measurement method: Oscillometry
Mode: manual, automatic, continuous
Measuring interval in automatic mode : 1, 2, 3, 4, 5, 10, 15, 30, 60, 90 min
Measuring period in continuous mode: 5 min
Alarm type: SYS, DIA, MEAN
Measurement and alarm range:
SYS :40 mmHg ~ 270 mmHg
DIA :10 mmHg ~ 215 mmHg
MEAN: 20 mmHg ~ 235 mmHg
Resolution:
Pressure: 1 mmHg
Cuff accuracy: ±3 mmHg
Measurement accuracy:
Maximum mean error: ±5 mmHg
Maximum standard deviation: 8 mmHg
Overpressure protection: 297±3 mmHg
SpO2
Measurement and alarm range: 0~100 %
Resolution: 1 %
Accuracy : 70~100%, ±2 %
0~69%, unspecified
Pulse Rate
Measurement range: 25 BPM~250 BPM
Alarm range: 0 BPM~254 BPM
Resolution: 1 BPM
Accuracy : ±2 bpm or ±2 %, whichever is greater
1.Single or Twins Ultrasound transducer
2. Data Graph and Trend Table Review of both mother and fetal
3. Built-in thermal printer
4. Built-in Network capability for connect with central monitoring software
5. Programmable alarms
6. All the colors and looks or the parameters can be customsized
7. Multi-face views, select focus on mother or fetal
8. Storage of patient information and data Performance Specifications:
9. Display:8.4" Color TFT
10. Resolution:640x480
11. Display Mode:Standard View,Fetal View,Mother View
12. Indicator:Power indicator light, Alarm sound
13. Interface:Socket for connecting fetal's FHR, TOCO, and
Fetal Movement sensorSocket for connecting mother's ECG,
NIBP and SPO2 sensor. Net Socket(RJ45) for communication cable with
Central Monitoring Station Sofrware.
13. Power Supply:AC 100 ~ 240V, 50/60Hz, Powe < 60VA
14. Trend Graph:Resolution from 1s, 5s, 10s. Maximum time 96 hours.
15. Trend Table:Resolution from 1s, 5s, 10s. Review up to 1000 items.
16. Alarm:Ajustable High and Low limits. Three level audible and vistual alarm.
17. User Configuration:All the color of parameters and waves can be set according to user's willing.
Specification
Type of protection against electric shock: Class Ⅰ
Degree of protection against electric shock:
FHR1, FHR2, TOCO, FMOV, NIBP: type BF applied part
ECG, SpO2: type CF applied part
Voltage: AC 100 V~240 V
Frequency: 50/60 Hz
P<60 VA
Fuse: T1.6AL250V
Display
8.0"color LCD display, 60° convertible screen
Display contents: bed No., pregnancy weeks, age, paper speed, time, volume, alarm status, transducer connection status, recorder
status, FHR data and curve, contraction data and curve, fetal movement times and mark, ECG data and curve, SpO2 data and curve,
NIBP data, etc.
Recording paper: Z-type thermal printing paper
Print width: 112 mm
Valid print width: 104 mm
Paper speed: 1 cm/min, 2 cm/min, 3 cm/min(optional)
Recording contents: hospital name, patient name, case No., bed No., pregnancy weeks, paper speed, date, time, FHR curve,
contraction curve, fetal movement mark, etc.
Trend Recall
Short trend: 1h, resolution: 1s, 5s
Long trend: 72h, resolution: 1, 5, 10 minutes
Alarm event recall:
Recall for 71 alarm events of all parameters and 8/16/32 seconds of corresponding waveform.
Arrhythmia alarm event recall:
Recall for 60 alarm events of arrhythmia and 8 seconds of corresponding waveform
NIBP measurement recall:
Recall for the latest 400 NIBP measurement data
Ultrasound probe
Nominal frequency: 1.0 MHz
Work frequency: 1.0 MHz±10%
Negative peak sound pressure : p_<1 MPa
Output beam intensity : Iob<20 mW/cm2
The peak time space peak intensity: Ispta<100 mW/cm2
The average time space peak intensity: Isata<10 mW/cm2
FHR
Range: 50 BPM~240 BPM
Resolution: 1 BPM
Accuracy: ±2 BPM
TOCO
Range: 0~100%
Resolution: 1%
Nonlinear error: ≤±10%
RZ way: manual
Fetal Marking
Manual button
ECG
Lead Mode: 3-lead (I, II, III)
5-lead (I, II, III, aVR, aVL, aVF, V)
Waveform: 3-lead, 1-channel
5-lead, 2-channel
Gain: 2.5 mm/mV, 5.0 mm/mV, 10 mm/mV, 20 mm/mV
HR
Measurement and alarm range: 15~300 bpm
Resolution: 1 bpm
Accuracy: ±1% or ±1 bpm, whichever is greater
NIBP
Measurement method: Oscillometry
Mode: manual, automatic, continuous
Measuring interval in automatic mode : 1, 2, 3, 4, 5, 10, 15, 30, 60, 90 min
Measuring period in continuous mode: 5 min
Alarm type: SYS, DIA, MEAN
Measurement and alarm range:
SYS :40 mmHg ~ 270 mmHg
DIA :10 mmHg ~ 215 mmHg
MEAN: 20 mmHg ~ 235 mmHg
Resolution:
Pressure: 1 mmHg
Cuff accuracy: ±3 mmHg
Measurement accuracy:
Maximum mean error: ±5 mmHg
Maximum standard deviation: 8 mmHg
Overpressure protection: 297±3 mmHg
SpO2
Measurement and alarm range: 0~100 %
Resolution: 1 %
Accuracy : 70~100%, ±2 %
0~69%, unspecified
Pulse Rate
Measurement range: 25 BPM~250 BPM
Alarm range: 0 BPM~254 BPM
Resolution: 1 BPM
Accuracy : ±2 bpm or ±2 %, whichever is greater
