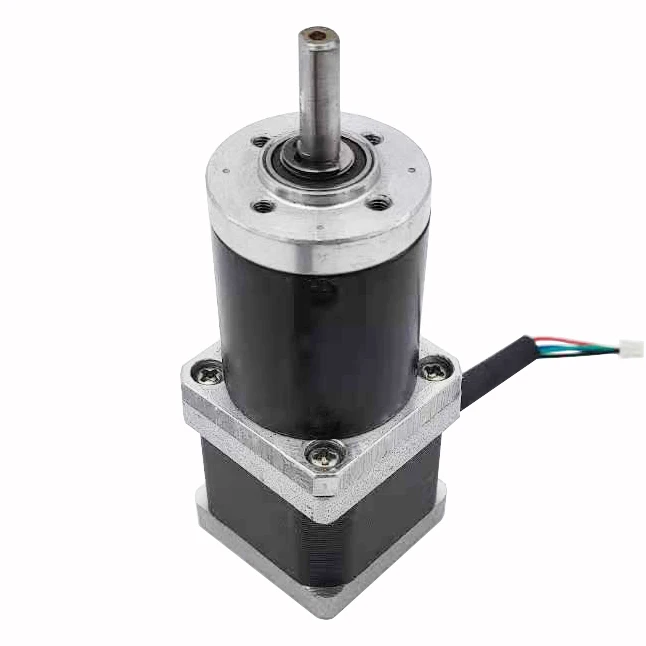

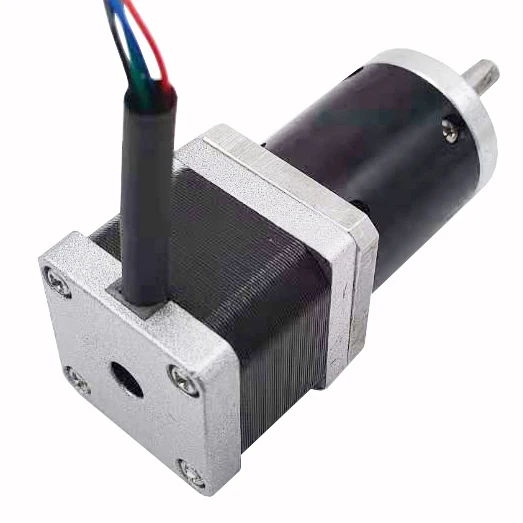

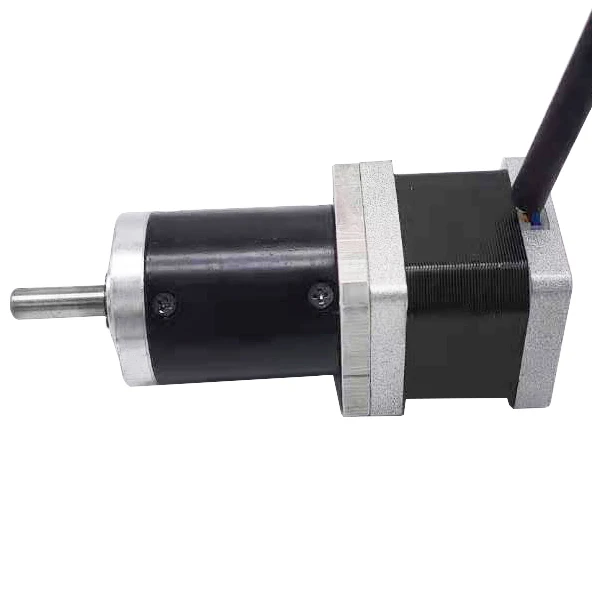

High Torque Nema14 Hybrid Stepper Motor 35mm Planetary Gearbox Stepper Motor
- Category: >>>
- Supplier: Changzhou Vic-Tech Motor Technology Co. Ltd.
Share on (1600329925073):
Product Overview
Description
Product Description
35BYG product is a hybrid stepping motor with a square size of 35*34. The length may be adjusted according to the requirements of
power, etc., and the range is generally between 20~51mm. The length of the planetary gear reducer is between 30.9~44.1mm. The gear
reduction ratio of this motor is 1:51. The gear reduction ratio can be customized according to customer requirements.It can be
re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is
widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!
power, etc., and the range is generally between 20~51mm. The length of the planetary gear reducer is between 30.9~44.1mm. The gear
reduction ratio of this motor is 1:51. The gear reduction ratio can be customized according to customer requirements.It can be
re-evaluated after special request.
Hybrid stepping motor has the advantages of high control precision, high transmission resolution and large output torque. It is
widely used in engraving machines, medical equipment, stage lighting, precision instruments and other fields.
The necessary driving device or control device for the customer can cooperate with the customer for development.
The basic step angle of the motor is 1.8 degrees.
At the same time, we can provide the same size products with a step angle of 0.9 degrees!

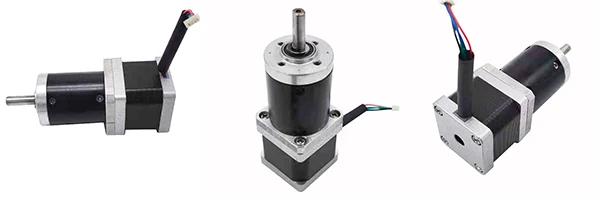

Product: picture:

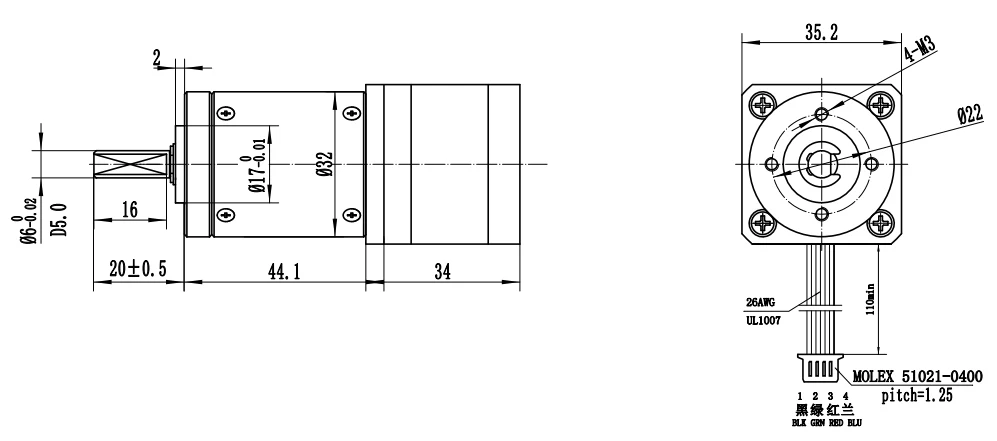

Design Layout (Unit:mm)
Specification
Model No. | 35BYGH34-51PG WX |
Motor diameter | 35mm |
Rated Voltage | 5 V DC |
Coil Resistance | 10±10% ohm/PHASE |
No.Of Phases | 2 Phases |
Step Angle | 1.8° |
Inductance | 12±20%mH |
Insulation Class | B |
Mass | 0.22kg |
OEM & ODM SERVICE | AVAILABLE |
GEAR RATIO | 1:3.7~139 |
Packing & Delivery
Selling Units:\tSingle item
plastic box inner , outer paper box
Package: single carton packing, 100 - 1000 pieces per box.
Lead Time : 30 Days After Deposit
plastic box inner , outer paper box
Package: single carton packing, 100 - 1000 pieces per box.
Lead Time : 30 Days After Deposit
