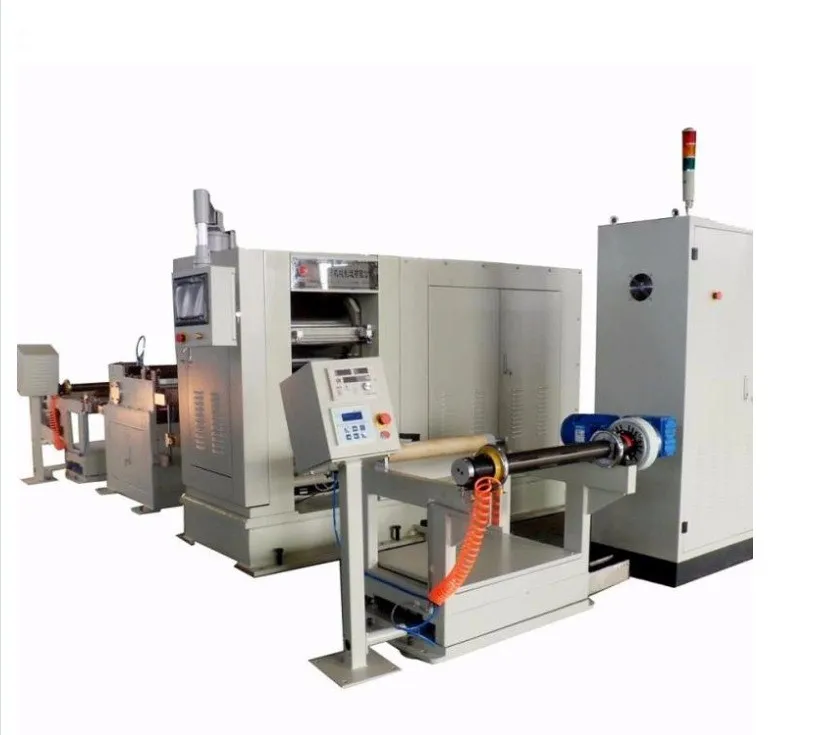

Hot Roller Press Calendering Machine For Li Ion Battery Production Line

continuous rolling press for lithium battery

RM adapt to continuous rolling process for all kinds of lithium battery anode and cathode.

1. Rolling speed: 2~12r/pm, CVT adjustable.

2. Roller material: 9 Cr2Mo, Roller surface hardness: HRC 65~68

3. Gap adjustment method: Servo motor drive the middle wedge to adjust, mechanical self-locking.

4. Roller gap adjustment range: 0~2mm

5. Roller gap adjustment accuracy:1μm

6. Thickness uniformity of pole sheet after rolling: ≤±2μm. Maximum rolling force:3000KN We provide a full ranges of Li ion cell making Machine.

1.by courier, like DHL,UPS,FEDEX,etc.usually,3-4 days to arrive.

2.by air to the air port,usually5-7 days to arrive.

3.by sea to sea port,ususally,15-30 days to arrive.

if you delivery time is very urgent, we suggest you choose by courier or by air.

if it not very urgent,we will suggest you choose by sea,it is very cheap.

Our  company whom set up the purpose to introduce foreign furnace industry design technology integrate the domestic ressources, Our product mainly applied to research lab and civil new material production field..whether the high-end technology needs or funds limited users can use the advace technology of heating treatment equipment .

What is the MOQ ?
A1 set for our standard furnace
QCan I ask for special designs?
ASure! And it's Free!
QCan I get a lower price if I order large quantities?
AYes, cheaper prices with more bigger size orders.
QCan I send the sample to you to test the furnace before I buy it ?
AYes, and the testing is Free!

QWhen you ship my order?
ANormally 30 days after receiving your payment or based on order qty and production schedule.
