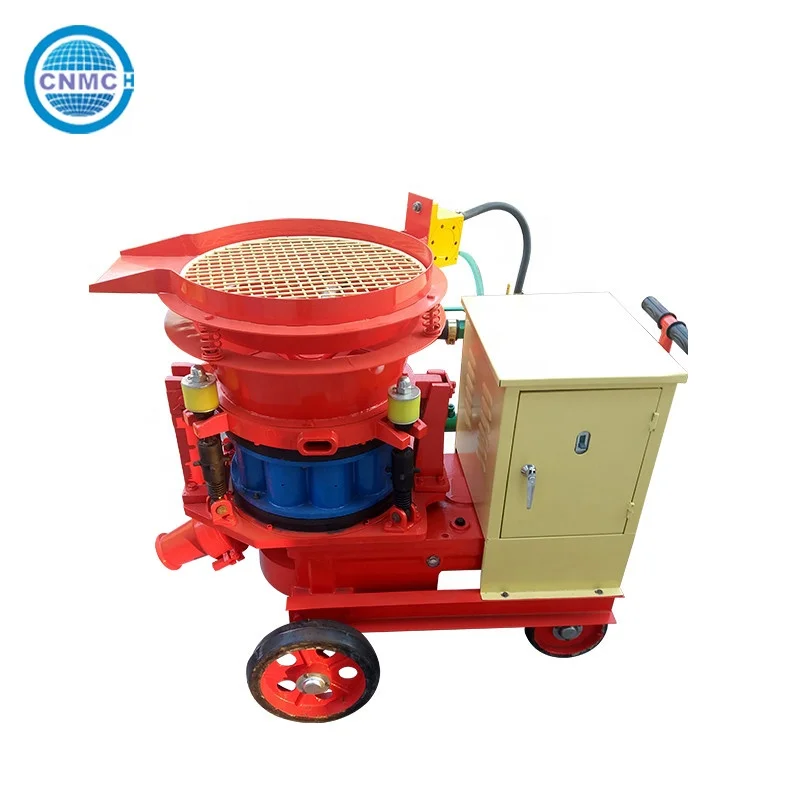

China Factory 3m3/h 5m3/h 7m3/h 9m3/h Concrete Dry Shotcrete Machine For Sale
- Category: Shotcrete Machine >>>
- Supplier: Jining China Machinery Import And Export Co. Ltd.
Share on (1600329955510):
Product Overview
Description
Product Description
Dry electrical shotcrete machine is a device used for dry concrete shooting. It have the advantages of advanced technology, reasonable structure, stable performance, convenient operation and maintenance, long service life, etc.. It is widely used in mine, tunnel, culvert, subway, underground engineering and coal mine drainage tunnel construction work.
parameters
Model | PZ-6 | PZ-9 | |
Spaying capacity | 6-8m³/h | 9-10m³/h | |
Max. grain size | 20mm | 20mm | |
Group aggregate fineness modulus | ≥2.5 | ≥2.5 | |
Liquid accelerator dosage | 0 | 0 | |
Conveying hose diameter | 51mm | 57mm | |
Concrete slump | 10-20cm | 10-20cm | |
System wind pressure | ≥0.5MPa | ≥0.5MPa | |
Working wind pressure | 0.4-0.6MPa | 0.4-0.6MPa | |
Air consumption | ≥12m³/min | ≥12m³/min | |
Maximum conveying distance | Horizontal | 200m | 100m |
Vertical | 200m | 100m | |
Machine dust | ＜10mg/m³ | ＜10mg/m³ | |
Rebound（under standard process conditions）（%） | ≤20 | ≤20 | |
main motor power | 7.5kW | 7.5kW | |
Dimensions（L × W× H） | 1600×800×1200mm | 1700×900×1200mm | |
weight | 650kg | 850kg | |
Disclaimer: TXSL company reserves the right to change this specification without further notice. | |||

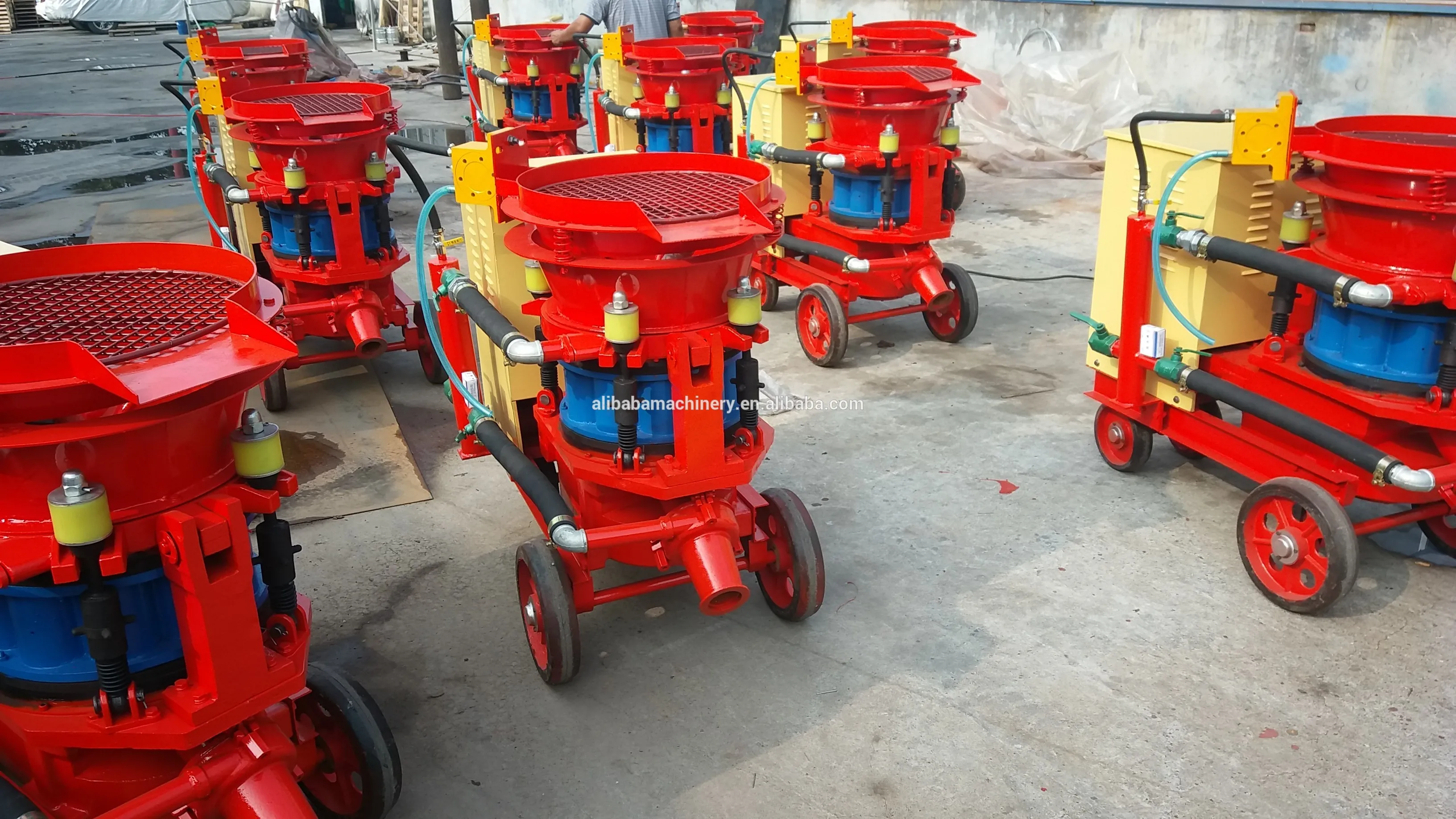

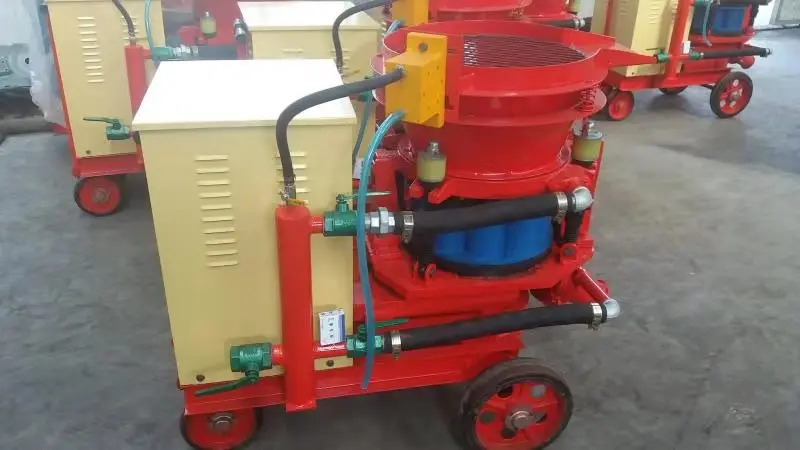

Details Images
Packing and delivery
Exhibition
Group Project
Company Profile
Contact Us
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your contact information?
A: Our Whatsapp/Wechat is +86-18853733111,E-mail address:sales @chinamachinery.cn
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 15 to 30 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your contact information?
A: Our Whatsapp/Wechat is +86-18853733111,E-mail address:sales @chinamachinery.cn
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
