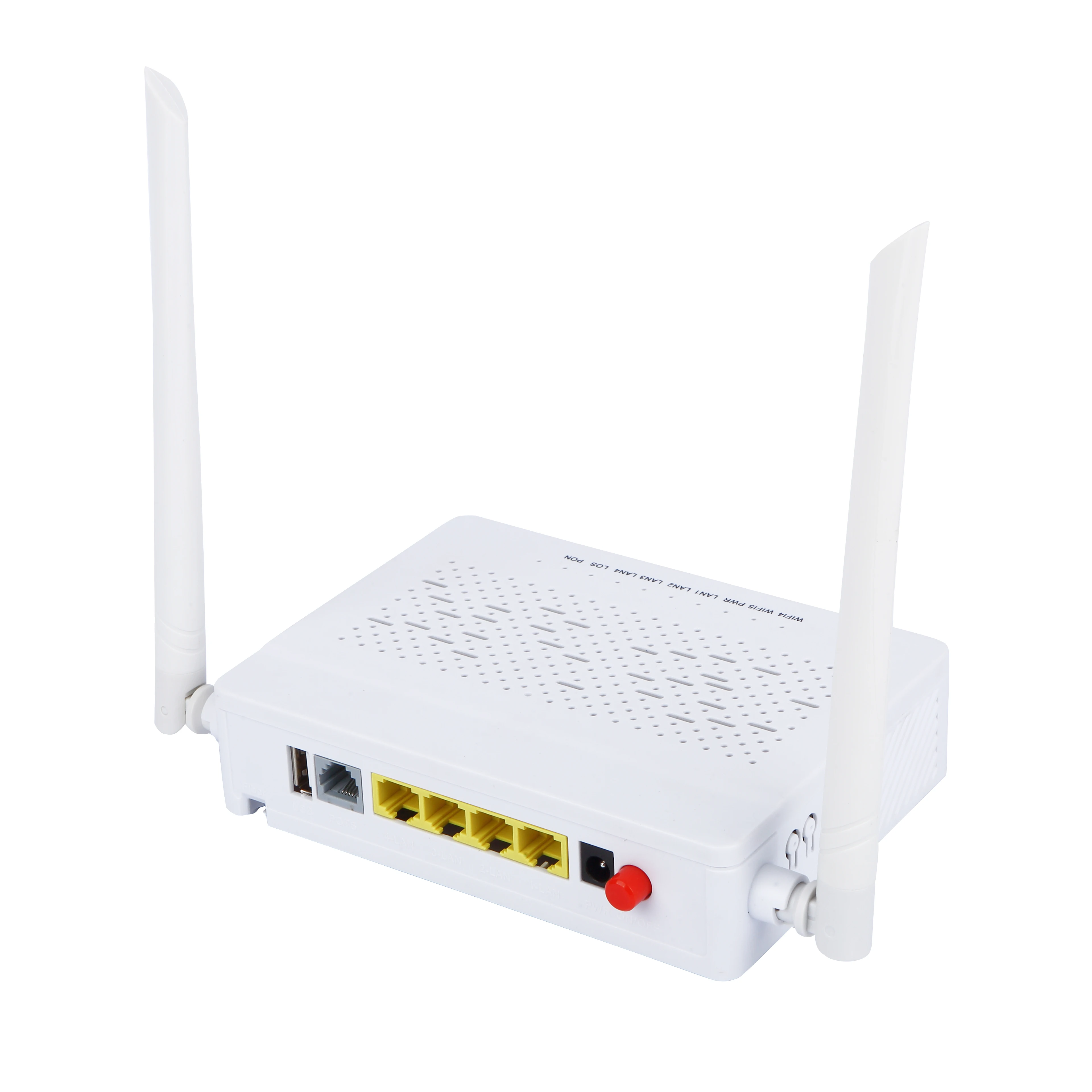

4GE LAN 2.4 Ghz 5 Ghz AC WiFi 1POTs ONU GPON XPON ONU ONT Dual Band GPON ONT
- Category: >>>
- Supplier: APT Prosper Technology Co. Ltd
Share on (1600329970633):
Product Overview
Description
ONU Basic Feature
AP3434G4R ONU product is the terminal equipment of a series of xPON which comply fully with ITU-G.984.1/2/3/4 standard and meet the energy-saving of G.987.3 protocol,ONU is based on mature and stable and high cost-effective GPON technology which adopts high-performance xPON REALTEK chipset and has high reliability， easy management，flexible configuration，robustness，good quality service guarantee(Qos).
supports the G/E PON switching function automatically.

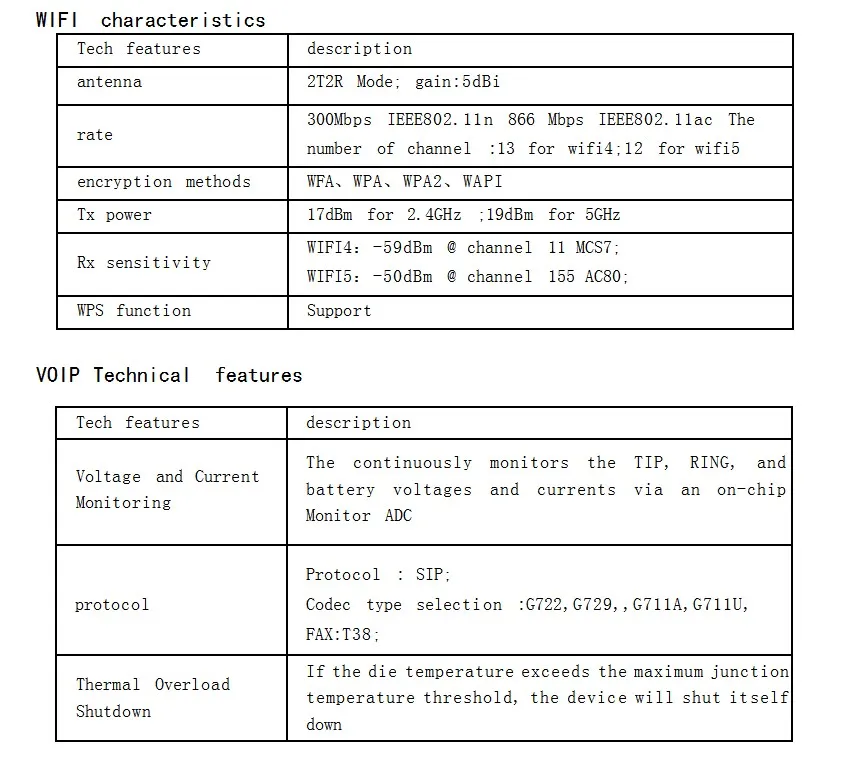

supports WIFI4 (IEEE802.11b/g/n) and WIFI5 (IEEE802.11ac) concurrently ,a WEB system provided simplifies the configuration of the WIFI and connects to INTERNET conveniently for users.
supports the G/E PON switching function automatically.
supports a RJ11 interface for VOIP applications.
Datasheet | ||||
Tech parameters | Description | |||
Up-link interface | EPON Mode | 1 EPON interface，SC single mode single fiber | ||
1 Gbits/s rate which uplink and downlink are symmetrical | ||||
Fiber type：SC/PC | ||||
TX Optical power：-1 士 4 dBm | ||||
RX Sensitivity：-26 dBm | ||||
safety: ONU authentication mechanism | ||||
GPON Mode | 1 GPON interface，SC single mode single fiber | |||
RX 2.488 Gbits/s rate and TX 1.244 Gbits/s rate | ||||
Fiber type：SC/PC | ||||
TX Optical power：0~4 dBm | ||||
RX Sensitivity：-28 dBm | ||||
safety: ONU authentication mechanism | ||||
Wavelength(nm) | TX 1310nm，RX 1490nm | |||
Fiber connector | SC/PC,SC/UPC,SC/APC | |||
Down-link data interface | 4*10/100/1000M auto-negotiation Ethernet interface, RJ45 interface | |||
DC supply interface | input＋12V 1A，footprint：DC0005 ø2.1MM | |||
Power | ≤5W | |||
Operating temperature | -5～+55℃ | |||
Humidity | 10～85%（non-condensation) | |||
Storage temperature | -30～+70℃ | |||
Dimension（MM） | 185*125*32mm（mainframe） | |||
Weight | 0.5Kg（mainframe） | |||
For more information, please send inquiries ! *************************************************
Company Profile
APT Prosper Technology Co., LTD (Abb: APTTEK) is headquartered in the Science City of Shenzhen. Under the trend of national revival, the company’s technological innovation and industrialization capability has a rapid growth in the innovation atmosphere.
As a National High-tech Enterprise, Software Enterprise, Private High-tech Enterprise, APTTEK always focus on the FTTx and VoIP Gateway products development, production and sales.
APTTEK has an experienced R&D team. Production base covers total area of 1000 square meters. The main products have passed 3C, CE certifications. The production line imported automatic production & testing system and manufacturing execution system (MES), which improved the digitization of manufacturing, controllability & traceability of production process, production capacity & efficiency, and quality control.Moreover, the company also imported TechExcel project management system in R&D management, which improved the management capability of requirements management, schedule management and risk management.
As a National High-tech Enterprise, Software Enterprise, Private High-tech Enterprise, APTTEK always focus on the FTTx and VoIP Gateway products development, production and sales.
APTTEK has an experienced R&D team. Production base covers total area of 1000 square meters. The main products have passed 3C, CE certifications. The production line imported automatic production & testing system and manufacturing execution system (MES), which improved the digitization of manufacturing, controllability & traceability of production process, production capacity & efficiency, and quality control.Moreover, the company also imported TechExcel project management system in R&D management, which improved the management capability of requirements management, schedule management and risk management.
1. Can we get a lower price? Any Discount?
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that APTTEK is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, APTTEK havS strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW SHENZHEN
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
Yes, price is not a problem, everything could be negotiated based on the quantity.
2. Can I get a free sample?
Sorry that APTTEK is not available to new customer.
3. We are new in this PON fields, can you help me and recommend me some items?
Yes, of course. It is our pleasure to help you with it.
You only need to offer us more details about your application.
4. What is your MOQ?
No MOQ for any sample test.
5. OEM/ODM Service is available?
Yes, APTTEK havS strong ability to offer customers ODM&OEM products of highest quality.
And it will require the MOQ.
6. For Trade Terms, such as payment and leadtime.
* Payment Terms: We mainly support T/T bank transfer,Paypal and Western Union
* Price Terms: EXW SHENZHEN
* Shipping Methods: EMS, DHL, Fedex, TNT, UPS, by sea or your own shipping agent
* Leadtime: Sample order 3-7work days; Bulk order 15-25work days(after your payment)
7. How about the Warranty?
There are 12 months for the warranty.
While the warranty is not responsible for those broken by violence or updated with other
brands.
