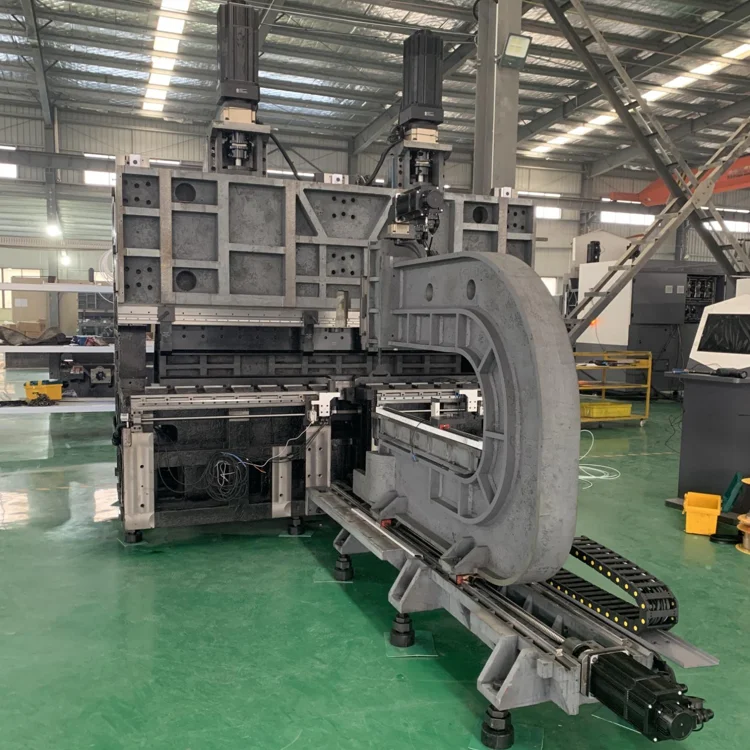

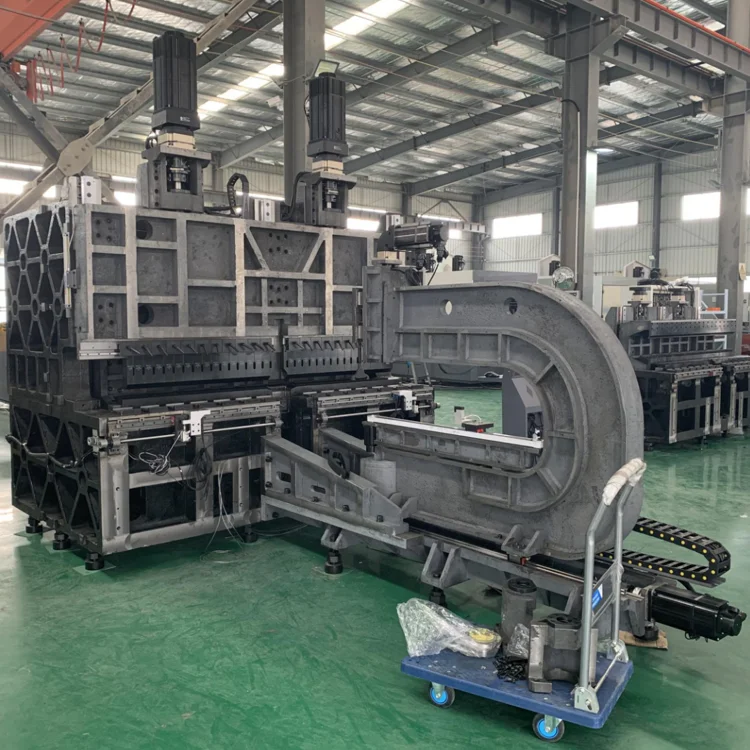

Hot Sale LH 2500P Automatic Panel Bender Stainless Steel Bending Machine
- Category: >>>
- Supplier: Shandong Lanhao Intelligent Technology Co. Ltd
Share on (1600329984565):
Product Overview
Description
Product Overview

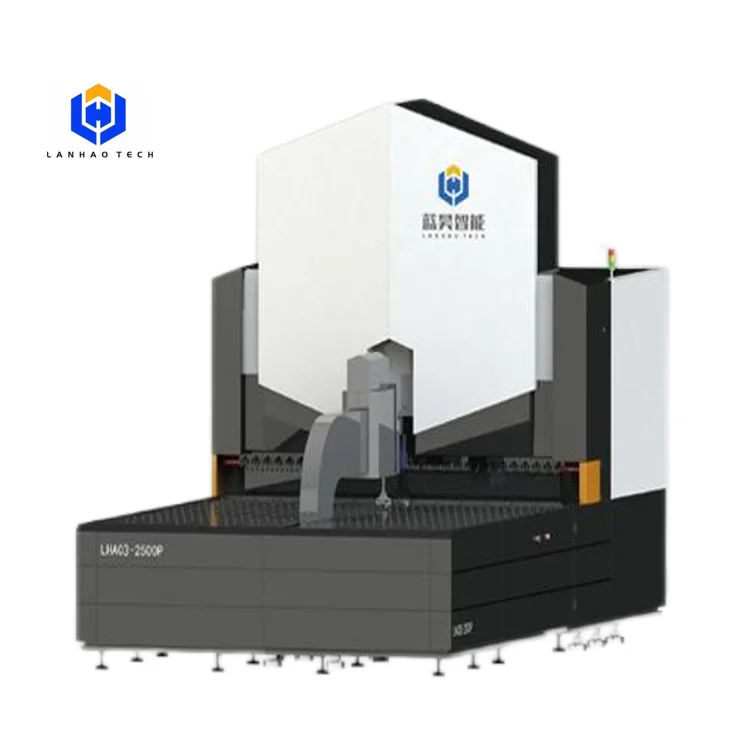

2500P Panel Bender
Automatic Panel bender is a high-tech product developed and produced to improve production efficiency, reduce labor cost.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Maximum bending speed | 0.2 s/time |
2 | Maximum bending width | 2500mm |
3 | Maximum bending size | 2500*1250mm |
4 | Bending height | 170mm |
5 | The rated voltage | 380V |
6 | Peak power | 28KW |
7 | CNC system | PC-Base New Independent Research and Development 15 Axis Linkage Full Servo CNC System |
8 | Lathe bed | Casting bed |
PRODUCT CONFIGURATION
Product Paramenters
Name | Brands |
Operating system | Above Windows 7 |
Control system | 9 axis + concurrent linkage control system |
Servo motor | Independent R&D, full closed-loop control |
Screw | Taiwan-HIWIN |
Bearing | NSK or NACHI |
Linear guide | Taiwan-HIWIN／Nanjing Gongyi |
Machine bed | High grade casting integral forming |
Bending knife | Patented ball cutter head, more wear-resistant, longer service life |
Sucker | AIRBEST |
Pneumatic component | Japan SMC/Taiwan Yadec |
Oil system | Taiwan Yuxiang |
Product Display
