rf433 home Light 40A Relay 2 channel intelligent dc12v 48v on/off smart Wireless Remote Control Switch for water pump and motor
- Category: Remote Control Switches >>>
- Supplier: Shenzhen Geili Technology Co. Ltd.
Share on (1600329996364):
Product Overview
Description
Product features:

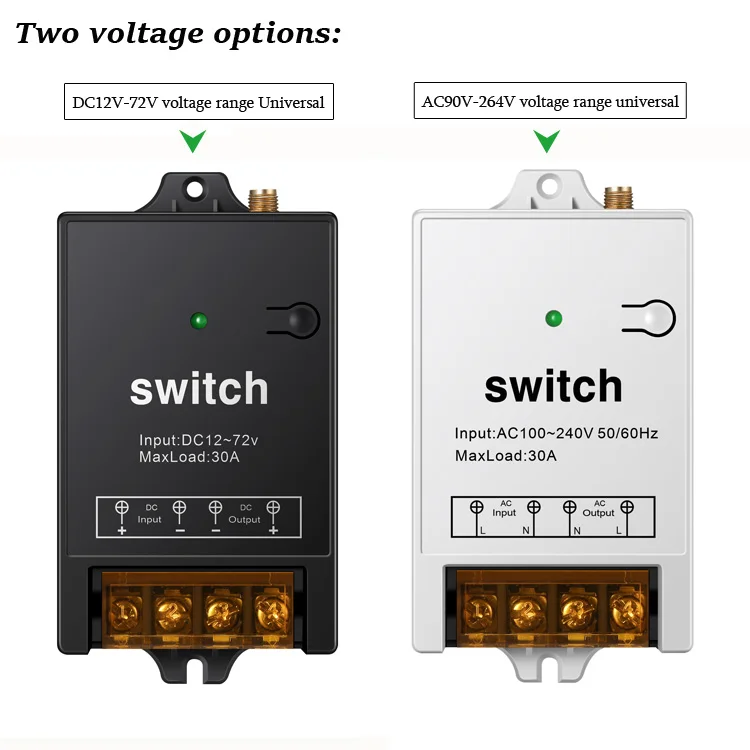

1 wide voltage 12V 24V 36V 48V 60V 72V universal,
2. High current 40A
3. Working mode support: self-locking and interlocking manual switch. (Forgetting to bring the remote control can also control on and off)
4. One receiver can pair 32 remote controls without interfering with each other
5. Convenient wiring and no need to remove the shell
6. Various combinations of working mode and remote control distance are provided
Color: black and white
Scope of application: DC water pump, motor, lamps, car power off, etc.
2. High current 40A
3. Working mode support: self-locking and interlocking manual switch. (Forgetting to bring the remote control can also control on and off)
4. One receiver can pair 32 remote controls without interfering with each other
5. Convenient wiring and no need to remove the shell
6. Various combinations of working mode and remote control distance are provided
Color: black and white
Scope of application: DC water pump, motor, lamps, car power off, etc.
Product Paramenters
Key word | remote control switch | Working voltage | DC12V 24V 36V 48V 60V 72V | ||||

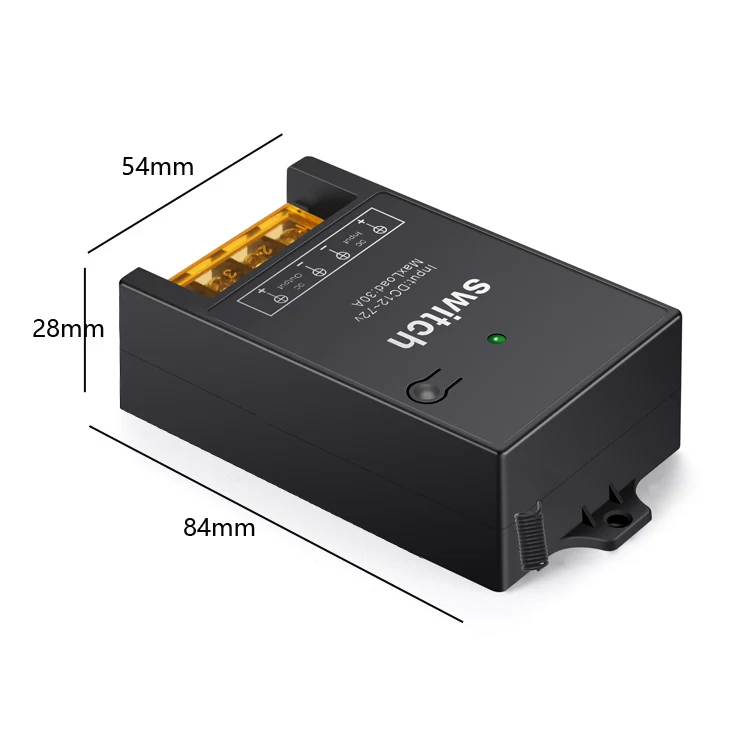

Product Size | 54*84*28mm | Working frequency | 433.932 MHz | ||||
Emission current | ≤0.01 uA | Remote distance | 500m~800m | ||||

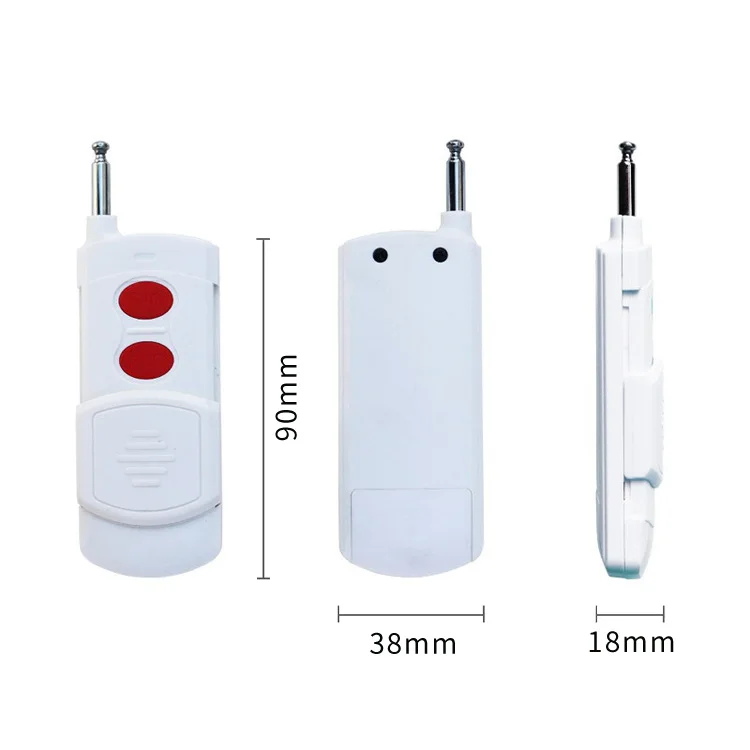

Remote control size | 90*38*18mm | Remote control battery | 23A 12V | ||||
Working mode | self-lock / interlocking / Manual on and off | ||||||
voltage | 12V | 24V | 36V | 48V | 60V | 72V |
Load power | 350W | 700W | 1050W | 1400W | 1800W | 2100W |
Details Images
Learn Matching Instructions
Introduction to the working mode
Self-locking mode: with a key control, press once open, then press once off, called self-locking.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.

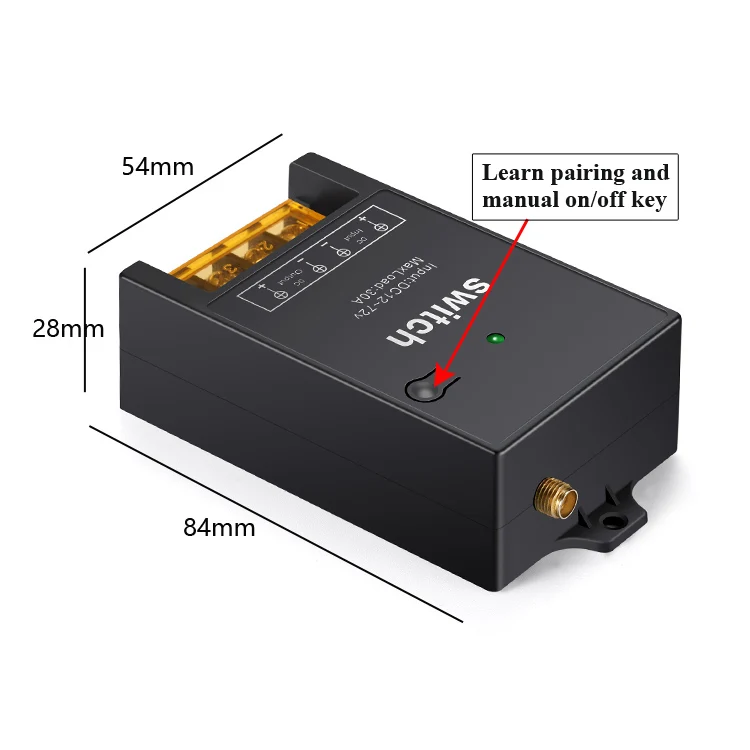

Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Interlocking mode: when the remote control has two keys, one button is on and the other button is off, it is called interlocking.
Manual switch: no remote control, press the learning button on the receiver, press one on, then one off.
Learning methods
Self-lock: the controller is powered on, hold down the learning button and wait for 3 seconds, the indicator light will flash once, release your hand, press the button of the remote control, the indicator light will flash 3 times, indicating the success of code
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual on off : the learning button on the controller can control the output on and off, press that open, then press that off
Interlock: the controller is powered ON, hold down the learning button and wait for 5 seconds, the indicator flashes twice,
release your hand, press the ON/ ON button of the remote control, the indicator flashes for 3 times and then it is in the light state, and then press OFF/ key of the remote control, the indicator flashes twice, indicating success in code checking
Code clearing: the controller is powered on, hold down the learning button and wait for 8 seconds, and the indicator light flashes 4 times, indicating the code clearing is successful
Manual on off : the learning button on the controller can control the output on and off, press that open, then press that off

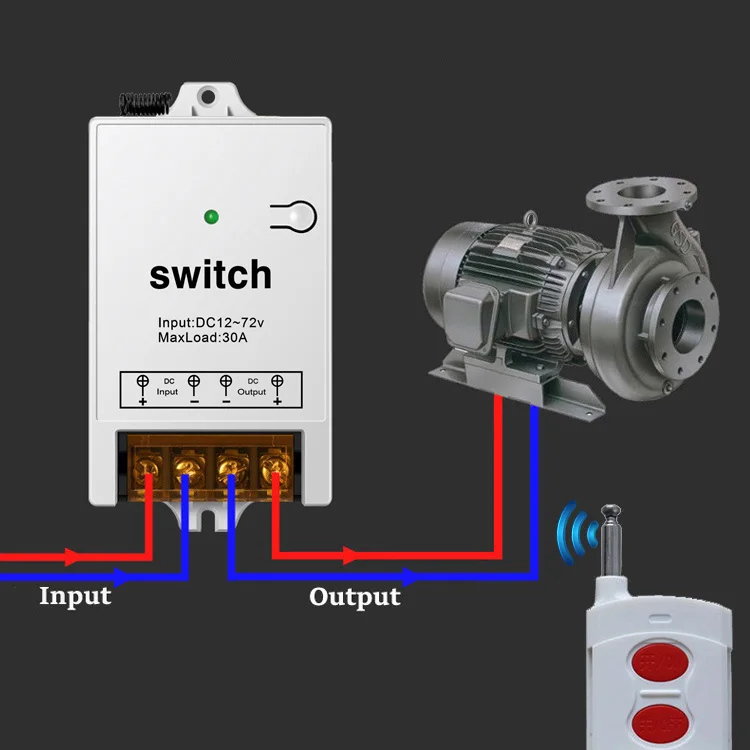

Installation Instructions

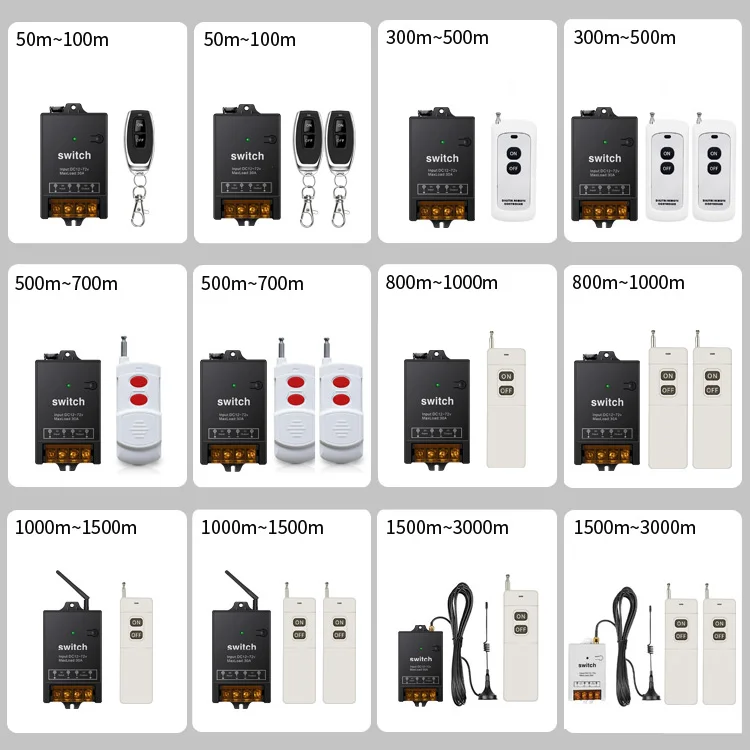

product assortment
More applicable scope.
Certifications
FAQ
Q1 Are you a factory or a trading company
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
A1: We are a factory.
Q2: What is the mode of transportation?
A2: DHL/UPS/TNT/ FedEx and other air and sea freight are available.
Q3: How many remote controls can a receiver pair with?
A3: A receiver can pair up to 32 remote controls.
Q4: I need multiple remote controls to run. Will they interfere with each other?
A4: Each set of products is independently paired and does not interfere with each other. However, it should be avoided to press the remote control at the same time with an interval of one to two seconds
Q5: Can I work in wet areas?
A5: It is not recommended to work in humid environment.
Q6: What is the remote control distance?
A6: 50m~100m, 500m~1000m, 3000m ~5000m can be selected
Q7:What should I do when the controller's power is fine, but the remote control doesn't work on and off?
A7:This situation may be due to code drop, the solution is: first clear code, and then follow the required mode of learning. (See thedetails page for learning methods)
