Water Level Measurement and Monitoring Control by Ultrasonic Liquid Level Transmitter RS485/Modbus for IOT/IIOT Project
- Category: Measuring & Gauging Tools >>>
- Supplier: Dandong,Virtue,River,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Specifications
Model number | VRPWCS72 | ||||||
Features | Analogue signals with HART or digital signals with RS485/MODBUS are optional; | ||||||
Unique echo processing technology with the functions of an echo curve display and false echo storage; | |||||||
Built-in programmer with buttons for easy setting and calibration; | |||||||
Built-in temperature compensation; Intrinsically safe is optional. | |||||||
Typical applications | For both liquid level and solid level measurement in various industrial fields, especially for water treatment industry | ||||||
Standard probe: liquid, 0.3 - 10m; solid, 0.3 - 4m | |||||||
Sealed and anti-corrosive probe: liquid, 0.3 - 8m; solid, 0.3 - 4m | |||||||
Process connection | Thread G2''A,bracket or flange | ||||||
Process temperature | -40 - +70℃ | ||||||
Process pressure | -0.02 - +0.1MPa | ||||||
Accuracy | ±0.25% of full range | ||||||
Probe material | PA66+GF30/ PVDF | ||||||
Ultrasonic frequency | 50kHz | ||||||

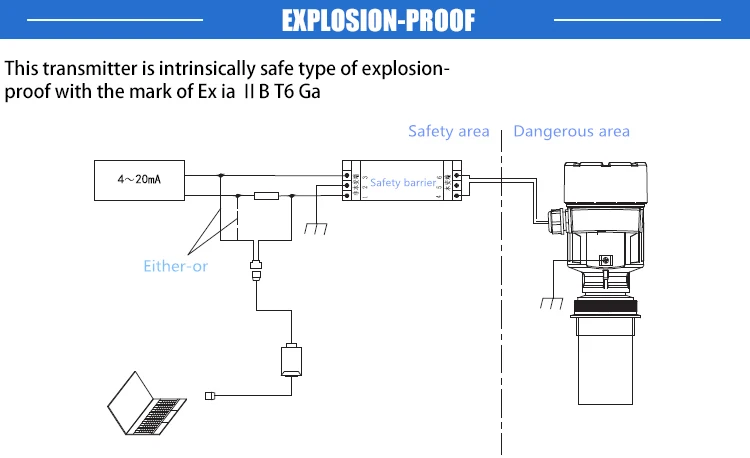

Explosion proof | Ex ia IIB T6 Ga | ||||||
Enclosure protection grade | Plastic enclosure-IP66; AL enclosure-IP67 | ||||||
4-20mA+HART, 24V DC (2-wire/ 4-wire); 220V AC (4-wire) | |||||||
RS485/MODBUS | |||||||

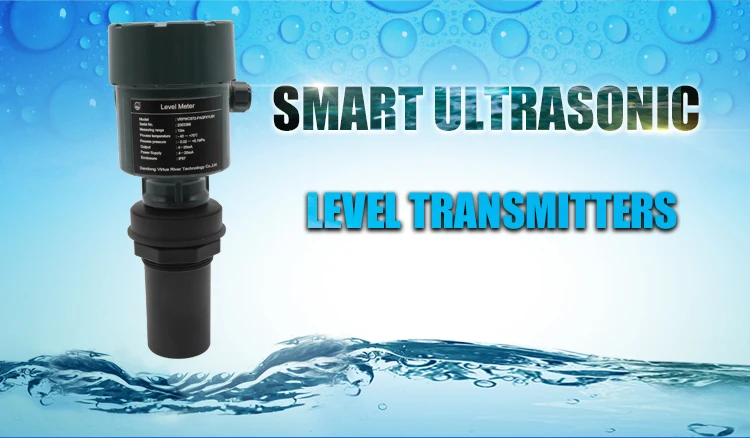

Product Display
Products Process

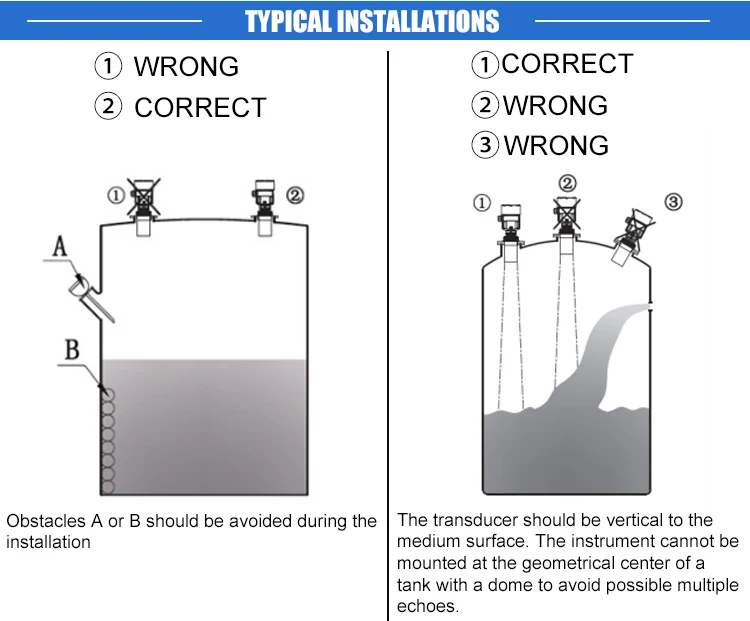

Typical Installation

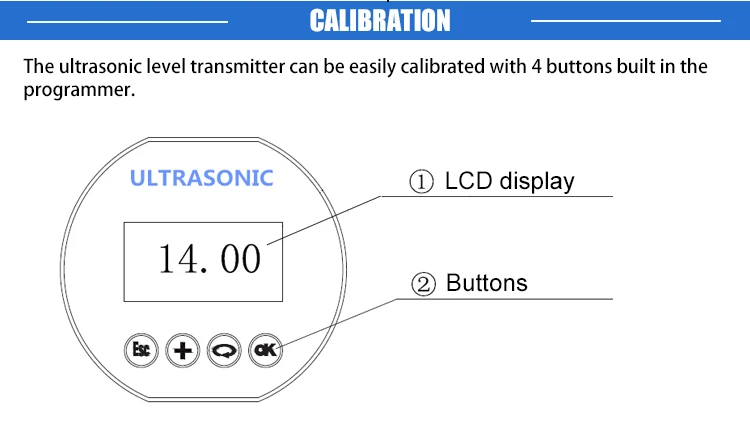

Calibration
About Us
Package and Transportation

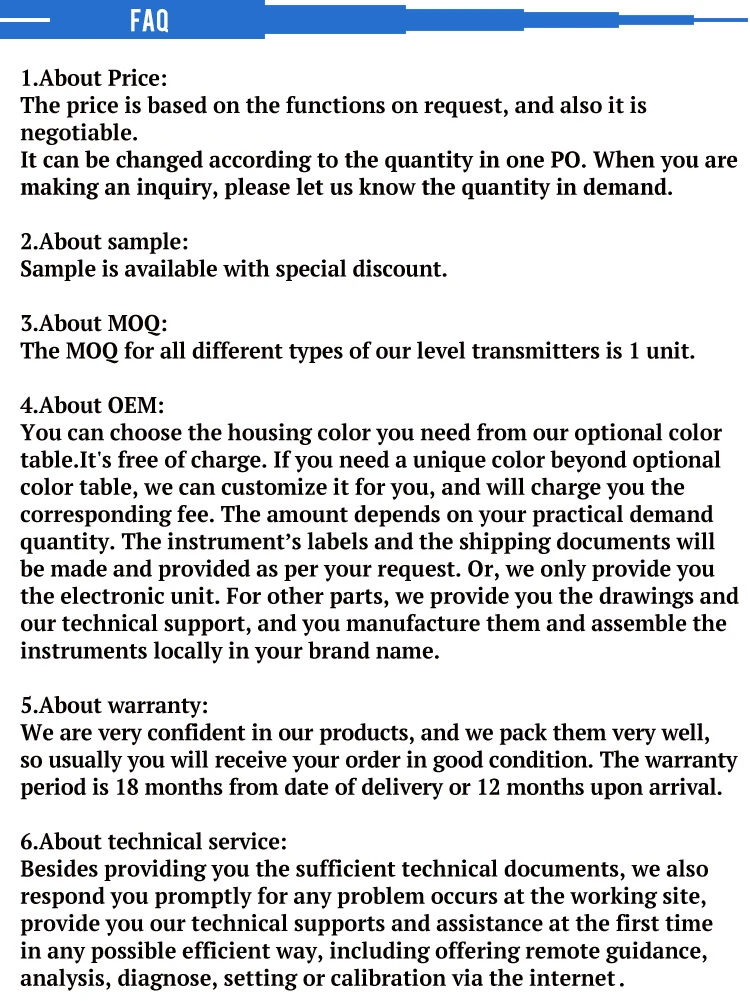

FAQ

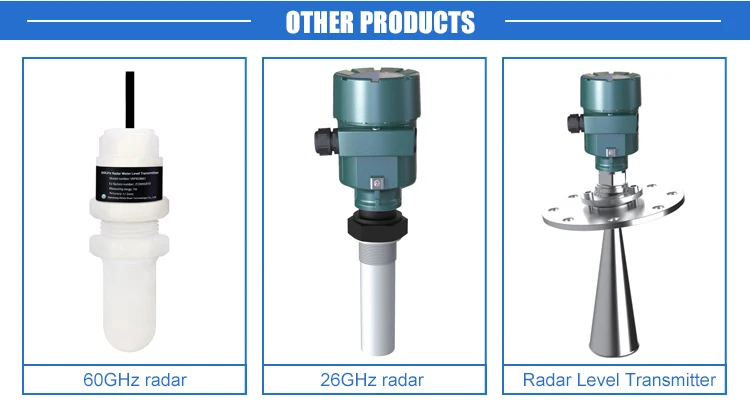

We Recommend
