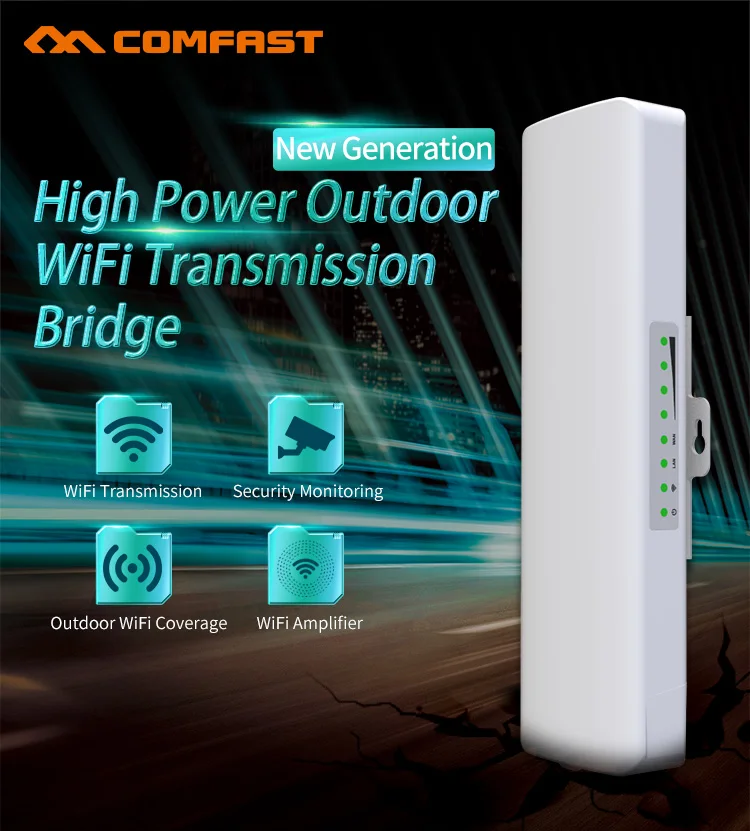

COMFAST E314N outdoor wireless bridge CPE network monitoring 3 5 kilometers outdoor transmission WIFI signal
- Category: >>>
- Supplier: Xiamen Nanpeng Information Technology Co. Ltd.
Share on (1600330119600):
Product Overview
Description
Product Description
Specifications
| Motherboard chip | Qualcomm QCA9531650Mhz clocked industrial-grade CPU; Power amplifier chip: SE2576L; 64MDDR2; |

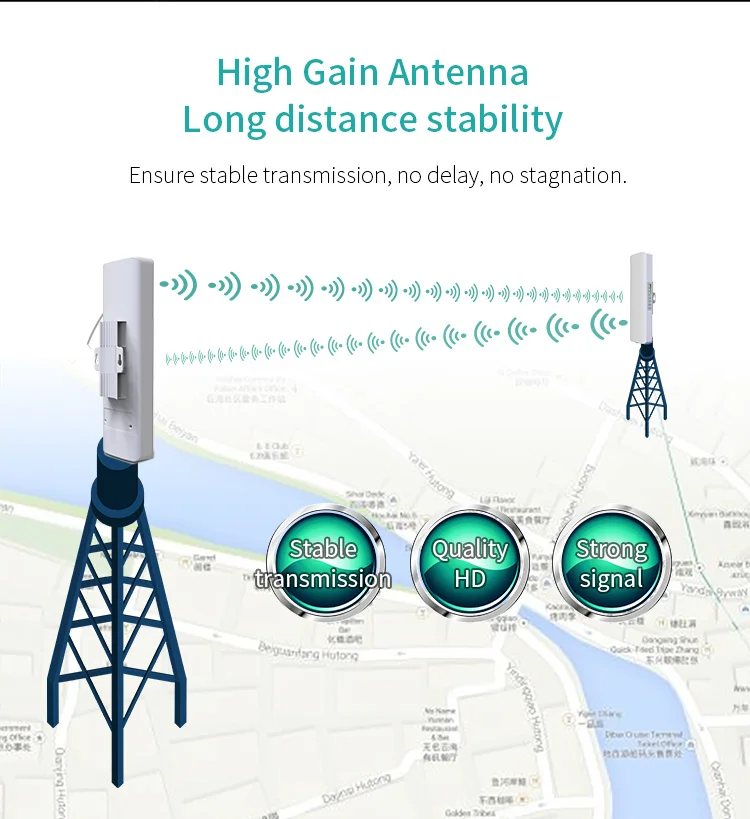

| Antenna specifications | 2*14dBi smart dual-polarized antenna |
| Wireless standard | Support IEEE802.11b/g/n standard; |
| RF parameters | Transmitting power: 500mW (27dBm) Receiving sensitivity: -96dBm Working frequency: 802.11b/g/n: 2.3GHz-2.7GHz |
| Wireless rate | 300Mbps |

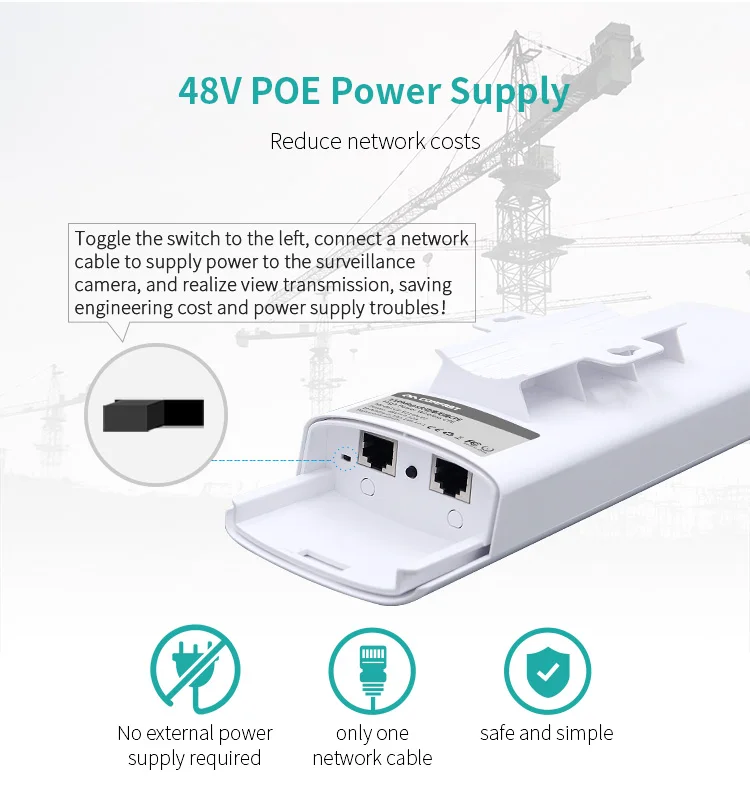

| Physical interface | 1 10/100Mbps WANRJ45 Ethernet port; 1 10/100Mbps LAN RJ45 Ethernet port; 1 POE output toggle switch 1 RESET button |
| Indicator light | 8 indicator lights |
| Power supply | Power supply mode: support 802.3af/802.3at compatible power supply; Power adapter: 48V0.32APOE power adapter; |
| Power consumption | ≤7W |
| Installation method | Pole-mounted installation, wall-mounted installation, bracket installation |
| Product Size | 262*80*53mm |
| Package dimensions | 324*108*70mm; |
| Product Weight | 322g |
| Use environment | Working temperature: -40℃~55℃ (hardware heating circuit) Storage temperature: -50℃~75℃ Working humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensin |
