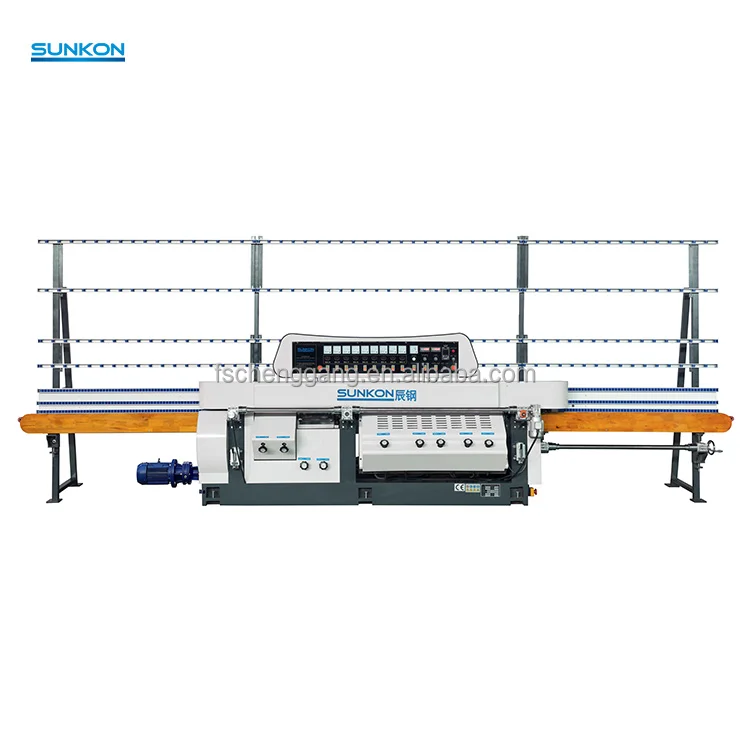

CGZ10325P 45 Glass Straight line Flat And 45 Bevel Degree Bevel Edger Edging Polishing Grinding
- Category: >>>
- Supplier: Cgtech Glass Machinery Co. Ltd.
Share on (1600330133258):
Product Overview
Description
Products Description
Description:
●CGZ10325P-45° is suitable for grinding flat glass with arris, variable angle and 45° edging. 5 motors from front beam can adjustable 0~45°and as a whole to move in /out to achieve angle adjustment.
● Coarse grinding, fine grinding, polishing and chamfering can be completed in one time.
● The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation),Which can bear large loads and has stable performance.
● With reasonable design, and high precision processing, It is the best glass grinding equipment for processing the mass production of craft glass, home appliances glass, decoration and furniture glass, doors and architecture glass.
● Coarse grinding, fine grinding, polishing and chamfering can be completed in one time.
● The base, front and rear beams, beds and grinding heads are of casting materials (annealed to prevent deformation),Which can bear large loads and has stable performance.
● With reasonable design, and high precision processing, It is the best glass grinding equipment for processing the mass production of craft glass, home appliances glass, decoration and furniture glass, doors and architecture glass.
Max.Glass size | 2500×2500mm |
Min.Glass size | 80×80mm |
Glass thickness | 3-25mm |
Transmission speed | 0.5-5m/min |
Bevel angle | 0-45° |
Max.hemline grinding | 3mm |
Max. arris grinding | 2.5mm |
Power | 21KW |
Weight | 3500kg |
Land occupation | 7800×1000×2500mm |
glass diagonal error | ≤0.5mm/m |
glass parallelism error | ≤0.3mm/m |
Details Images

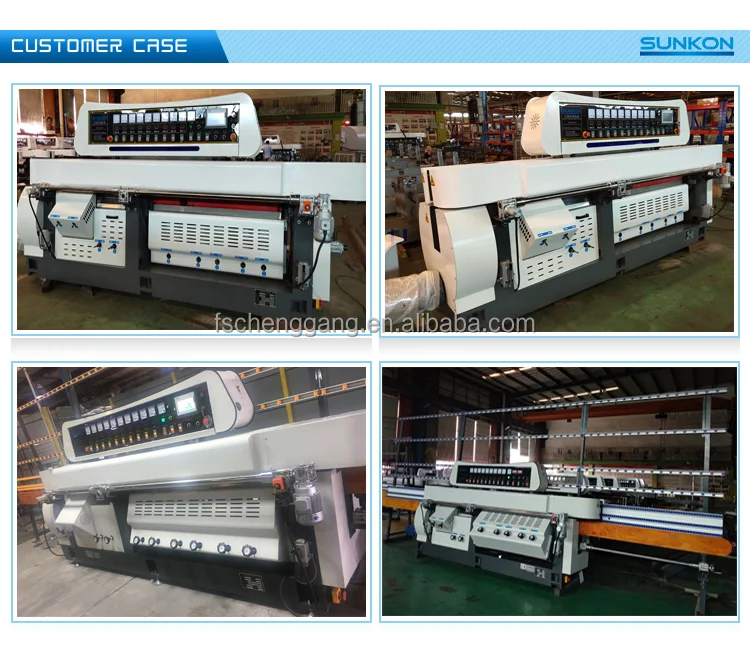

Our Case
