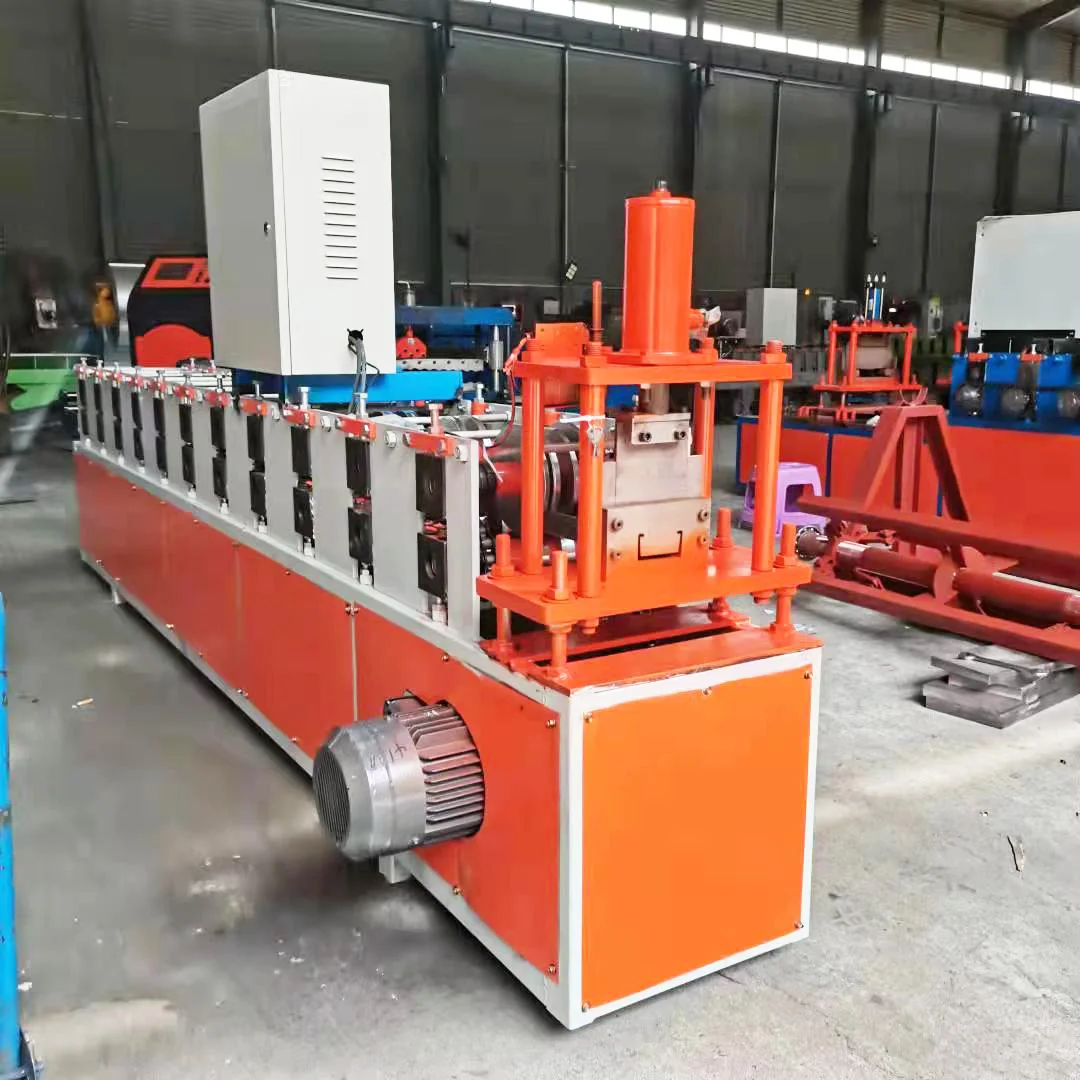

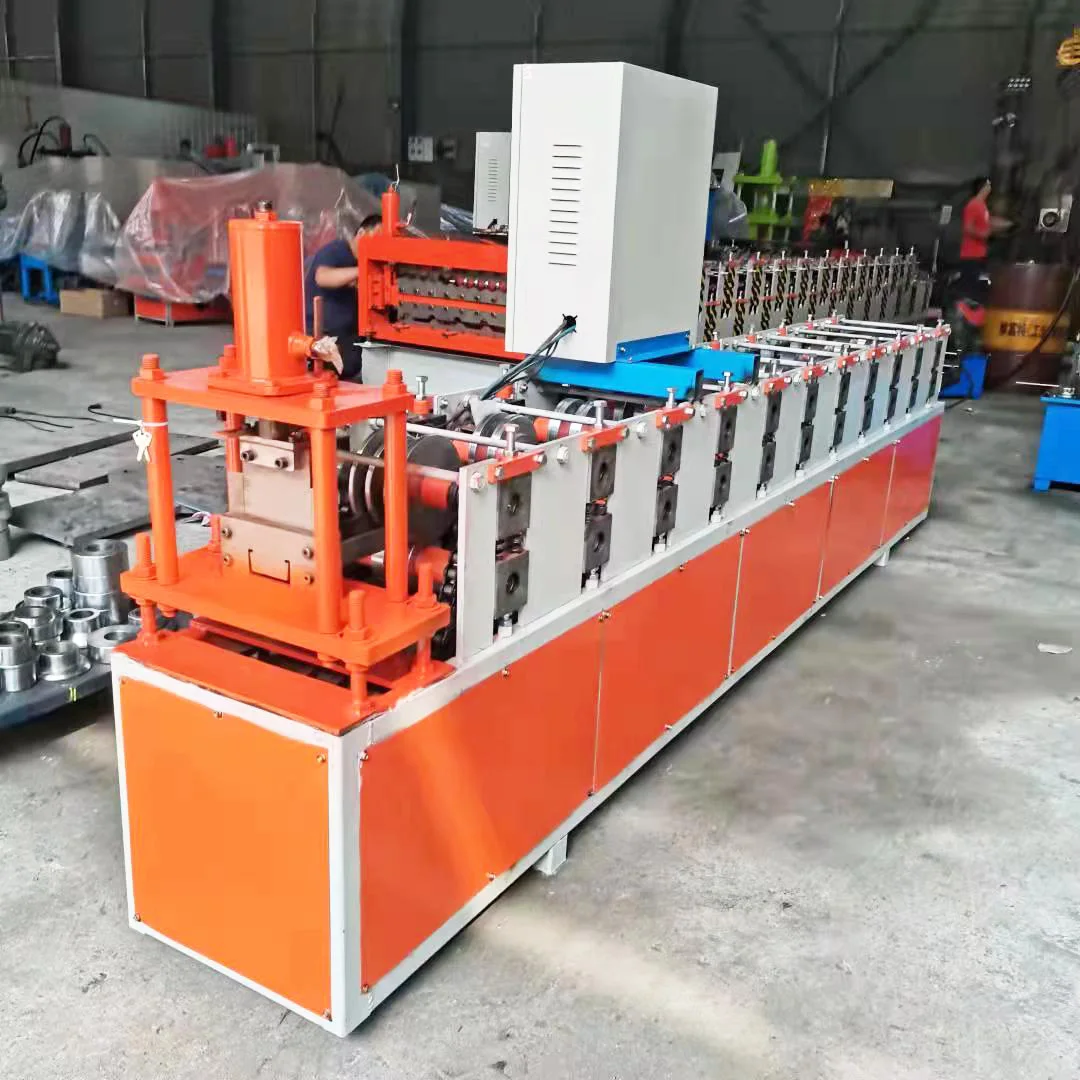

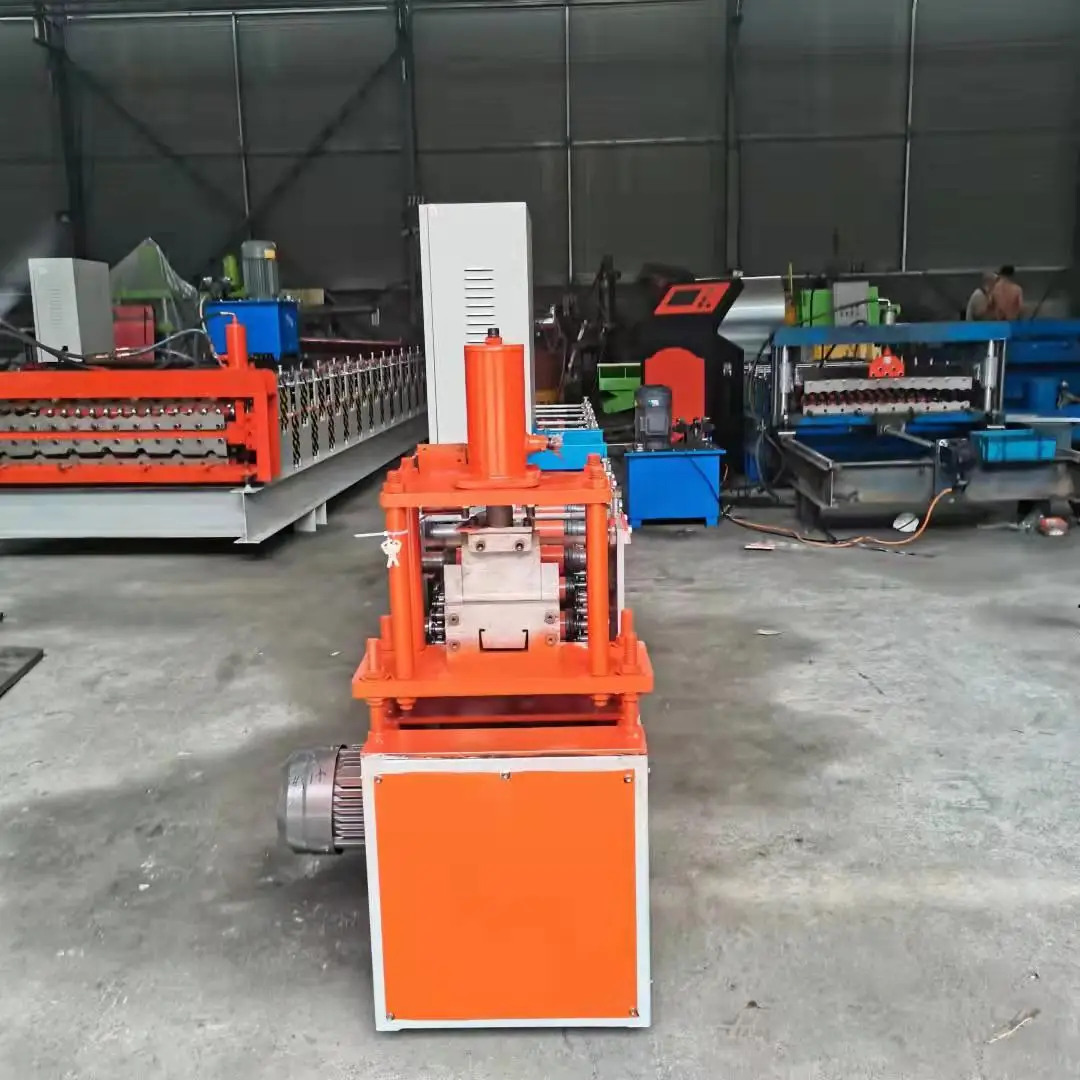

light keel steel frame drywall corner bead angle iron roll forming making machine

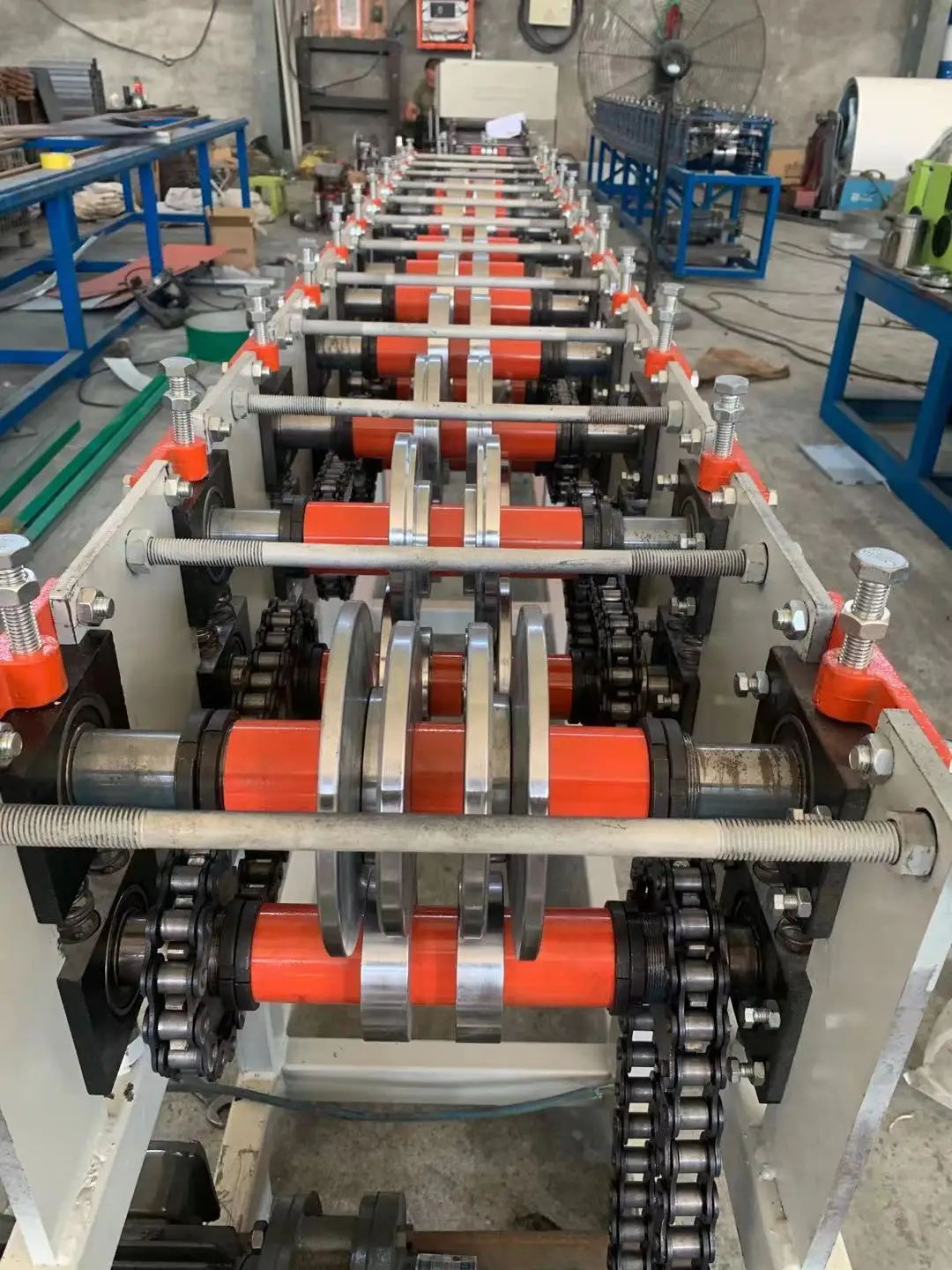

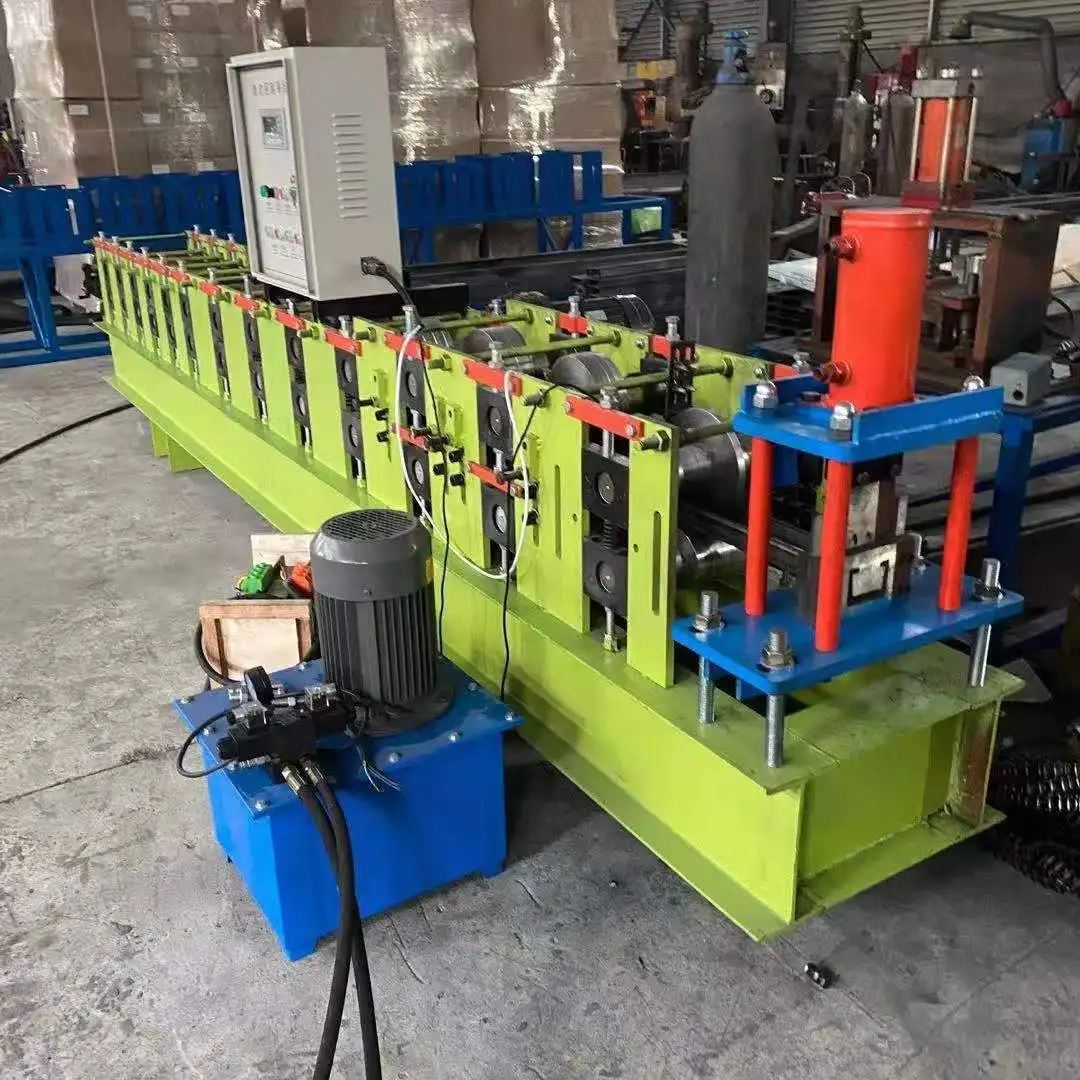

 The C-shaped steel mill is a single roll forming unit that can produce various specifications of C-shaped purlin products with a set of rolls. It is mainly composed of a passive loading frame, a leveling device, a punching device, a cutting device after forming, a hydraulic station, a computer control system, etc. .

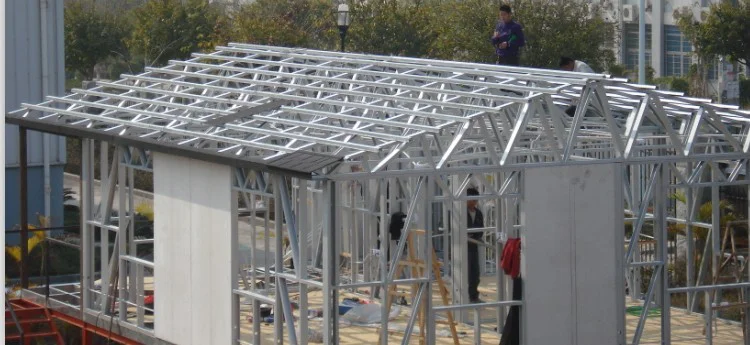

The products produced by the C-shaped steel machine can be used as the main load-bearing structure of large and medium-sized industrial and civil buildings, such as the roof load-bearing load and wall support of factory buildings, warehouses, hangars, hangars, exhibition halls, theaters, stadiums, and market flower sheds .

The main technical parameters of C-shaped steel machine:

Advantages of our tile making machine:

1. The profiled plate rolled by the tile press is both solemn and elegant, but also beautiful and novel.
2. The appearance is flat, the ripples are uniform, the utilization rate is high, and the strength is high.
3. The advantages of production automation are high degree, low cost and durable.

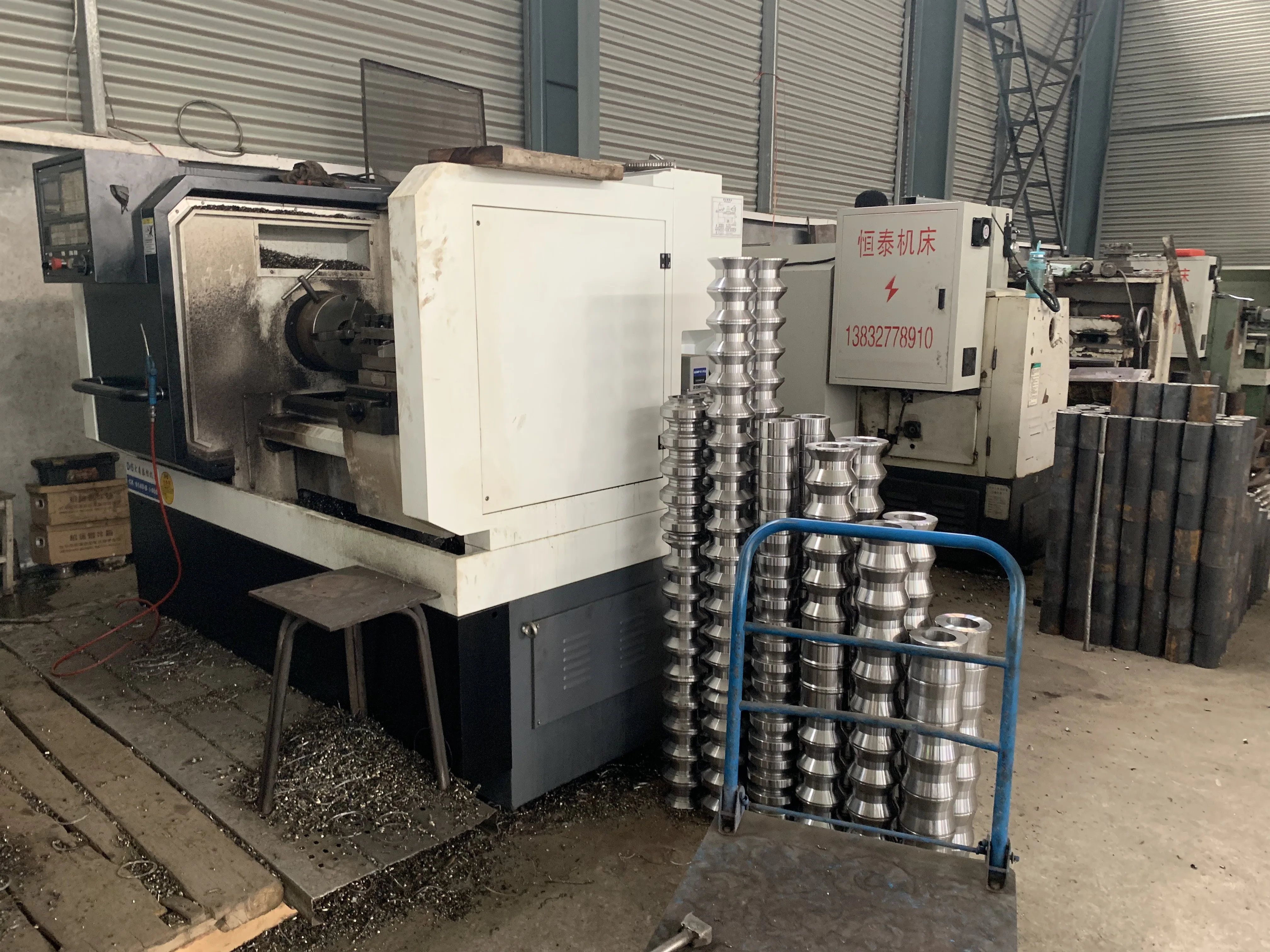

Forming Rollers:

The rolls usually we made by our own lather to possess, you can see, which can also save more cost for the machine, and assurance the machine quality.

Shearing Mechanism:

Cutting Way:Hydraulic shear

Material of blade:Cr12

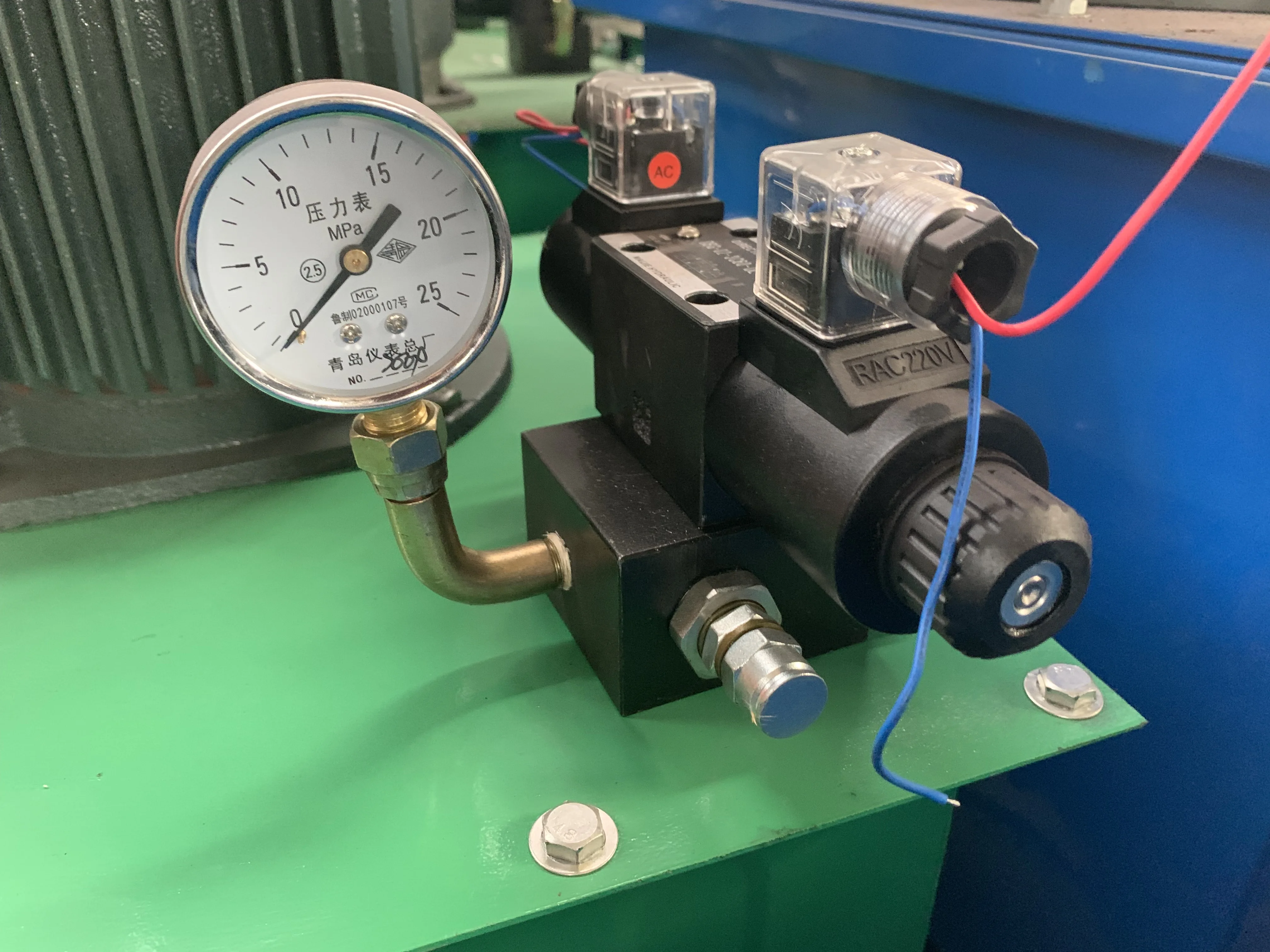

Hydraulic Station:

After filling the hydraulic oil into the hydraulic oil tank, the pump drives the cutter machine to begin the cutting job.

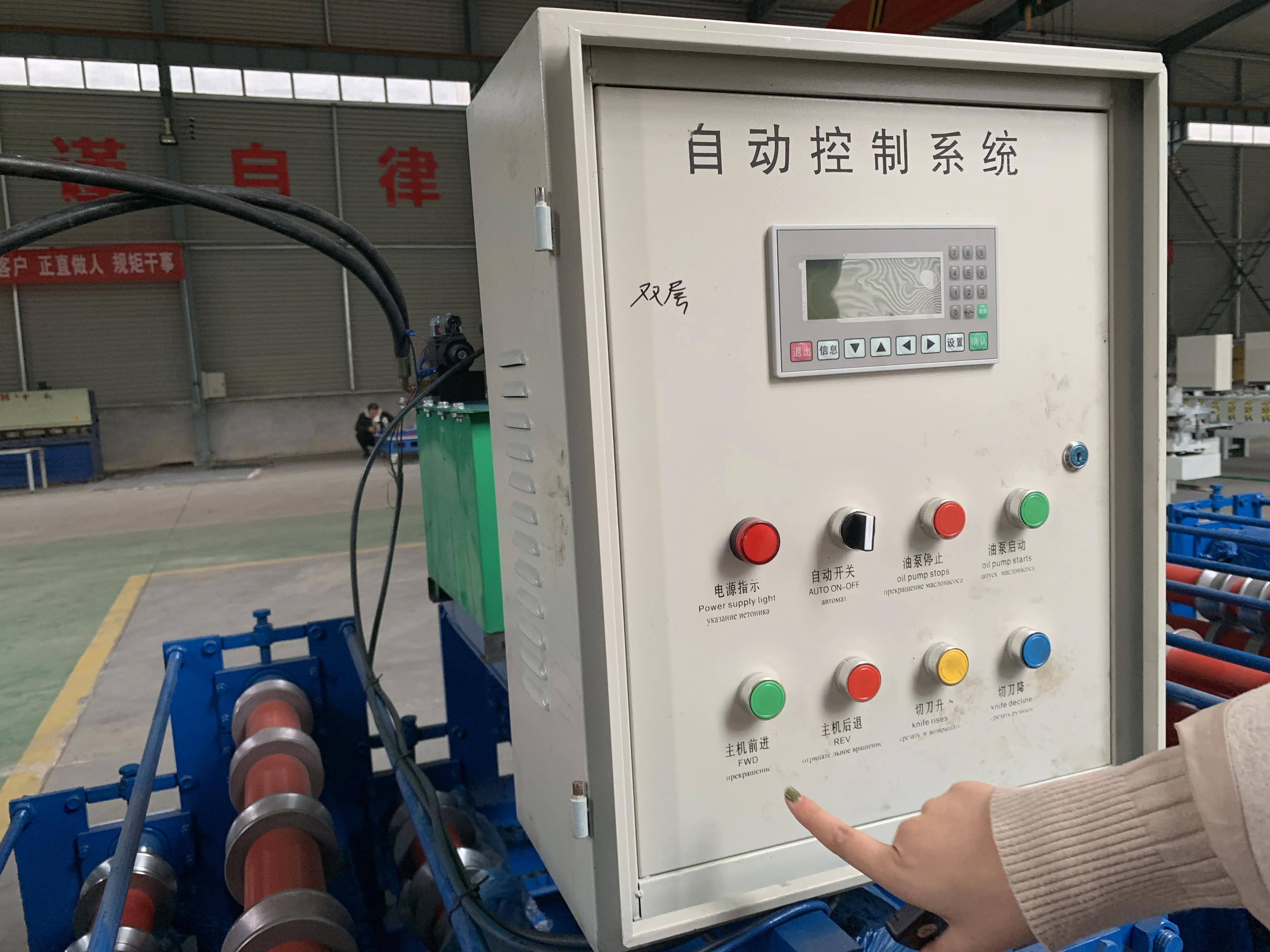

Electric Control System

Their can be settle for the machine with automatic making or the manuel control, more convenient for you using the machine.

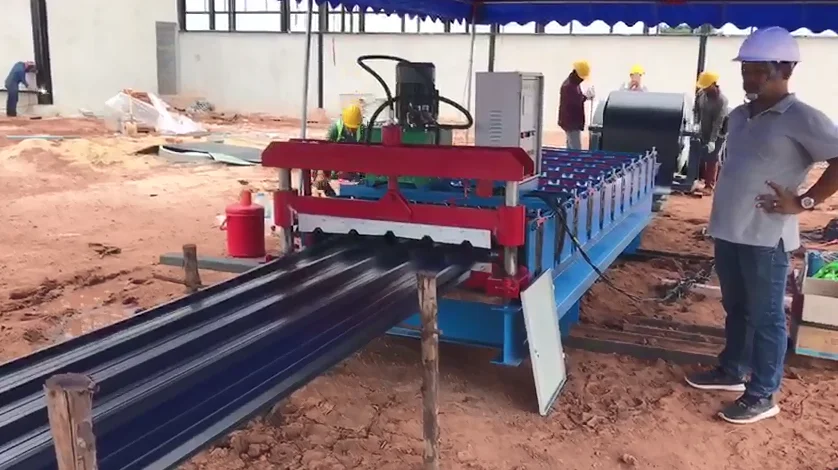

Thailand customer's feedback:

Malaysia customer's feedback:

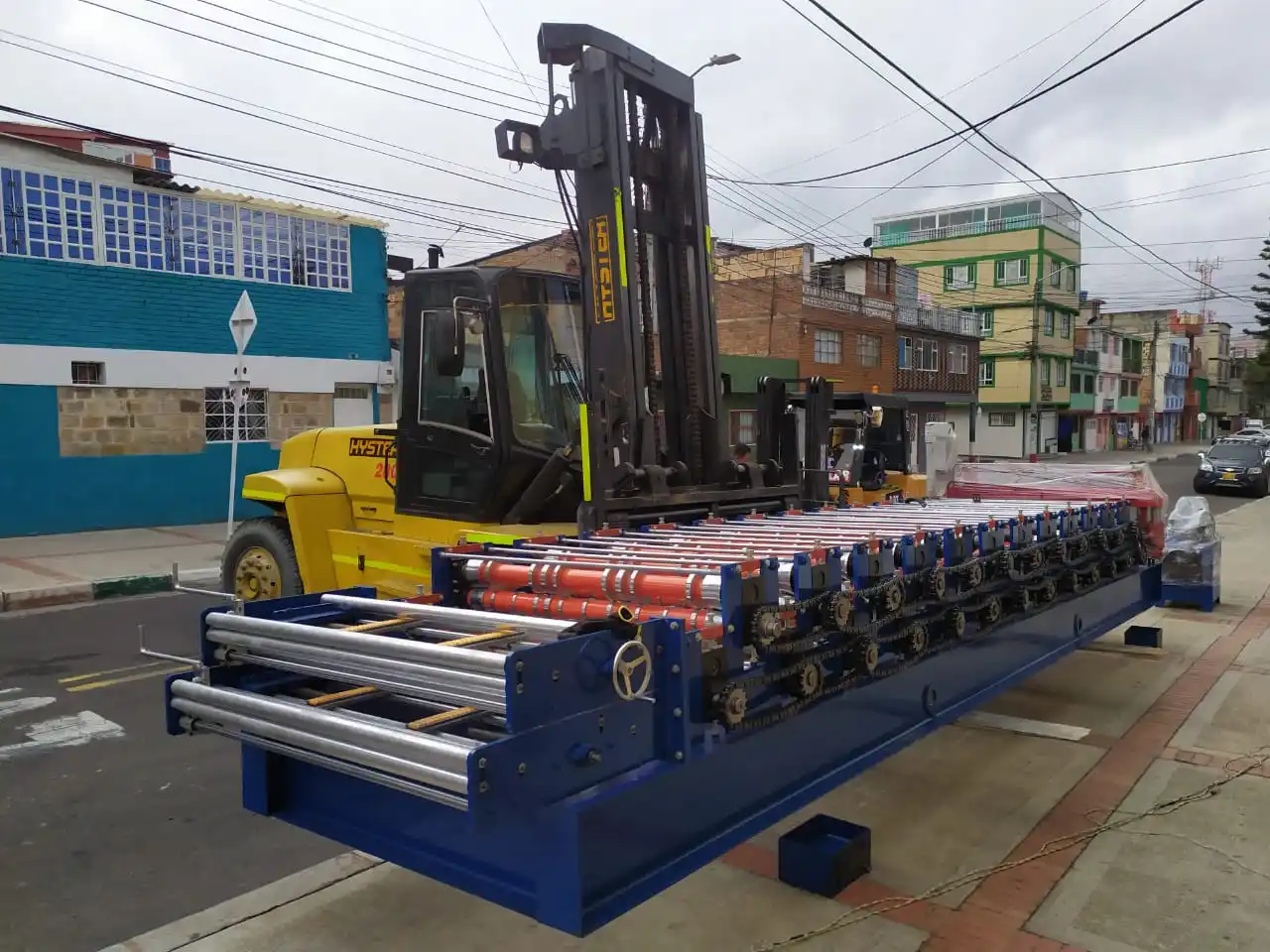

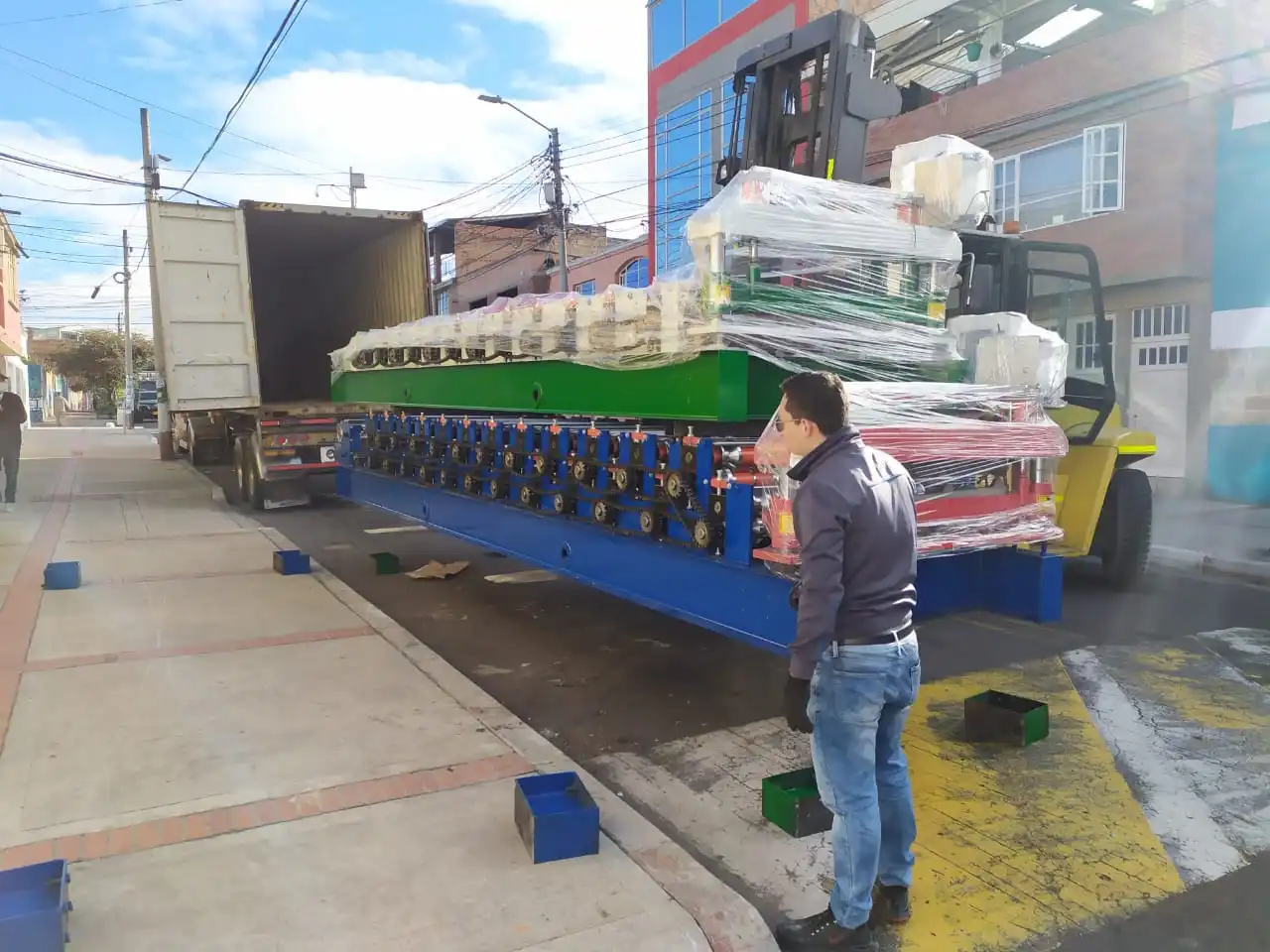

Colombia customer feedback:

We supply different roll forming machine, if you like it, freely contact us!!!

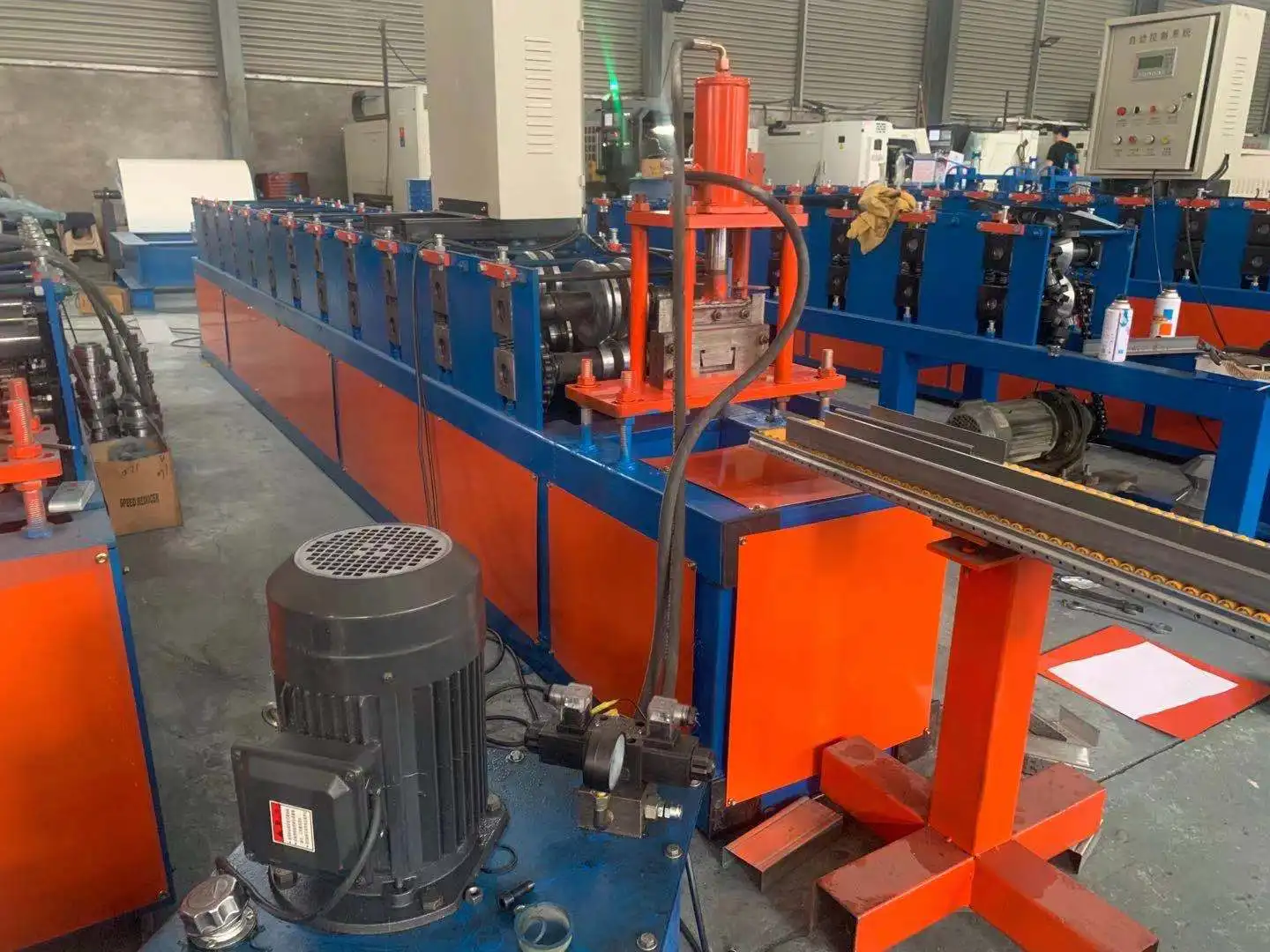

C purlin making machine

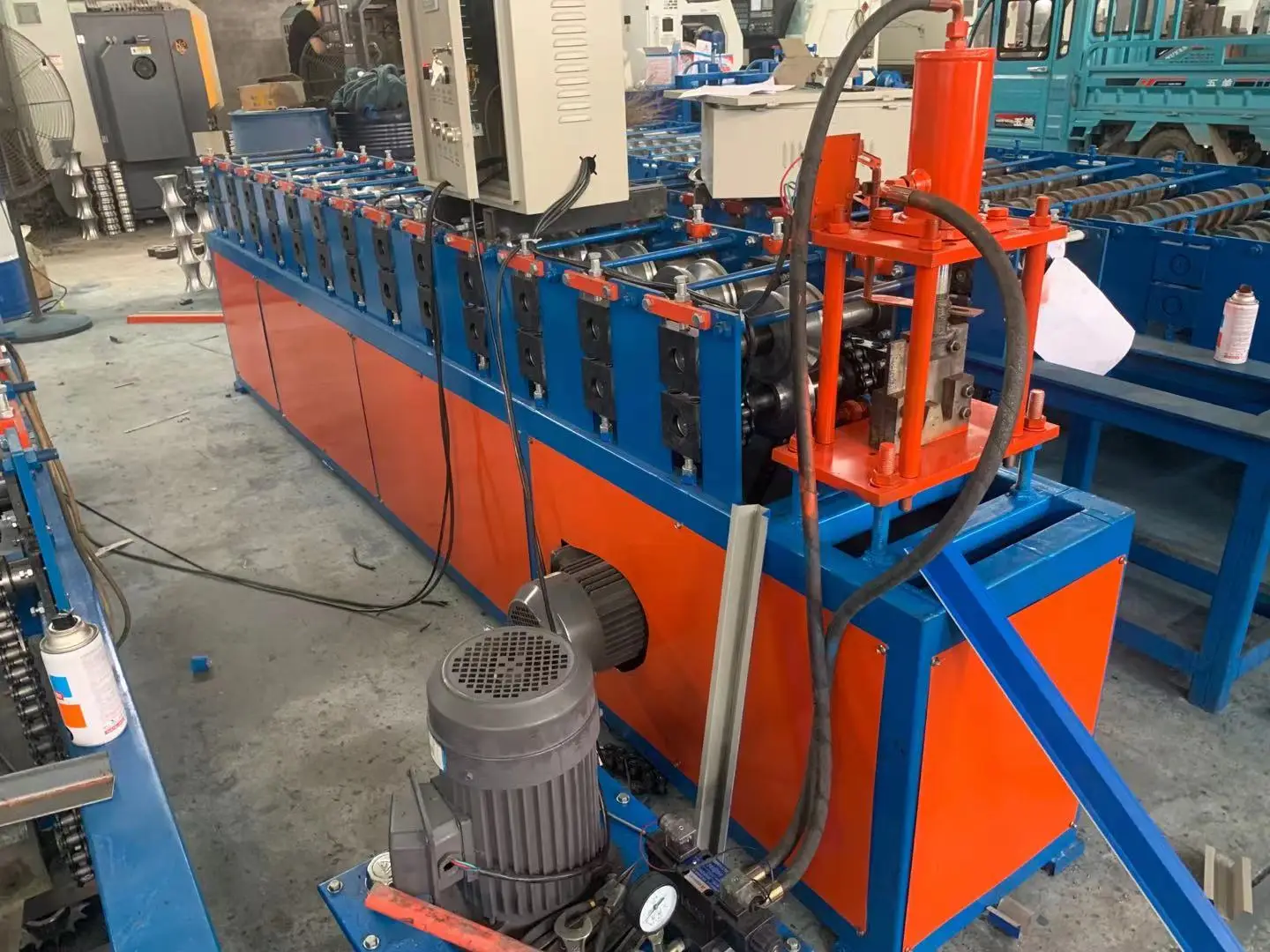

Omega purlin making machine

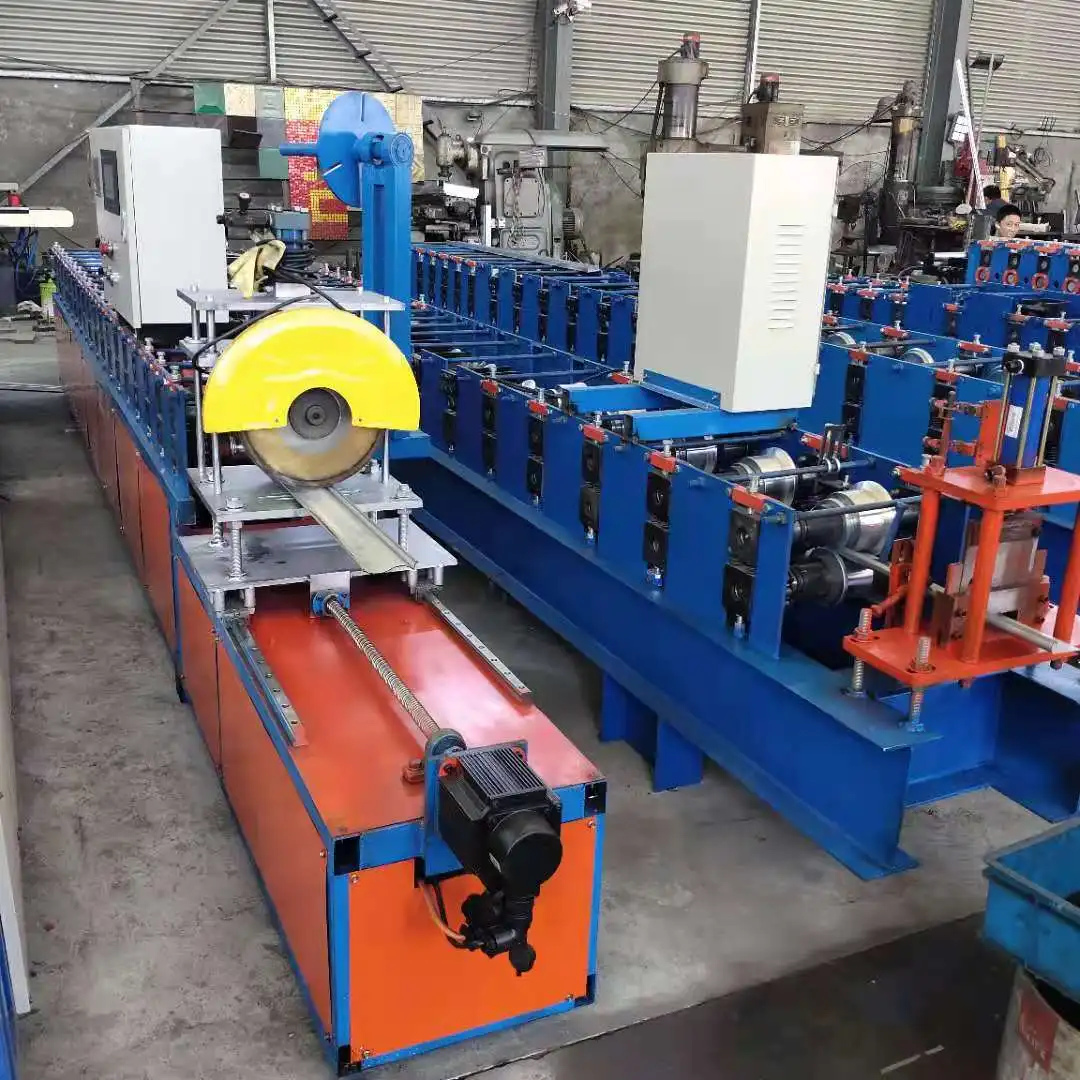

Shutter door making machine
