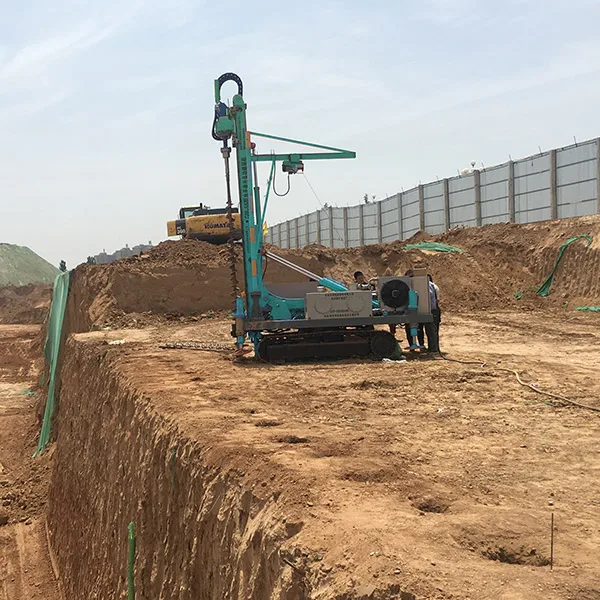

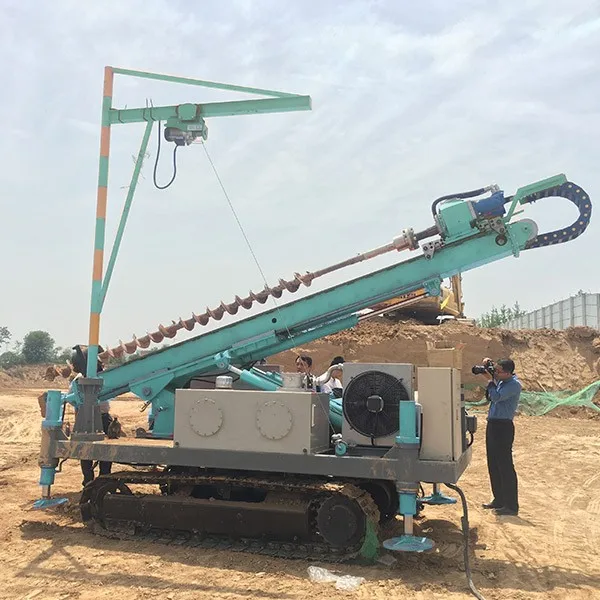

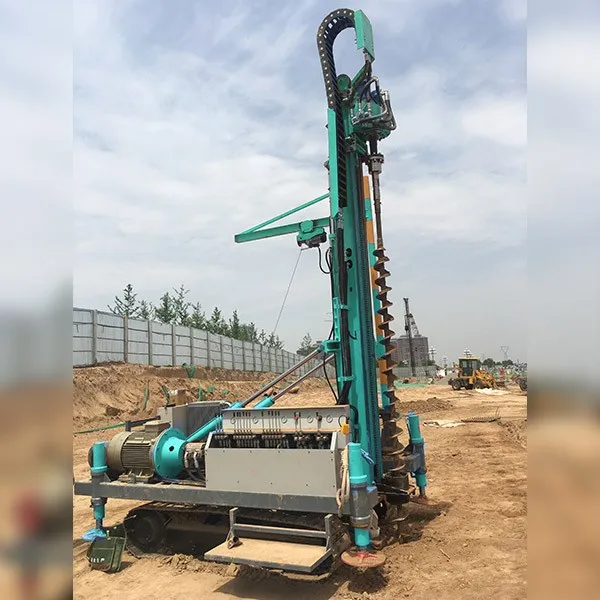

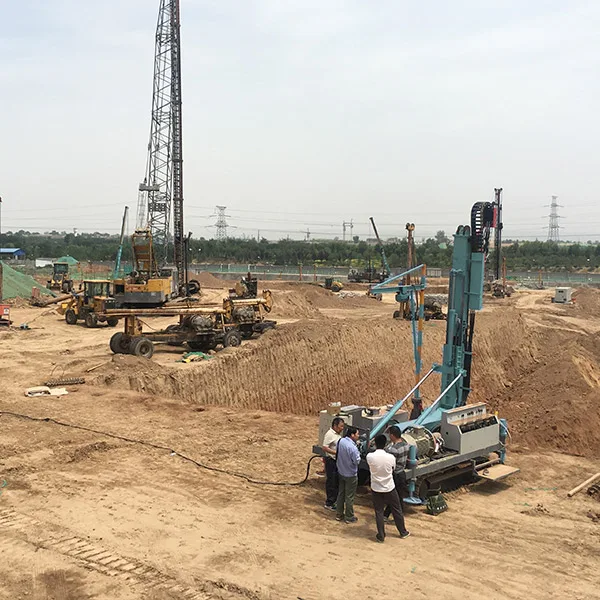

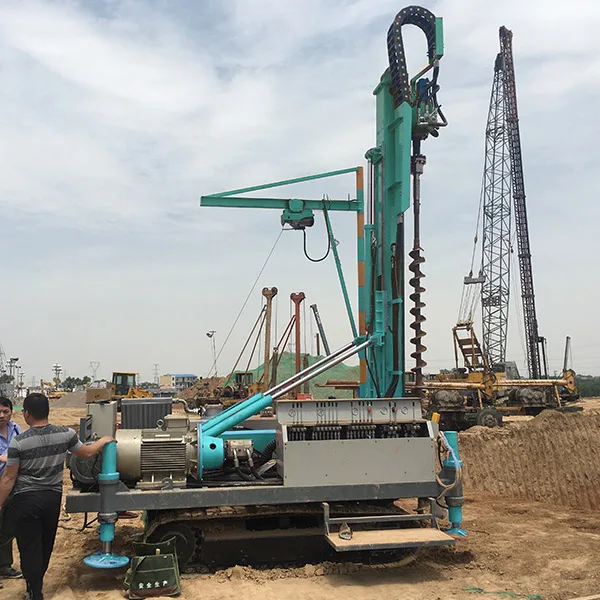

Crawler Hydraulic Control Anchor Jet Grouting Drilling Rig For Geotechnical Foundation

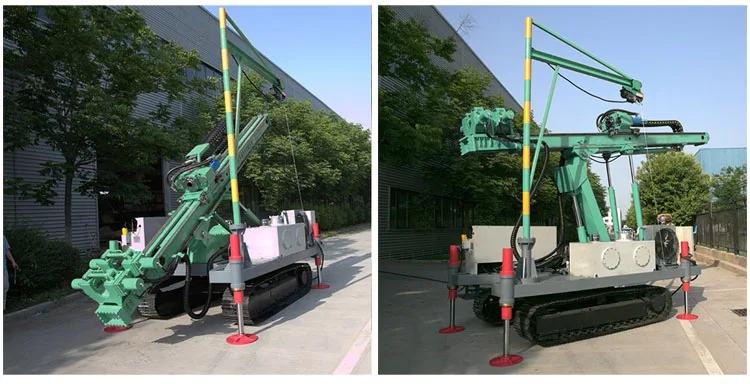

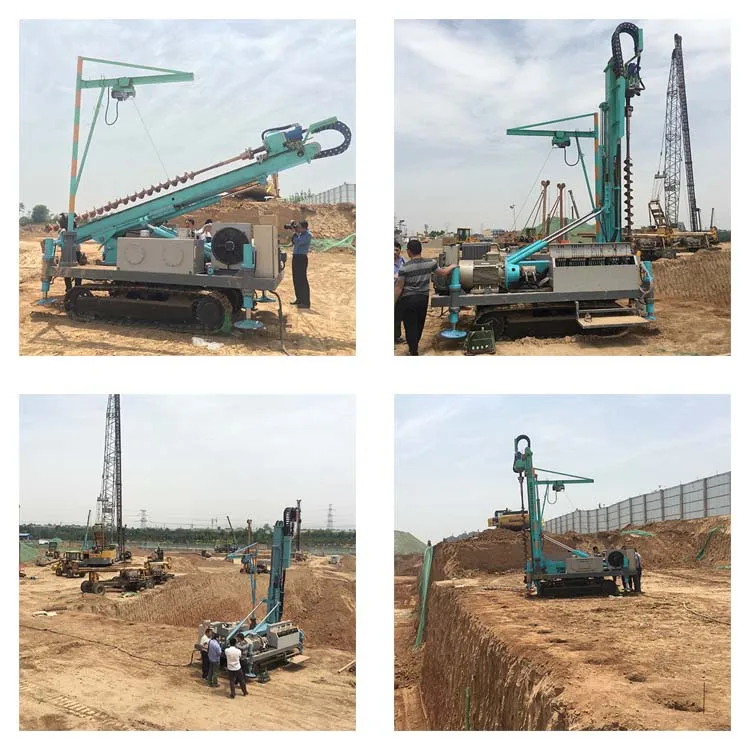

HFMG-120 Anchor Drilling Rig/Multiple function anchor drilling rig

• Drilling Diameter: 50-250mm


• Drilling Depth: 100-120m


• Input Power: 55kW+ 18.5kW + 2.2kW


• Rotary Torque :  6800N·m

HFMG-120 horizontal lift multi-function drilling machine is a full hydraulic crawler drilling machine that integrates anchoring, jet grouting and watering of deep foundation pit slope, it can meet various construction technology requirements.

Based on long-term market research and customer feedbacks, this drilling rig is an engineering drill developed by our company, which is mainly based on the supporting technology of the slope of deep foundation pit and supplemented by the construction of jet grouting. It is characterized by good maneuverability, wider range of operating holes, high efficiency, good drilling quality and low pollution.

Product features:

• 1. Simple system structure, convenient maintenance and low investment.


• 2. The horizontal lifting height is up to 3.5 meters, and the lowest is 1.8 meters, which can be used for construction of double row anchor rope at one time.


• 3. Selective power ratio can reduce power consumption and improve the working efficiency.


• 4. The overall structure is simpler, more reasonable layout, and humanized operation.


• 5. Drilling rig with truck crane, effectively reducing the laboring intensity and cost.

Feasible construction technology:

• 1. Three-wing bit drilling, mud water discharges slag, suitable for high-speed drilling of soil layer and other strata.


• 2. Small diameter twist drill drilling (≥ 200mm), suitable for soil layer.


• 3. Pneumatic hammer drill, slag removal by air,suitable for construction of rock stratum and crushing stratum.


• 4. Casing drilling.


• 5. Compound drilling of casing and drill pipe.


• 6. Single, double, triple jet grouting, fixed jet construction

Technical parameter

Jiaozuo Hanfa Industrial Co., Ltd. belongs to Hanfa Group. Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. It has experienced engineers, professional R&D team, special after service team, world class sophisticated Machine and advanced technology guarantee the best quality drilling Machine and best service to its customers.

We pursue high standard manufacturing and qualified products. It has more than 20 species such as water well Down The Hole Drill Rig, core Down The Hole Drill Rig, engineering Down The Hole Drill Rig, DTH Down The Hole Drill Rig, horizontal directional Down The Hole Drill Rig, etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc.

Pre~Sales Service                                                           After~Sales Service

  » Inquiries and consulting support                                  » Training how to instal machine

  » Customized service                                                     » Accessories service

  » View our factoty                                                           » Engineers available to service overseas

Jiaozuo Hanfa Industrial Co., Ltd

Kindly inform us the following information:

1. Application

2. Drilling object(rock/soil/sand, etc)

3. Drilling diameter

4. Drilling depth

Then we could recommend the suitable model with favorable price.
