20 liter pet bottle blowing machine
- Category: >>>
- Supplier: Zhangjiagang Jiede Machinery Co. Ltd.
Share on (1600330145514):
Product Overview
Description
Product Description

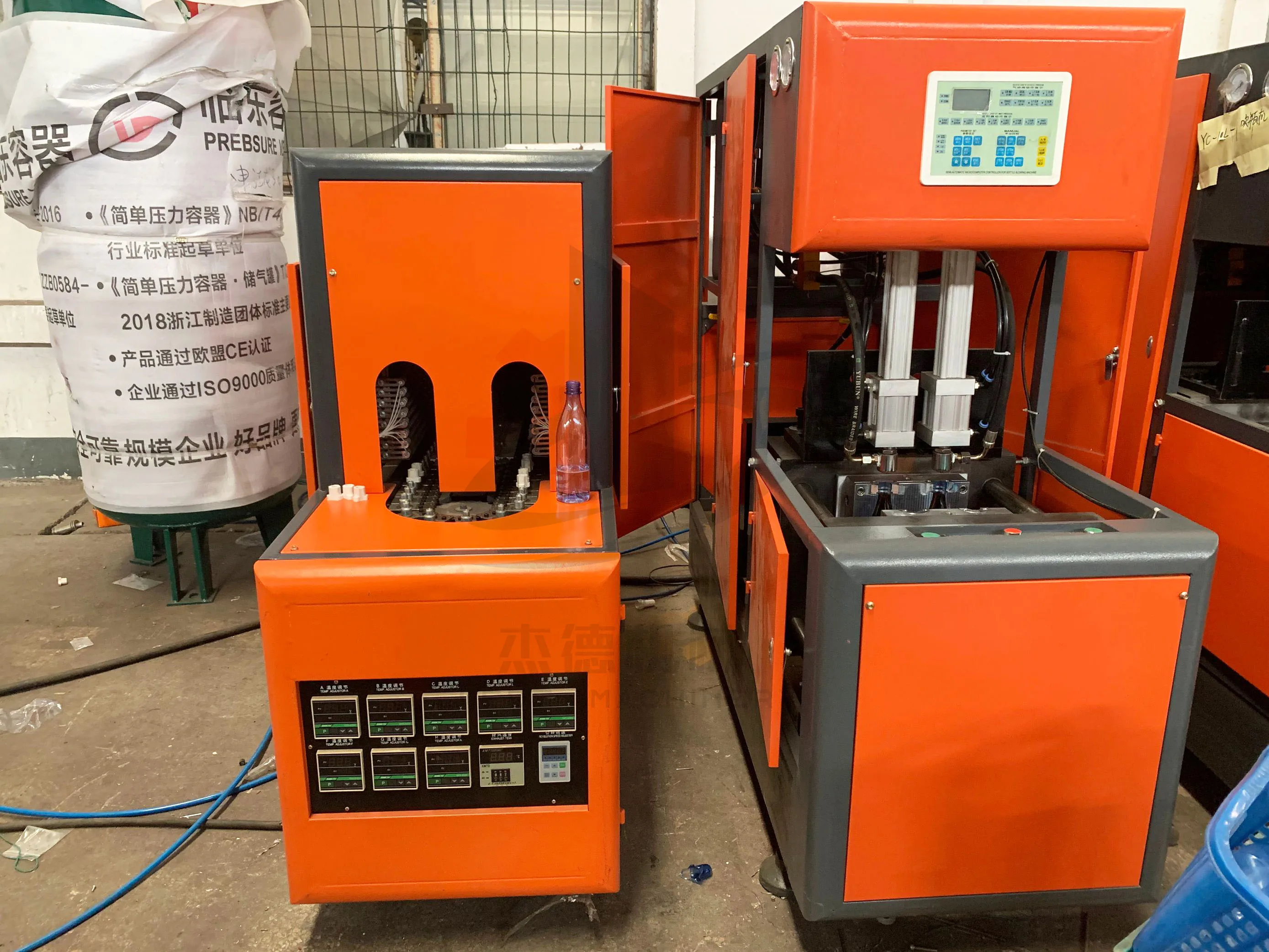

Semi Automatic Blow Molding Machine
Semi automatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Features of main body :

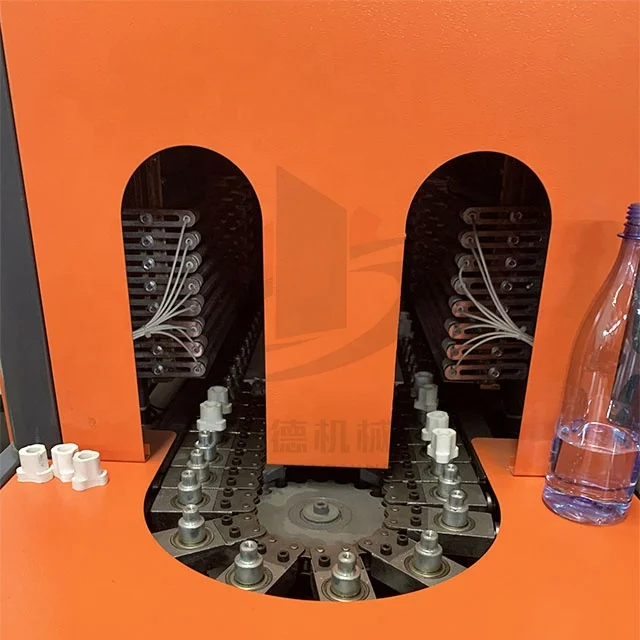

● Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.

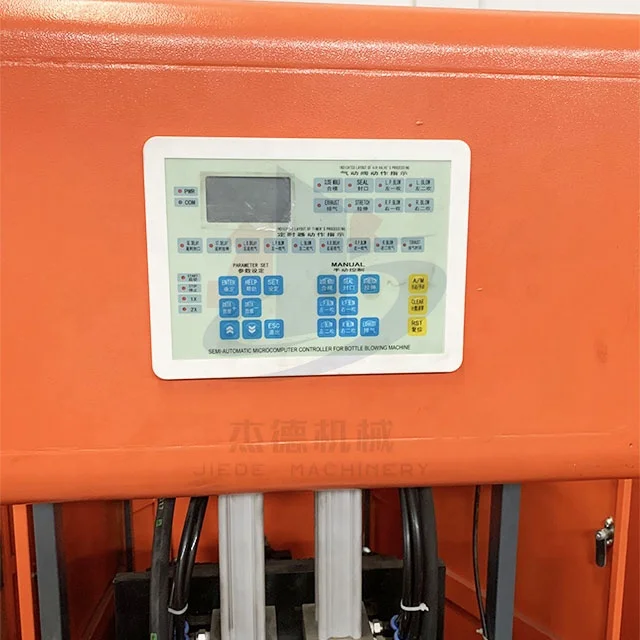

● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment, easy and safe to operate .
Type | JD-880 | ||
output | According to bottle type | 80-100PCS/H | |
Product species | Bottle diameter | 150mm-300mm | |
bottle height | 250mm-550mm | ||
Bottle mouth diameter | 15mm-100mm | ||
mould | cavity | 1cavities | |
mould thickness | 200~450mm | ||
Effective area of mold | 600*600mm | ||
main power | Power | 380v 4Phase /220v 2Phase 50/60HZ | |
install power/actual power | 26kw/11kw | ||

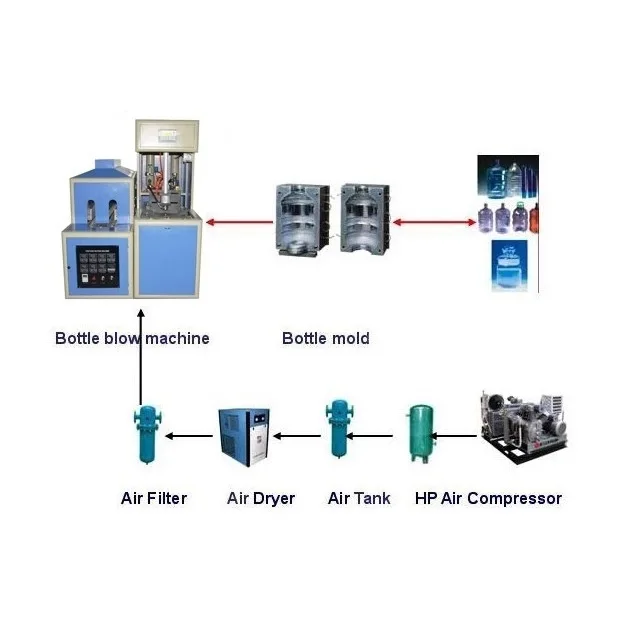

High pressure air compressor | 1.2m3/min 3.0MPa | ||
Cold dry machine | 2.0m3/min 3.0MPa 1set | ||
cooling water | Cooling water quantity | 15L/min | |
Main machine size | Length width height/weight | 2150*730*1700mm/950kg | |
Oven size | Length width height /weight | 2450*680*1580mm/650kg | |
First step:Use hoist convey the preform to the preform feeding system.
Second step:Use manipulator put preform on the preform holder.
Third step:Through chain convey the preform to heating system,the preform uniform heating in the oven.

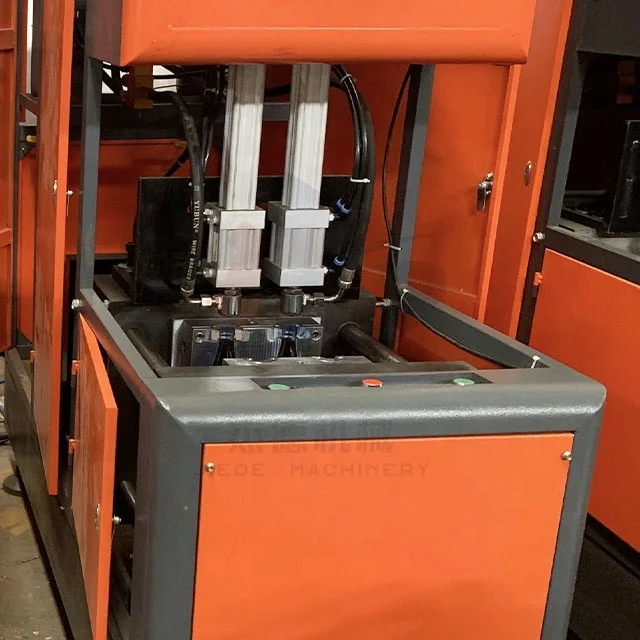

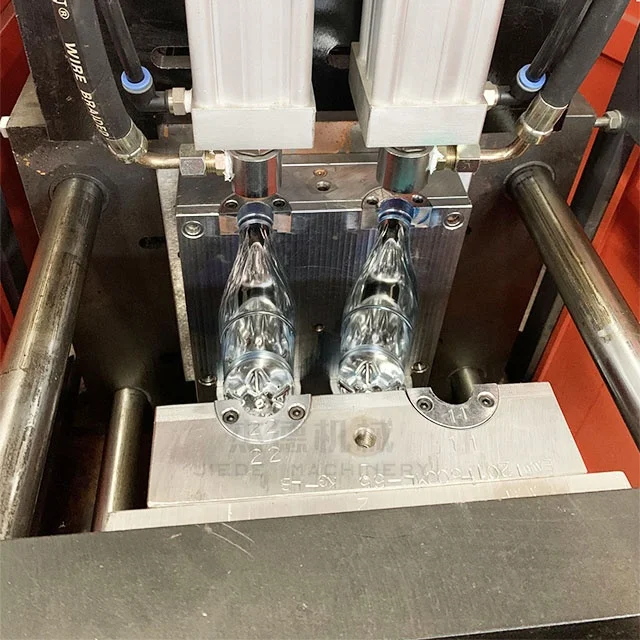

Forth step:fulfill sealing,stretching and blowing bottles in blowing system.
Fifth step:Use manipulator keep the action of bottle taking automatically.
Finish blowing bottles process.
Second step:Use manipulator put preform on the preform holder.
Third step:Through chain convey the preform to heating system,the preform uniform heating in the oven.
Forth step:fulfill sealing,stretching and blowing bottles in blowing system.
Fifth step:Use manipulator keep the action of bottle taking automatically.
Finish blowing bottles process.
Detailed Images
Packing & Delivery
Packaging | ||
Size(m) | 2.5(L) * 1.89 (W) * 2.13 (D) | |
Weight | 2.8 T-4.5T | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
